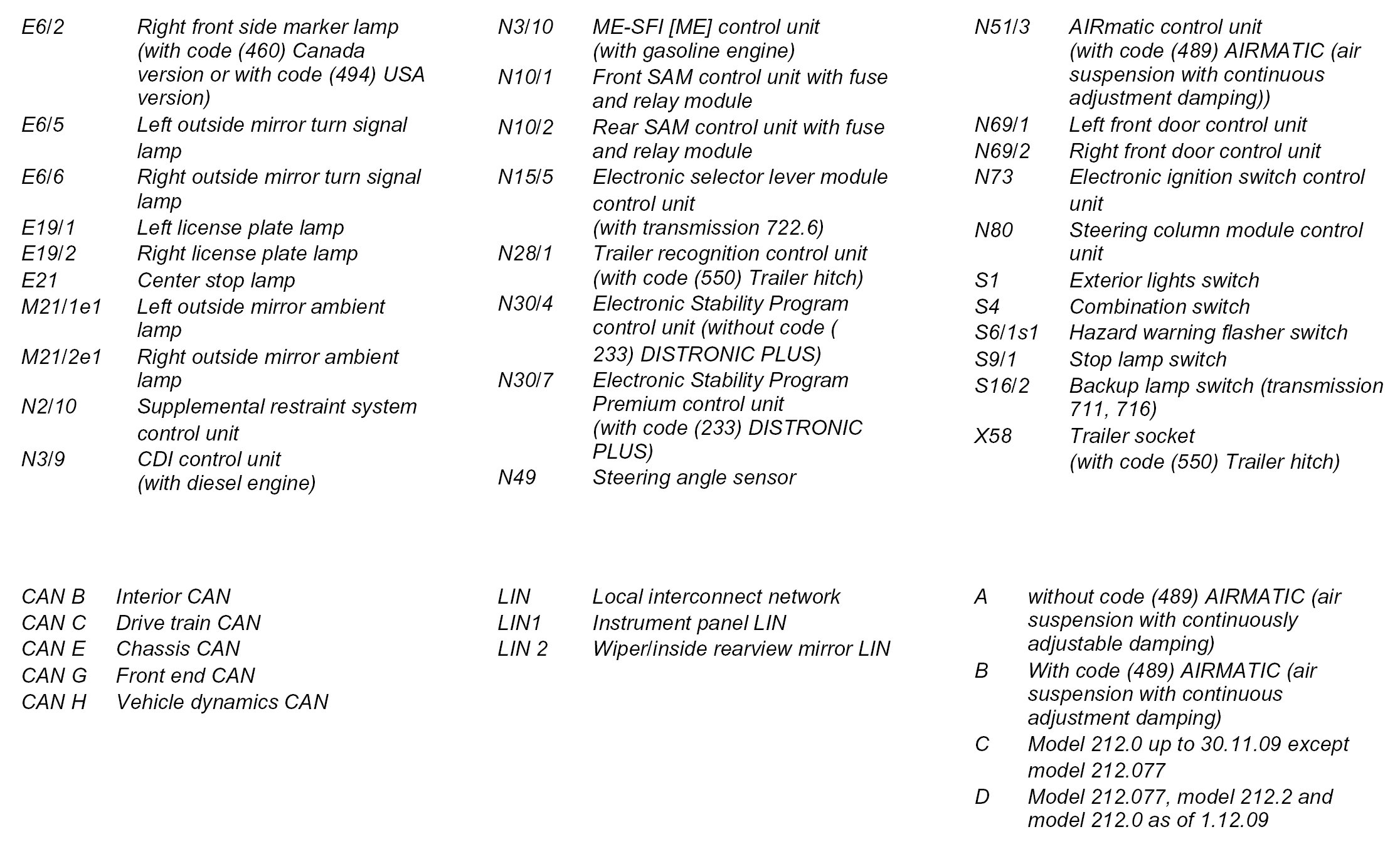

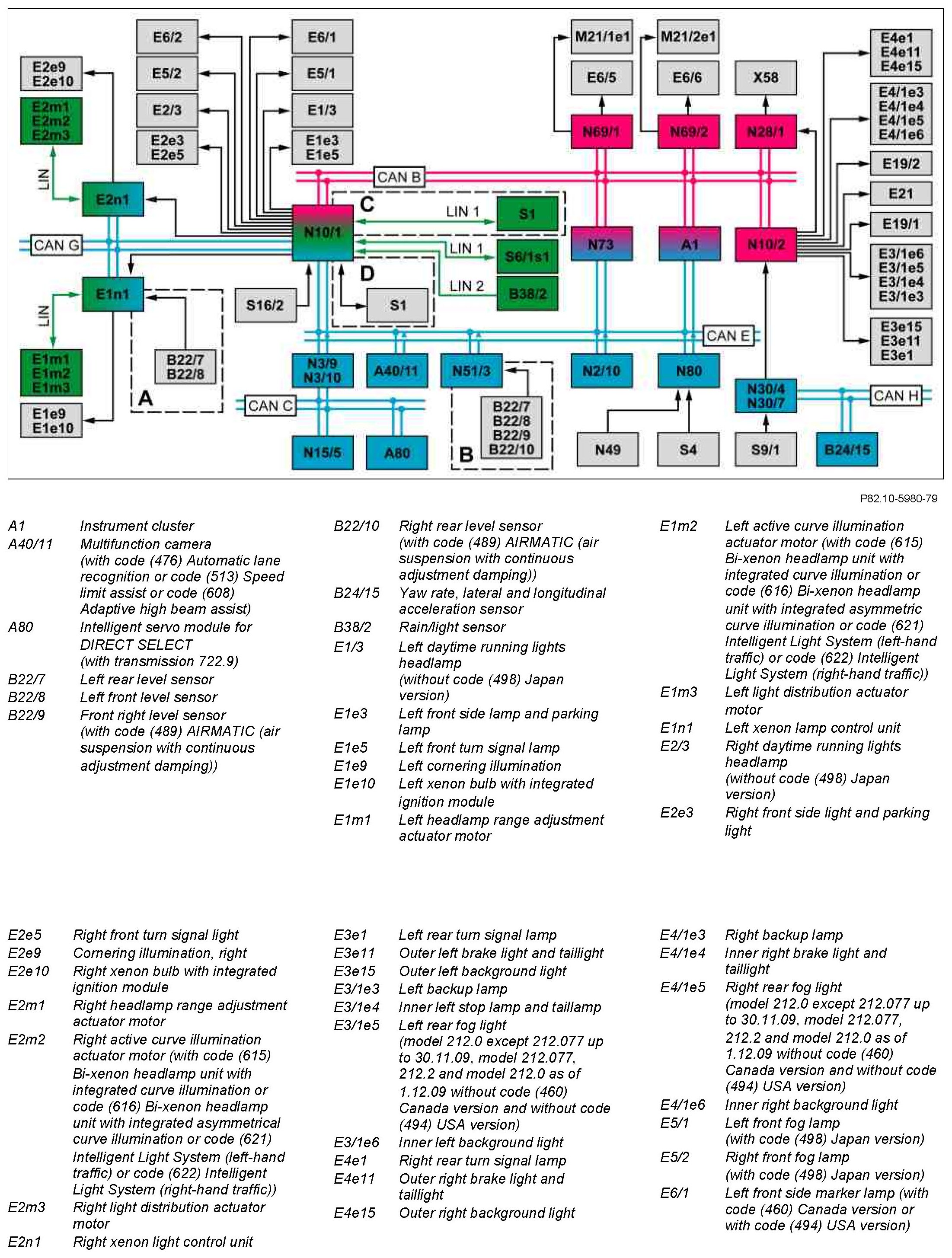

GF82.10-P-0003-03FLA Block Diagram of Exterior Lights

GF82.10-P-0003-03FLA Block Diagram Of Exterior Lights
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination
