Procedures

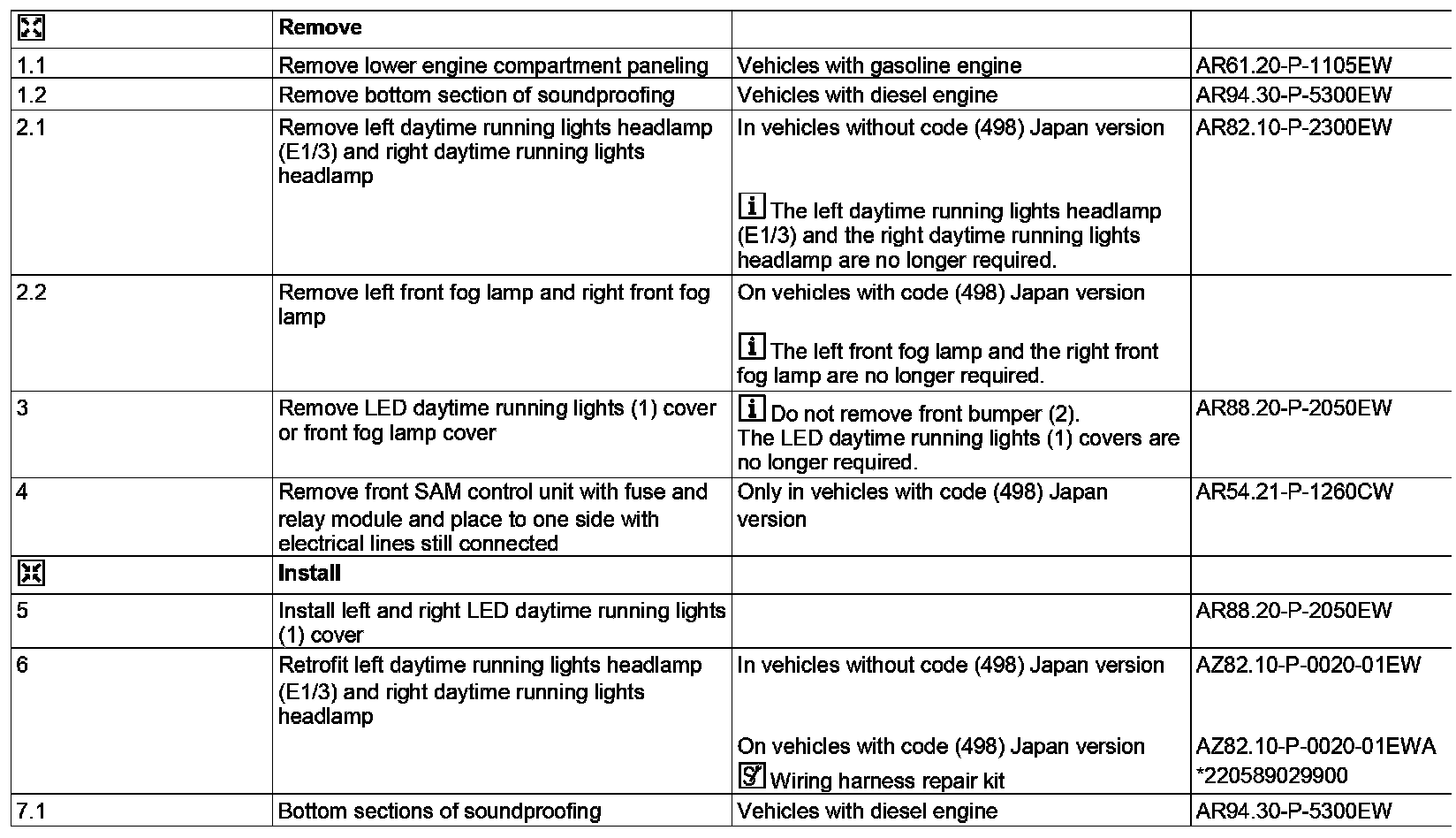

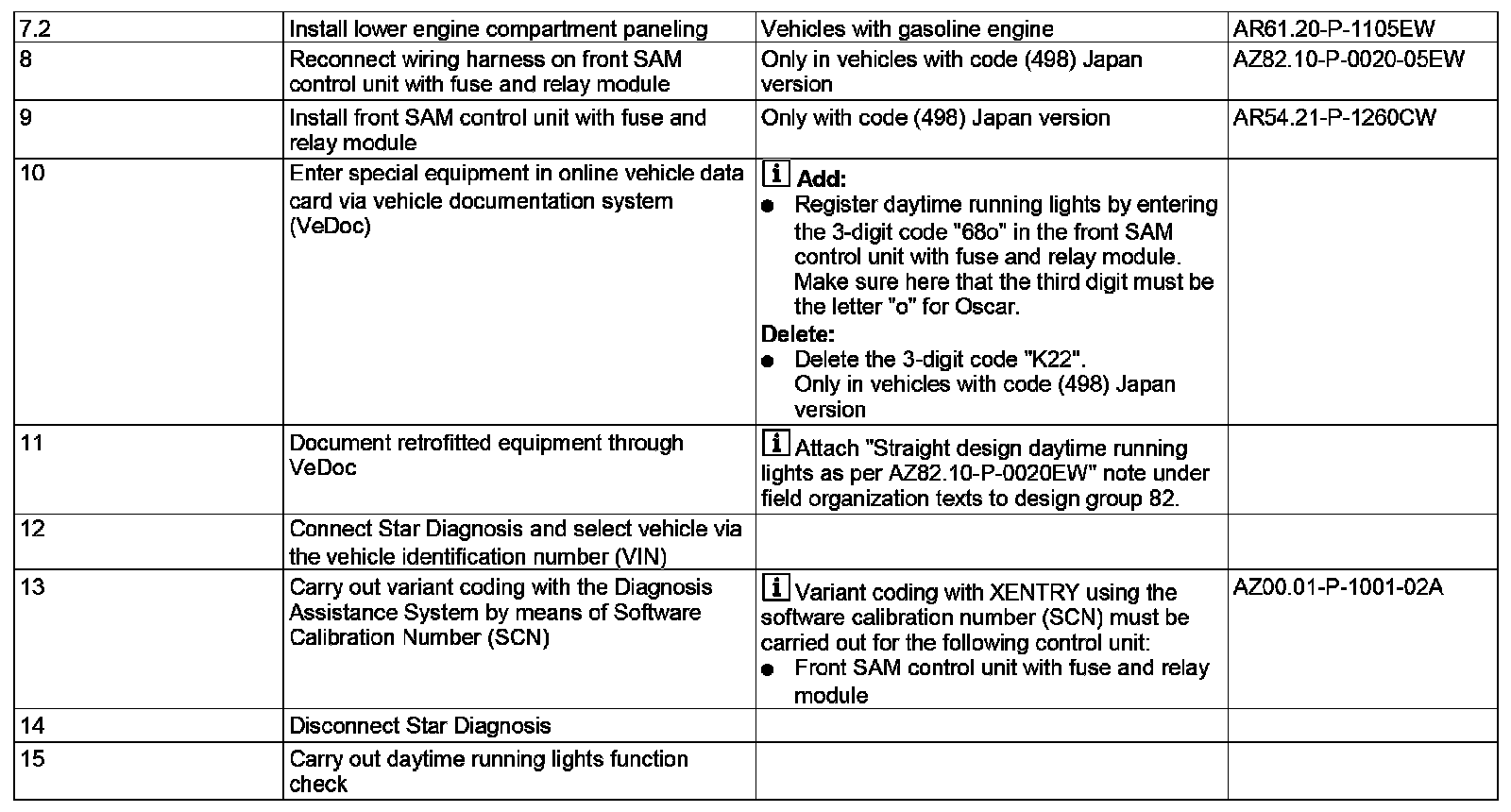

AZ82.10-P-0020EW Retrofit Daytime Running Lights
- MODEL 212.0 /1 /2 (except 212.074 /077 /274 /277)
- with CODE (800) Model year 2010
- with CODE (954) Avantgarde
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)
- except CODE (494) California version
- except CODE (460) Additional parts, Canadian vehicles
- except CODE (835) South Korea version

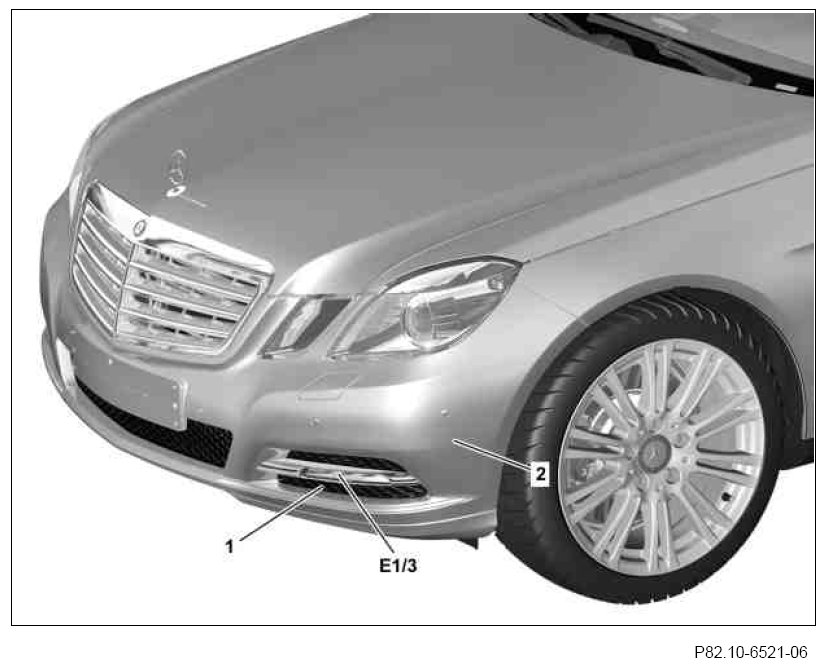

"Straight design" daytime running lights






1 LED daytime running lights cover (without code (498) Japan version)
2 Front bumper
E1/3 Left daytime running lights headlamp (without code (498) Japan version)

��4a:

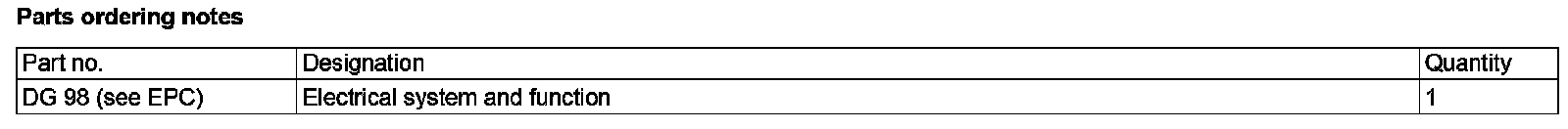

220 589 02 99 00, Wiring harness repair kit
