GF40.15-P-0002-01FL Tire Pressure Loss Warning (RDW), Location of Components



GF40.15-P-0002-01FL Tire pressure loss warning (RDW), location of components
- with CODE (475) Tire pressure monitor (Premium) Fa. Schrader

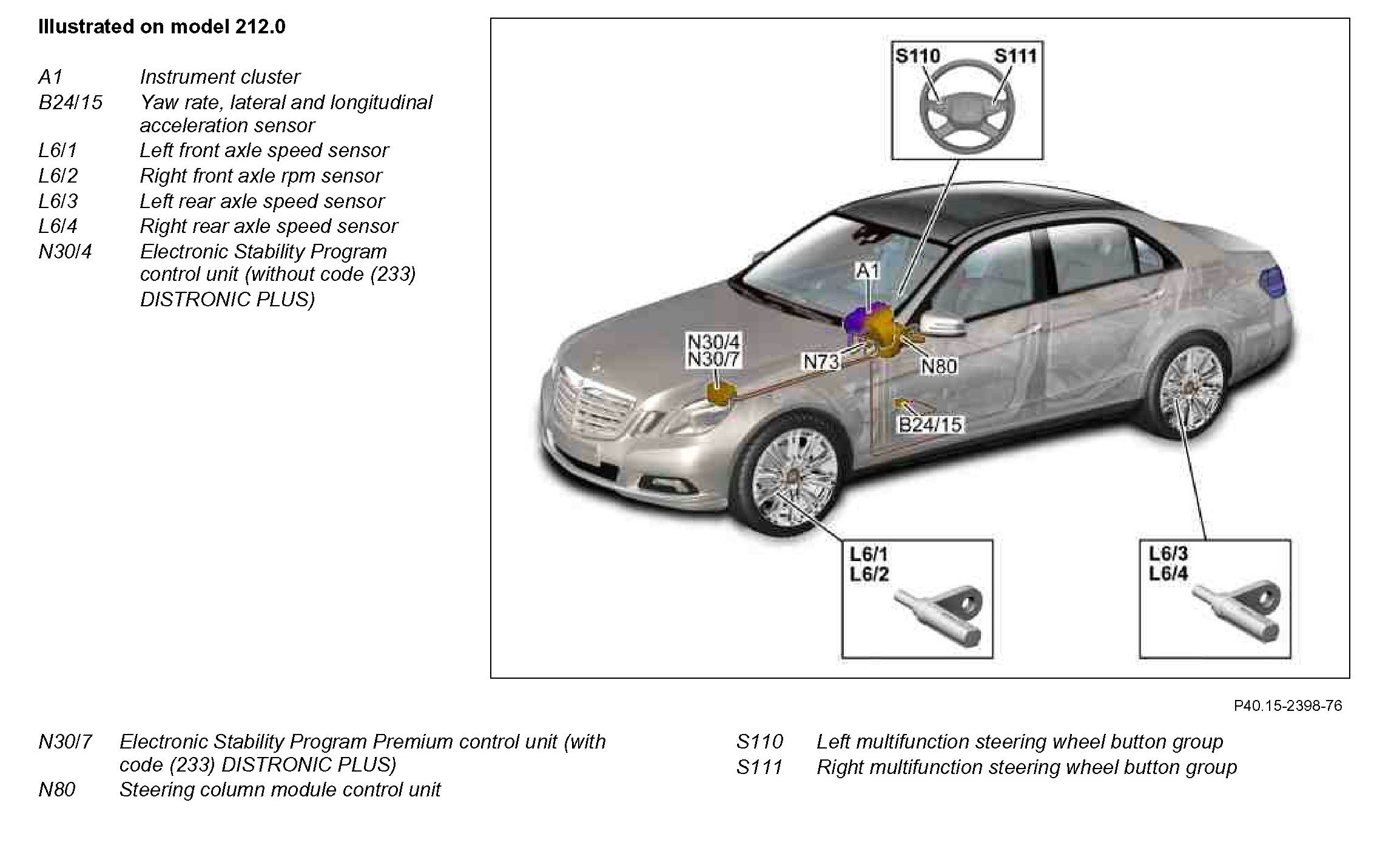

Component Identification:
