GF40.15-P-0001-06FL Tire Pressure Monitor (TPM (RDK)) Location of Components

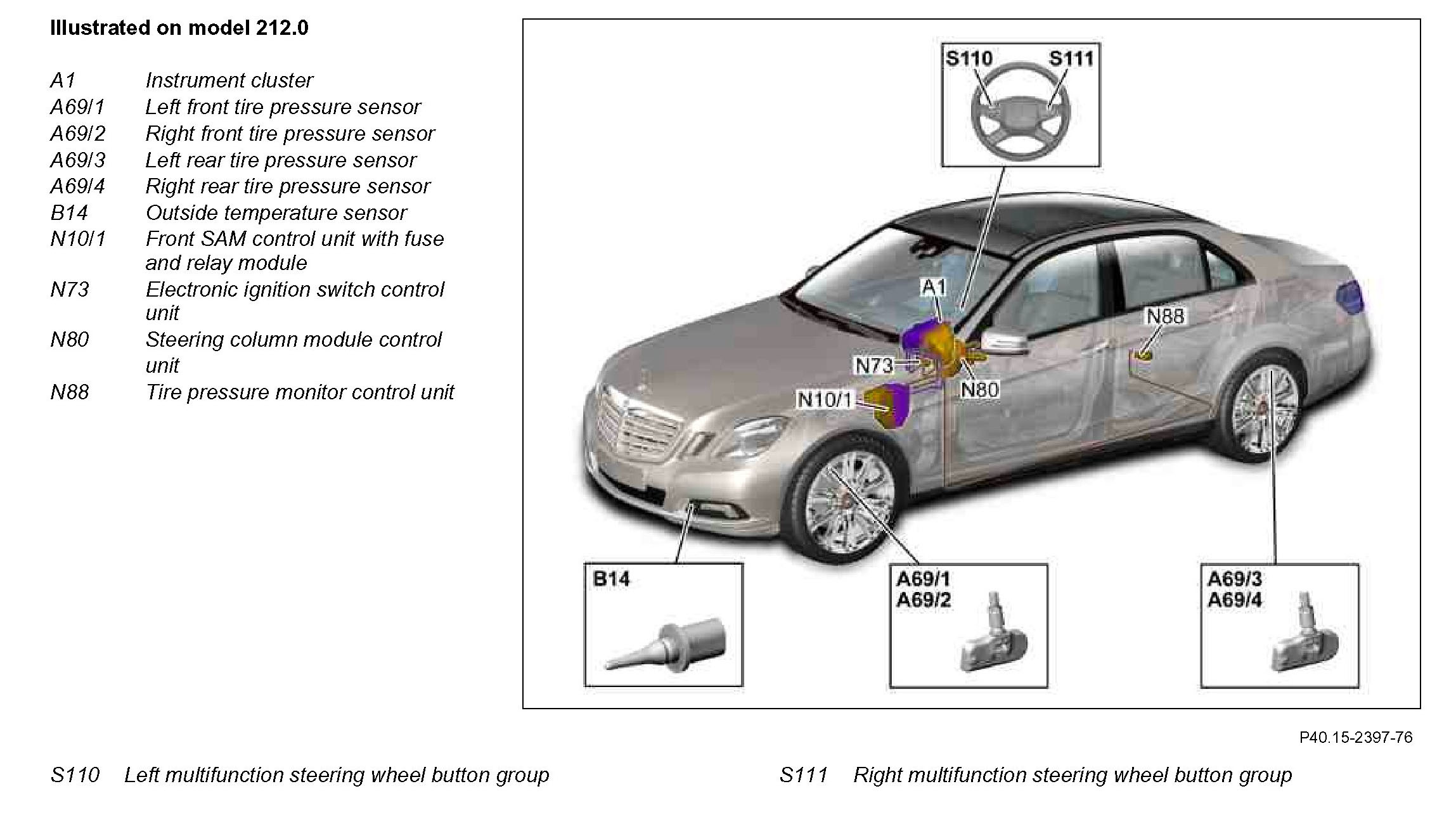

GF40.15-P-0001-06FL Tire pressure monitor (TPM [RDK]) location of components
- with CODE (475) Tire pressure monitor (premium) Fa. Schrader


Component Identification:
