Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Description and Operation
>>

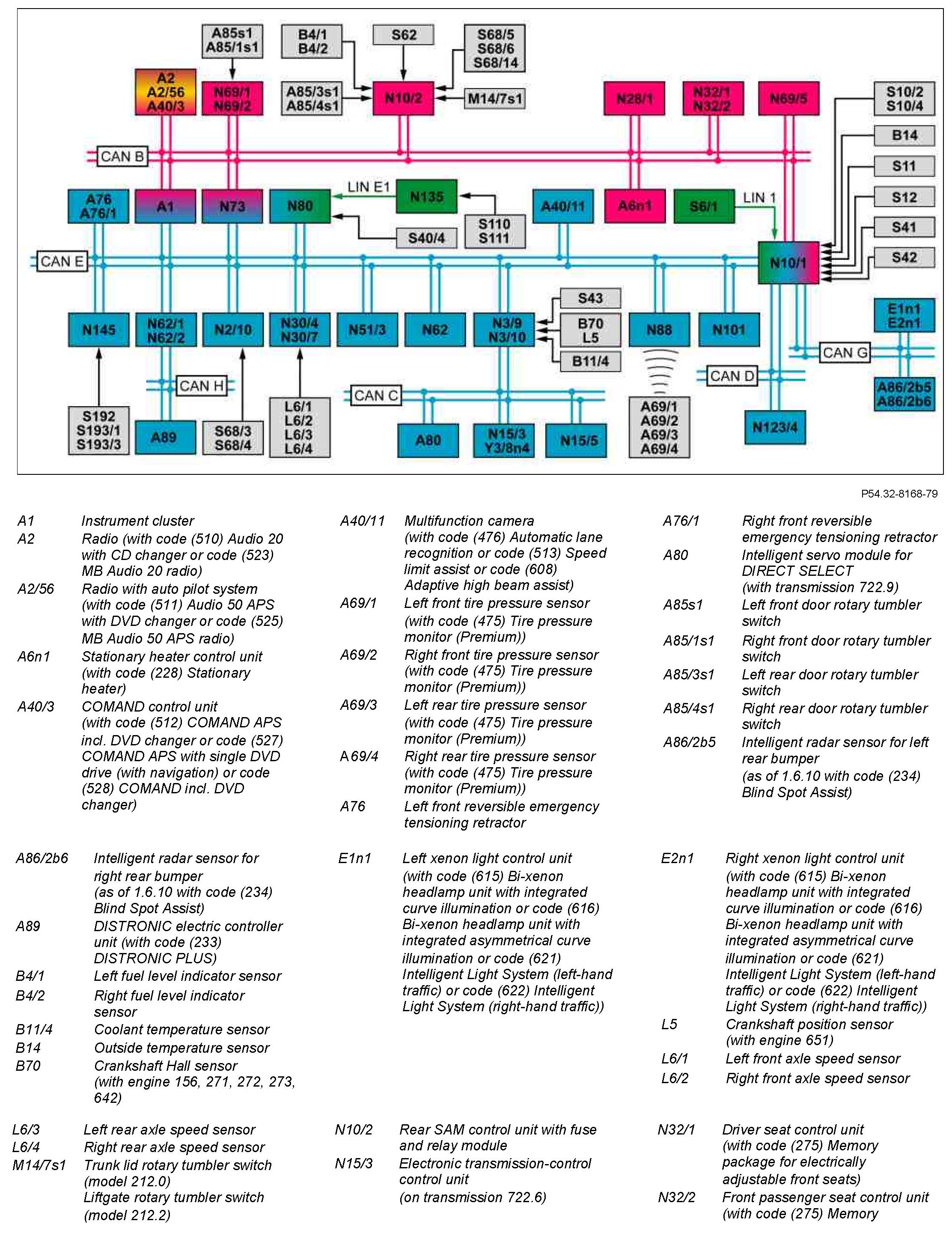

GF54.30-P-0002-01FL Instrument Cluster (IC), Block Diagram
GF54.30-P-0002-01FL Instrument Cluster (IC), Block Diagram
GF54.30-P-0002-01FL Instrument Cluster (IC), Block Diagram

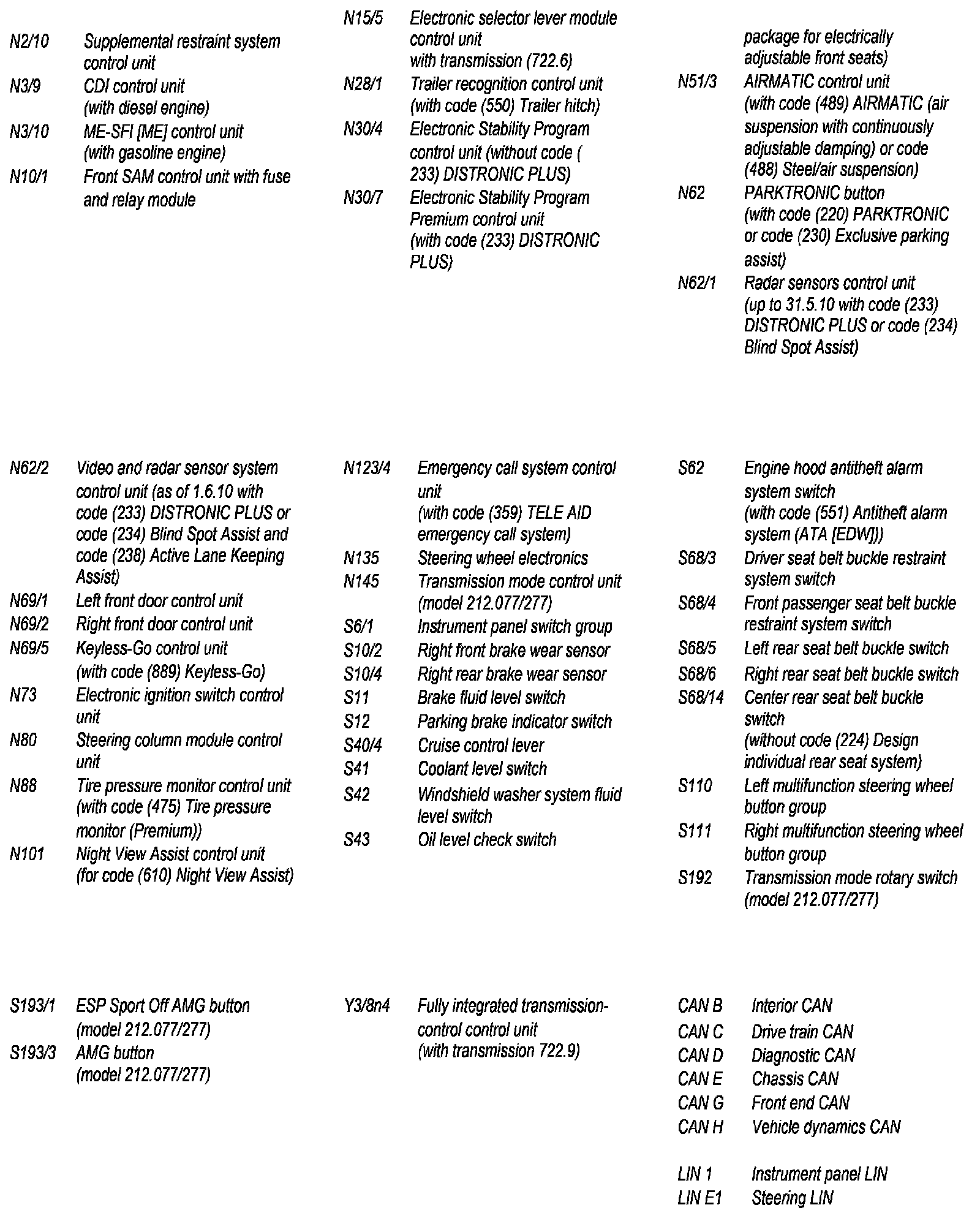

Component Identification:
