AR54.10-P-0030EW Remove/Install Cigarette Lighter



AR54.10-P-0030EW Remove/install Cigarette Lighter
- with CODE (279) Electronic gear selector

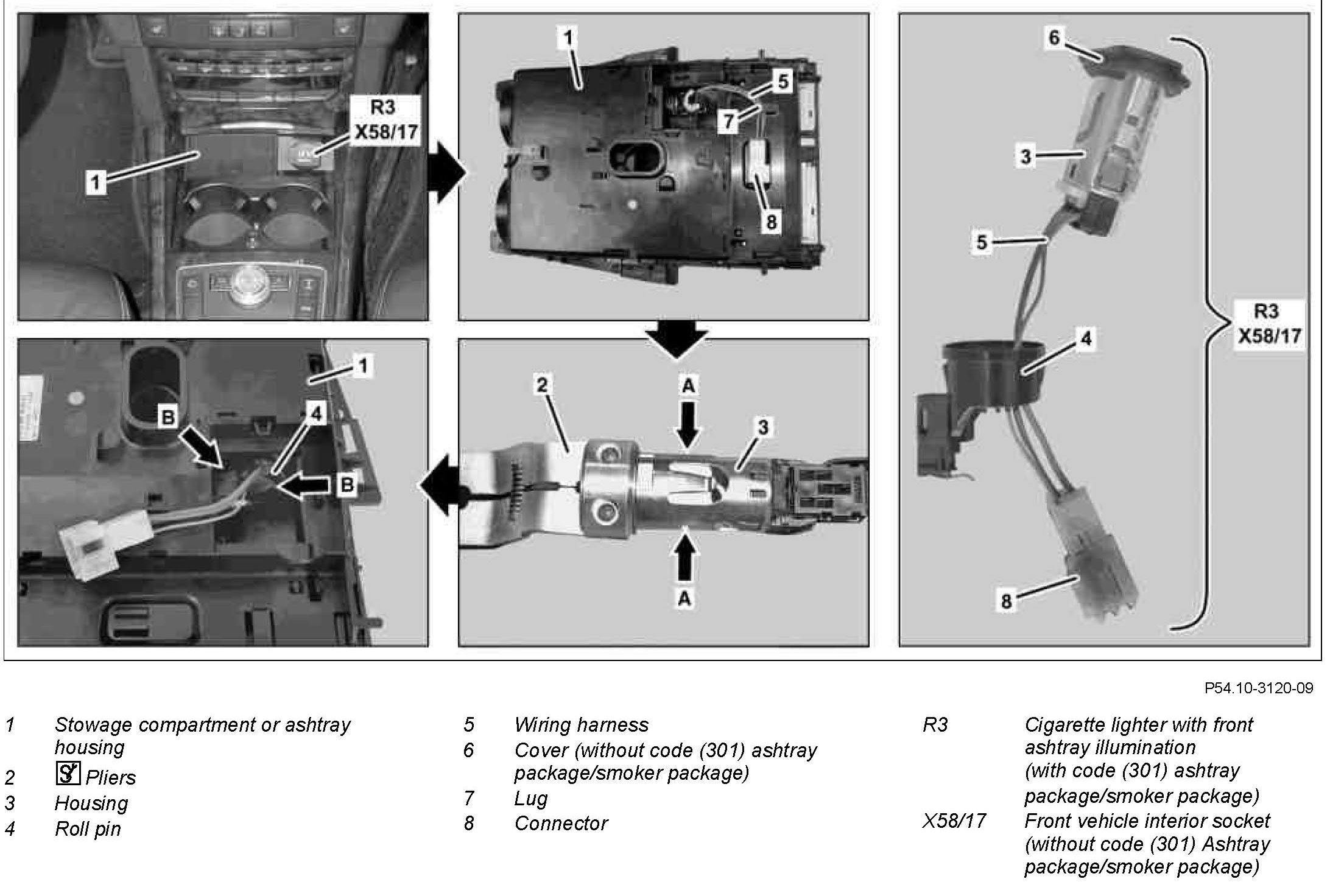

Component Identification:

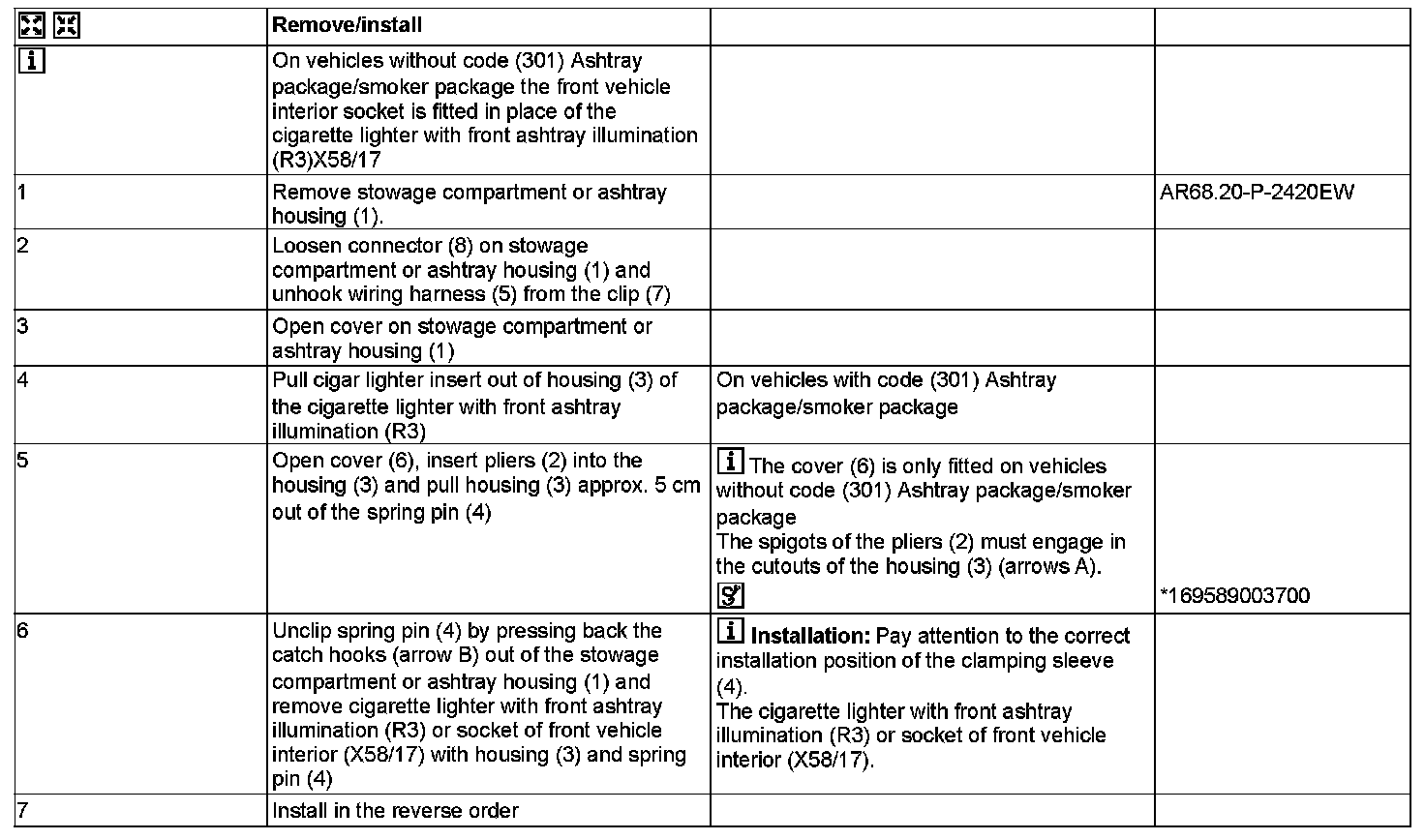

Steps 1-7:

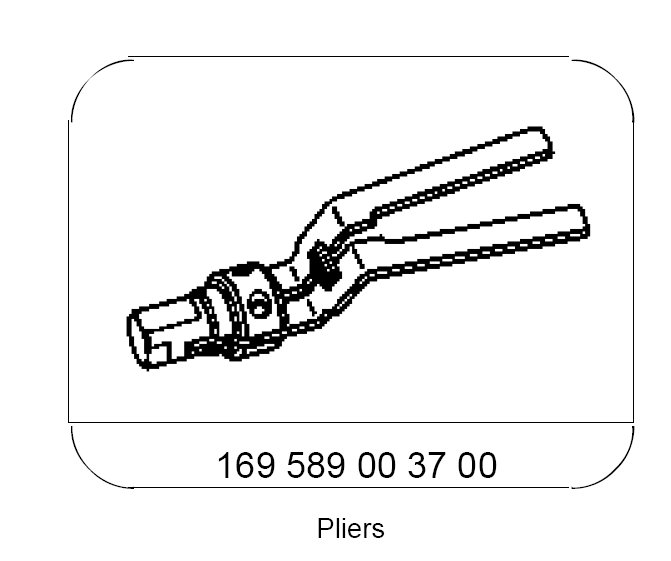

Special Tools:
