Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Heating and Air Conditioning >> Service and Repair >> Procedures >> AR83.30-P-1760CW Drain, Evacuate And Refill Air Conditioning, Check Function And Check For Leaks

AR83.30-P-1760CW Drain, Evacuate And Refill Air Conditioning, Check Function And Check For Leaks



AR83.30-P-1760CW Drain, Evacuate And Refill Air Conditioning, Check Function And Check For Leaks

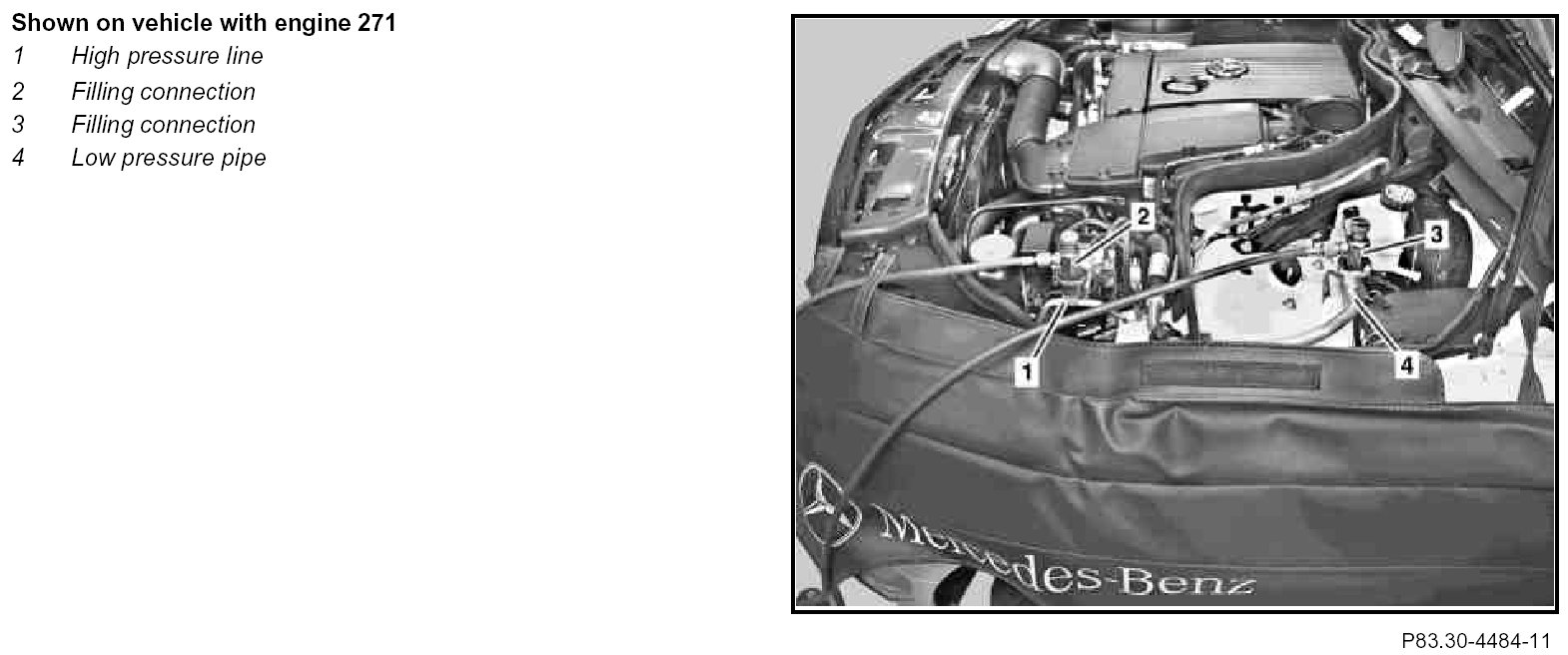

Component Identification:




Modification Notes:

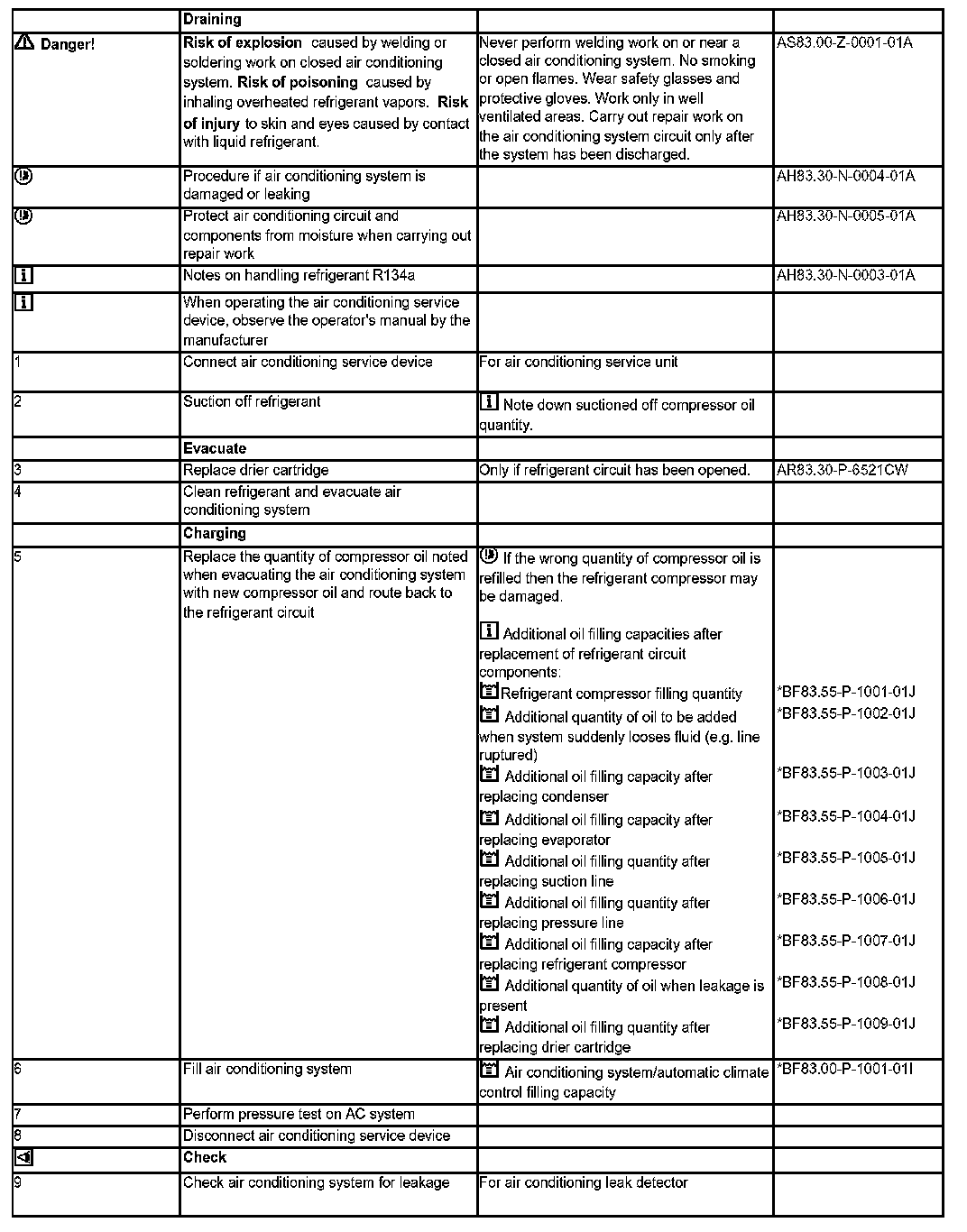

Steps 1 - 9:




Air Conditioning System/Automatic Air Conditioning:

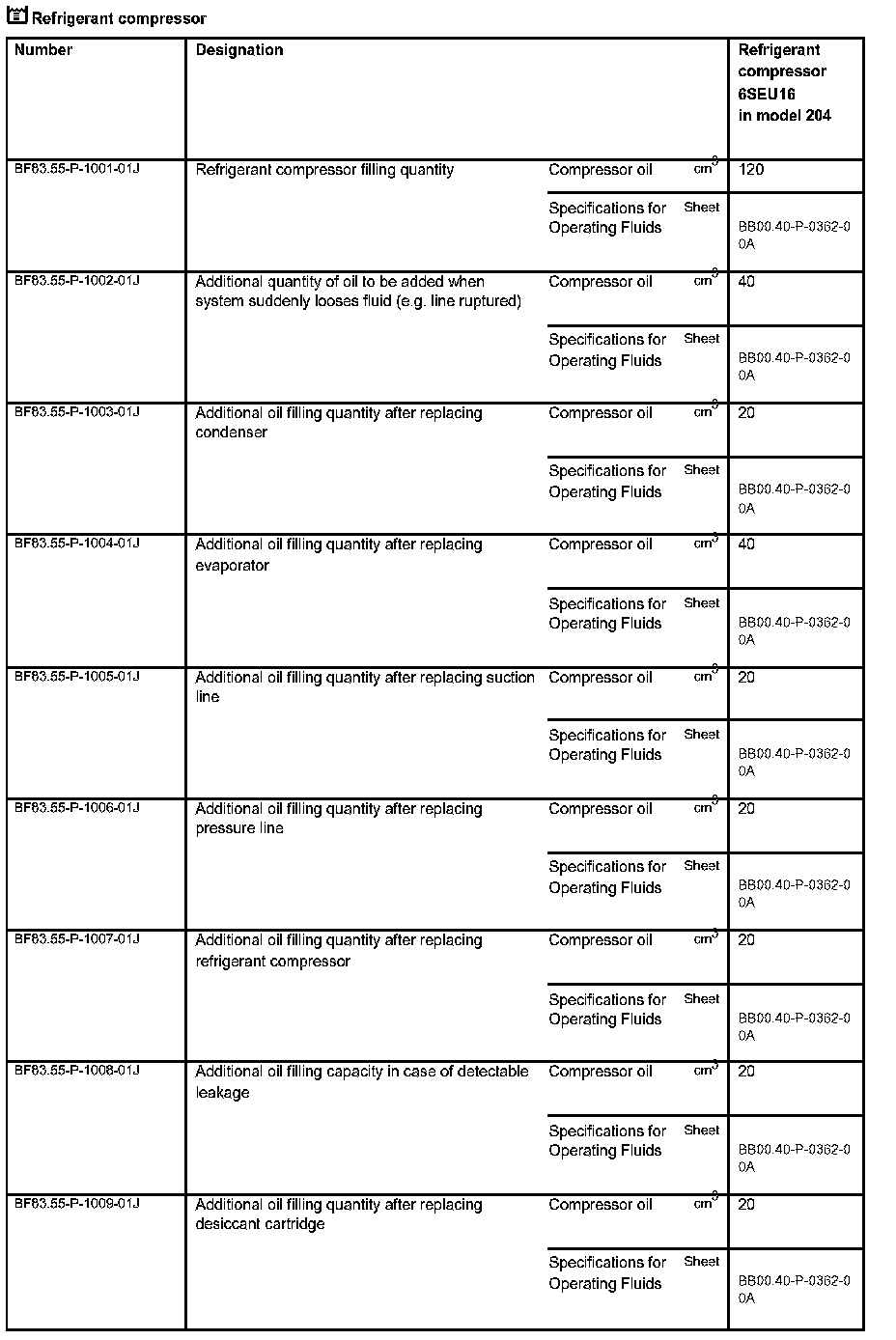

Refrigerant Compressor:
