Receiver Dryer: Service and Repair

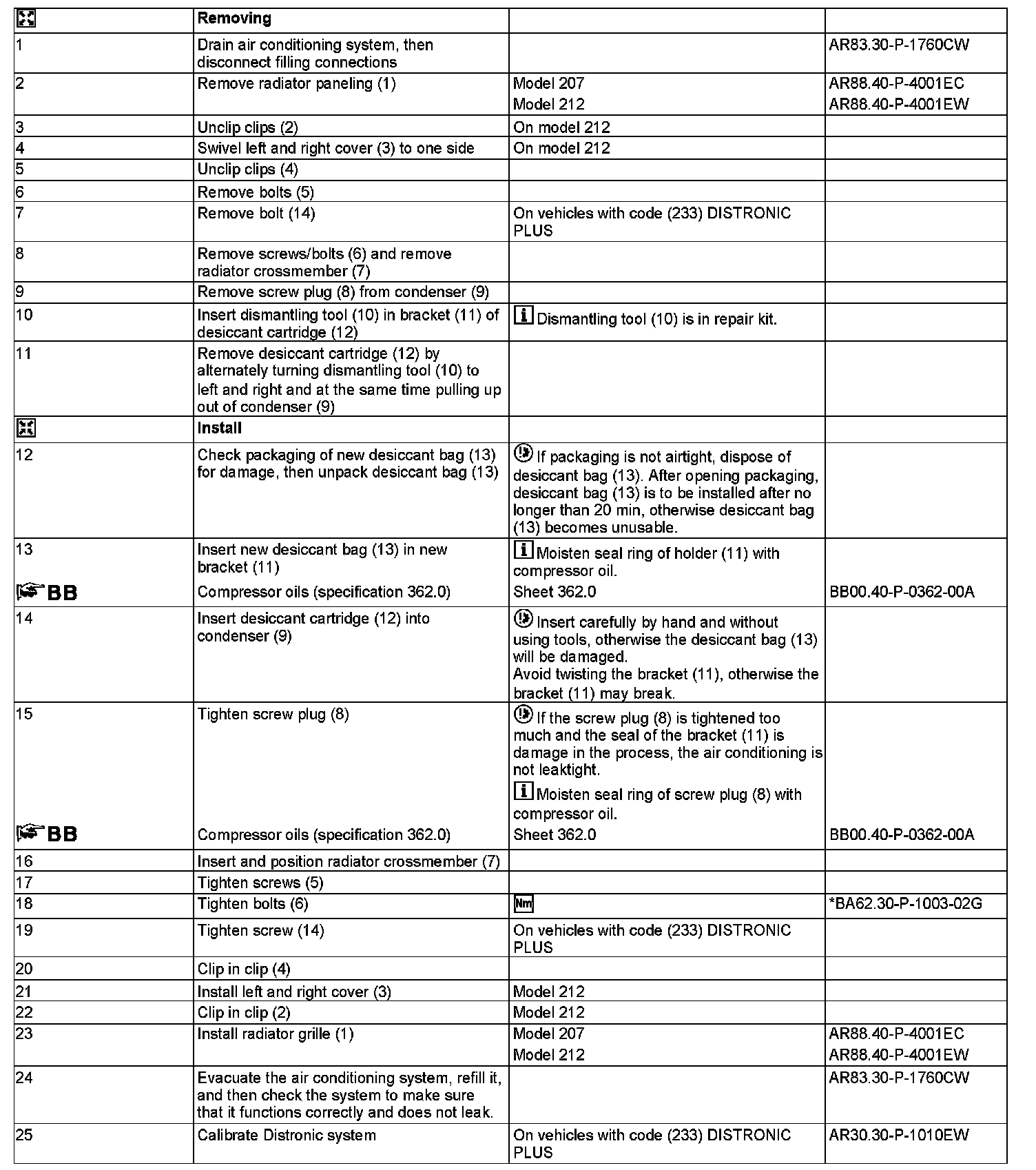

AR83.30-P-6521EW Remove and Install Desiccant Cartridge
MODEL 207
MODEL 212 (except 212.077 /277)

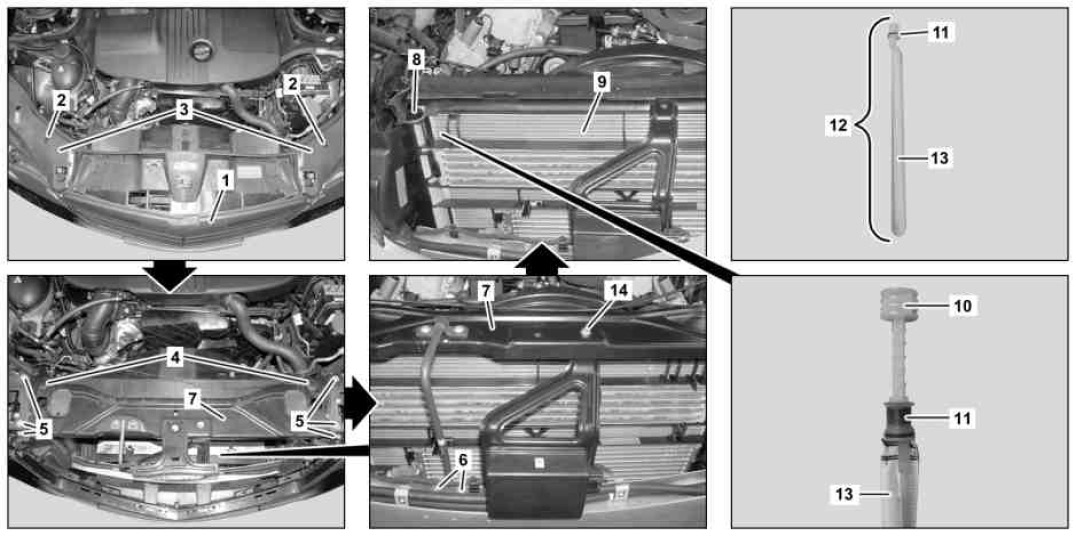

Shown on model 212 with engine 651 and code (233) DISTRONIC PLUS
1 Radiator grille
2 Clip (model 212)
3 Covers (model 212)
4 Clip
5 Bolts
6 Bolts
7 Radiator crossmember
8 Screw plug
9 Capacitor
10 Removal tool
11 Bracket
12 Desiccant cartridge
13 Desiccant bag
14 Screw/bolt (with code (233) DISTRONIC PLUS)
