AR83.30-P-5200CW Remove/Install AC Housing
AR83.30-P-5200CW Remove/Install AC Housing
AR83.30-P-5200CW Remove/Install AC Housing

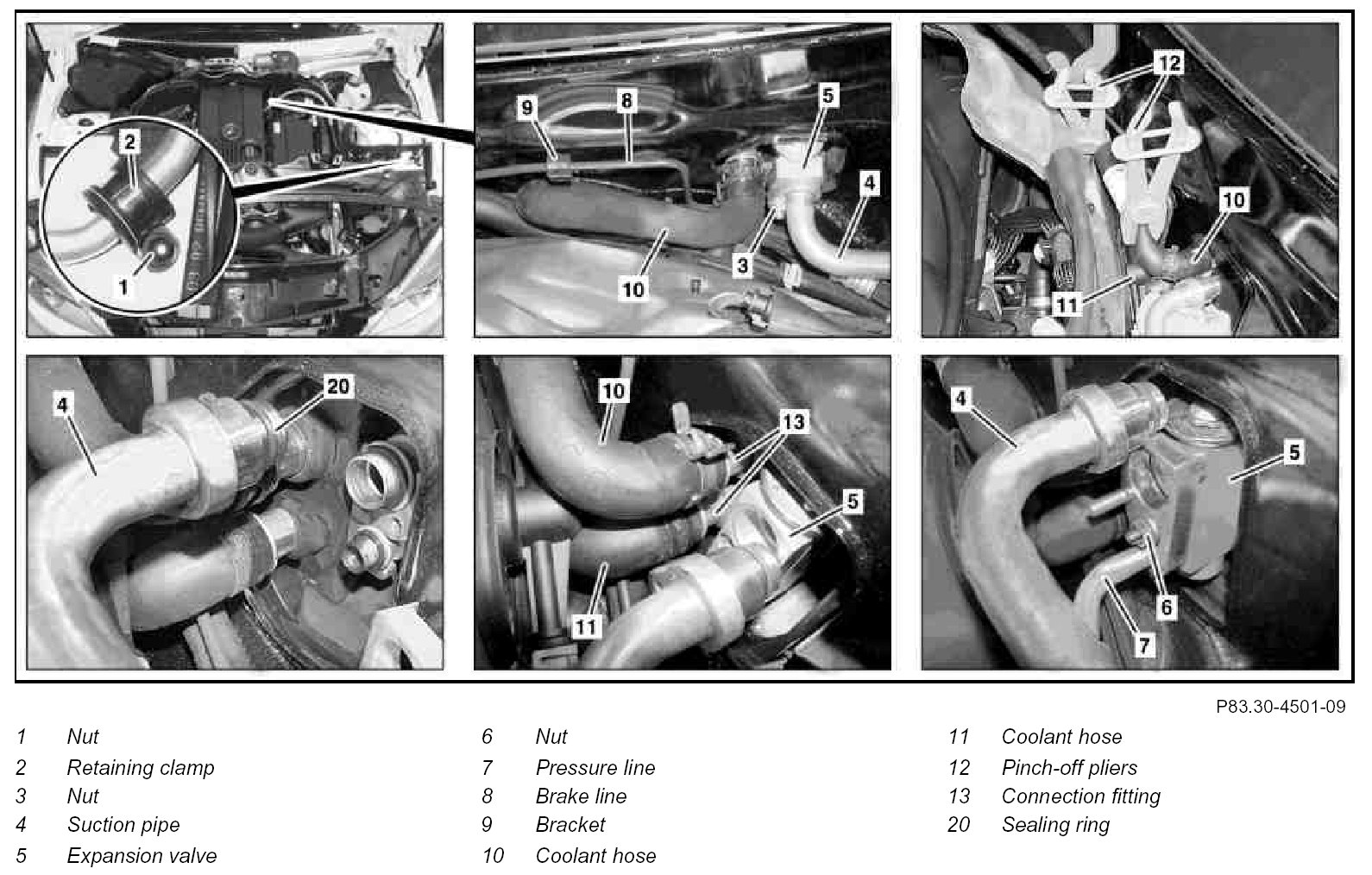

Component Identification:

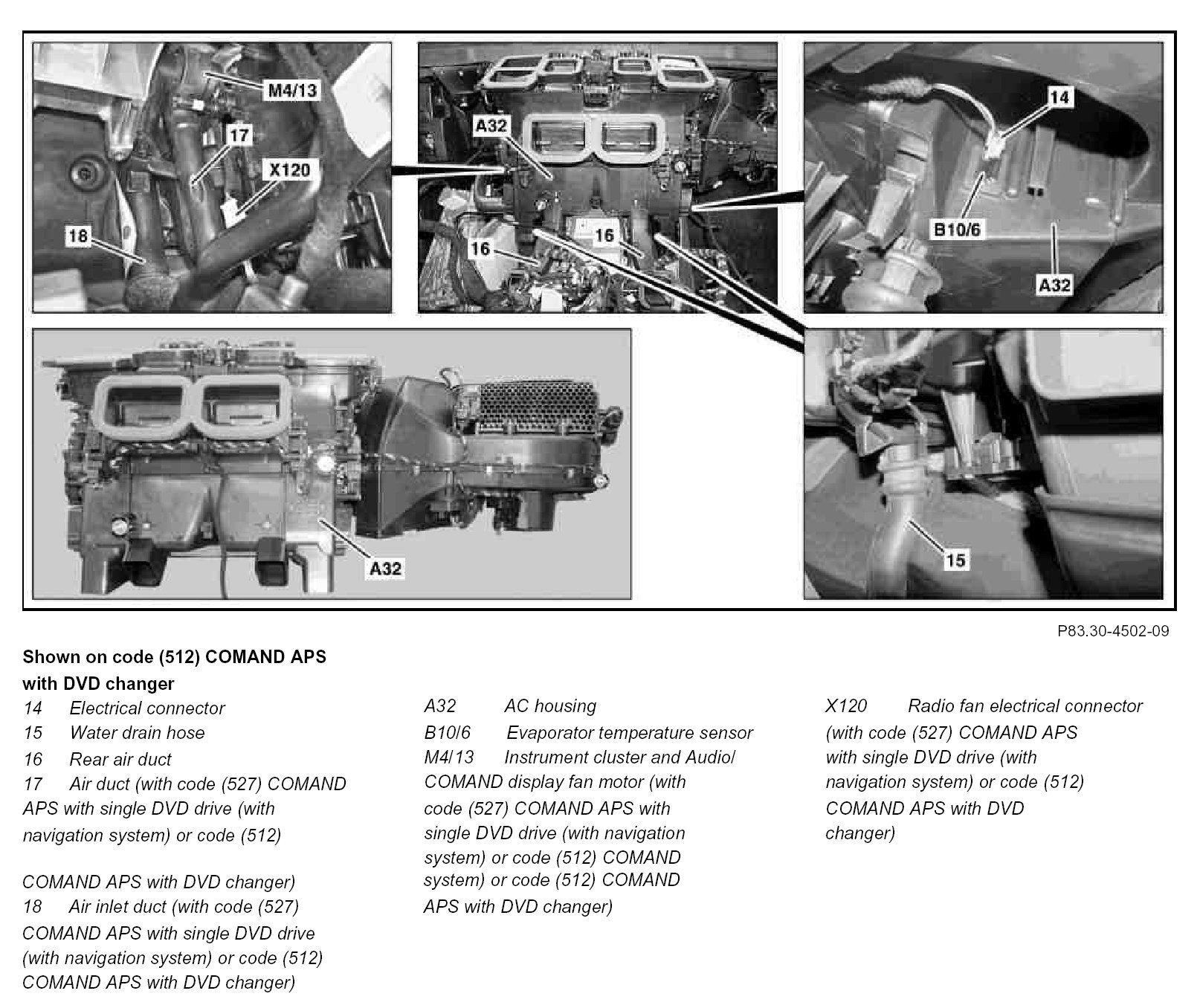

Component Identification:

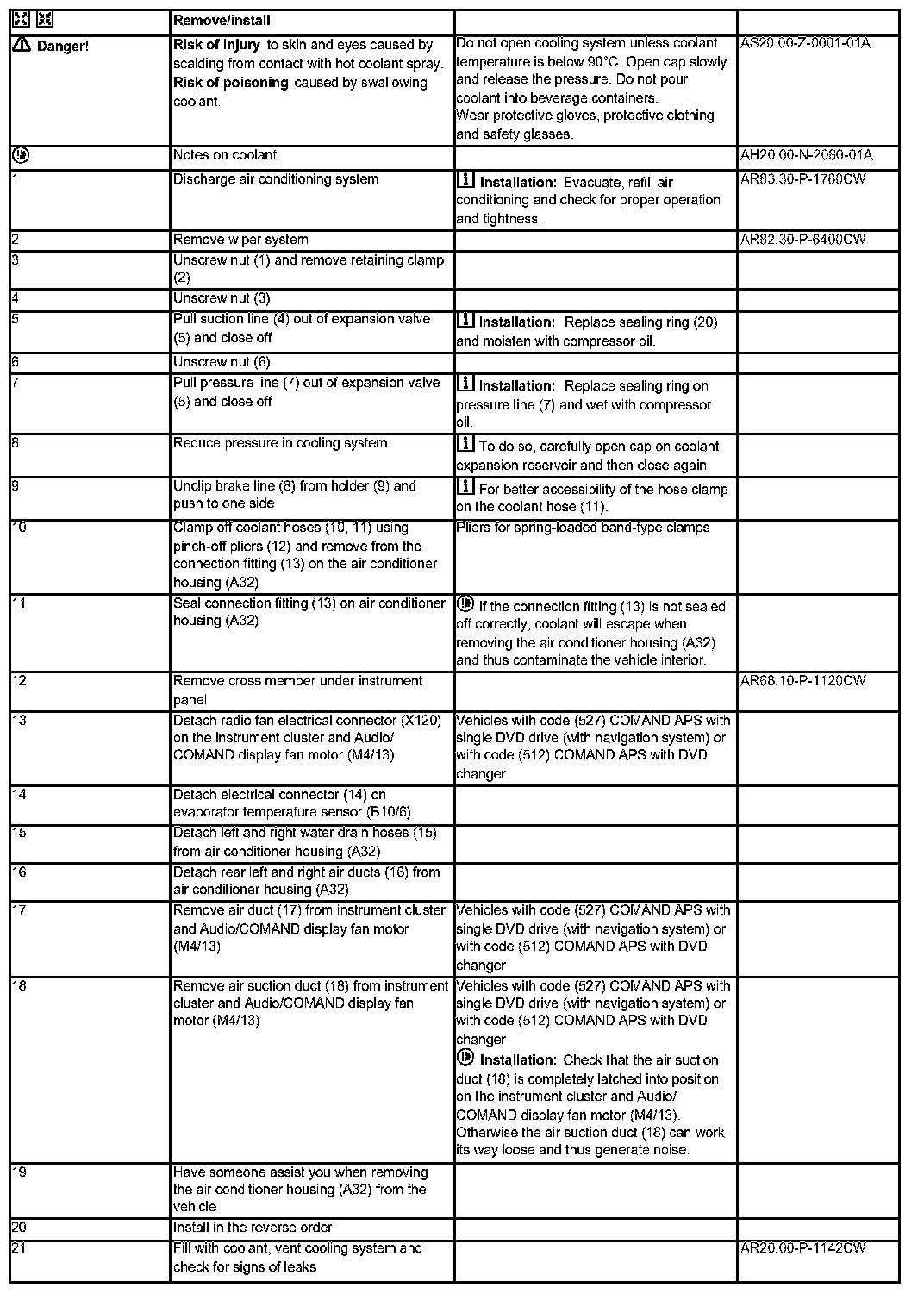

Steps 1 - 21:
