Evaporator Core: Service and Repair
AR83.30-P-5540CW Remove/Install Evaporator

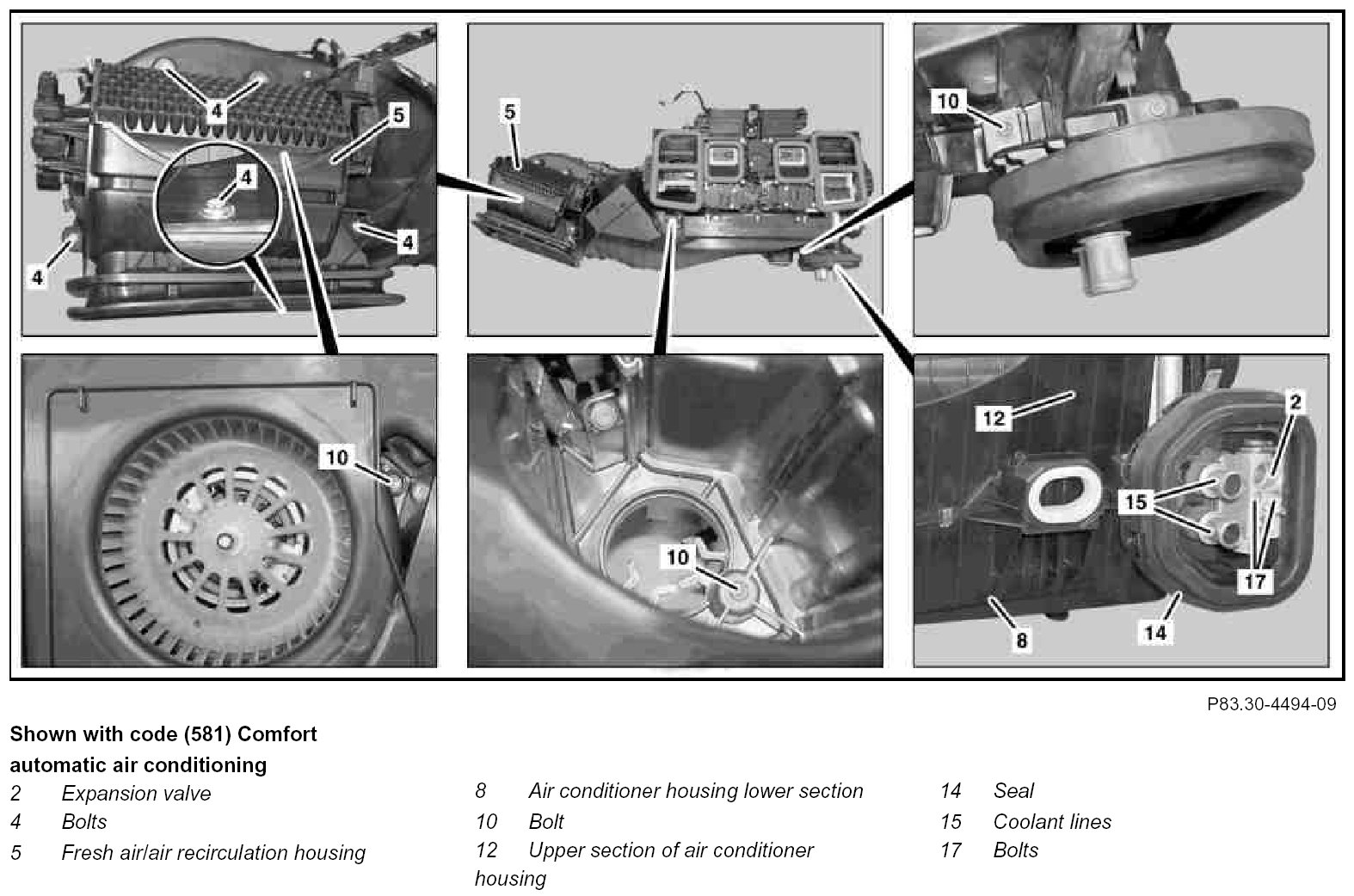

Component Identification:

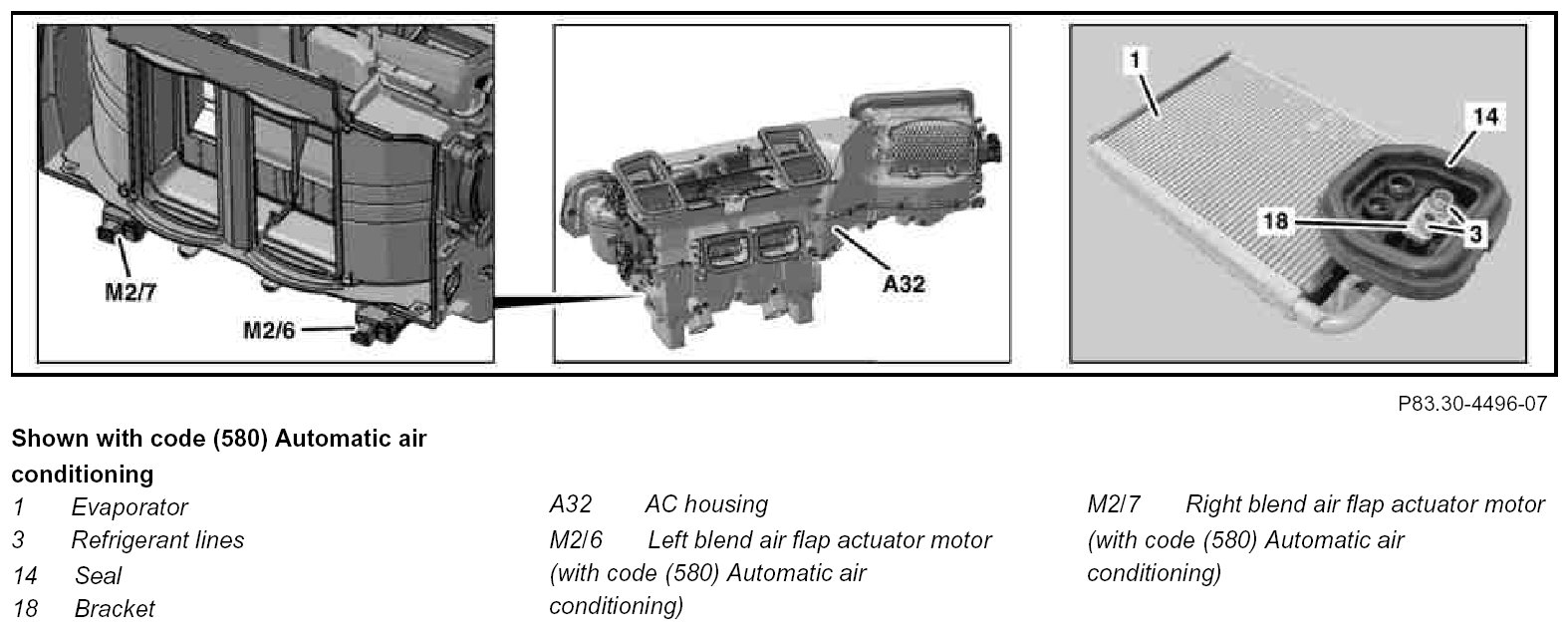

Component Identification:
Component Identification:

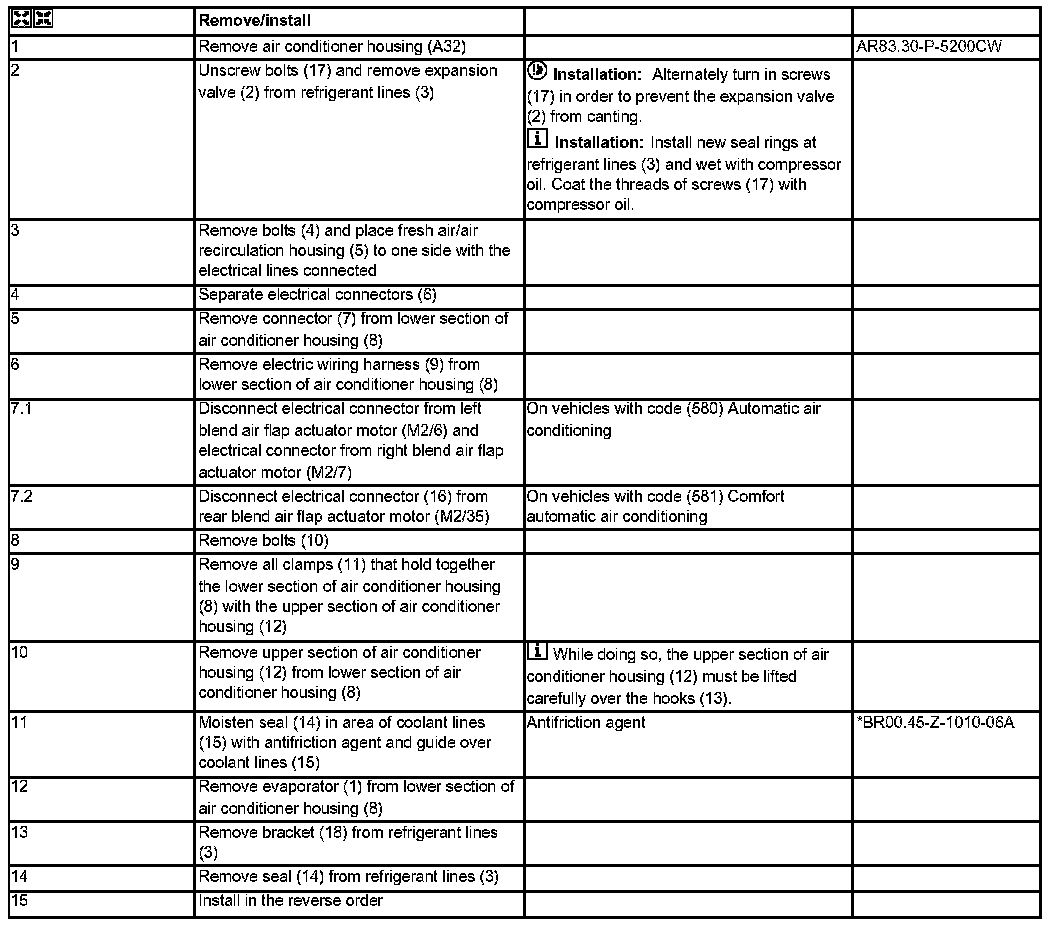

Steps 1 - 15:
Repair Materials:
