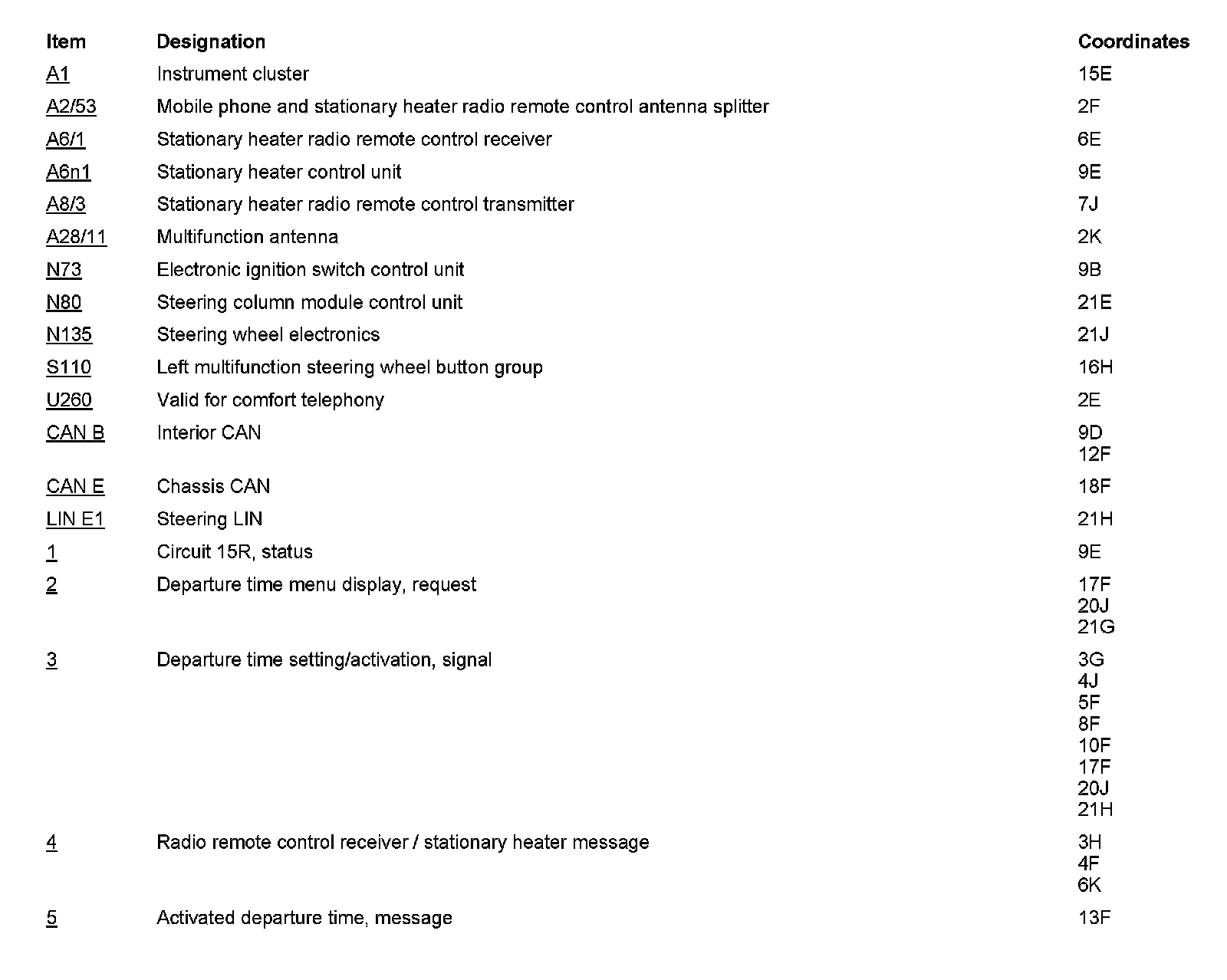

PE83.70-P-2057DAA Electrical Function Schematic, Programming Departure Time MODEL 212.0 /2 With CODE (228) Stationary Heater

PE83.70-P-2057DAA Electrical Function Schematic, Programming Departure Time MODEL 212.0 /2 With CODE (228) Stationary Heater
MODEL 212.0 /2
- with CODE (228) Stationary heater


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
