AR83.40-P-6350EW Remove/Install Control and Operating Unit
AR83.40-P-6350EW Remove/Install Control and Operating Unit
AR83.40-P-6350EW Remove/install Control And Operating Unit

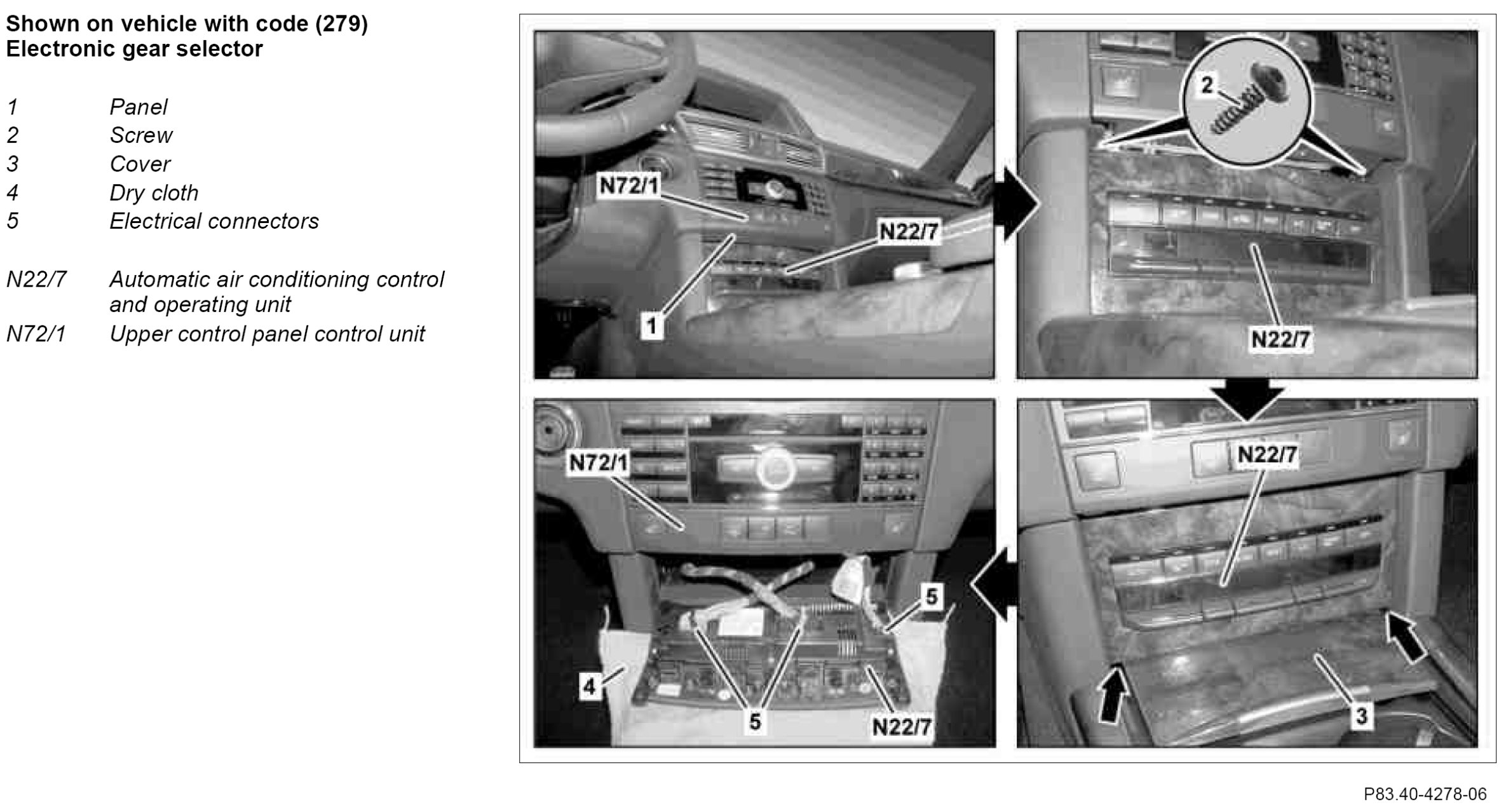

Component Identification:

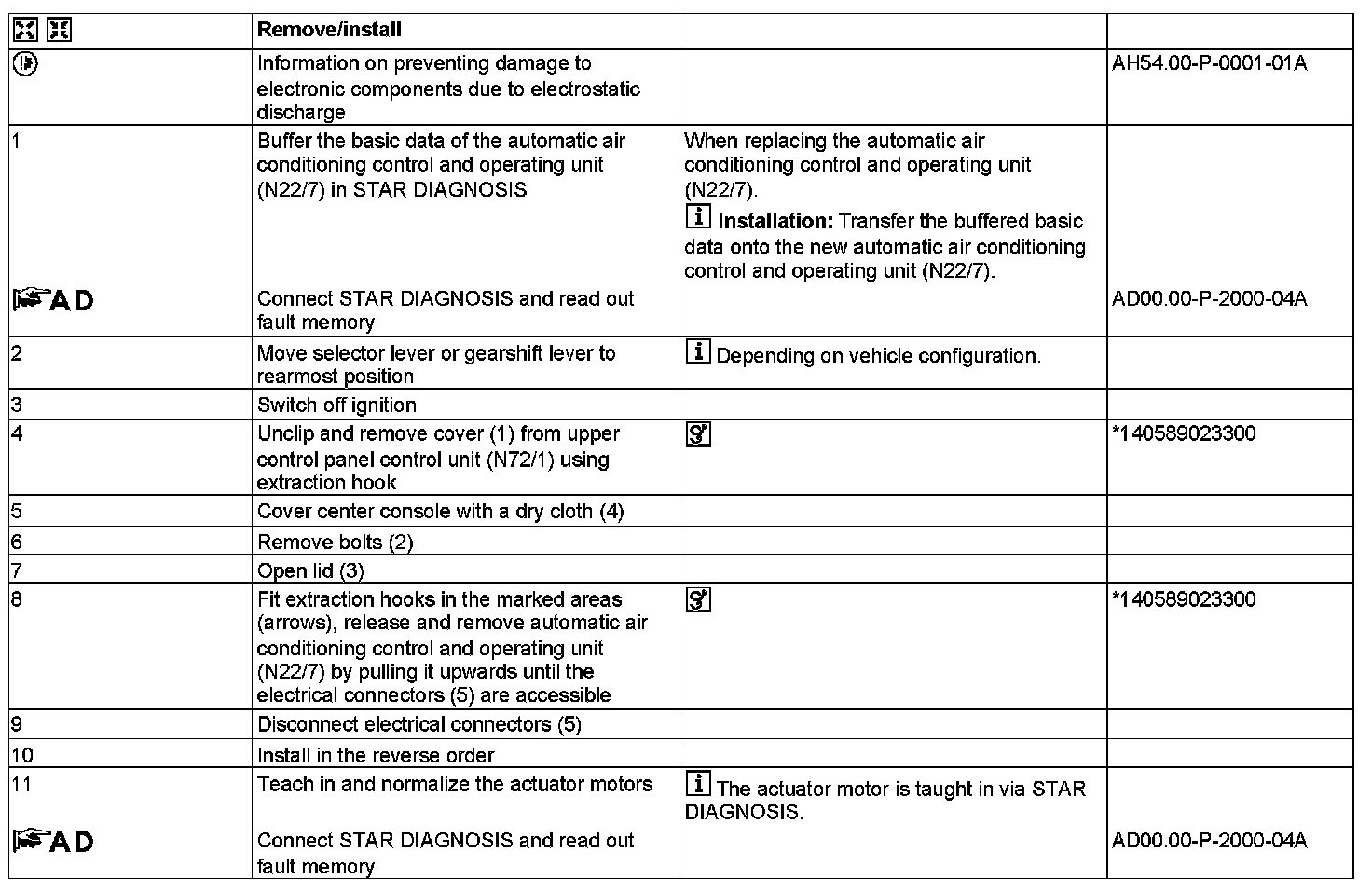

Steps 1-11:
Special Tools:
