AR83.25-P-1220EL Remove And Install Electronic Blower Control Unit

AR83.25-P-1220EL Remove And Install Electronic Blower Control Unit
- MODEL 204 as of 1.6.10
- MODEL 207 as of 1.6.10
- MODEL 212 as of 1.6.10
- MODEL 218

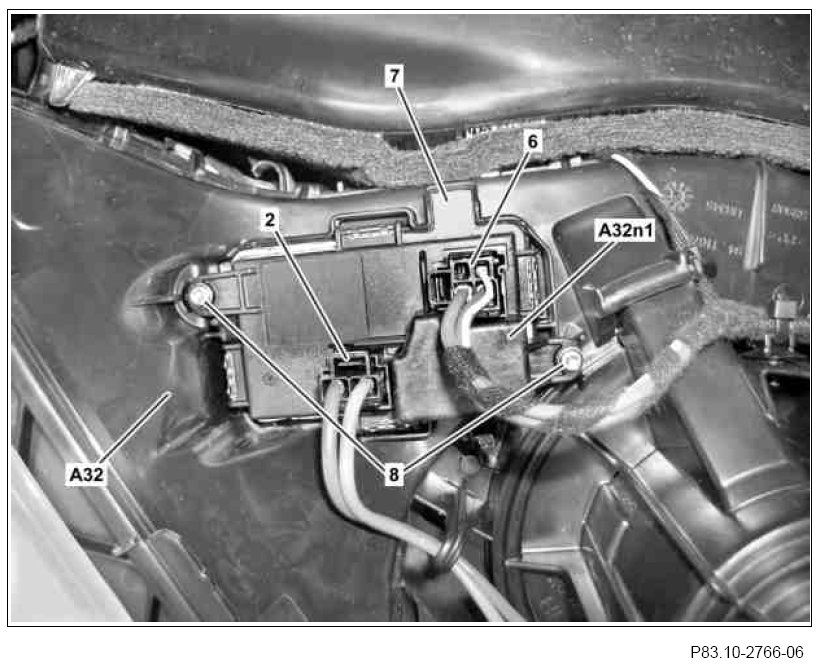

Shown on model 218






2 Electrical connector
6 Electrical connector
7 Gasket
8 Bolts
A32 AC housing
A32n1 Blower regulator
