Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Heating and Air Conditioning >> Auxiliary Cabin Heater >> Description and Operation >> GF83.70-P-0006-01FL Stationary Heater (STH), Location of Components

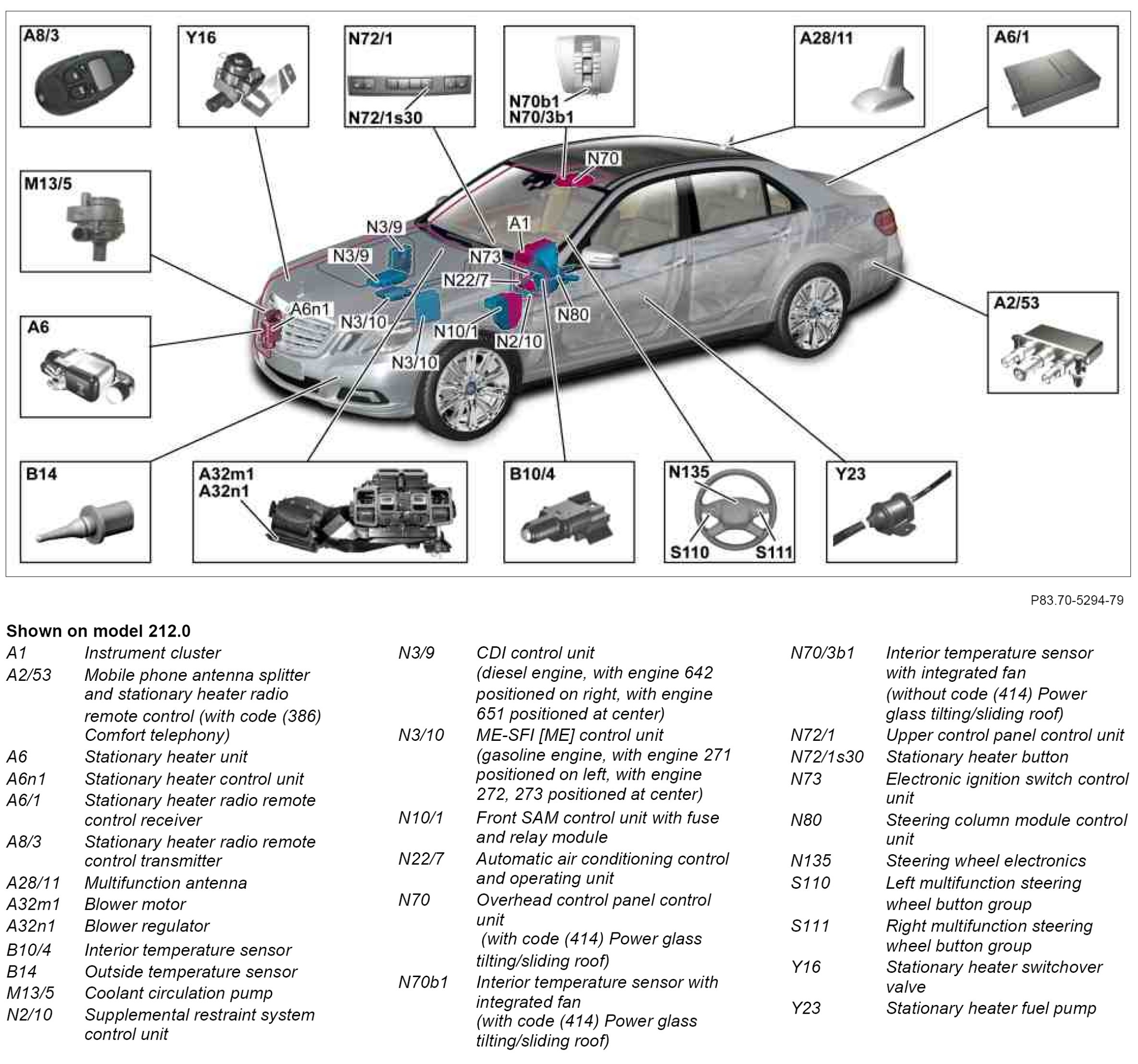

GF83.70-P-0006-01FL Stationary Heater (STH), Location of Components



GF83.70-P-0006-01FL Stationary Heater (STH), Location Of Components
- with CODE (228) Stationary heater


Component Identification:
