Auxiliary Cabin Heater Fuel Pump: Service and Repair
AR83.70-P-5652EW Remove/Install Fuel Metering Pump

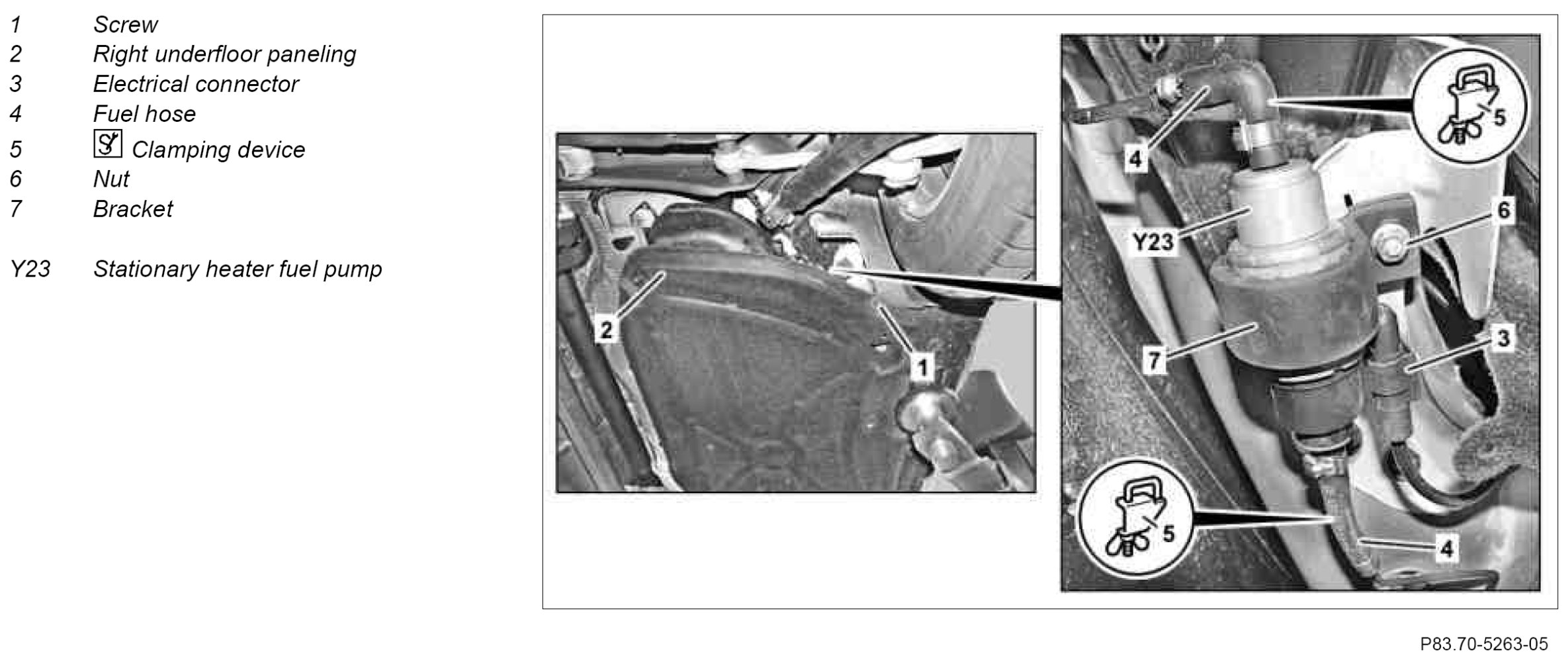

Component Identification:

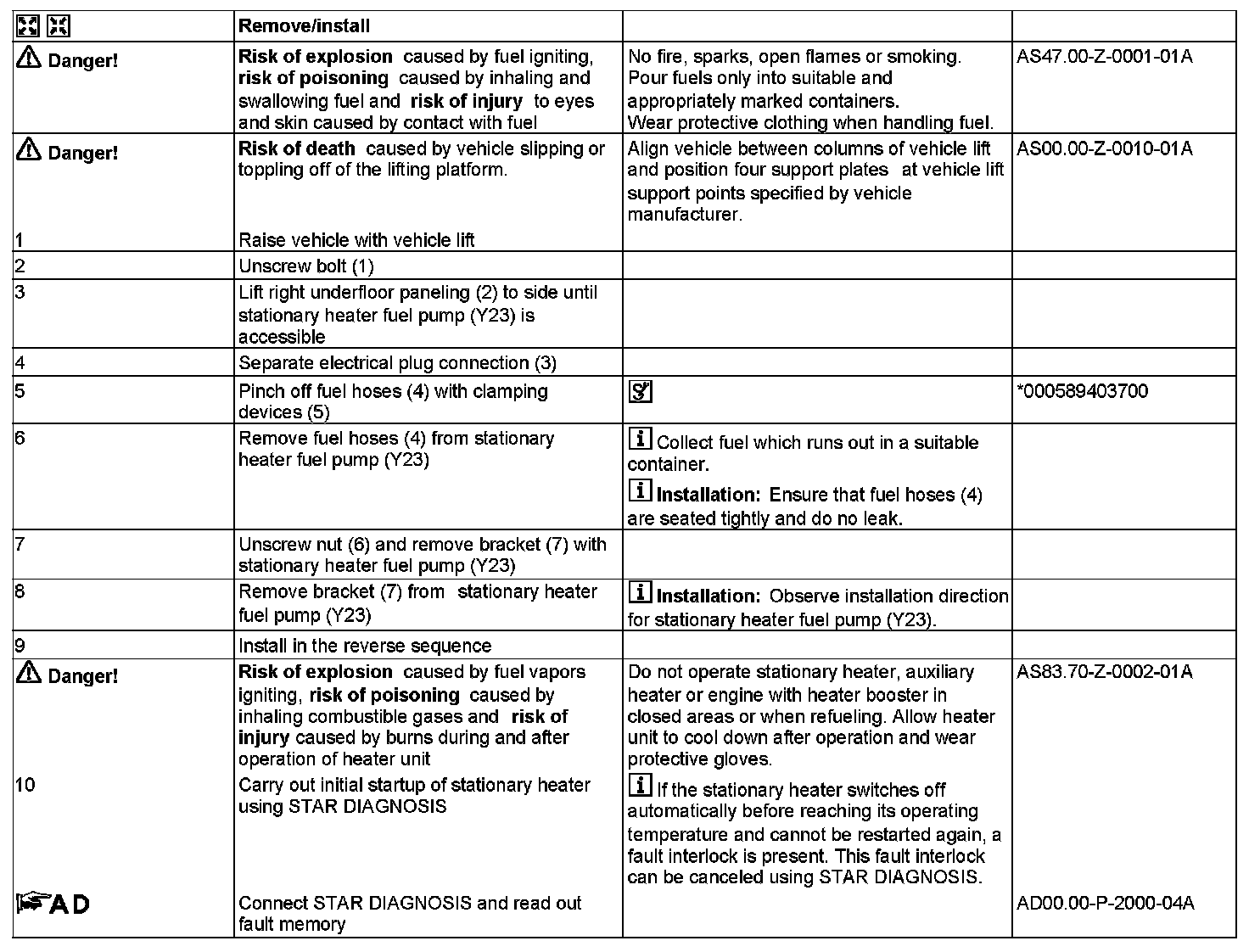

Steps 1-10:

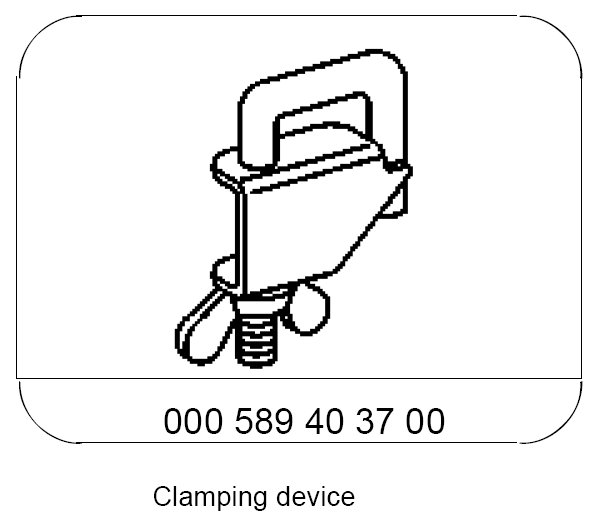

Special Tools:
