Exhaust System: Service and Repair

AR49.10-P-7100EWI Remove/Install Components For Exhaust System
ENGINES 642, 651 in MODEL 212, 218

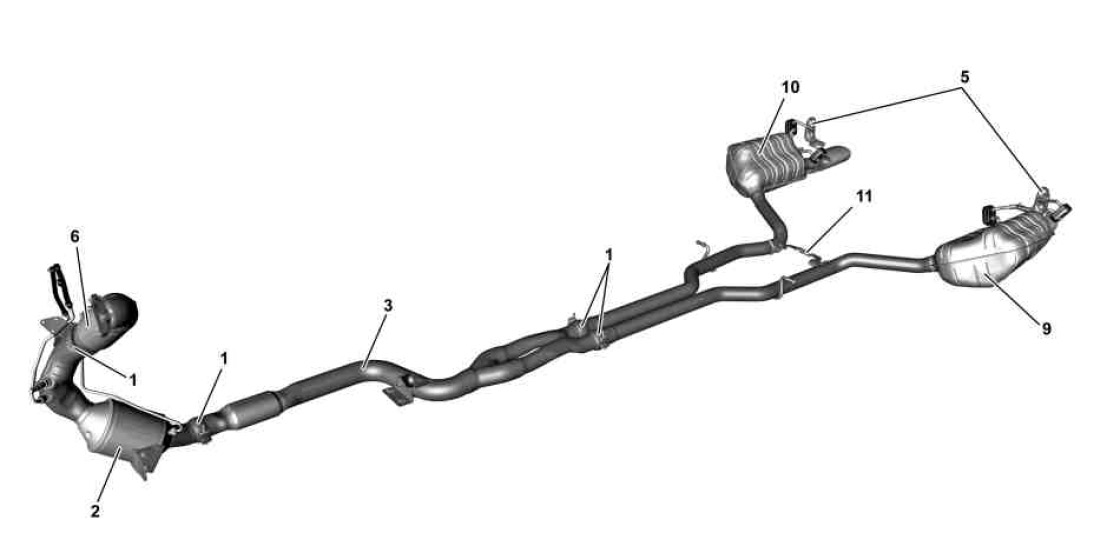

Exhaust system for engine 642

1 Pipe clamp
2 Diesel particulate filter
3 Connecting pipe
5 Exhaust rubber mount
6 Catalytic converter
9 Left rear muffler
10 Right rear muffler
11 Rear cross strut

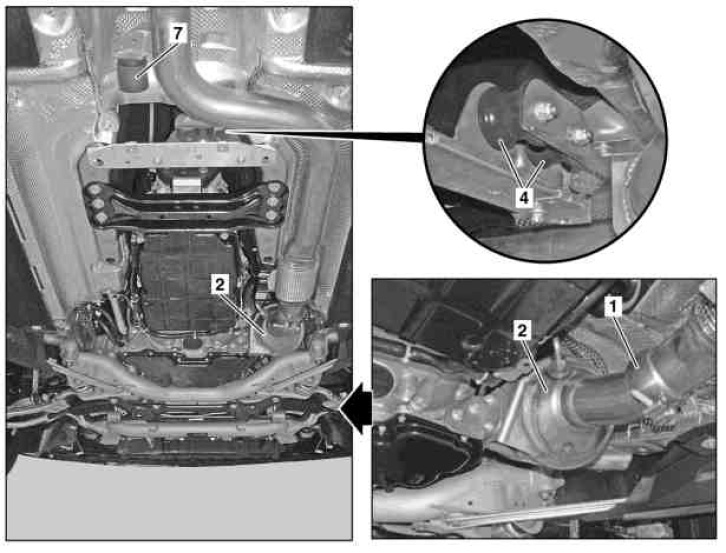

Shown on ENGINE 642

1 Pipe clamp
2 Diesel particulate filter
4 Exhaust rubber mount
7 Vibration damper

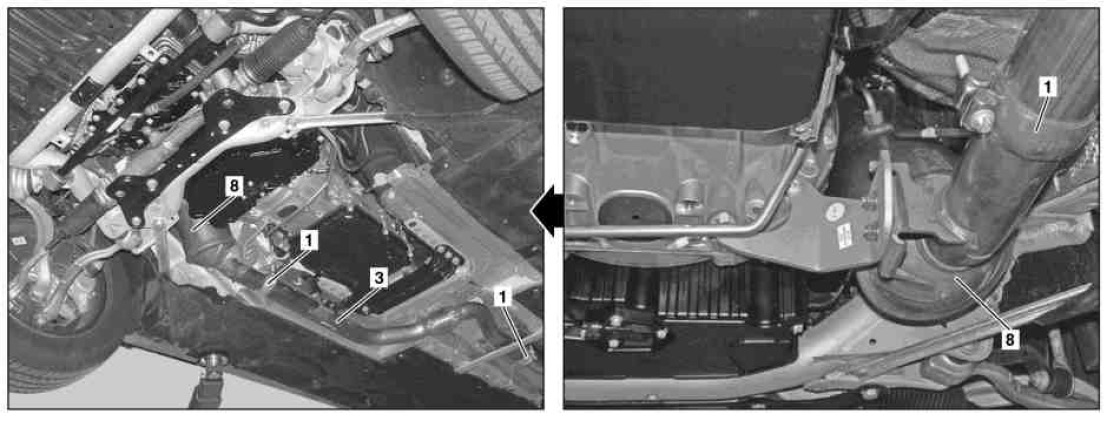

Shown on ENGINE 651

1 Pipe clamp
3 Connecting pipe
8 Catalytic converter diesel particulate filter unit

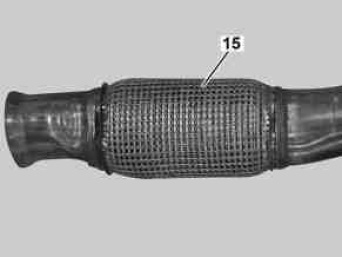

15 Decoupling element

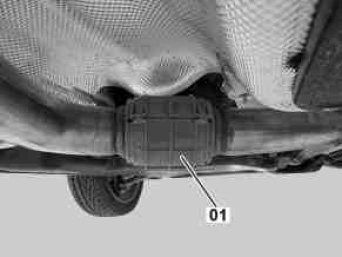

01 Assembly tool























642 589 01 63 00
Assembly tool





651 589 06 63 00
Assembly tool
