AR01.10-P-2400OGE Remove/Install Engine
AR01.10-P-2400OGE Remove/Install Engine
ENGINES 642 in MODEL 207
ENGINES 642 in MODEL 212, 218
except 4MATIC
Shown on model 212.0
10 Fitting
11 Coolant hose
13 Coolant hose
14 Vacuum line
15 Coolant hose
16 Return flow pipe
17 Coolant hose
Shown on model 212.0
1 Electrical connector
2 Electrical connector
3 Ground cable
4 Cable tie
5 Cover
6 Alternator/starter wiring harness
7 Cover
8 Nut

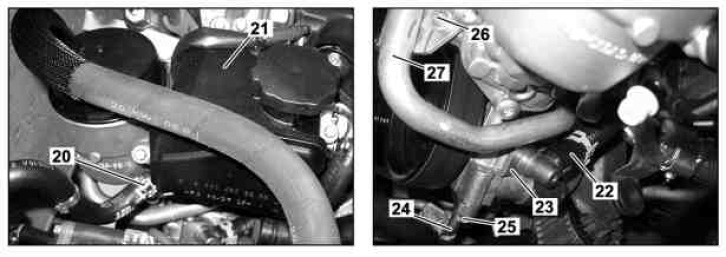

Shown on vehicle with hydraulic power steering pump
20 Return hose
21 Expansion reservoir
22 Hose
23 Power steering pump
24 High-pressure expansion hose
25 Screw/bolt
26 Screw/bolt
27 Refrigerant line
Only if transmission 711.6 is fitted
28 Line connection
29 Electrical connector
S16/2 Backup lamp switch
30 Oil lines
31 Steering oil line
32 Bracket
33 Electrical connector
34 Ground cable
35 Fuel lines
36 Bracket
37 Shield
38 Clamp
001 589 01 16 00
Set of engine bearing wrenches
129 589 00 91 00
Set of stop plugs
210 589 00 71 00
Hand pump
