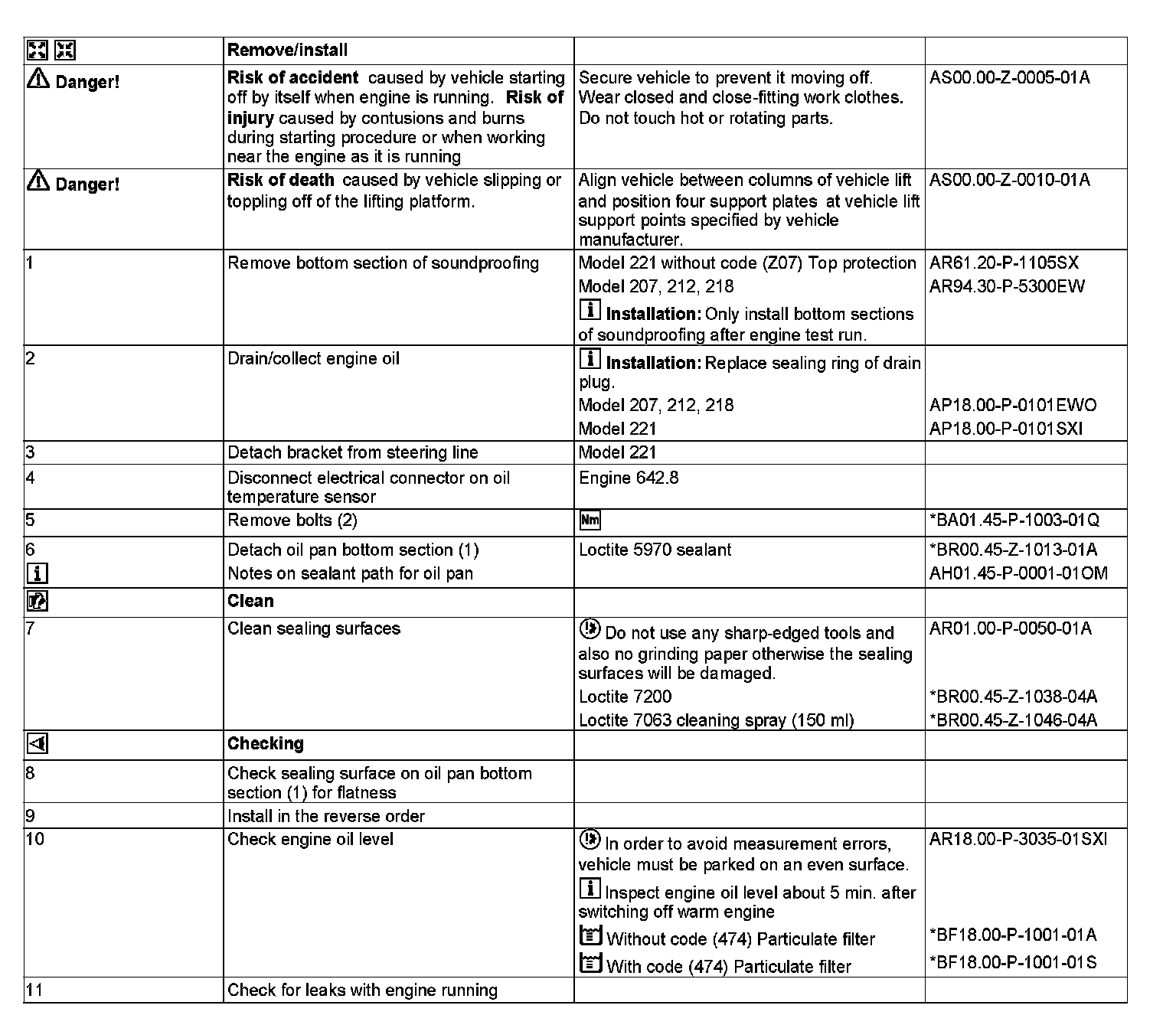

AR01.45-P-7555SXI Remove/Install Bottom Part of Oil Pan

AR01.45-P-7555SXI Remove/Install Bottom Part Of Oil Pan
ENGINES 642 in MODEL 207, 218, 212.02 /22, 221.02 /12 (except, 218.39)

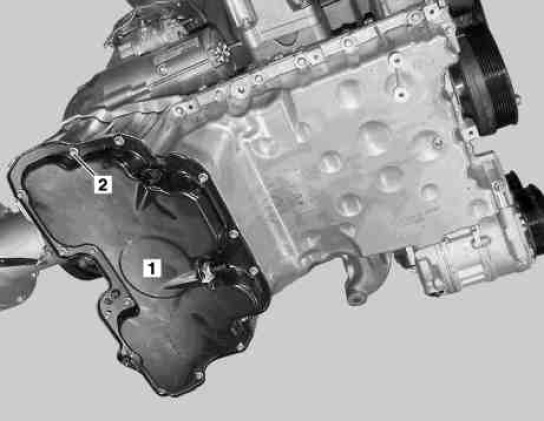

Shown on engine 642.850

1 Oil pan bottom section
2 Screw/bolt
