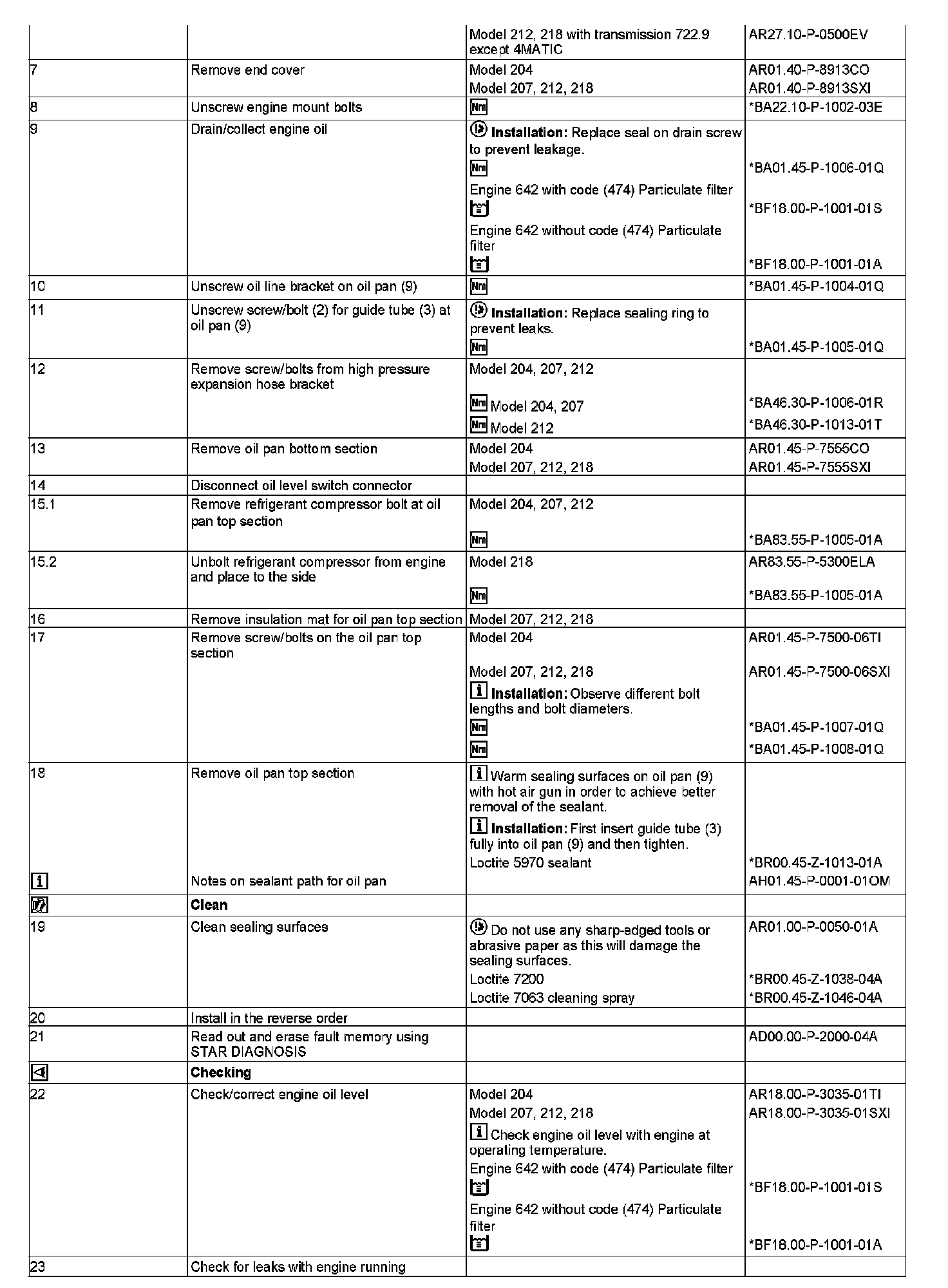

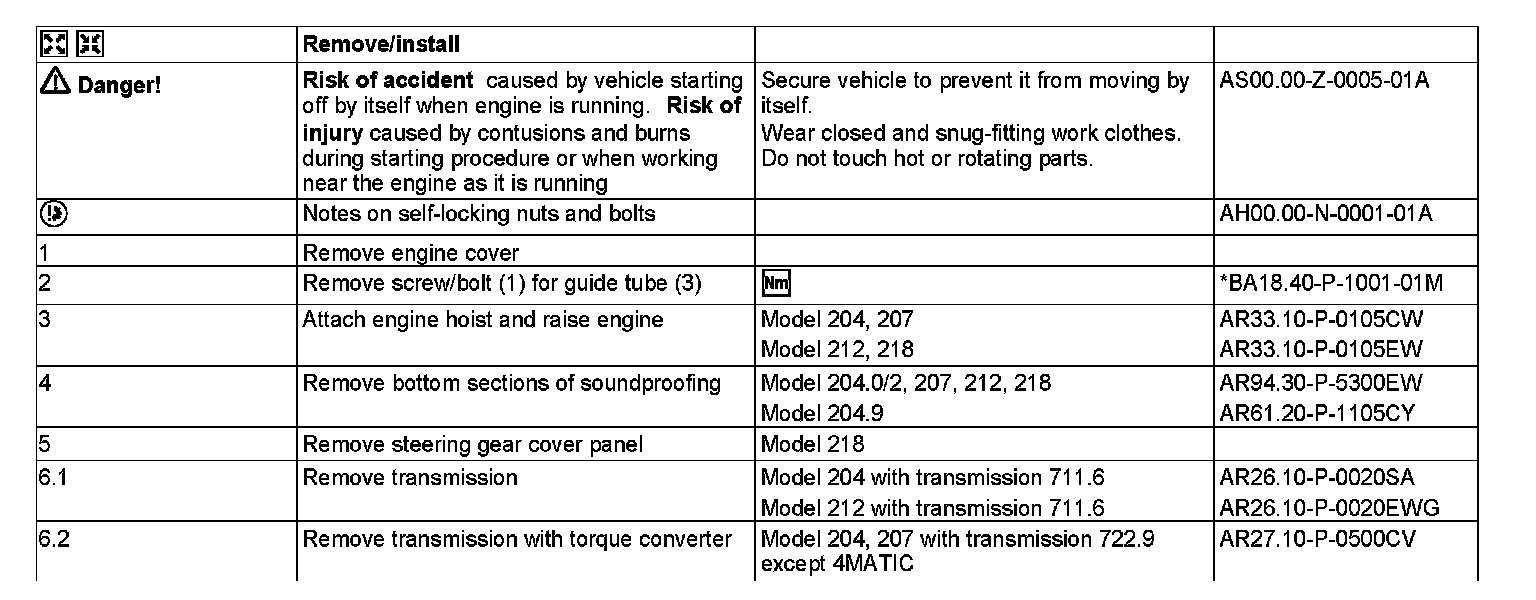

AR01.45-P-7500CO Remove/Install Oil Pan

AR01.45-P-7500CO Remove/Install Oil Pan
MODEL 204 (except 204.08 /98 /28) with ENGINE 642 (except 642.961)
MODEL 207 with ENGINE 642
MODEL 212 (except 212.08 /09 /28 /29) with ENGINE 642
MODEL 218 (except 218.39) with ENGINE 642

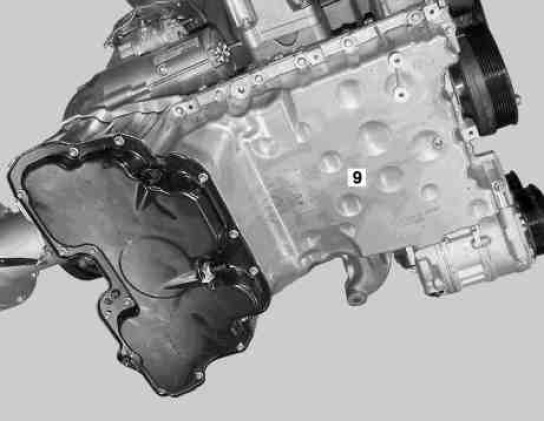

9 Oil pan

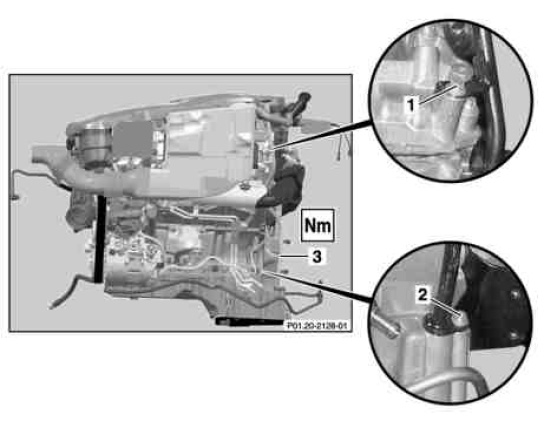

1 Screw/bolt
2 Screw/bolt
3 Guide tube
