Oil Cooler: Service and Repair

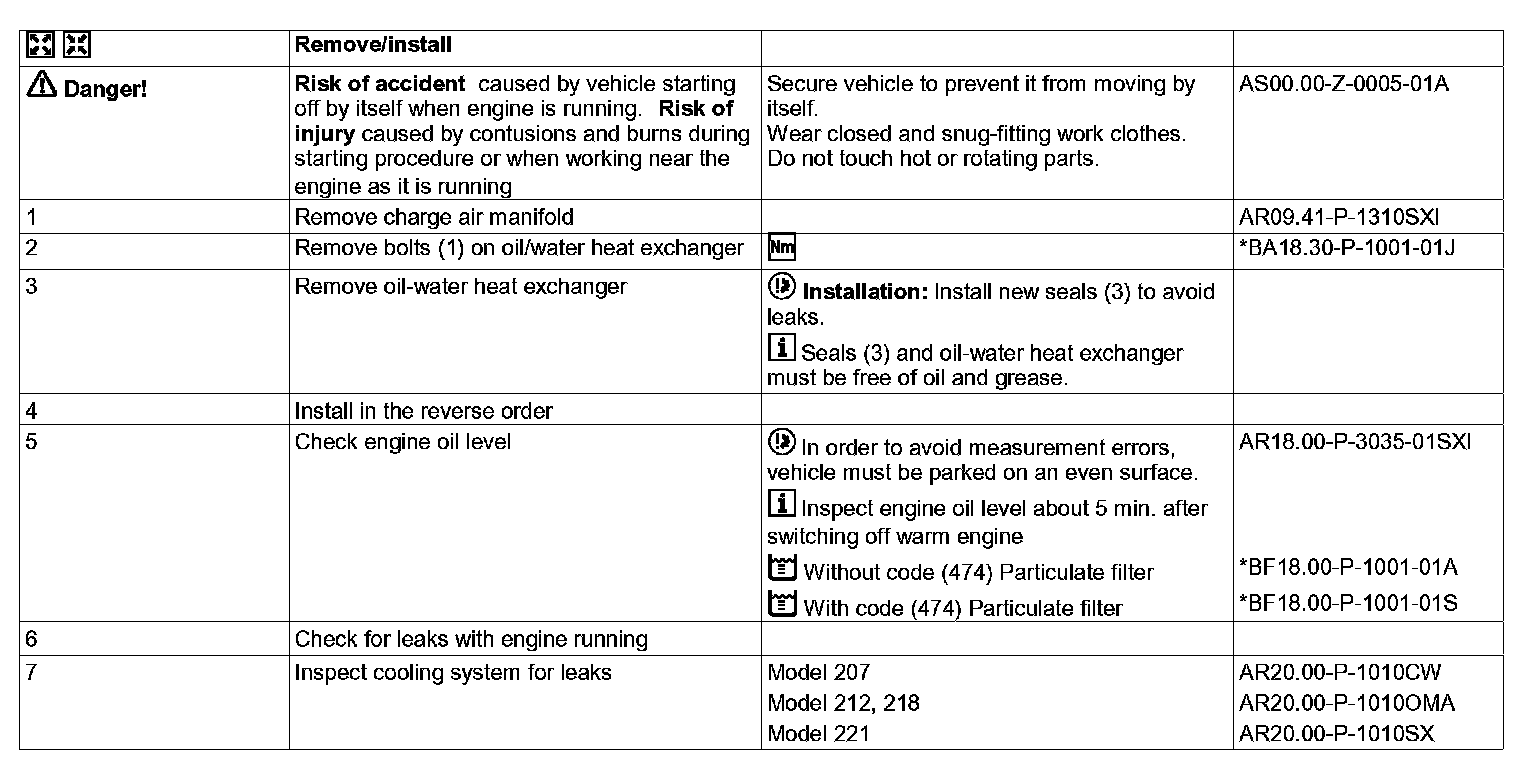

AR18.30-P-6840SXI Remove/Install Oil-Water Heat Exchanger
-ENGINES 642 in MODEL 207, 212, 221, 218

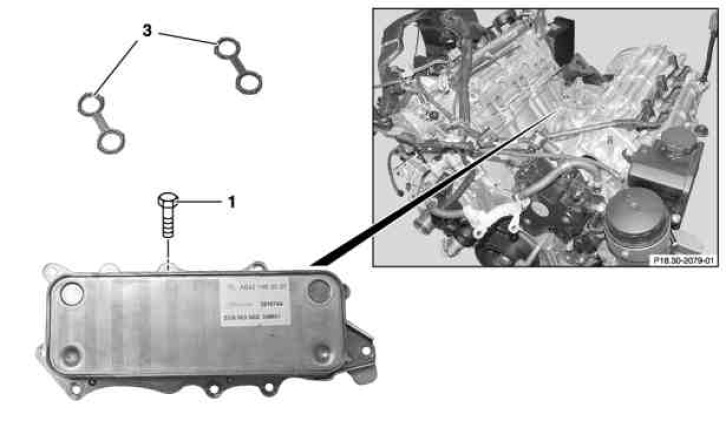

Shown on engine 642.910

1 Bolt
3 Seals
