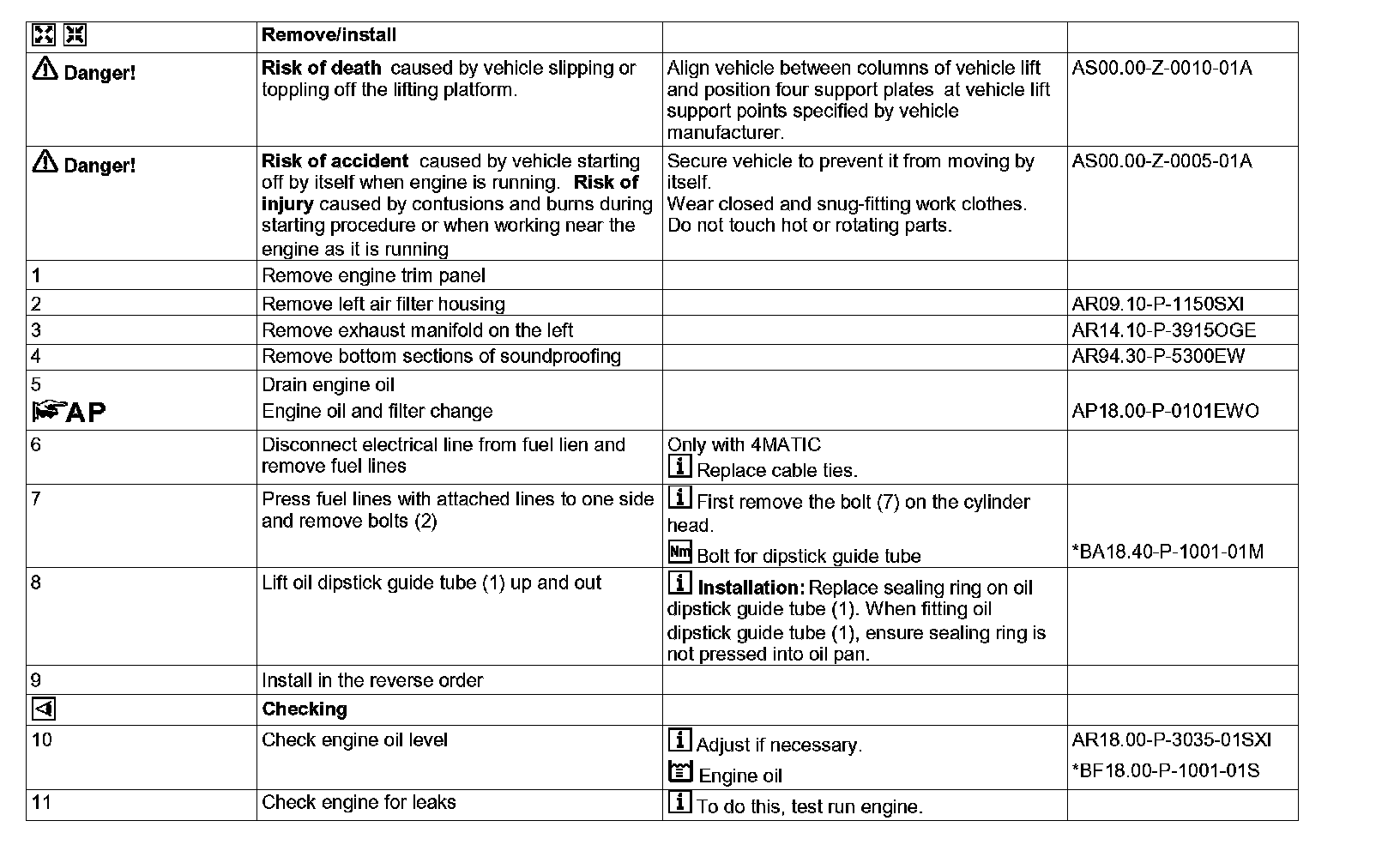

AR18.40-P-3550OGE Seal Guide Tube




AR18.40-P-3550OGE Seal Guide Tube
-ENGINE 642 in MODEL 207, 212

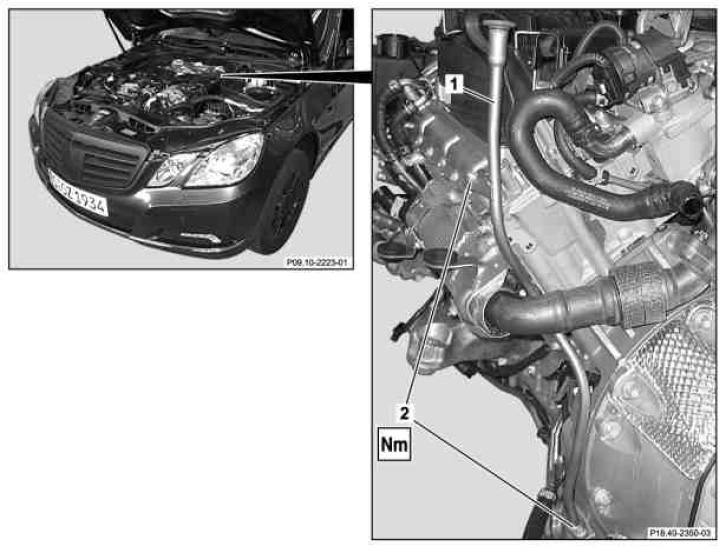

Illustrated on model 212

1 Oil dipstick guide tube

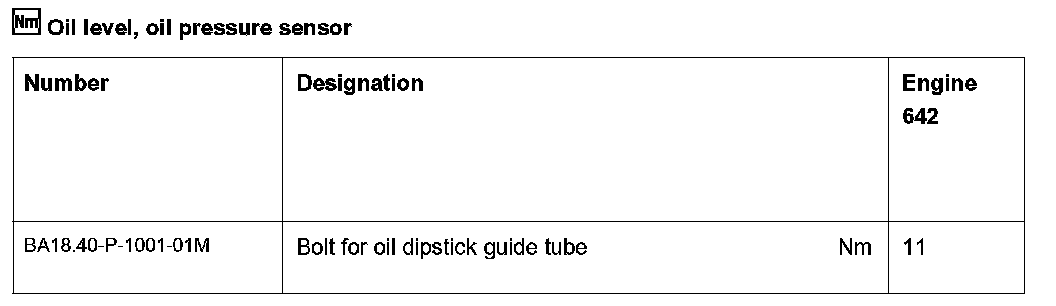

2 Bolts
