Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Engine Oil Dip Stick - Dip Stick Tube >> Service and Repair >> AR18.40-P-3510OGE Remove/Install Oil Dipstick Guide Tube

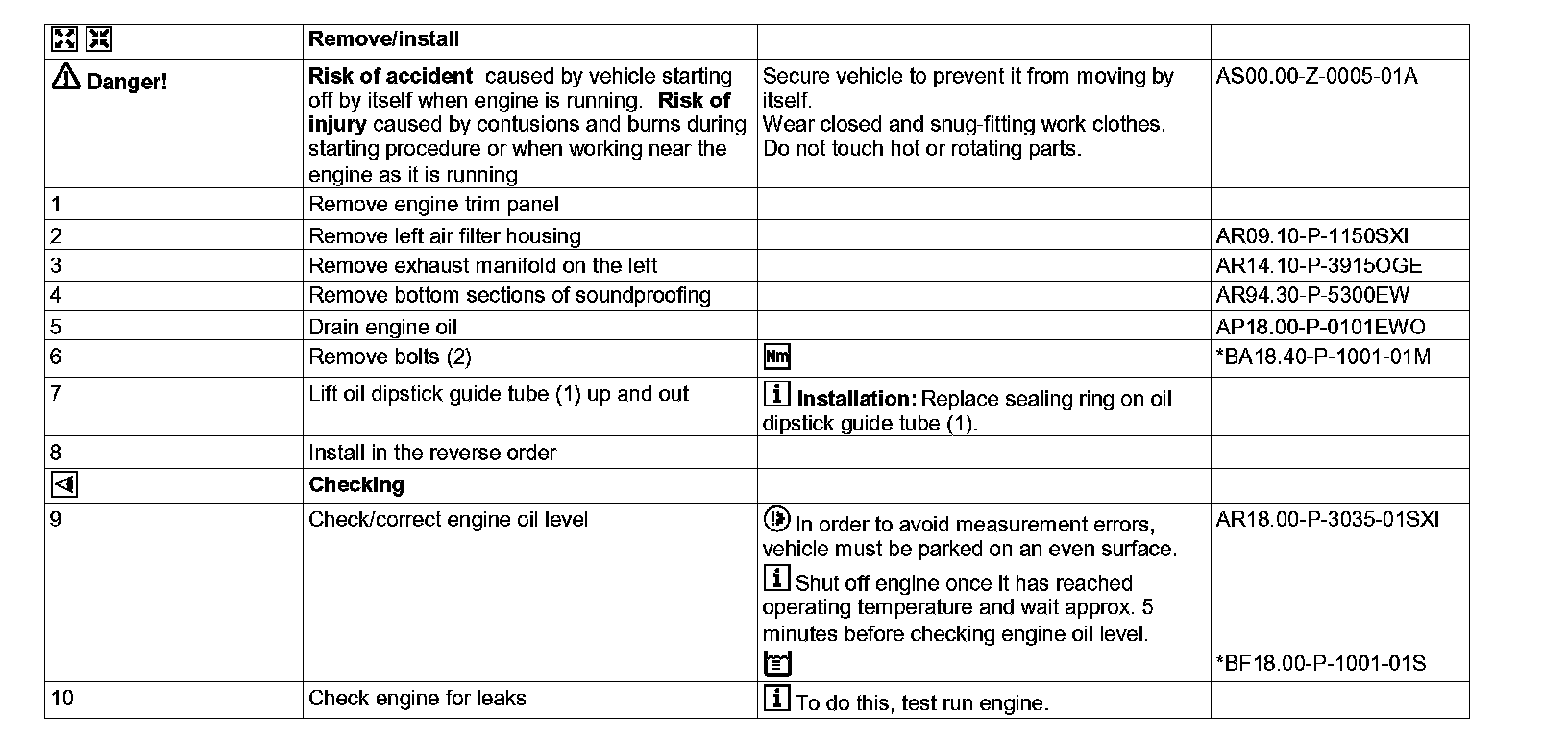

AR18.40-P-3510OGE Remove/Install Oil Dipstick Guide Tube




AR18.40-P-3510OGE Remove/Install Oil Dipstick Guide Tube
-ENGINES 642 in MODELS 207, 212, 218





1 Oil dipstick guide tube
2 Bolts
