Drive Belts, Mounts, Brackets and Accessories: Service and Repair

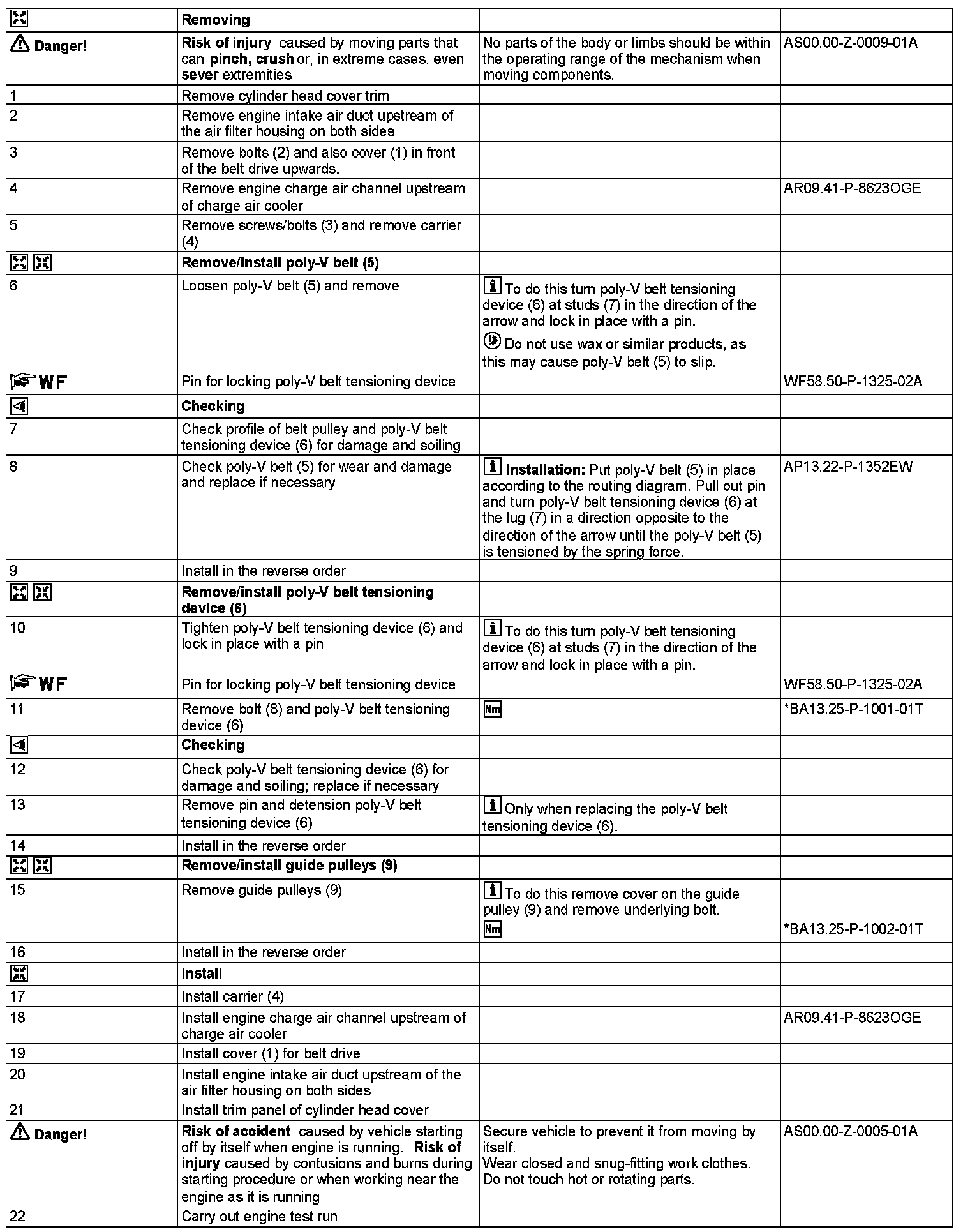

AR13.20-P-0001OGE Remove/install Belt Drive Components

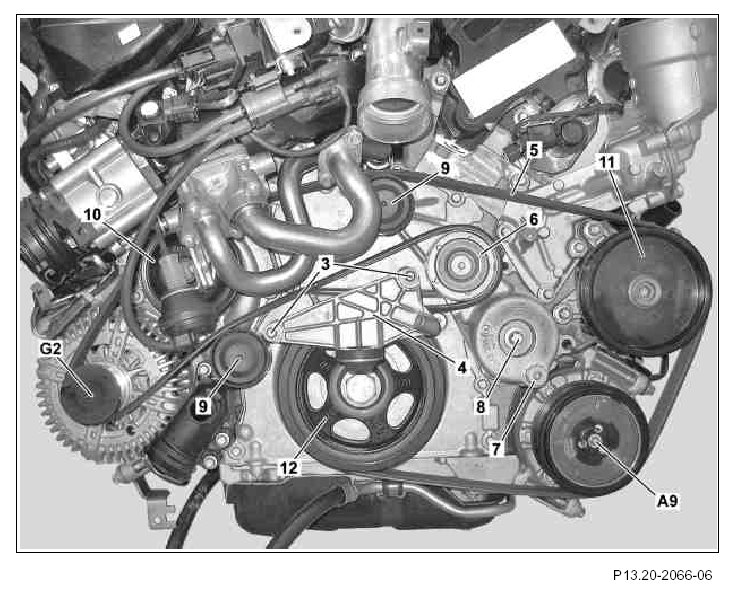

- ENGINES 642 in MODELS 207, 212, 218

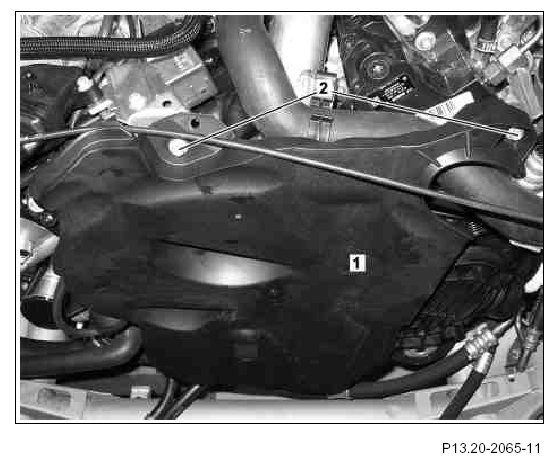

1 Cover
2 Bolts

Shown on engine with power steering pump







3 Bolts
4 Carrier
5 Poly-V belt
6 Poly-V belt tensioning device
7 Pin
8 Bolt
9 Pulley
10 Coolant pump
11 Power steering pump (model 207, 212) Guide pulley (model 218)
12 Vibration damper
A9 AC compressor
G2 Generator
