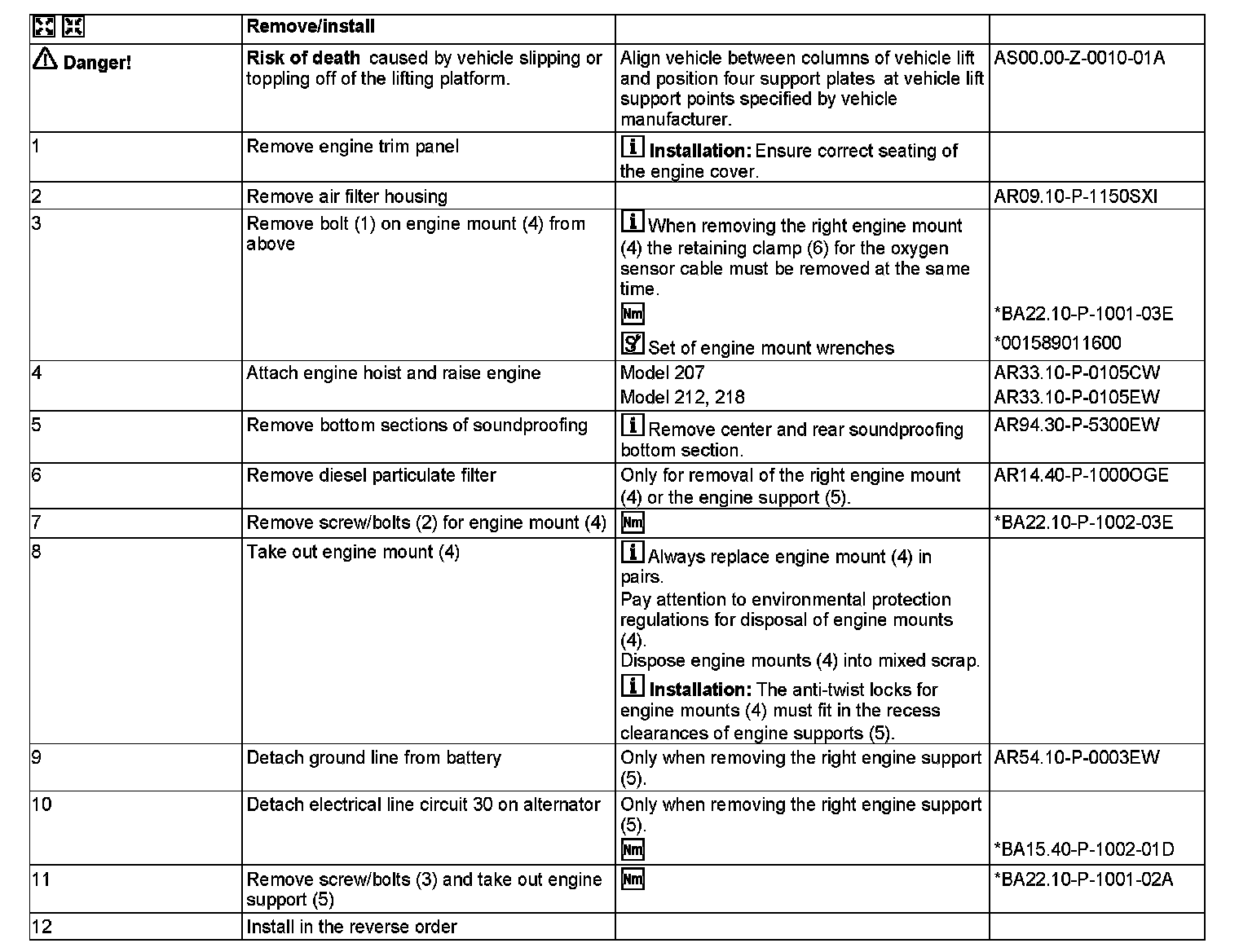

AR22.10-P-1260OGE Remove/Install Front Engine Mounts and/or Engine Support




AR22.10-P-1260OGE Remove/Install Front Engine Mounts And/Or Engine Support
ENGINES 642 in MODEL 207
ENGINES 642 in MODEL 212, 218
except 4MATIC

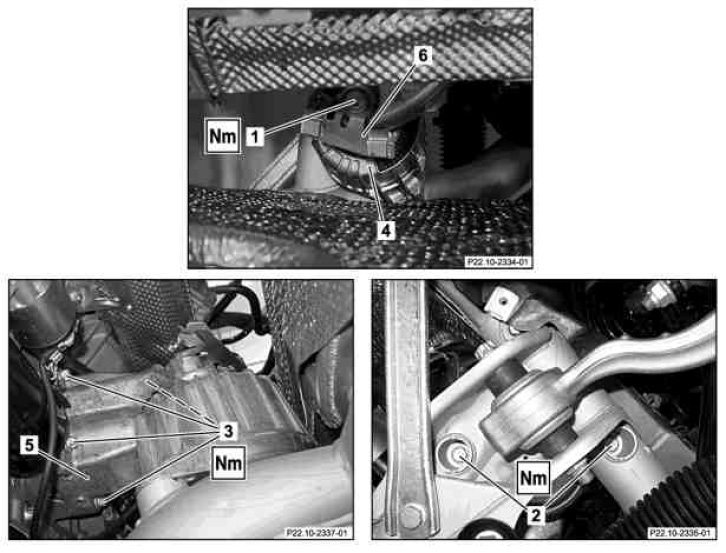

1 Screw/bolt
2 Screw/bolts
3 Screw/bolts
4 Engine mount

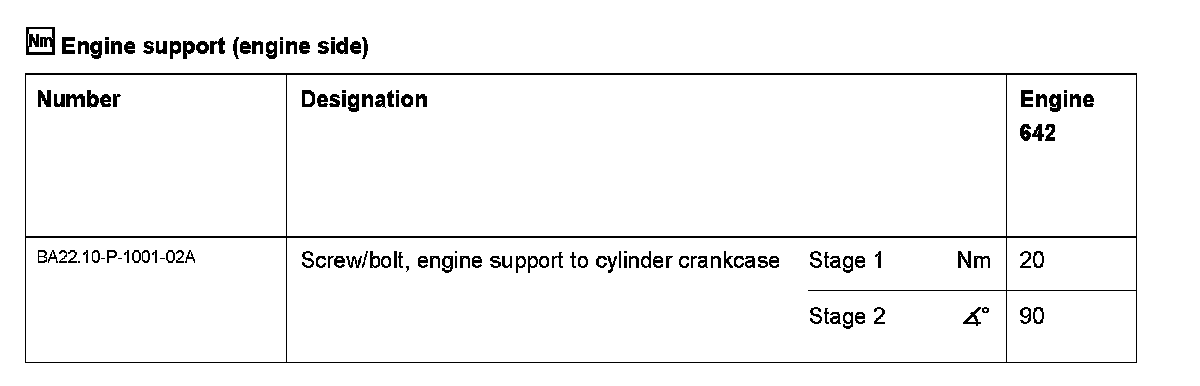

5 Engine support
6 Retaining clamp




















001 589 01 16 00
Set of engine bearing wrenches
