AR22.10-P-1180CW Remove/Install Engine Mount or Engine Crossmember at the Rear



AR22.10-P-1180CW Remove/install engine mount or engine crossmember at the rear

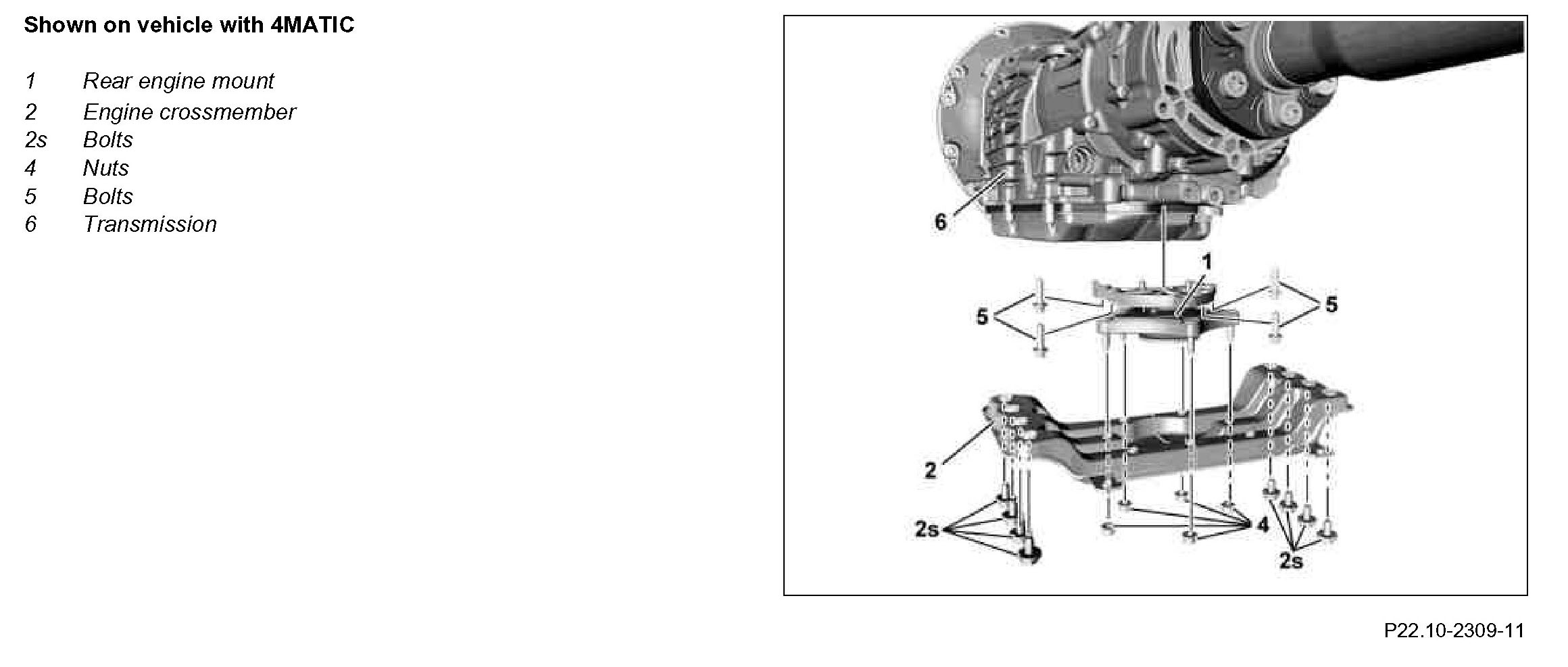

Component Identification:

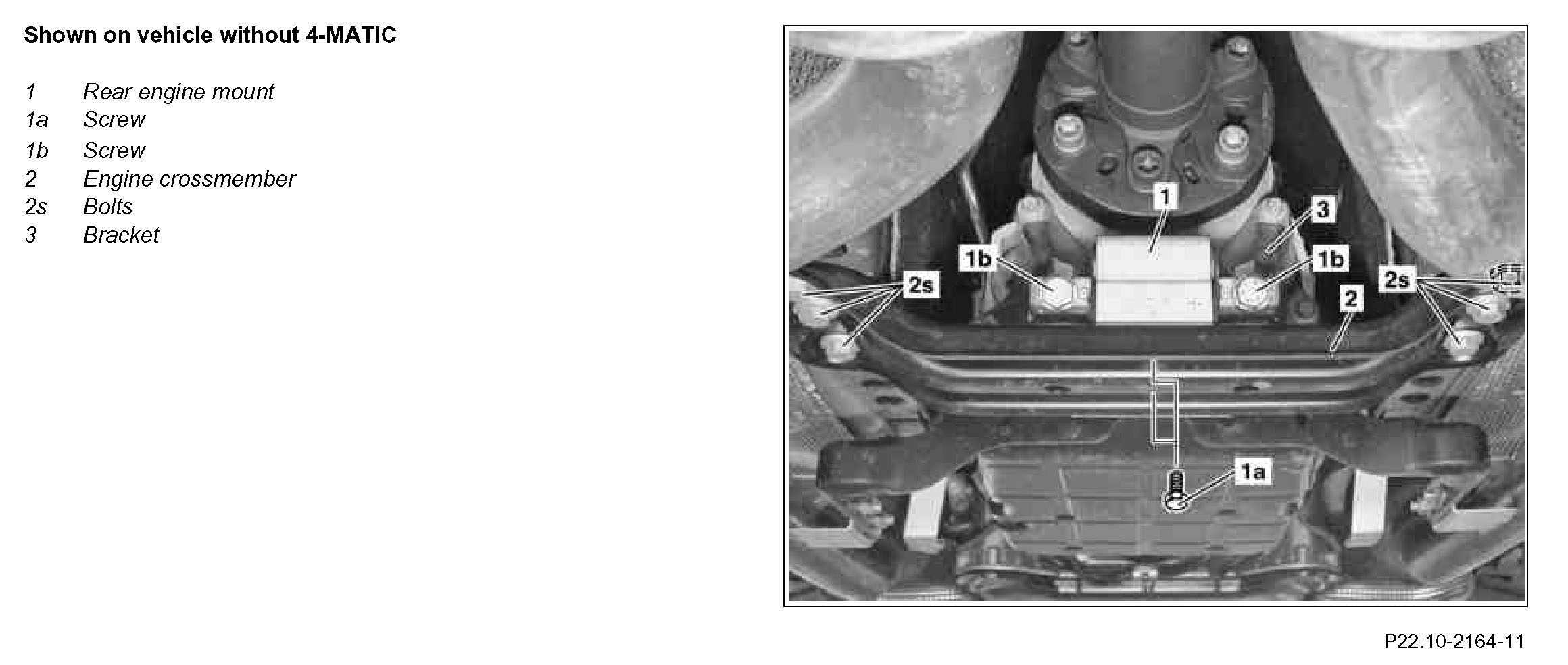

Component Identification:

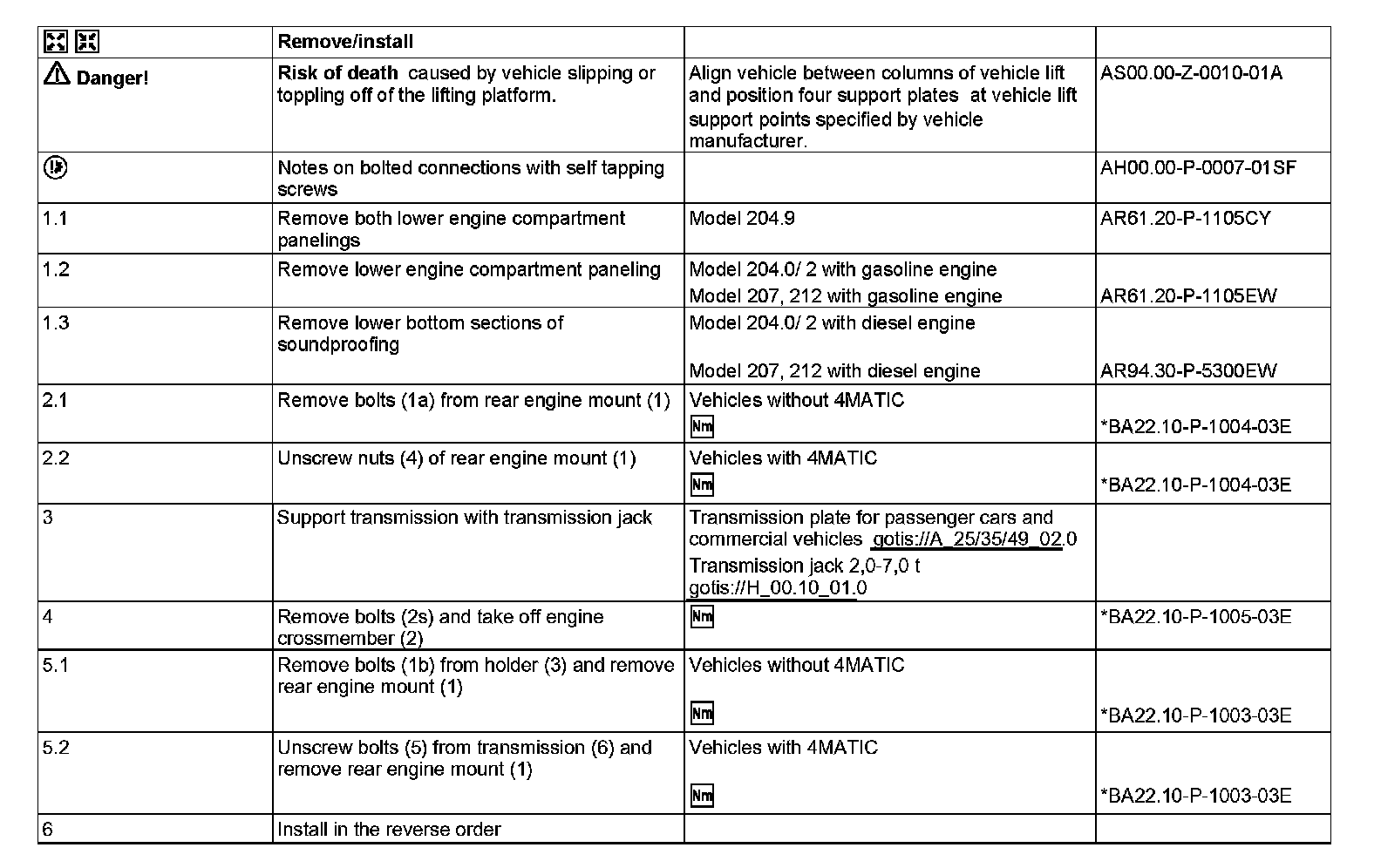

Steps 1.1-6:

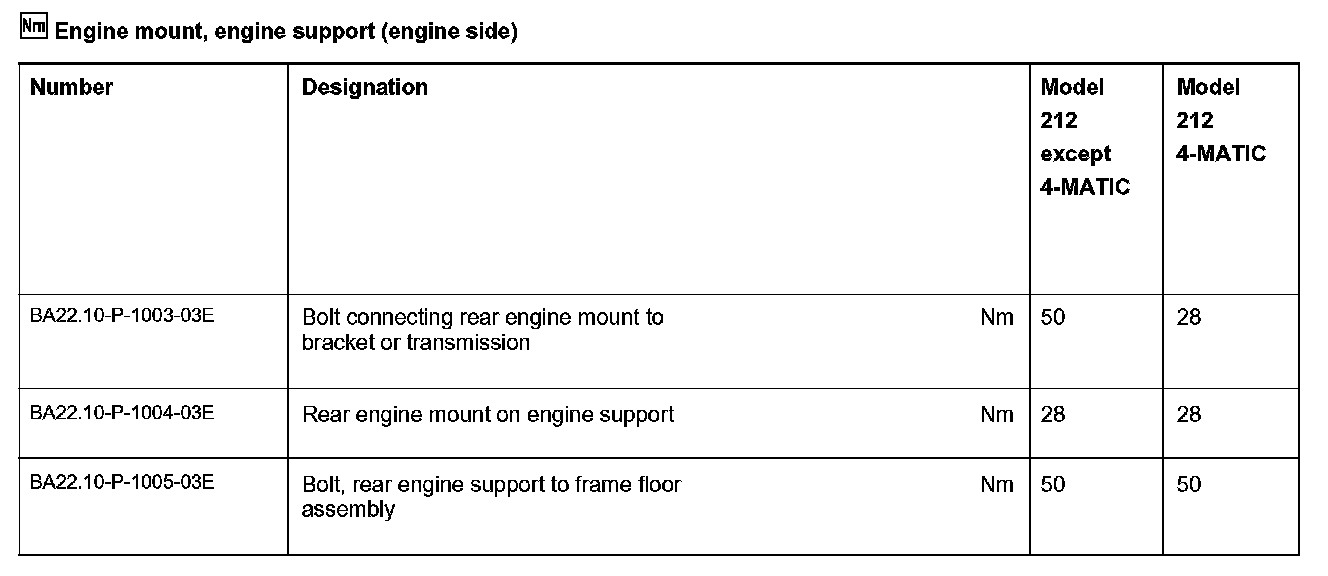

Engine mount, engine support (engine side):

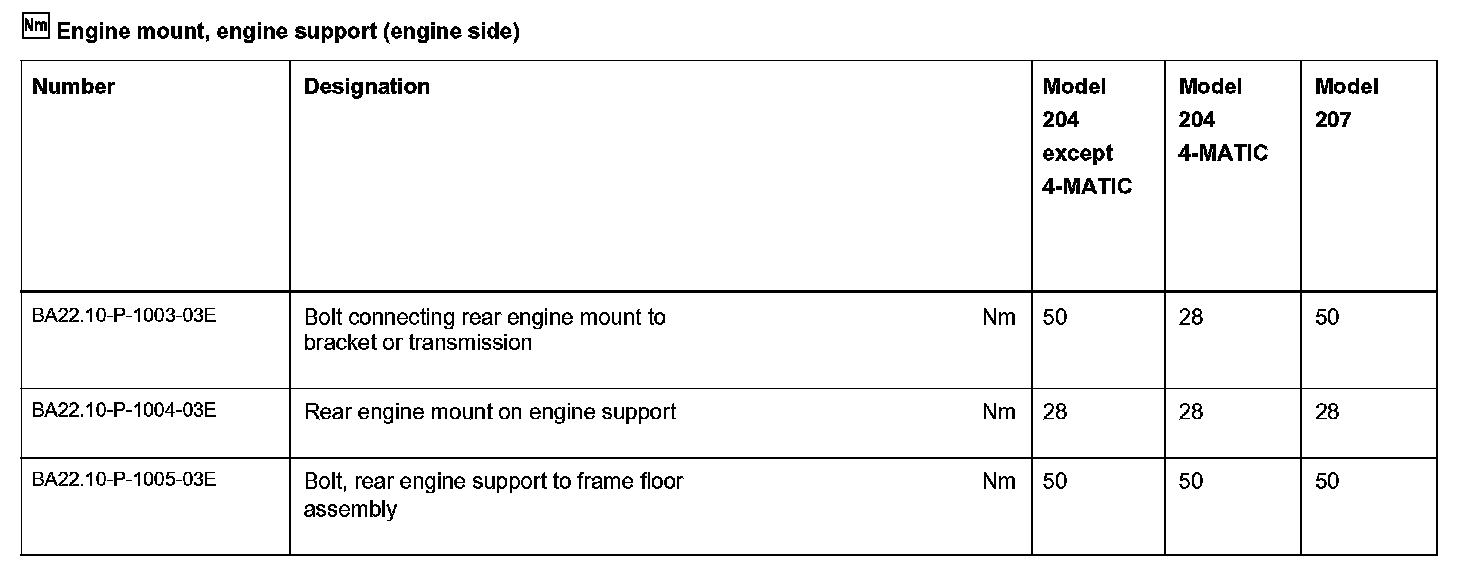

Engine mount, engine support (engine side):
