Camshaft: Testing and Inspection

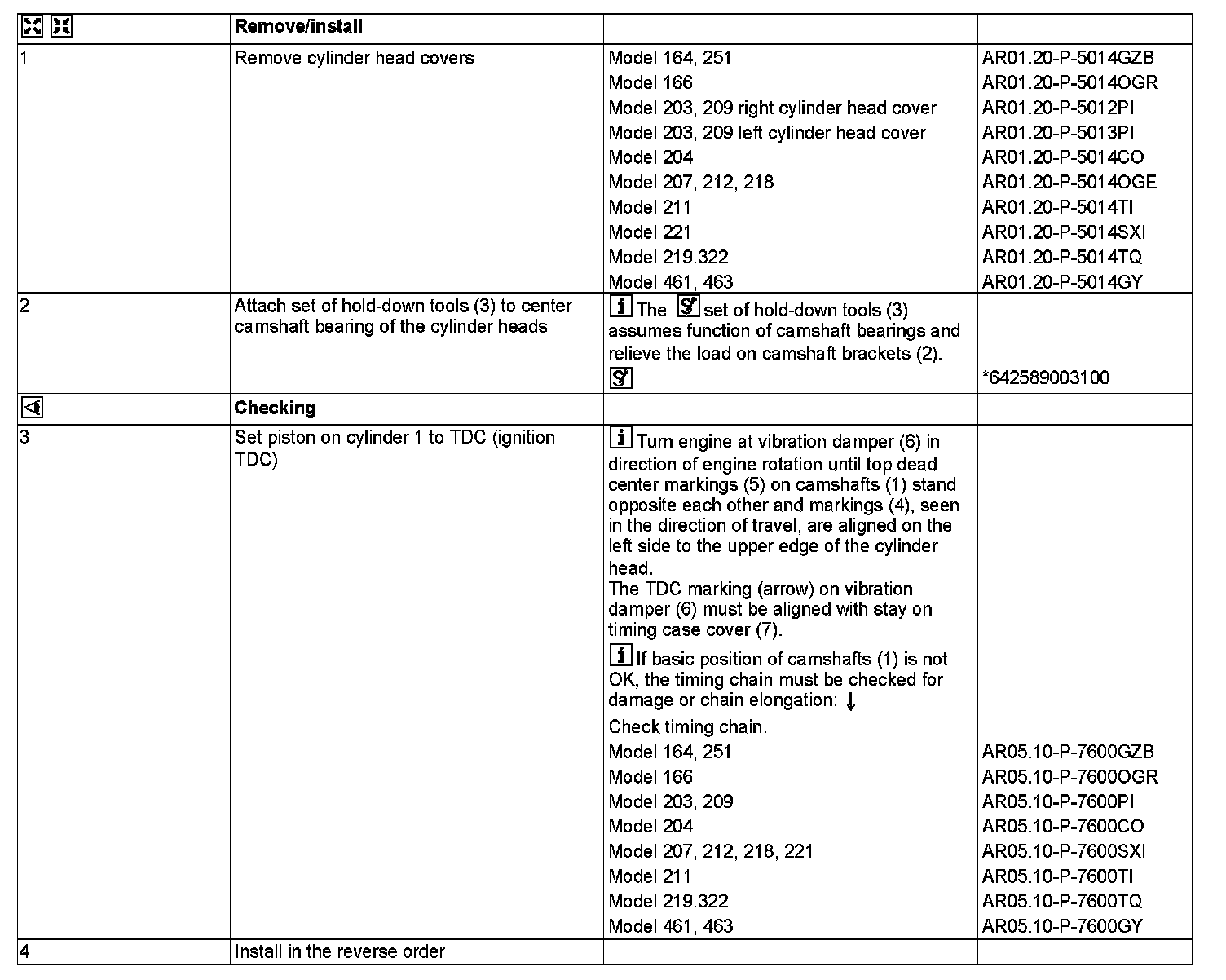

AR05.20-P-6010OM Check Basic Position Of Camshafts
ENGINES 642

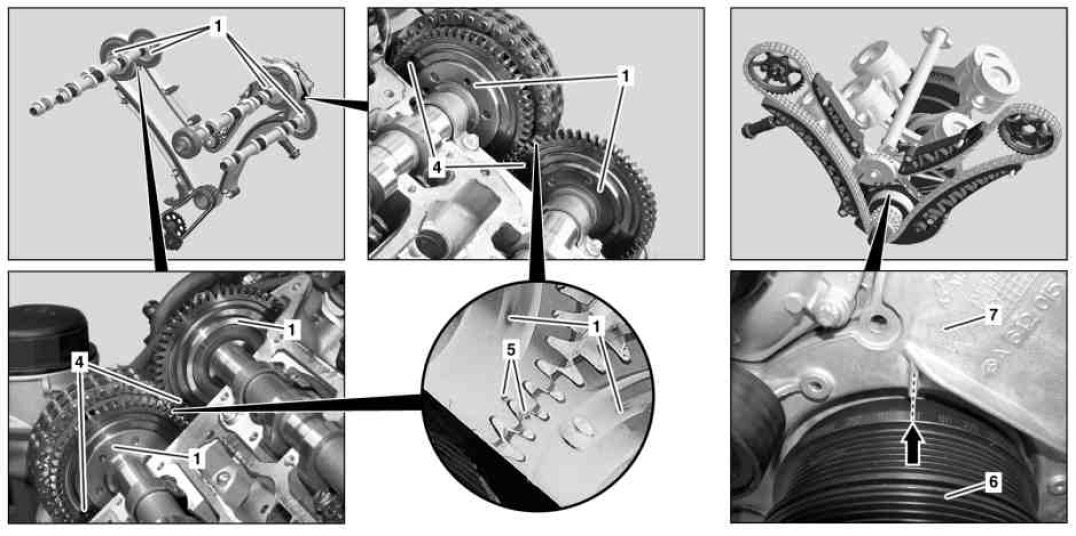

1 Camshafts
2 Camshaft bracket
3 Set of hold-down tools





1 Camshafts
4 Markings
5 Top dead center (TDC) markings
6 Vibration damper
7 Timing case cover

Arrow TDC marking








642 589 00 31 00
Hold-down tool
