Coolant Reservoir: Service and Repair

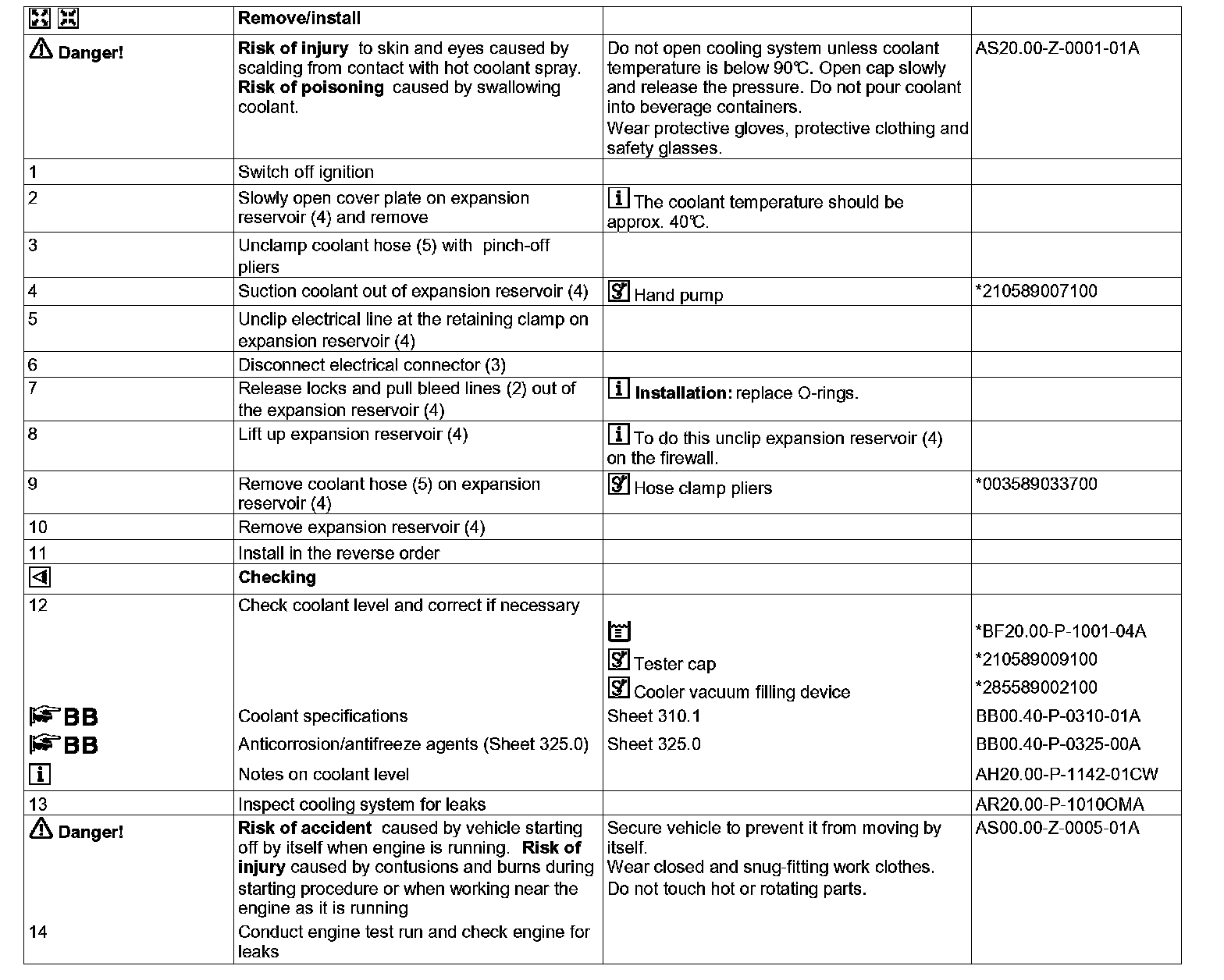

AR20.30-P-4950OGE Remove/Install Expansion Reservoir
-ENGINES 642 in MODEL 212, 218

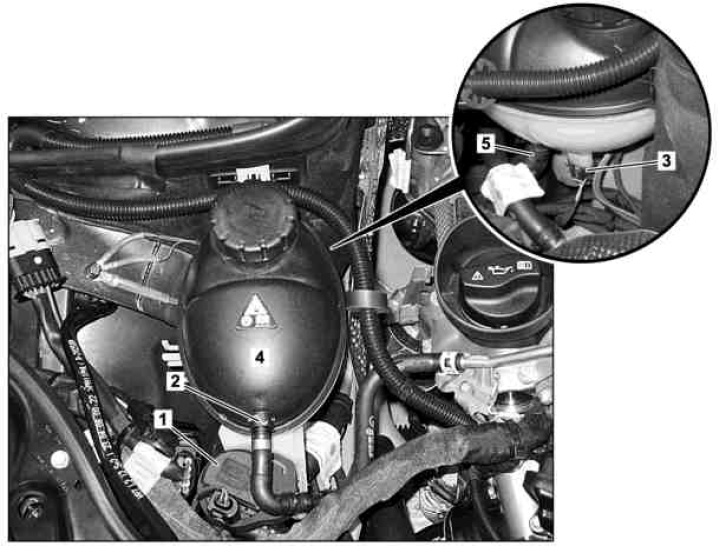

1 Circulation pump
2 Vent line
3 Electrical connector
4 Expansion reservoir
5 Coolant hose











003 589 03 37 00
Hose clamp pliers





210 589 00 71 00
Hand pump





210 589 00 91 00
Test cap





285 589 00 21 00
Vacuum-type cooling system filler
