Function Diagrams

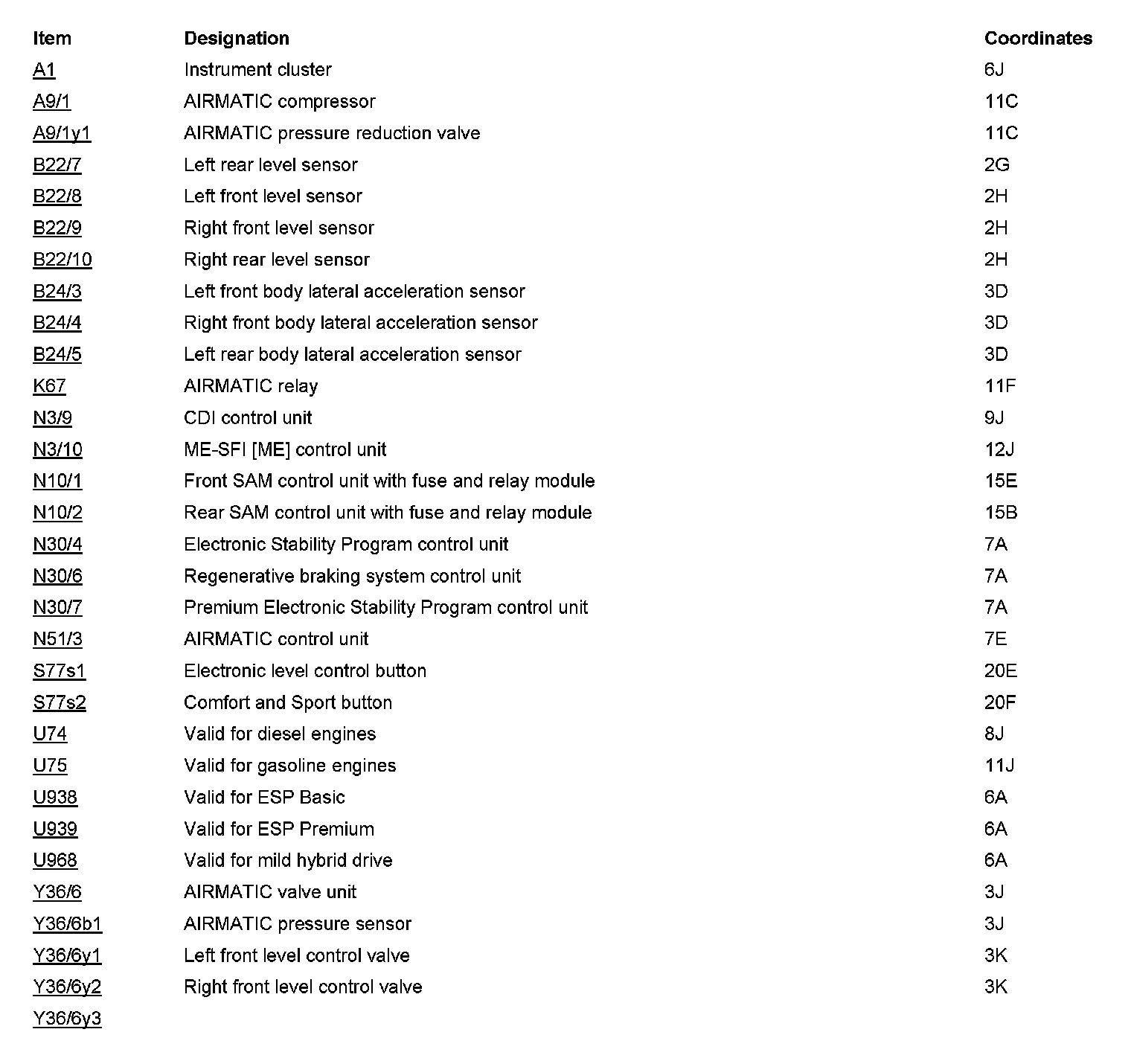

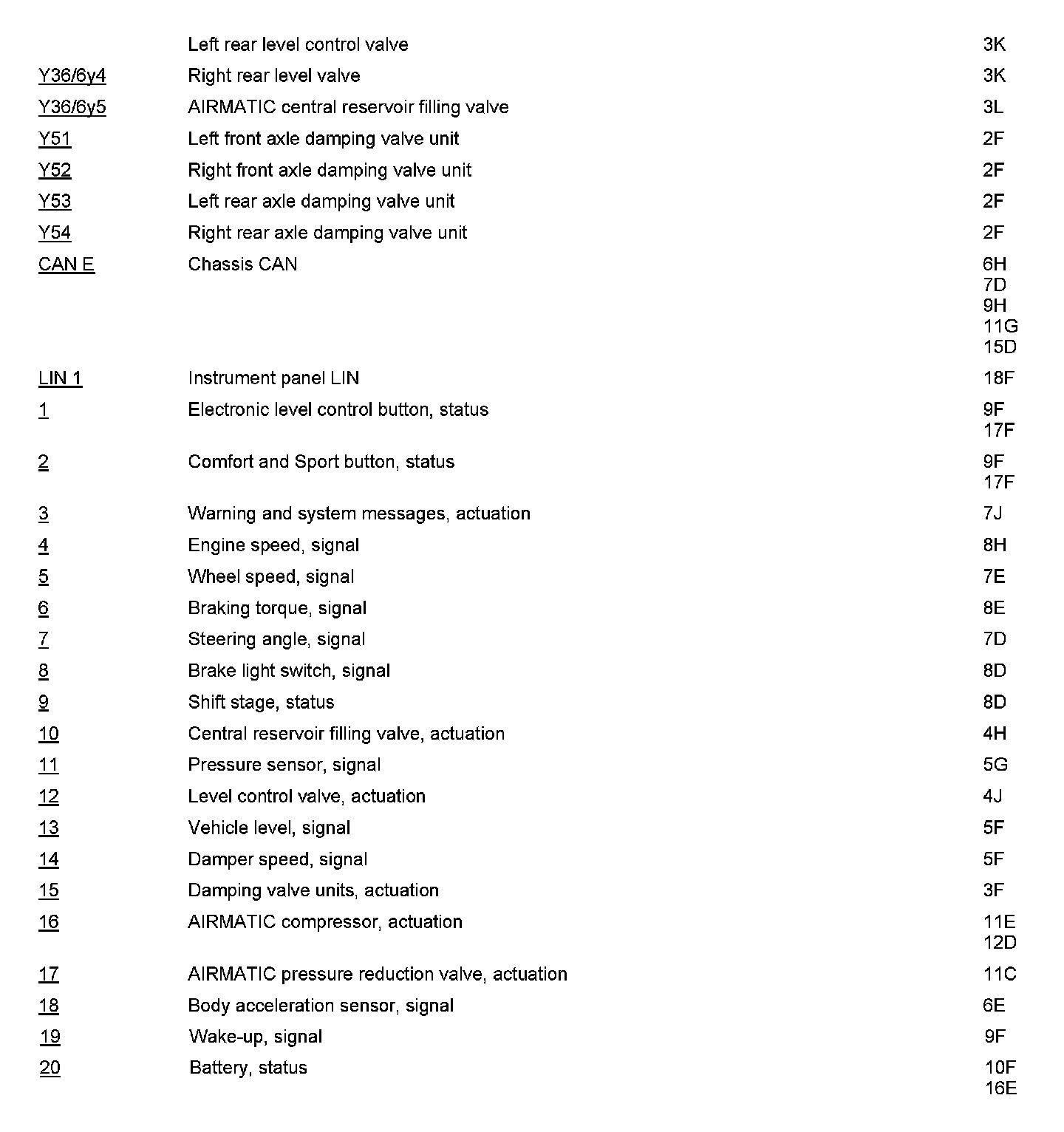

PE32.32-P-2050DAA Electrical Function Schematic For AIRmatic
MODEL 212.0 /2
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
MODEL 212.0 /2
- with CODE (488) Steel/air suspension






























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
