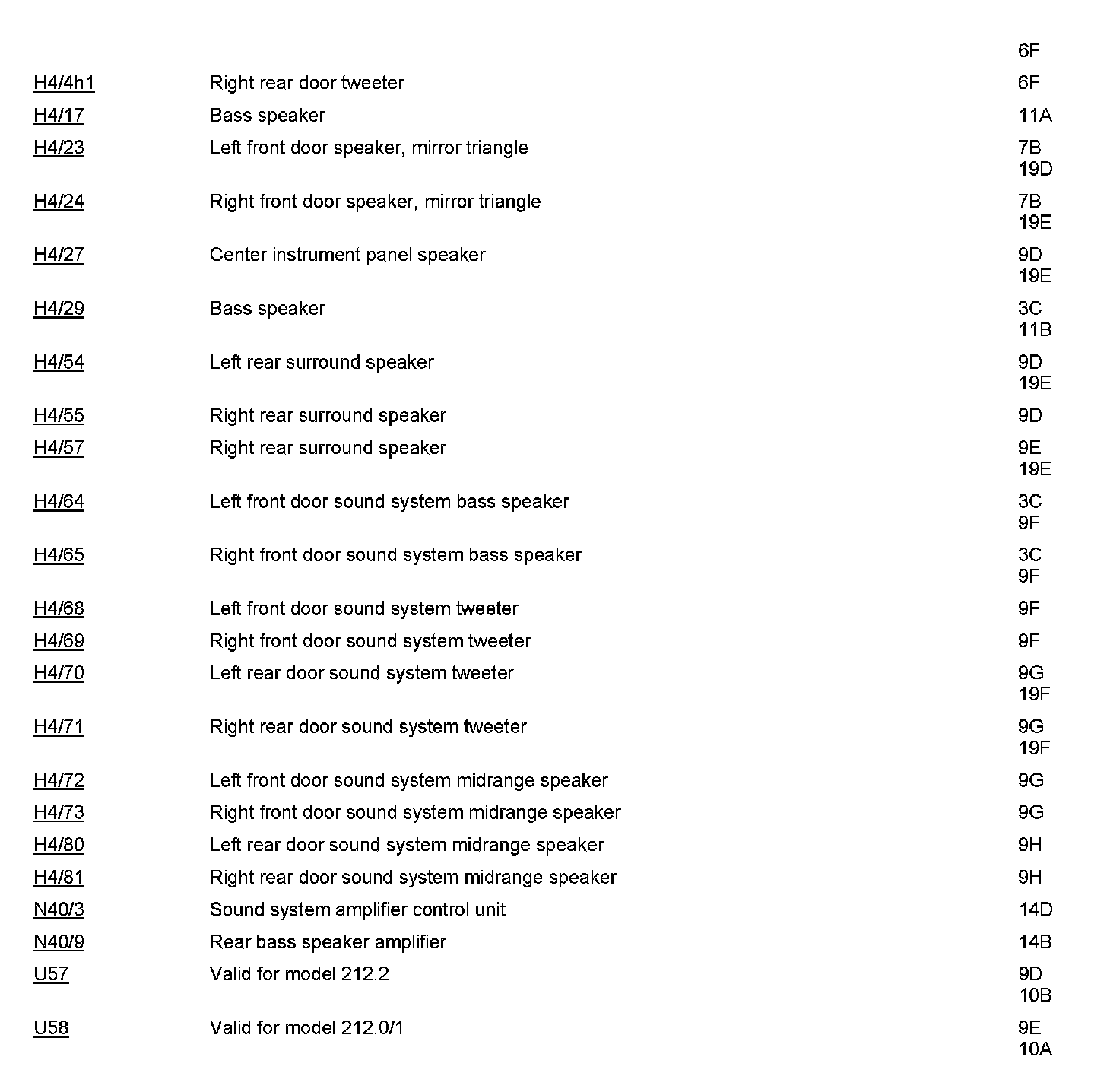

PE82.62-P-2300DAA Electrical Function Schematic For Speaker System

PE82.62-P-2300DAA Electrical Function Schematic For Speaker System
MODEL 212


































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
