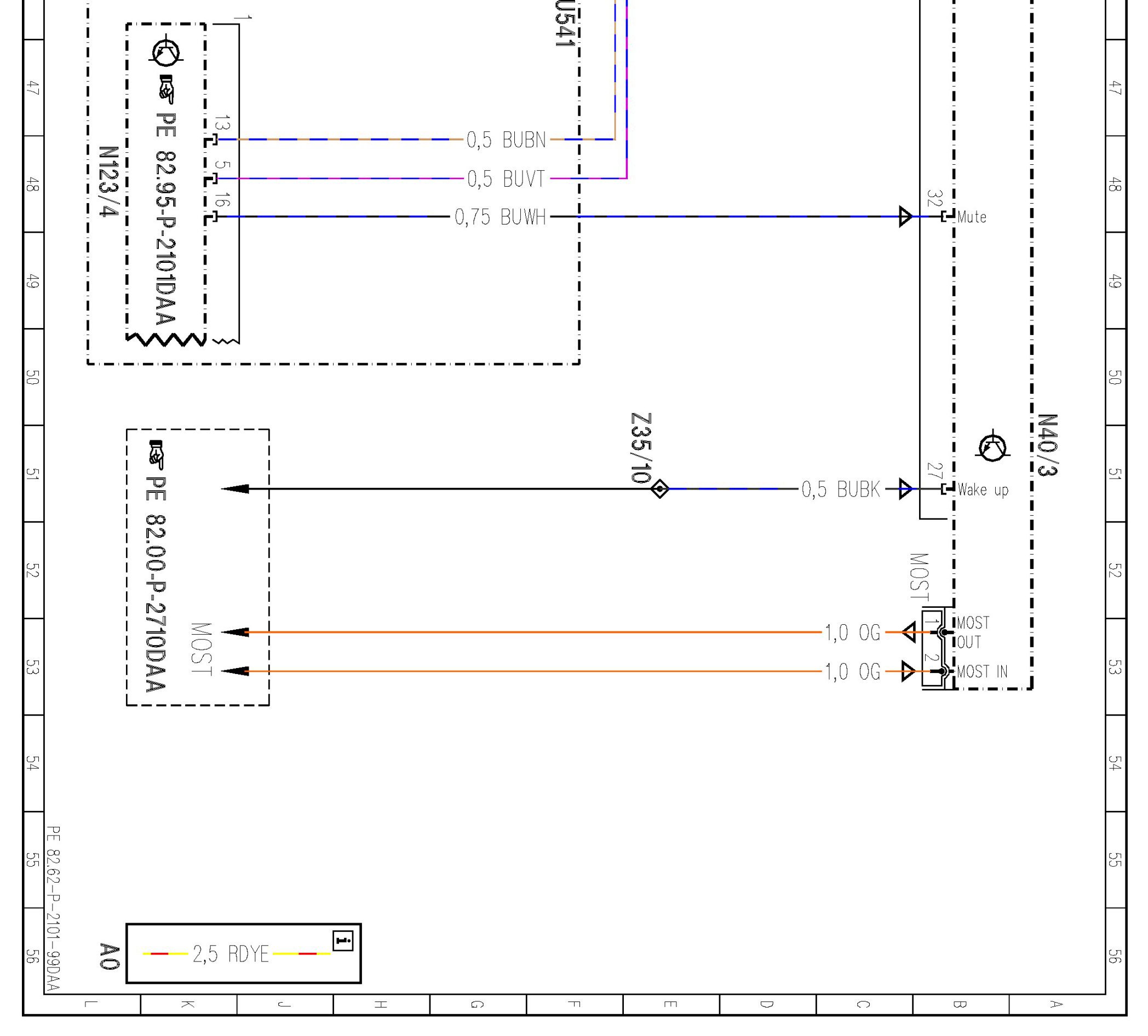

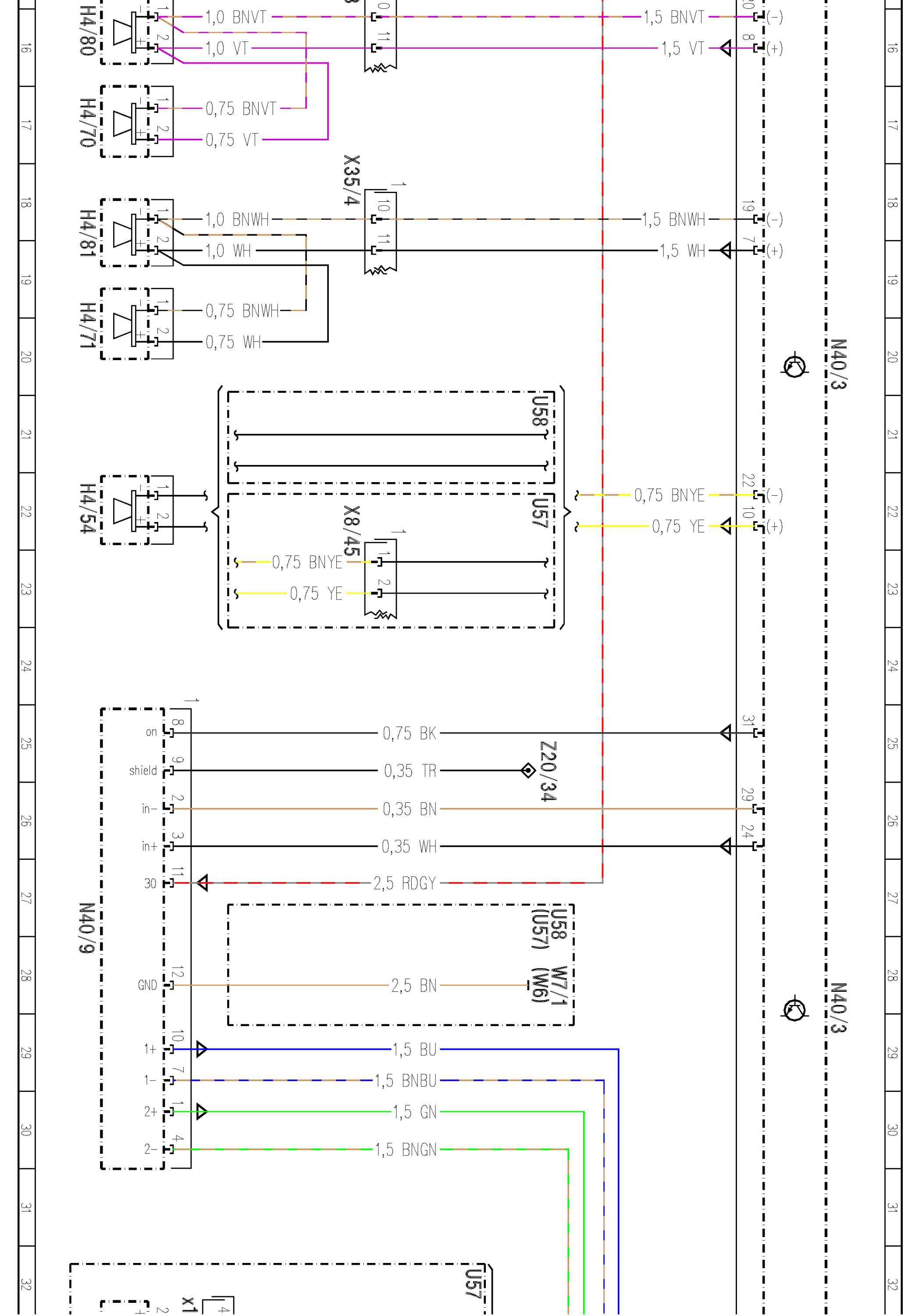

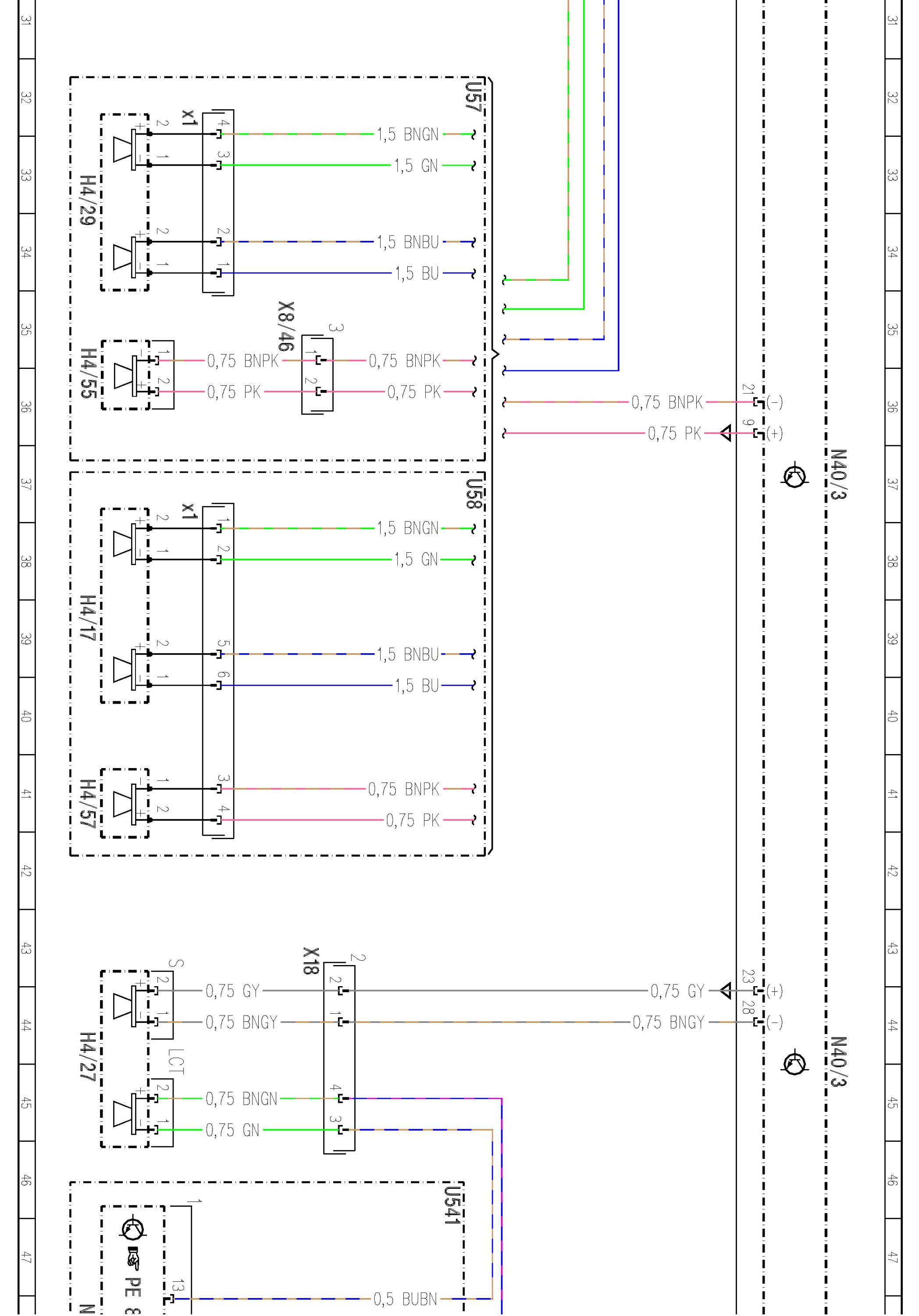

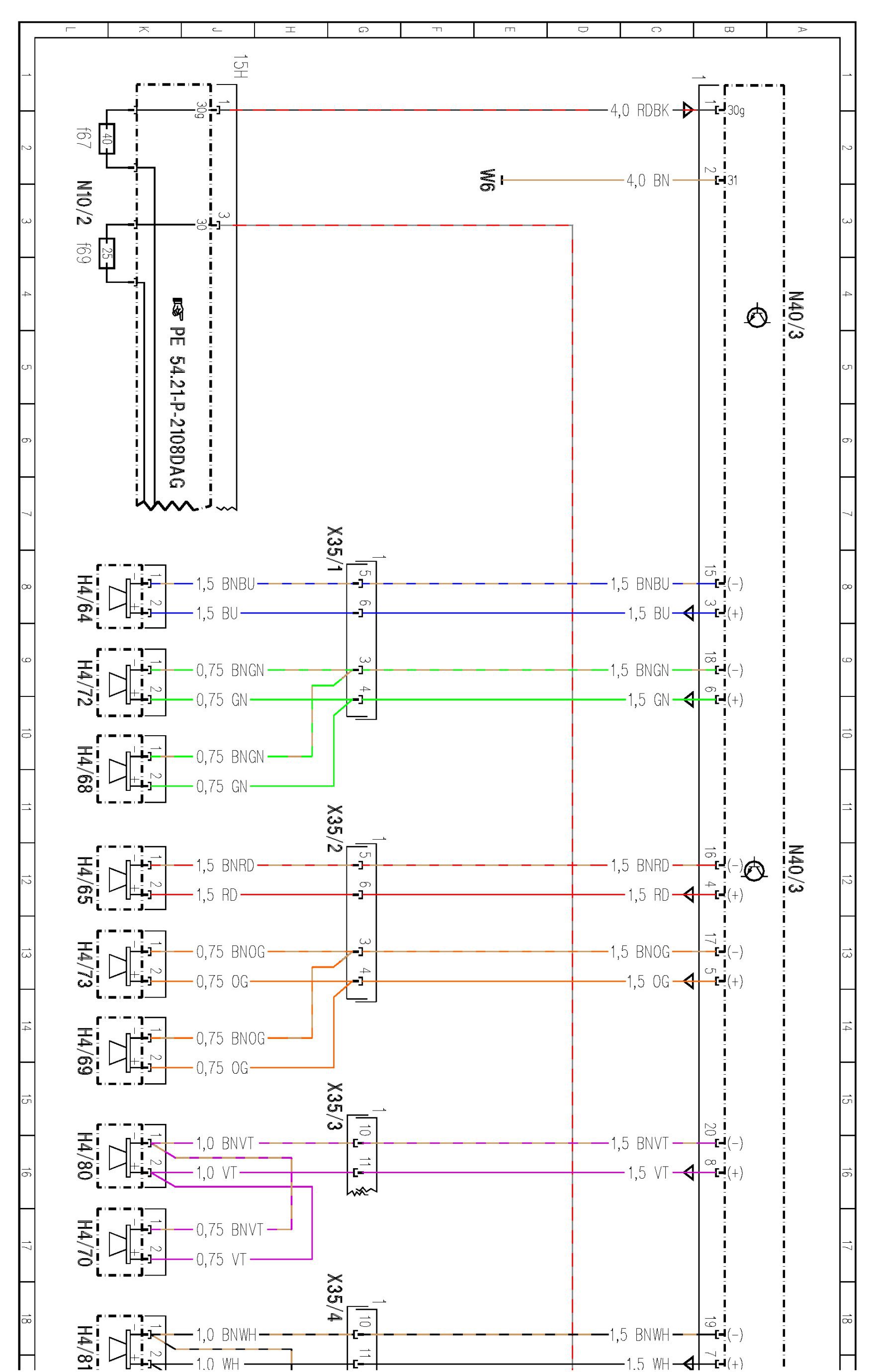

PE82.62-P-2101DAA Sound Amplifier Control Unit Wiring Diagram

PE82.62-P-2101DAA Sound Amplifier Control Unit Wiring Diagram
MODEL 212.0 /2
- with CODE (810) Sound system

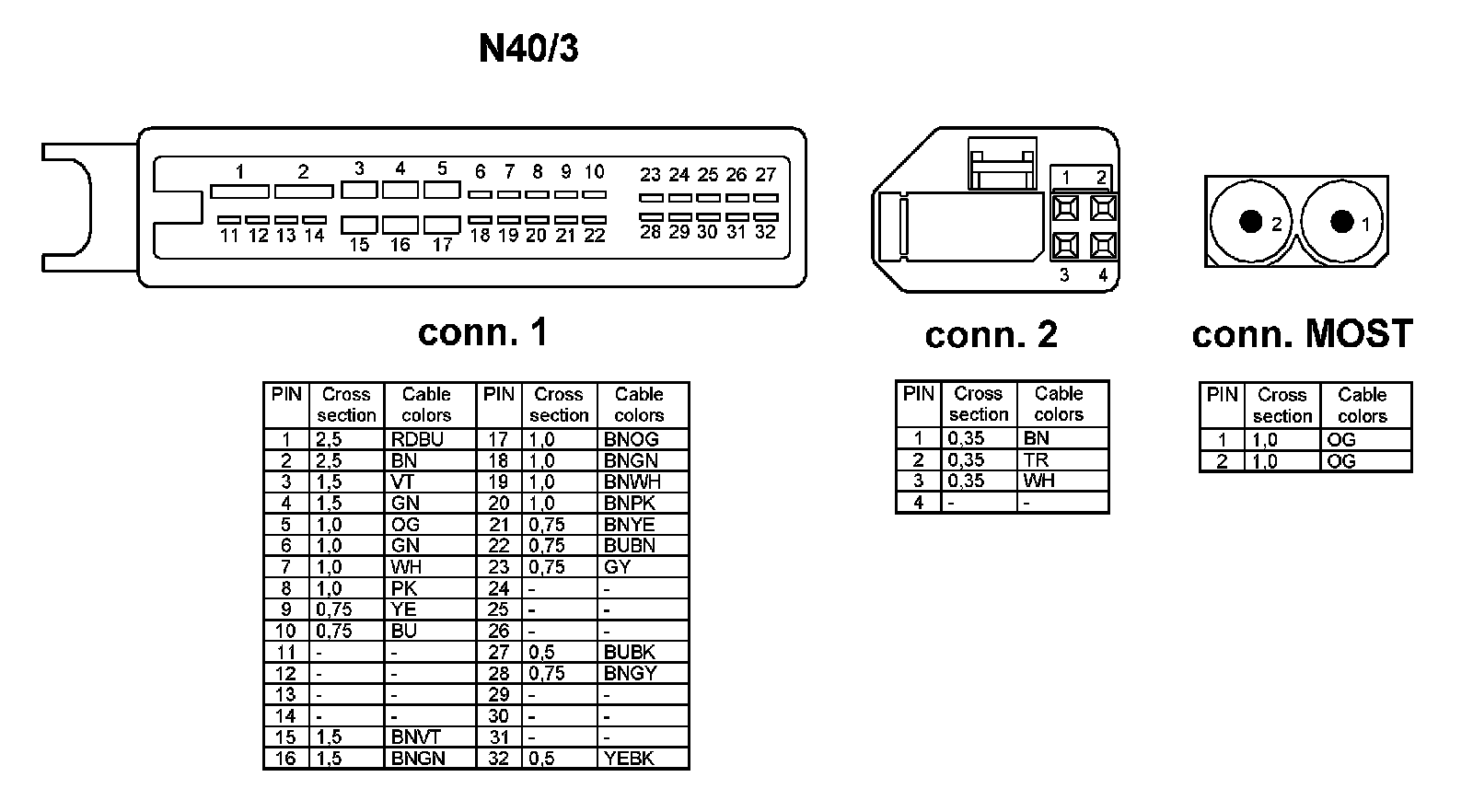

- Control unit N40/3






































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
