PE07.10-P-2700DAF Electrical Function Schematic, Ignition ON

PE07.10-P-2700DAF Electrical Function Schematic, Ignition ON

ENGINE 642.8 in MODEL 212

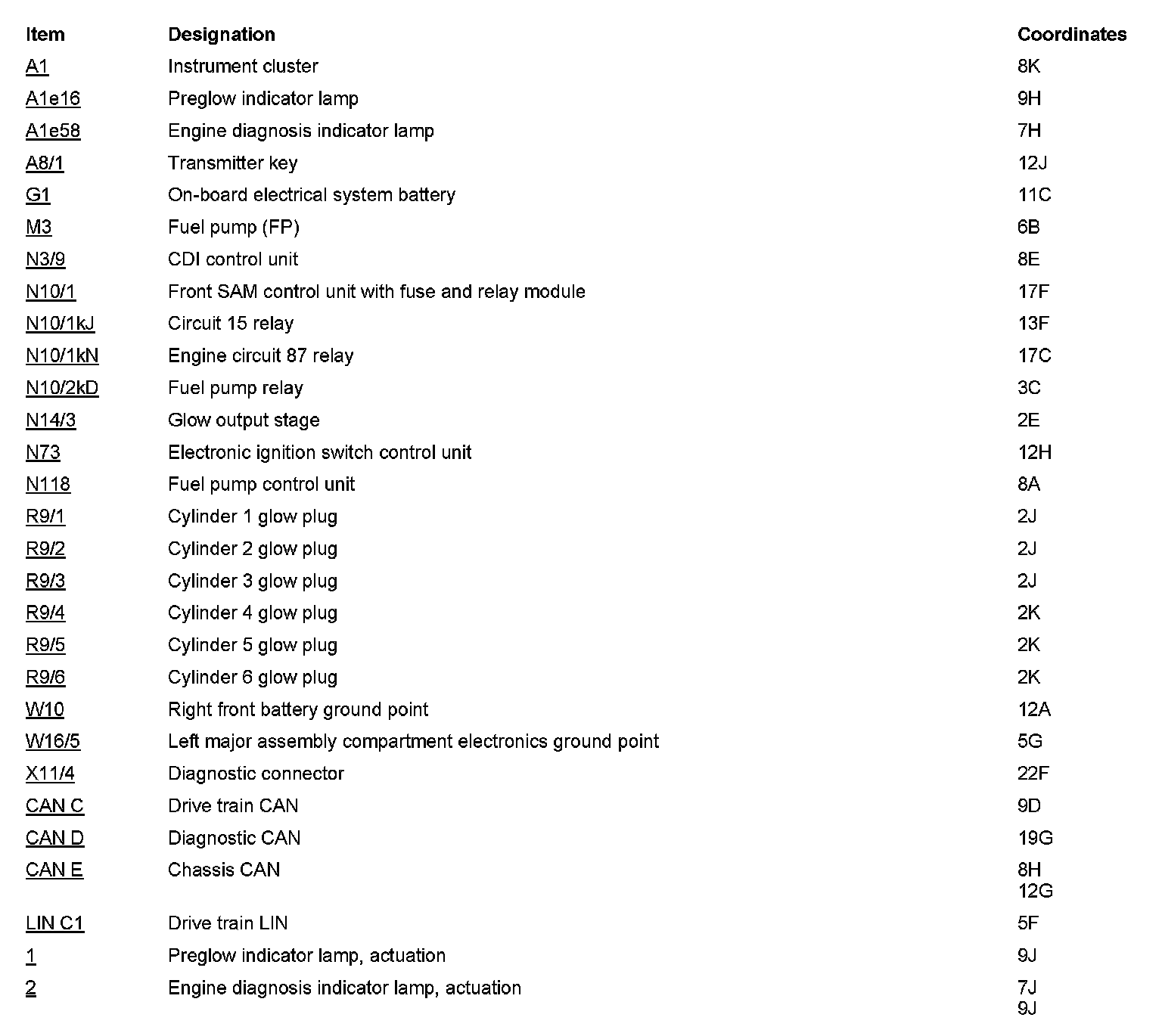

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
