PE14.20-P-2052DAF Electrical Function Schematic For Exhaust Gas Recirculation

PE14.20-P-2052DAF Electrical Function Schematic For Exhaust Gas Recirculation
ENGINE 642.8 in MODEL 212

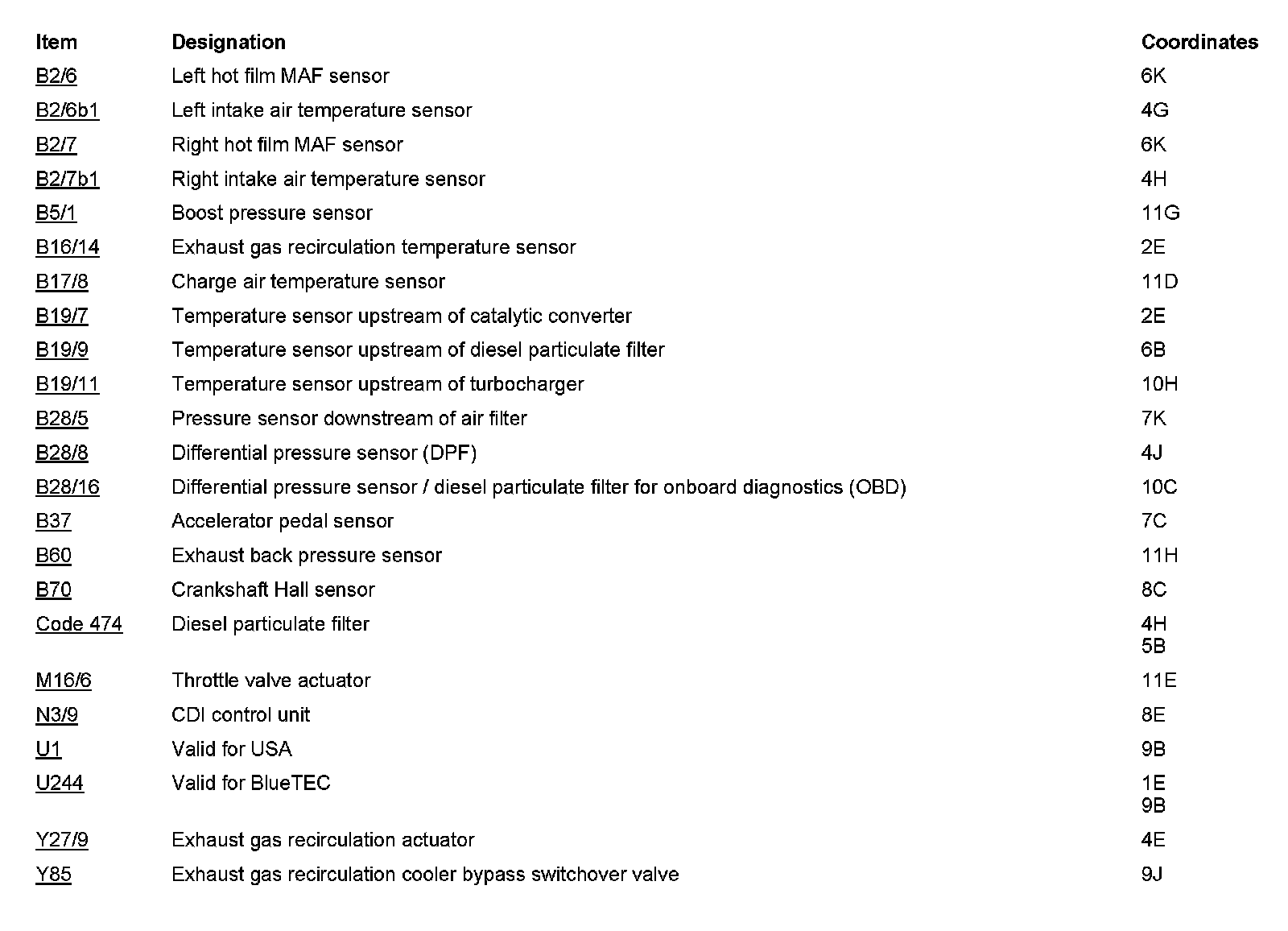

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
