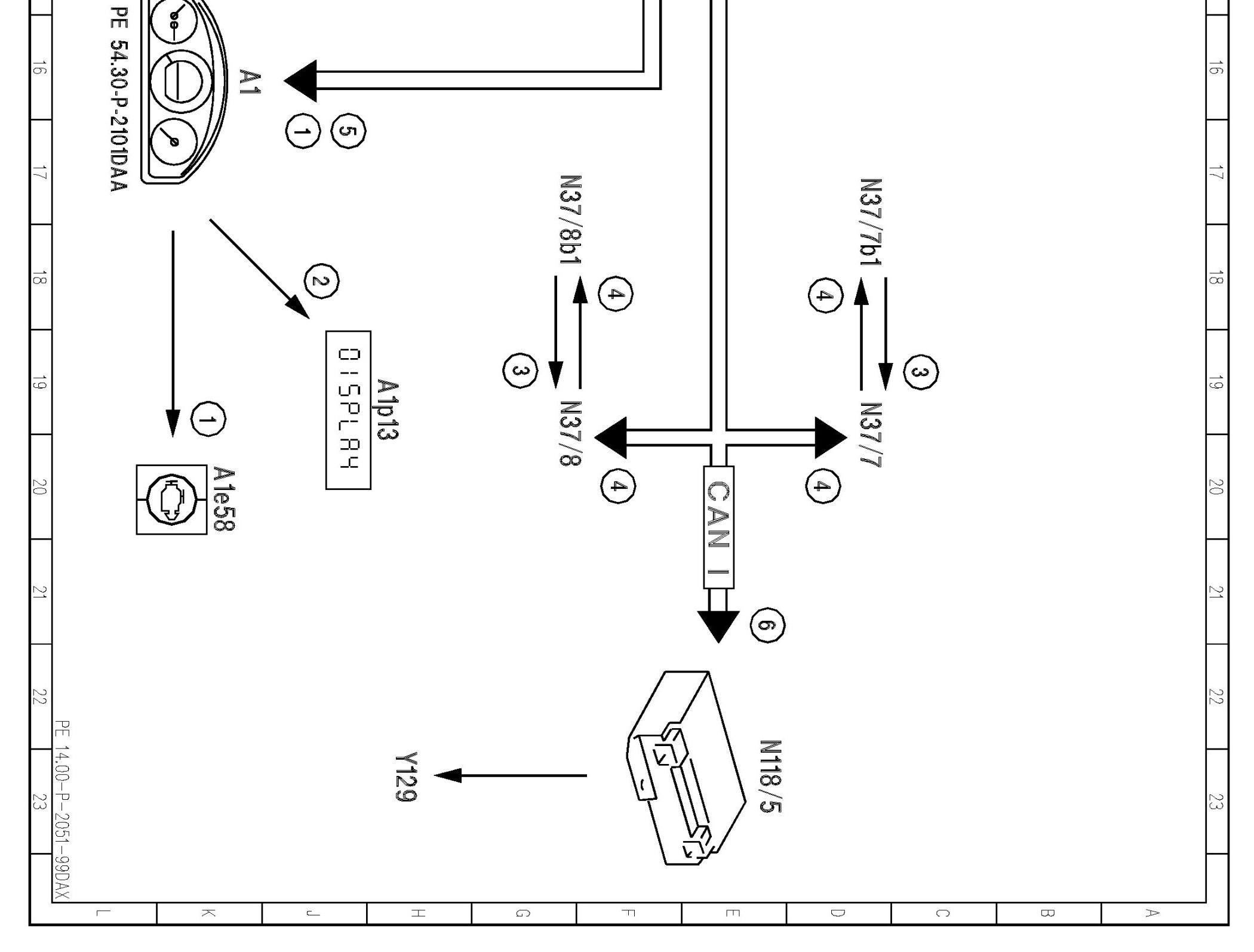

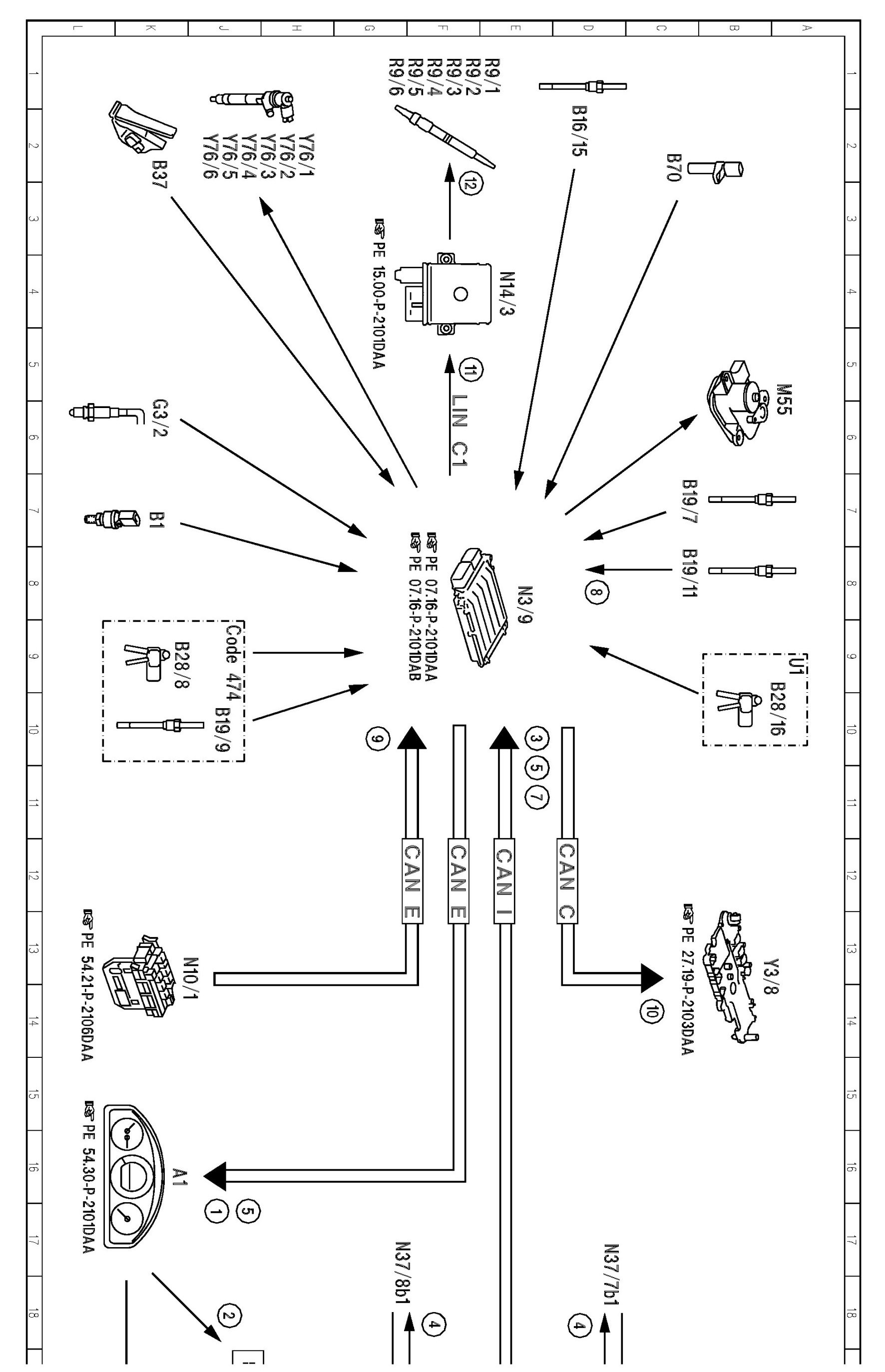

PE14.00-P-2051DAX Electrical Function Schematic For Exhaust Treatment

PE14.00-P-2051DAX Electrical Function Schematic For Exhaust Treatment
ENGINES 642.8 in MODEL 212.0
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)

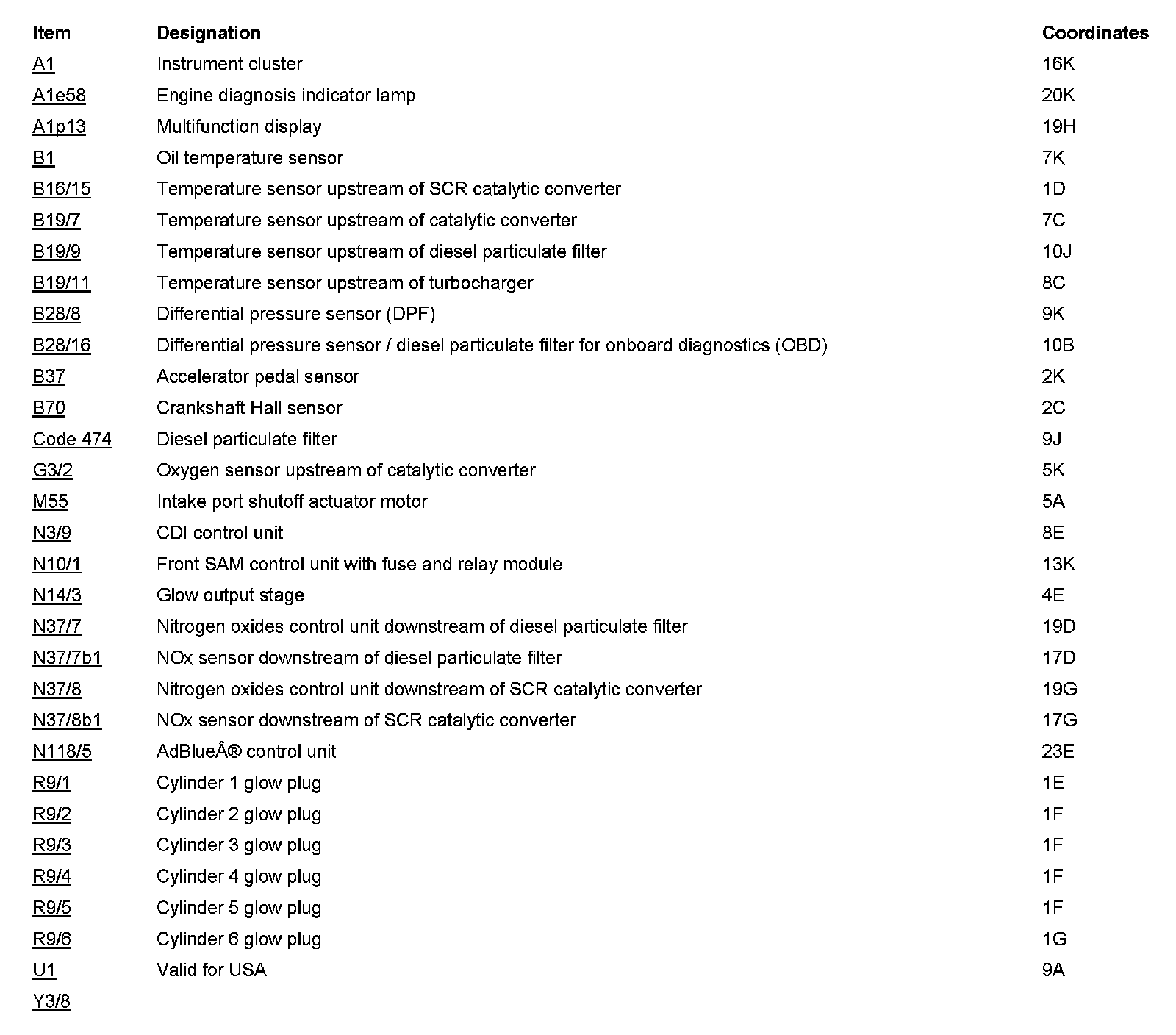

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
