Electrical Diagrams

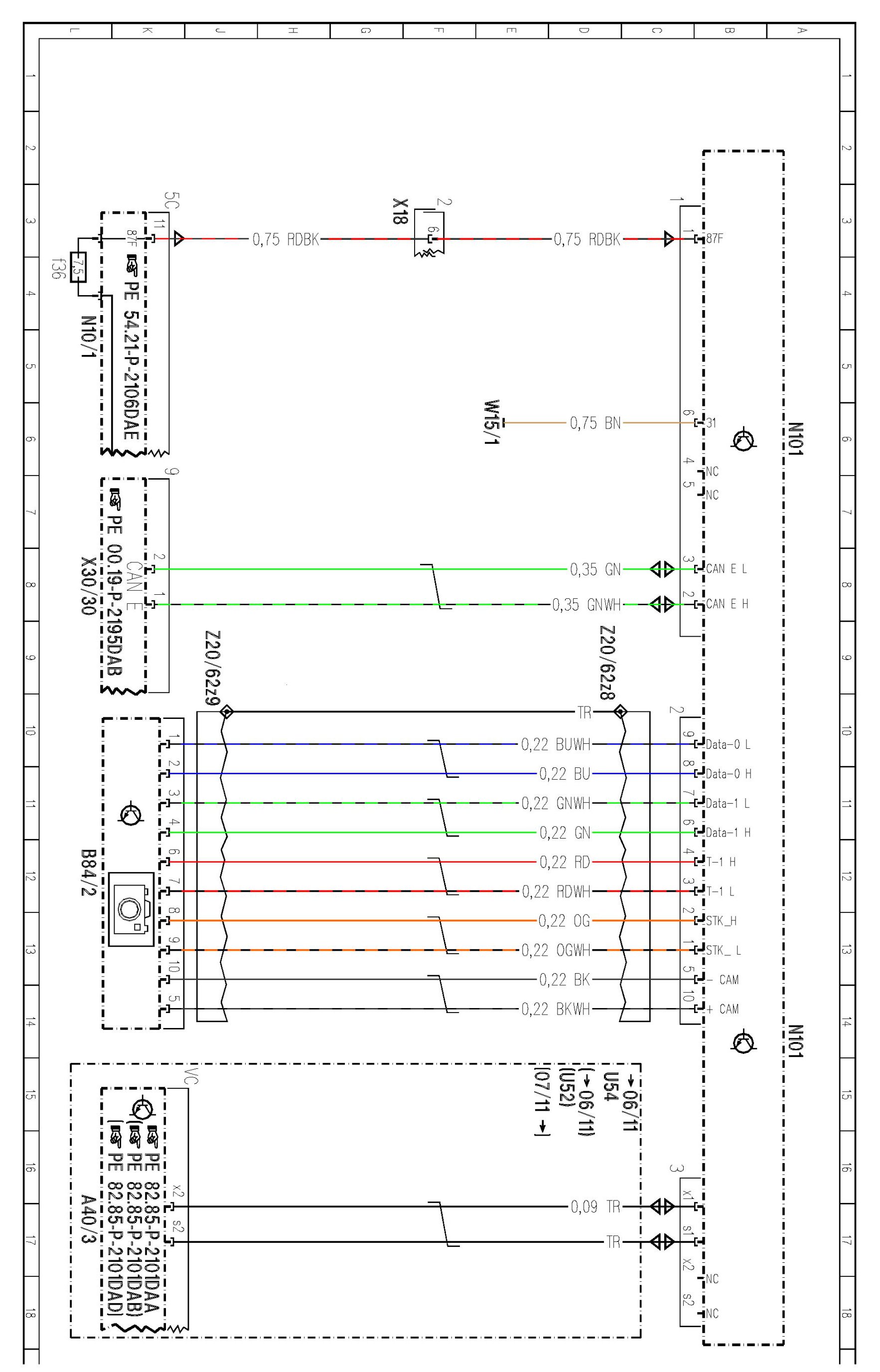

PE54.30-P-2103DAA Night View Assist Control Unit
MODEL 212.0 /2
- with CODE (610) Night View Assist
- control unit N101


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
