PE88.79-P-2057DAA Electrical Function Schematic For Folding Outside Mirrors

PE88.79-P-2057DAA Electrical Function Schematic For Folding Outside Mirrors
MODEL 212.0 /2
- with CODE (249) Automatically dimming inside rearview mirror and outside mirrors including fold-in outside mirrors
- except CODE (494) USA version

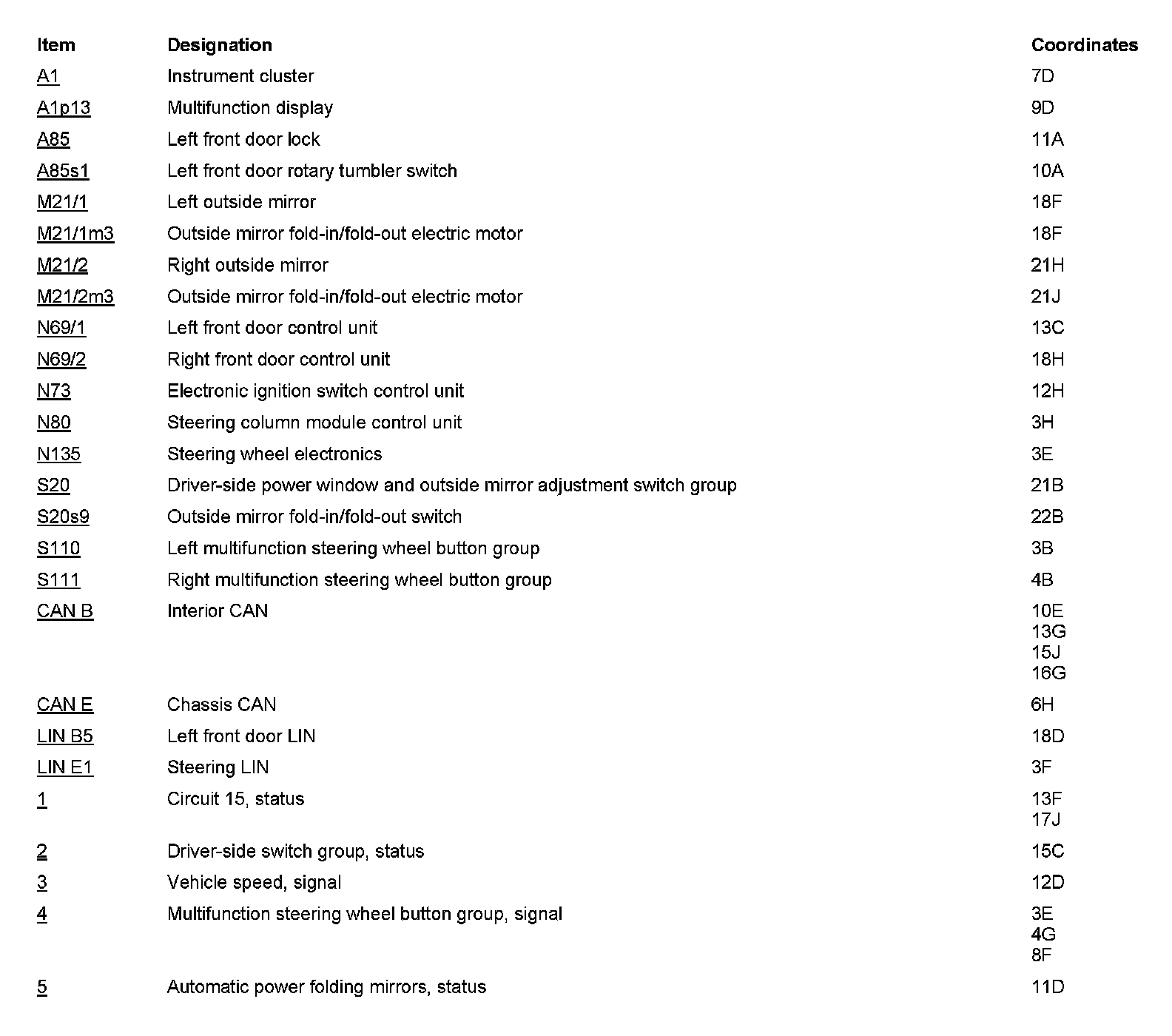

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
