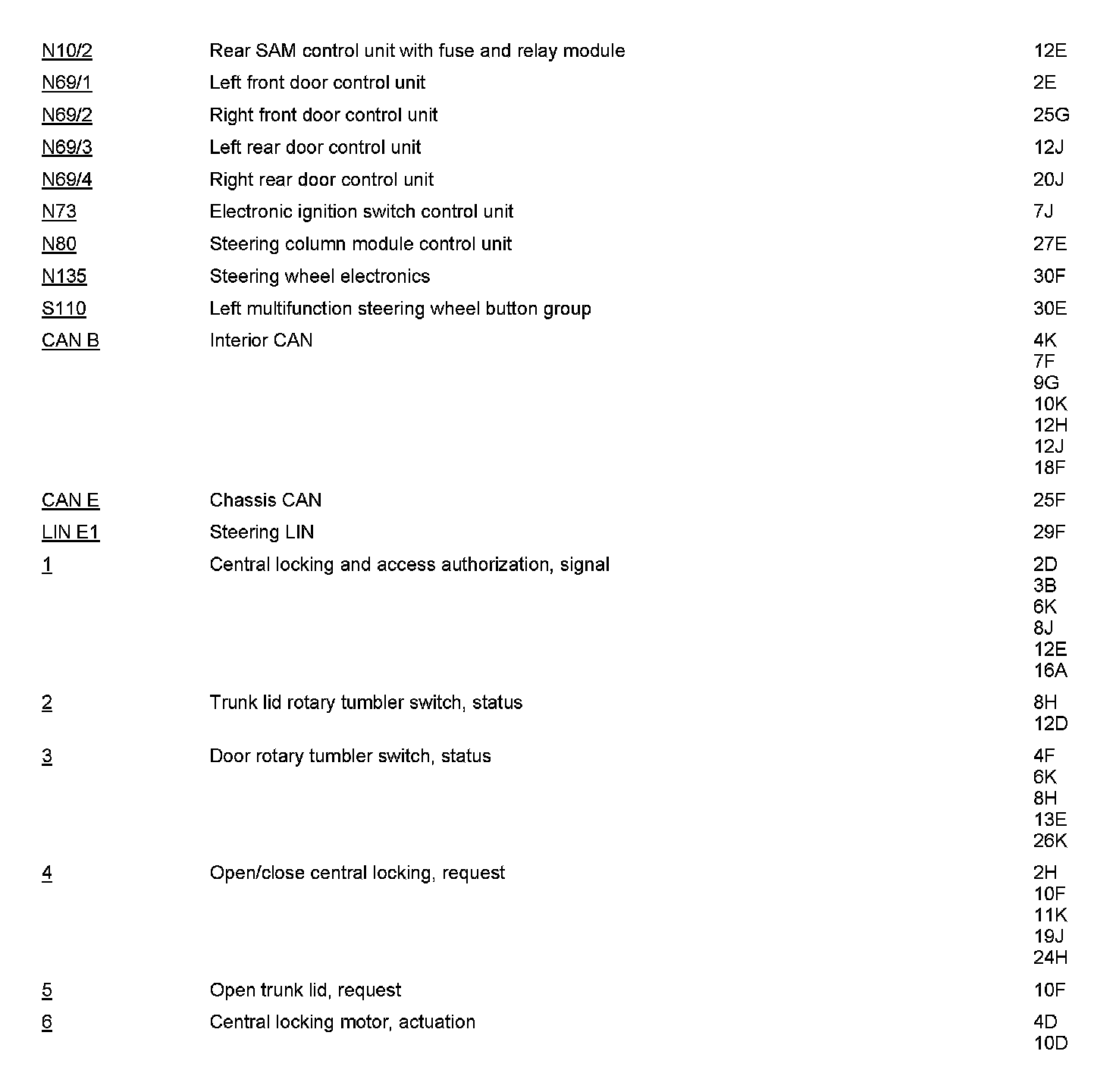

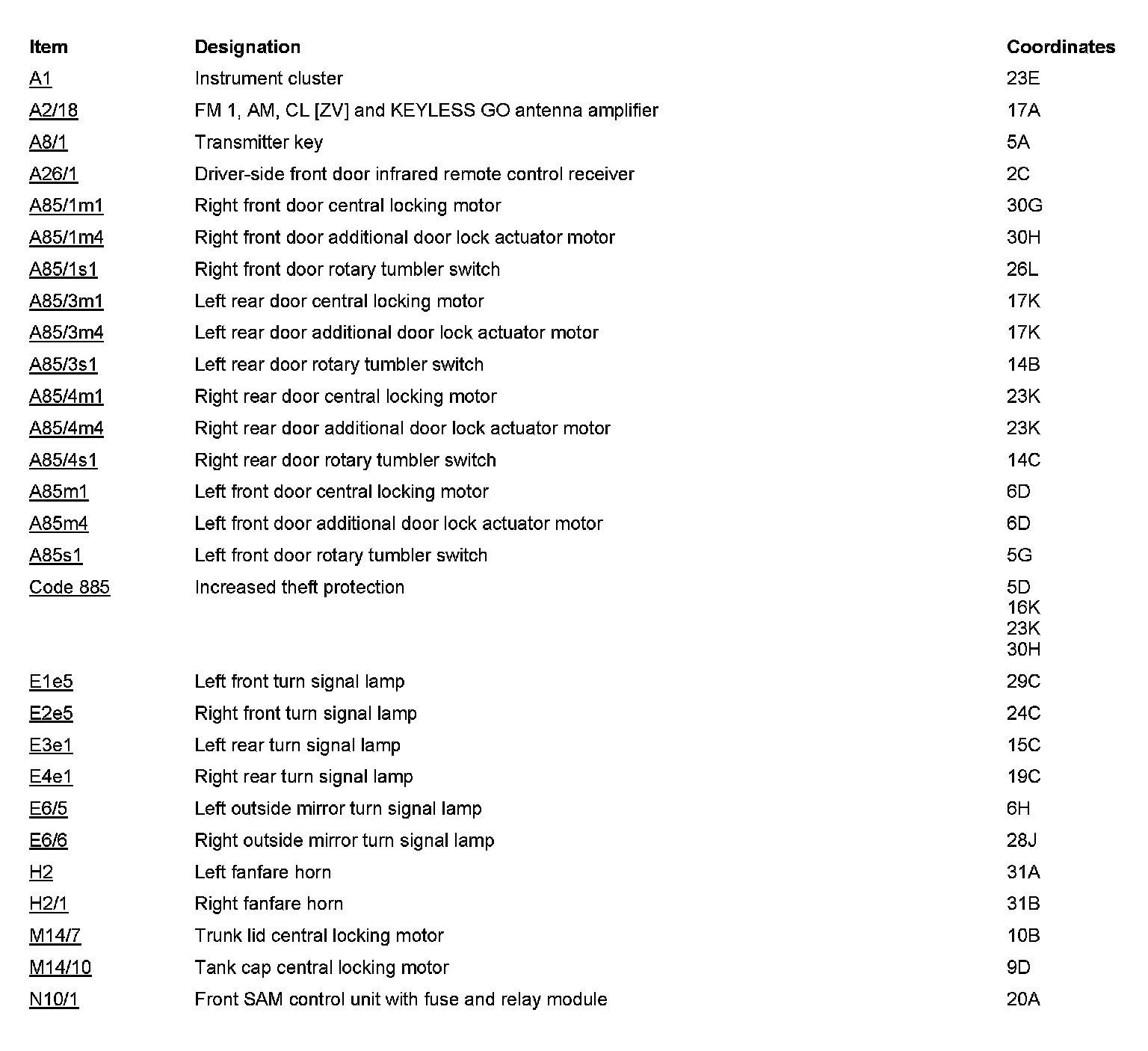

PE80.20-P-2052DAA Electrical Function Diagram For Central Locking, Operation With Transmitter Key

PE80.20-P-2052DAA Electrical Function Schematic For Central Locking, Operation With Transmitter Key
MODEL 212.0

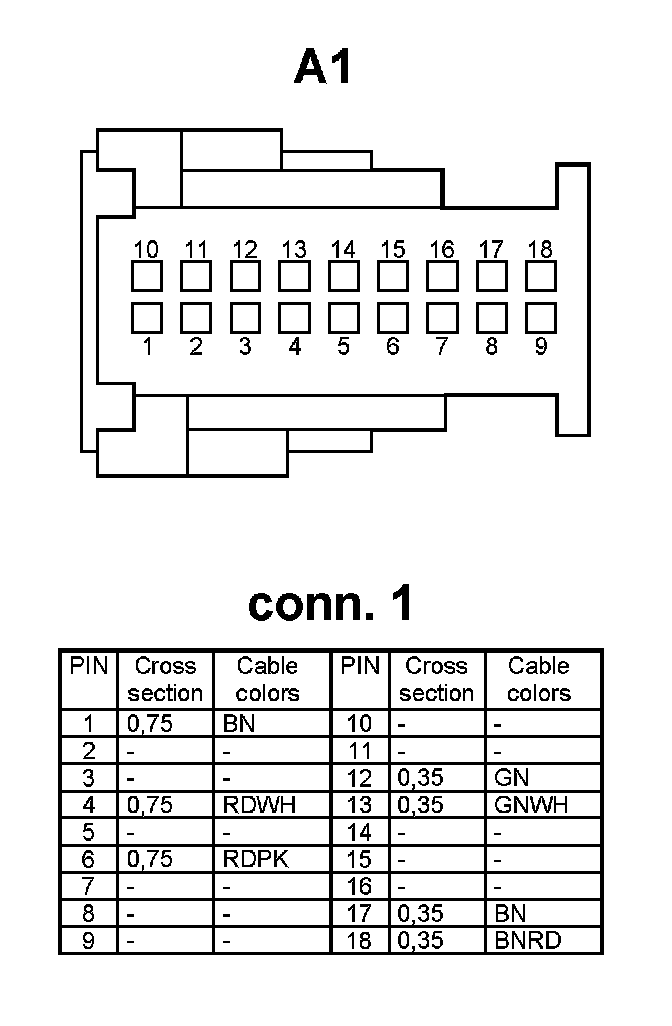

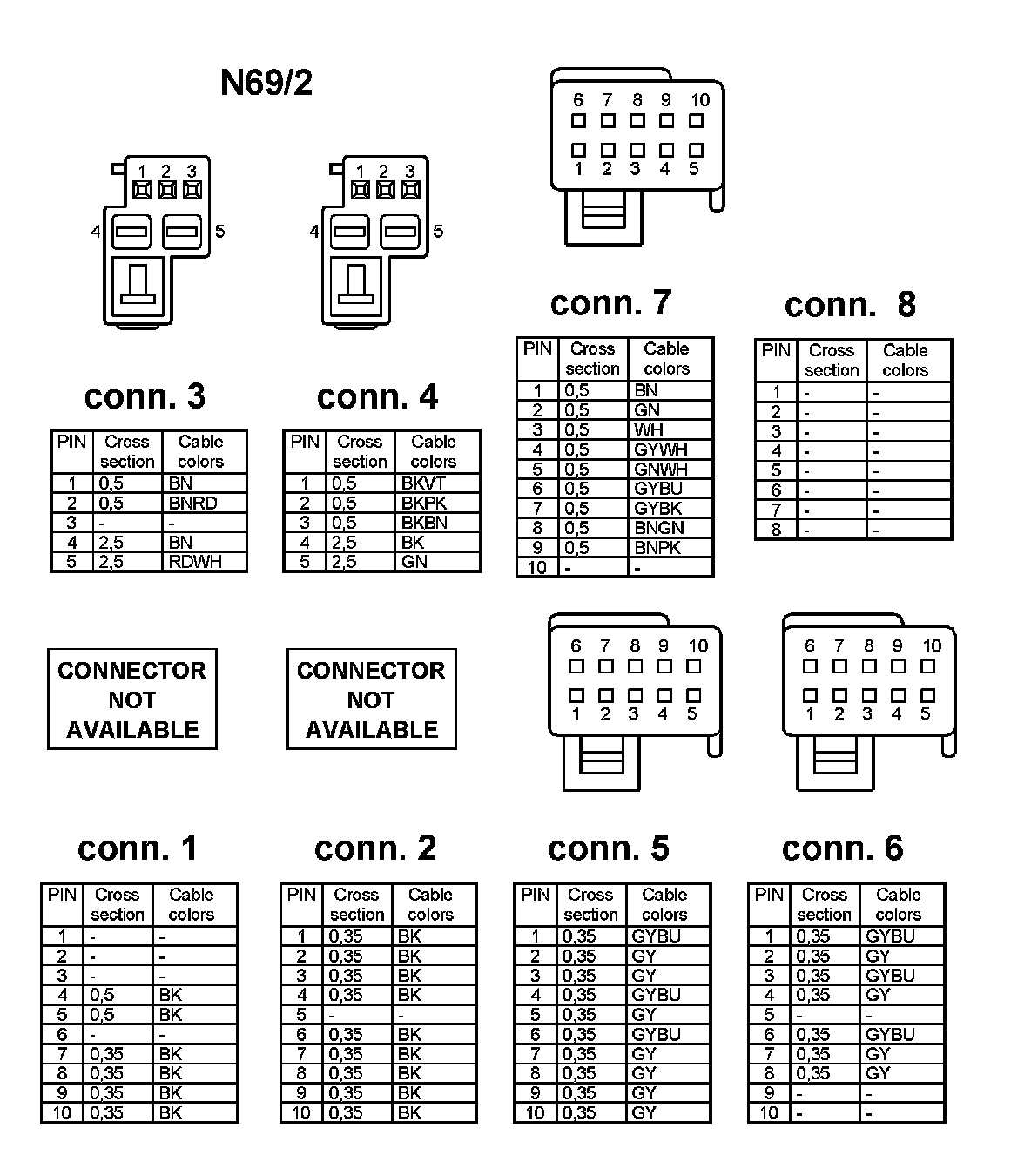

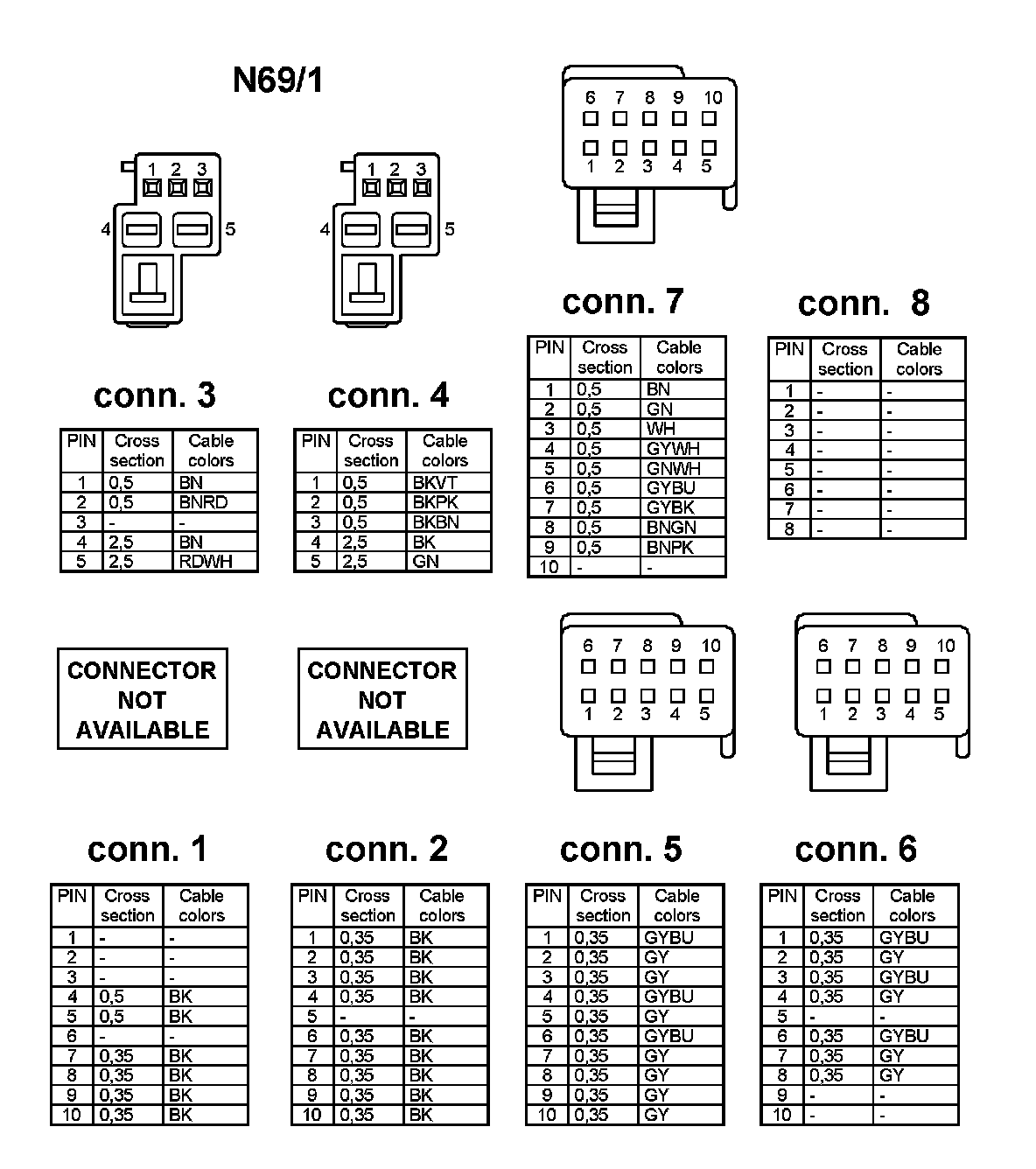

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
