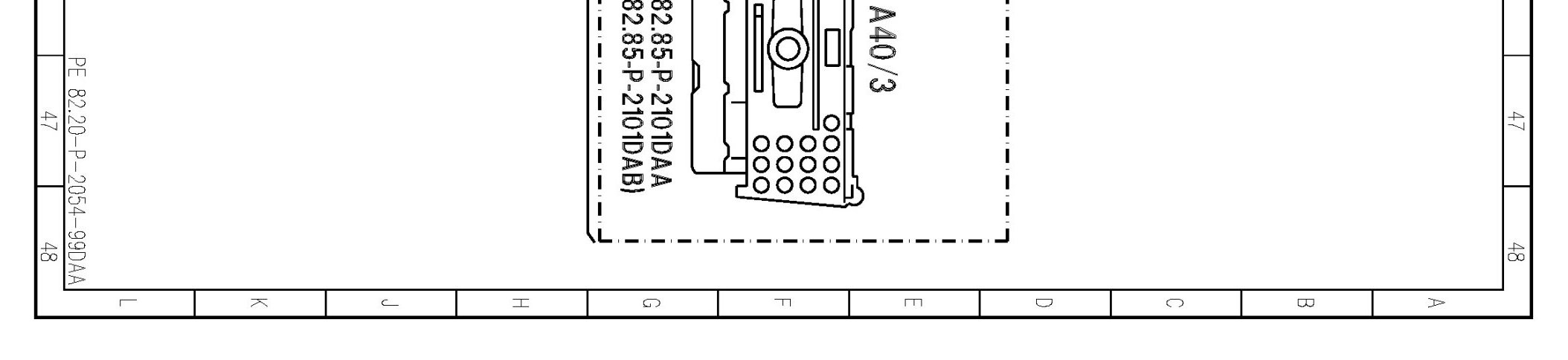

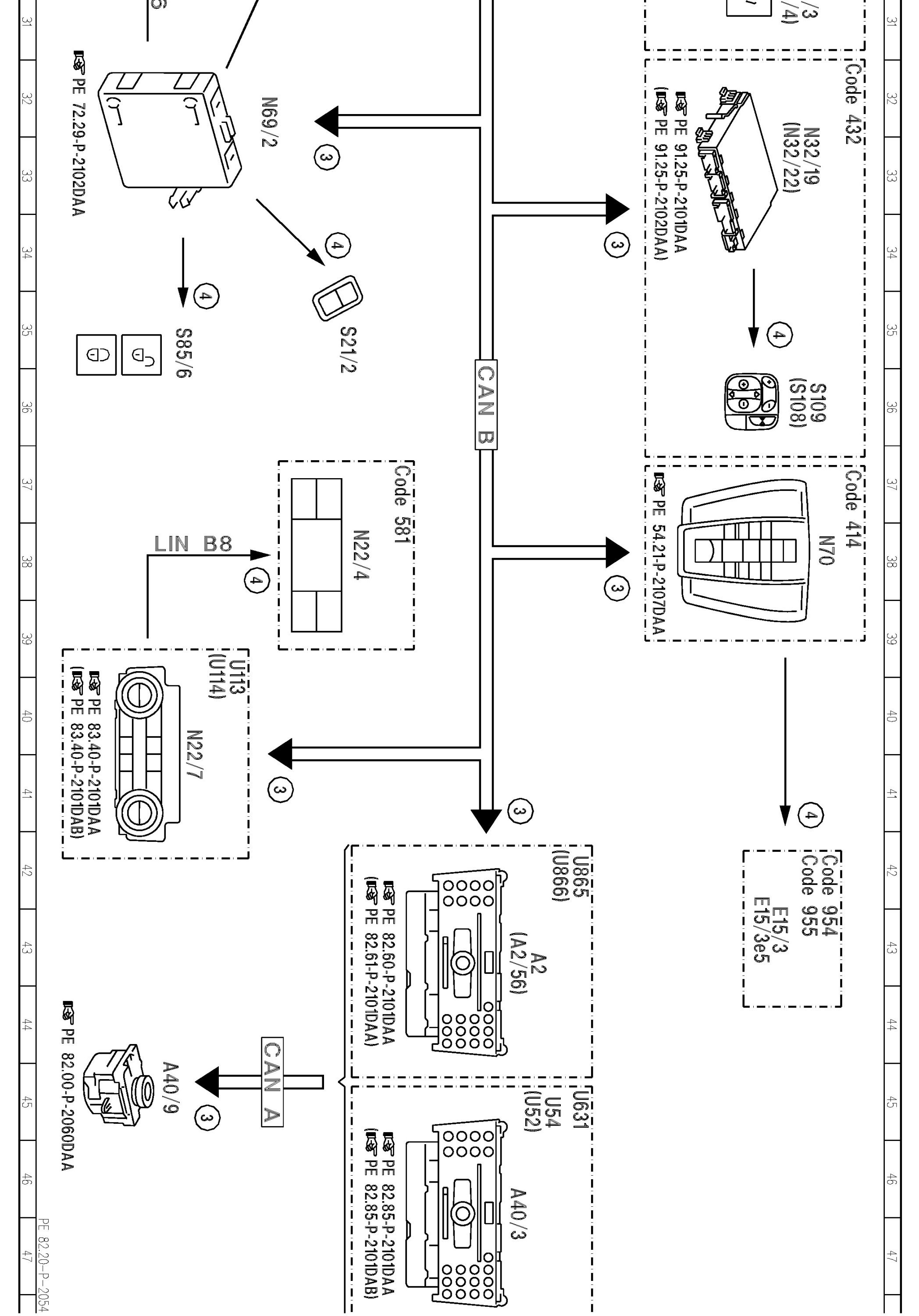

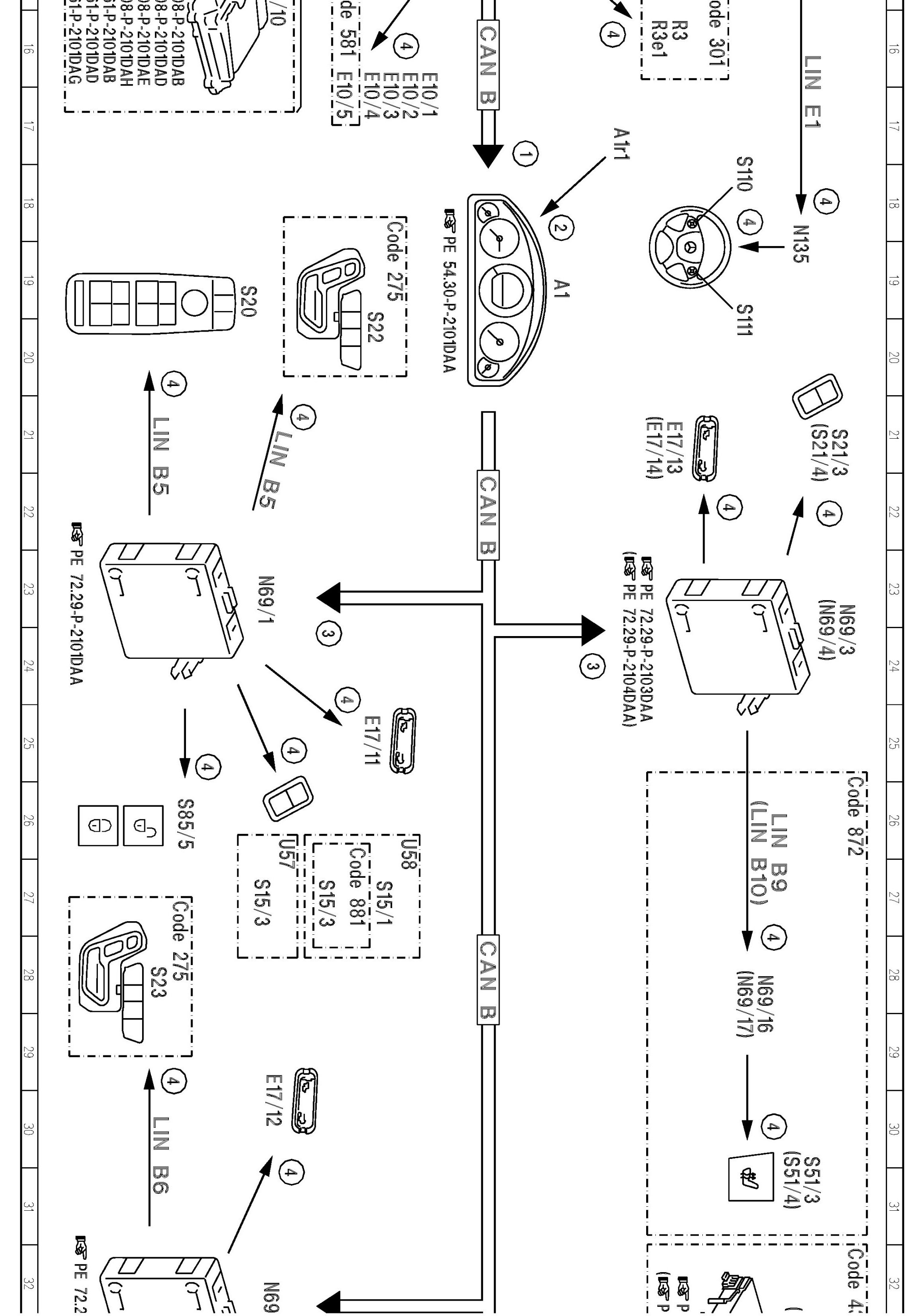

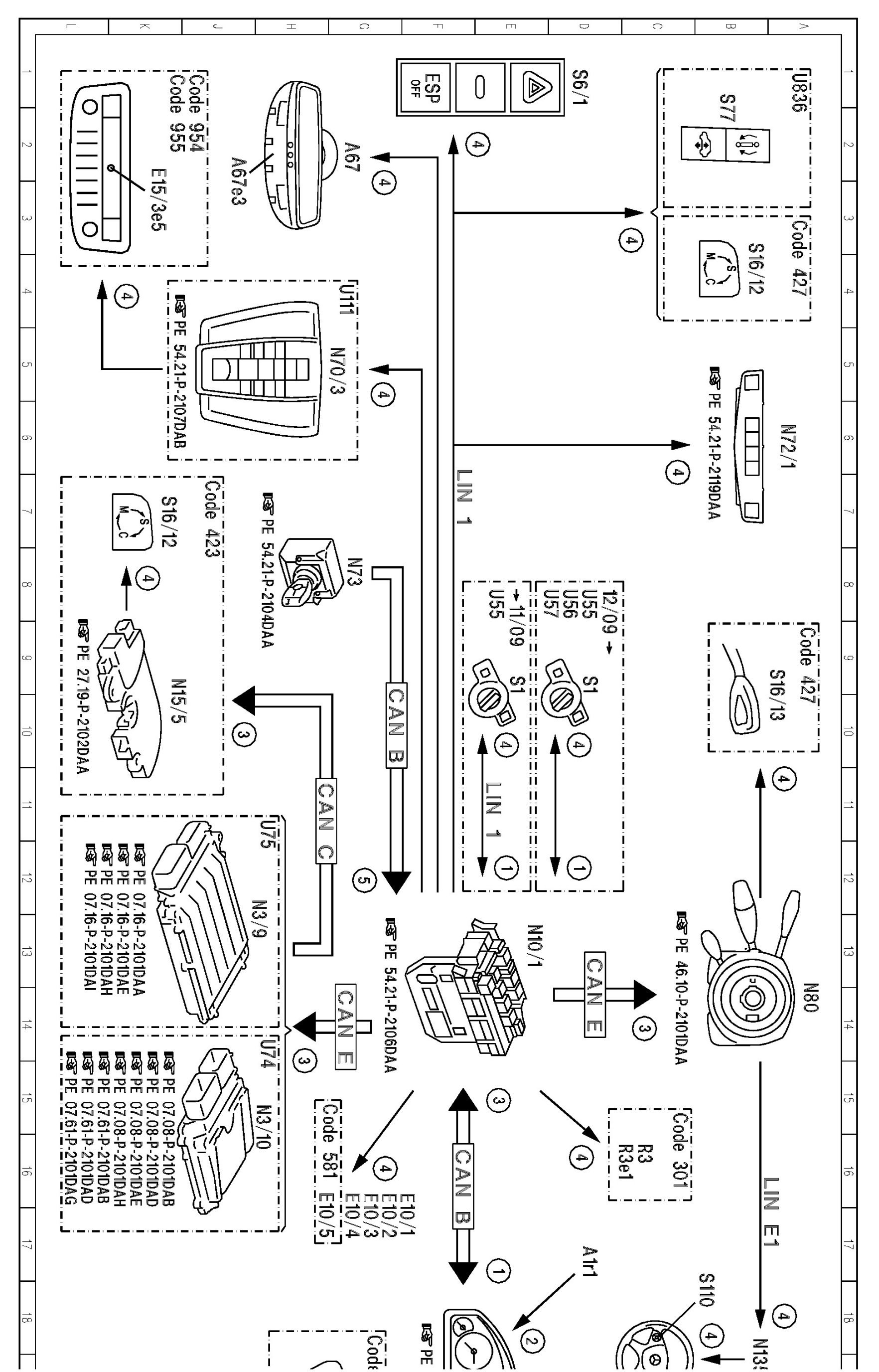

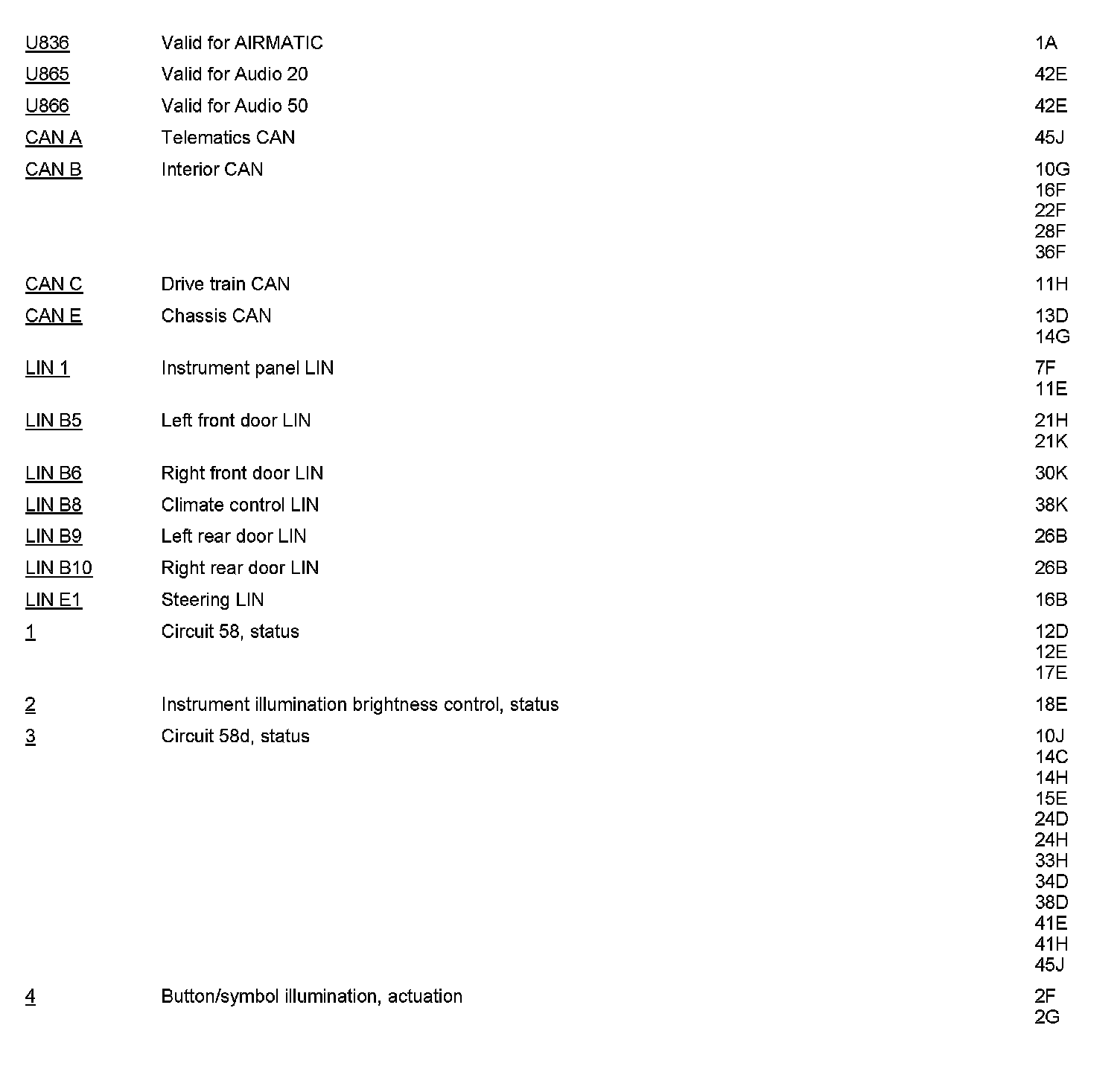

PE82.20-P-2054DAA Search And Symbol Illumination Electrical Function Schematic

PE82.20-P-2054DAA Search And Symbol Illumination Electrical Function Schematic
MODEL 212.0/ 2

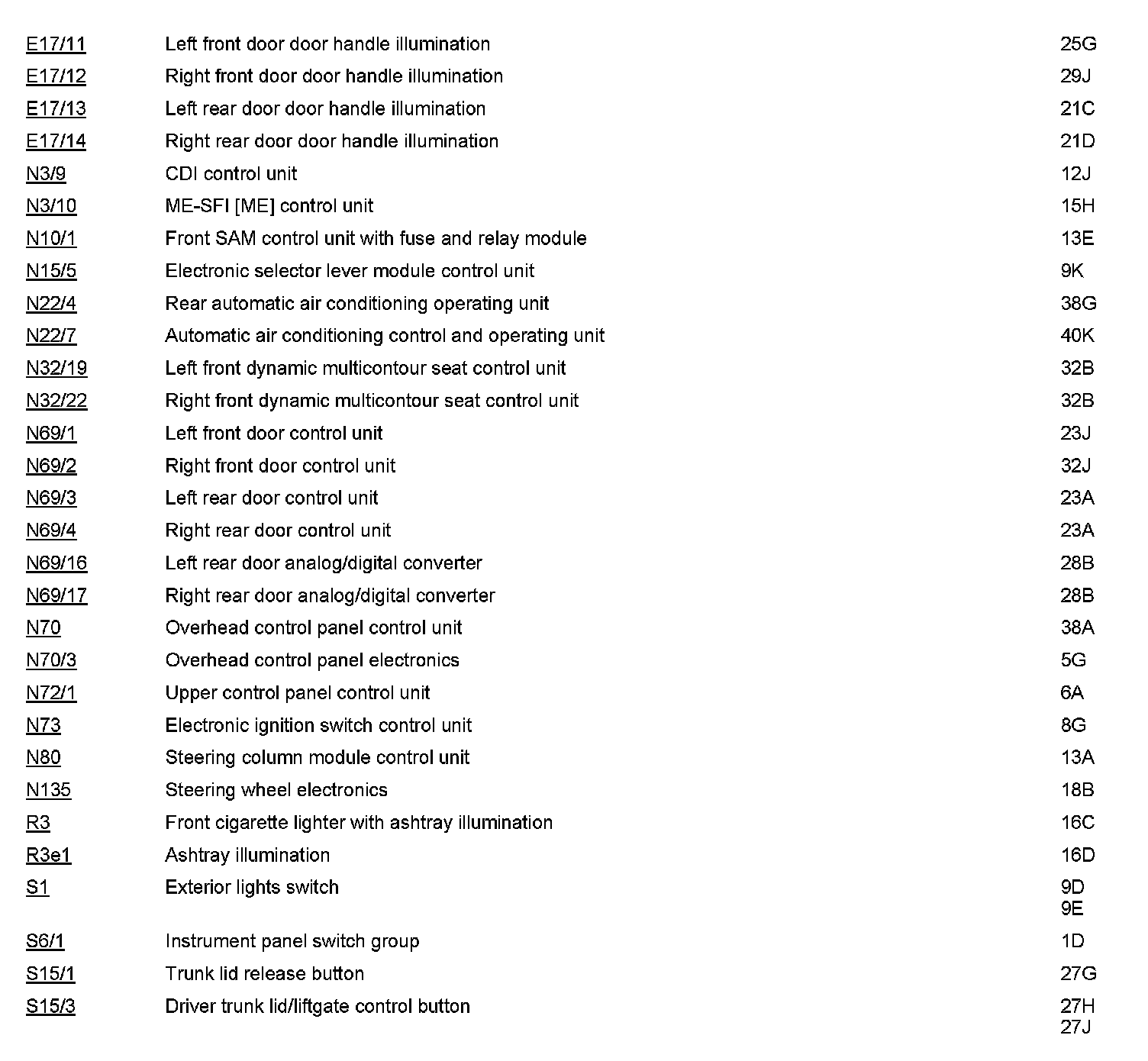

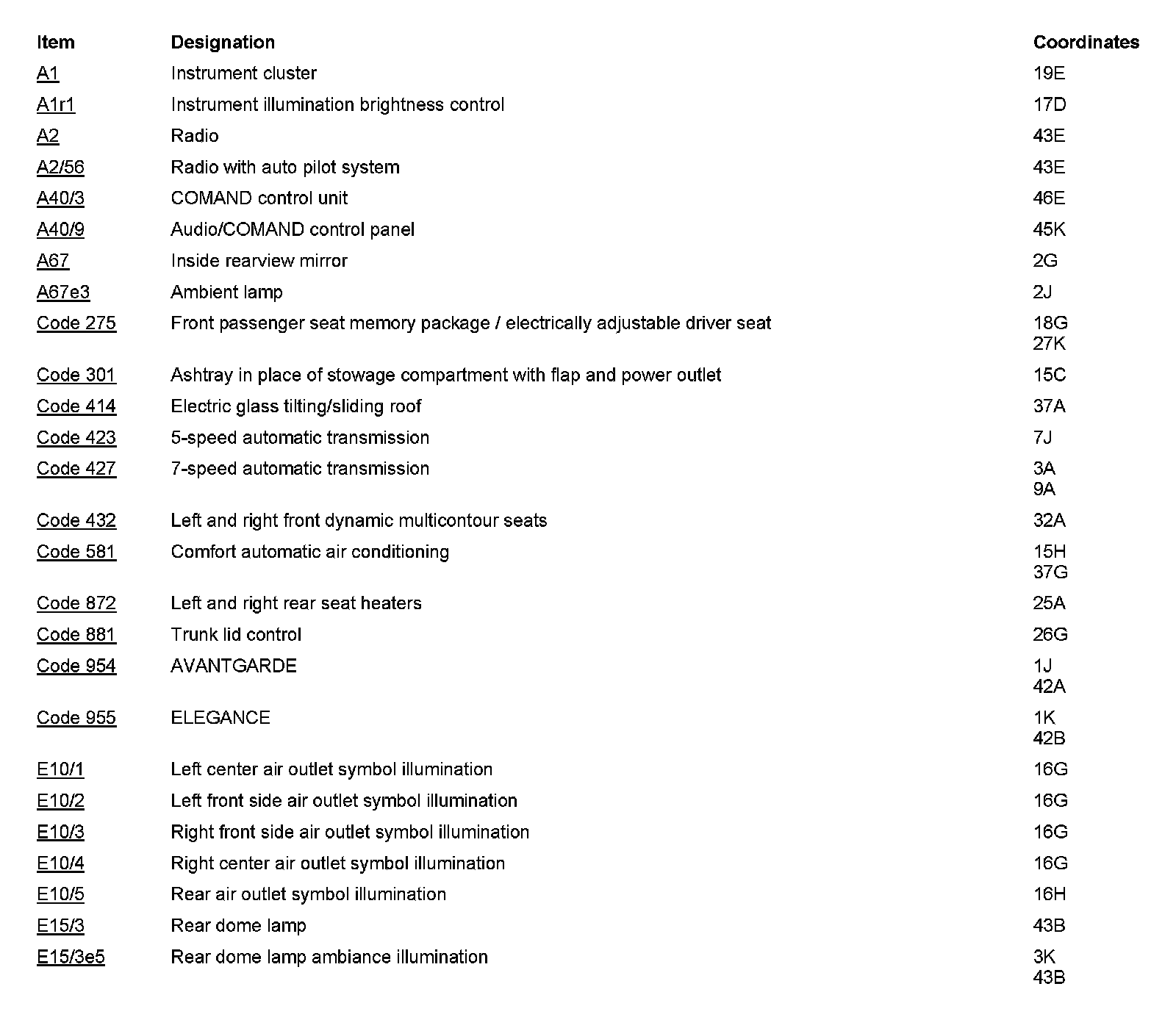

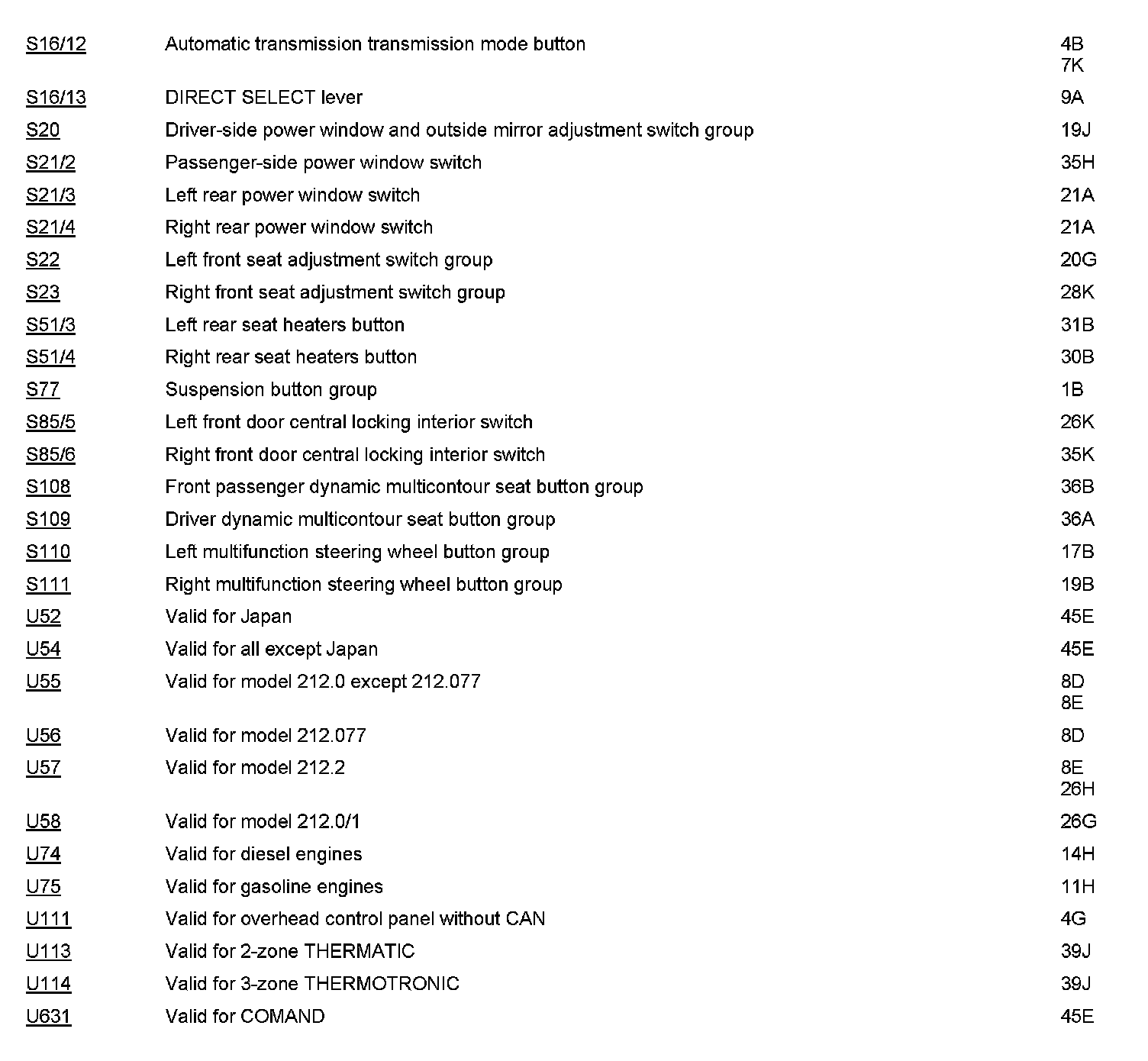

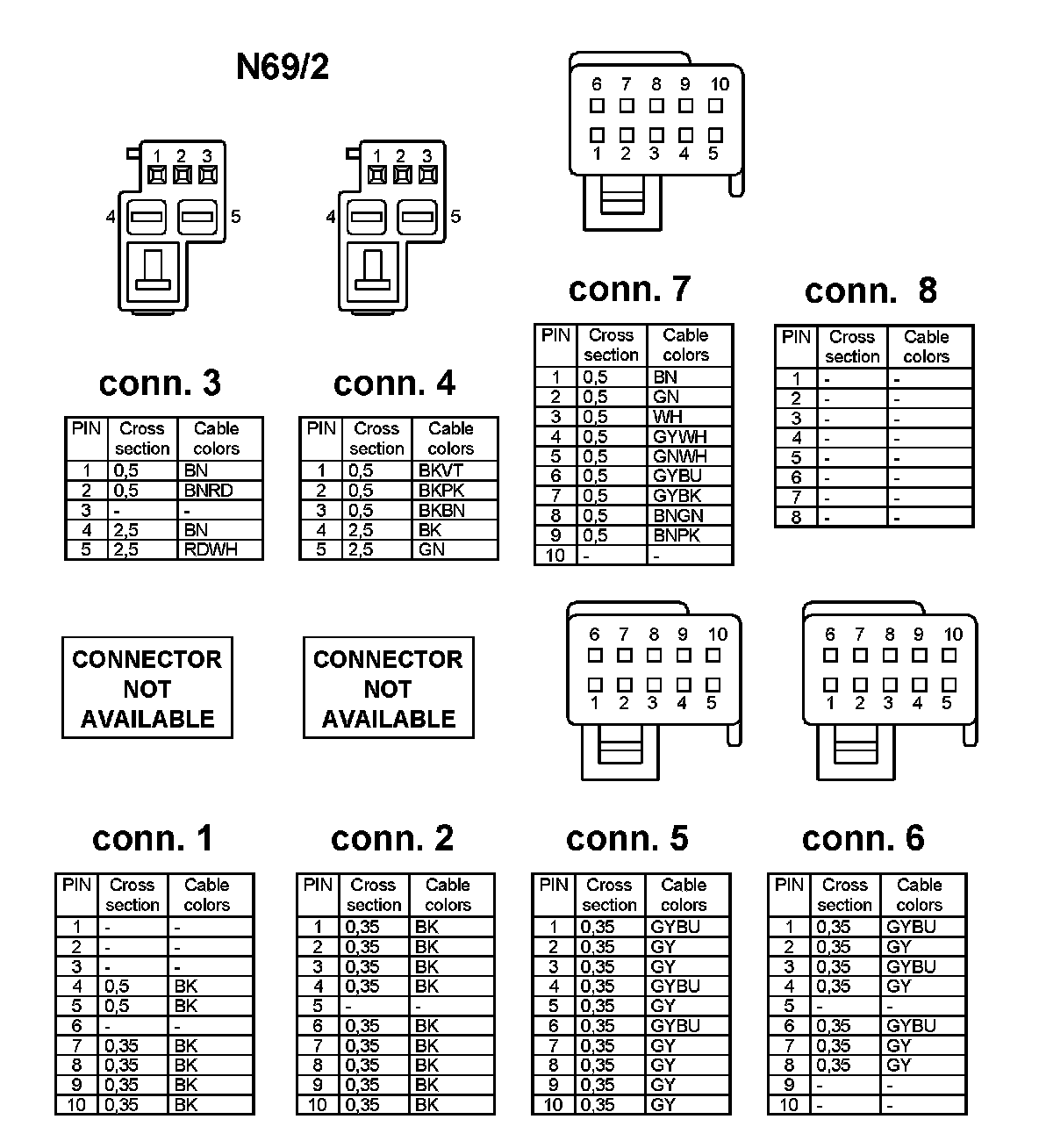

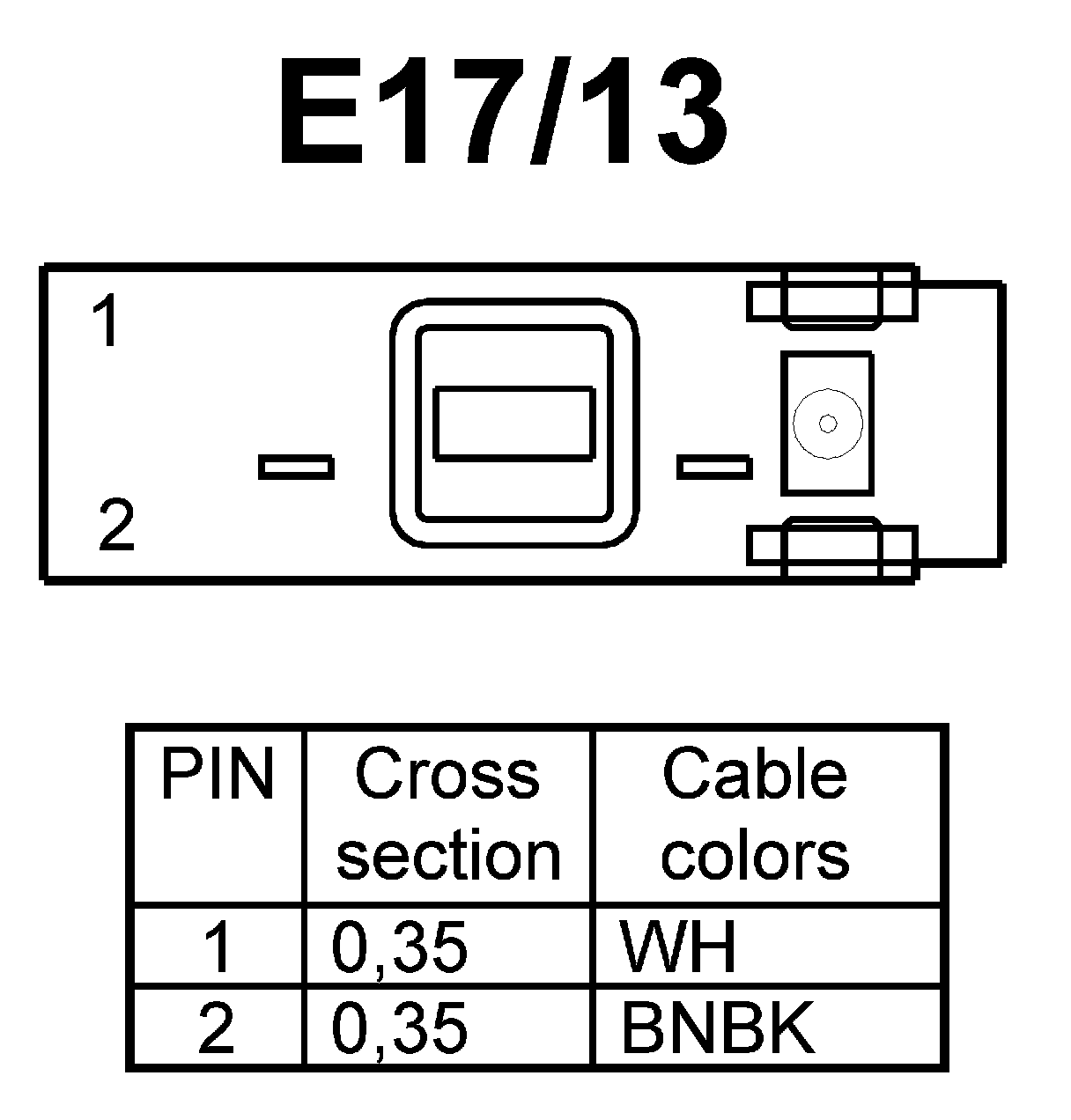

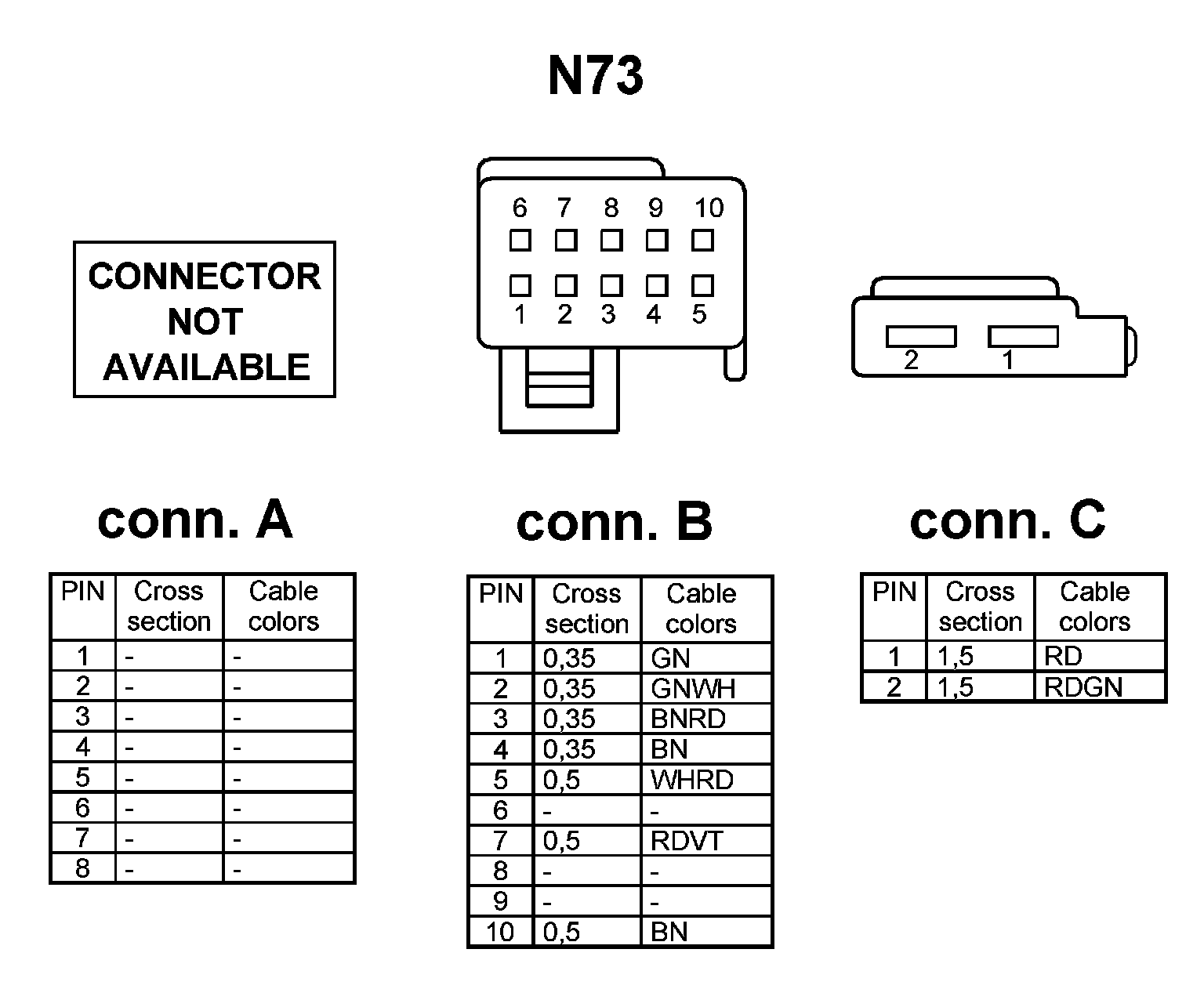

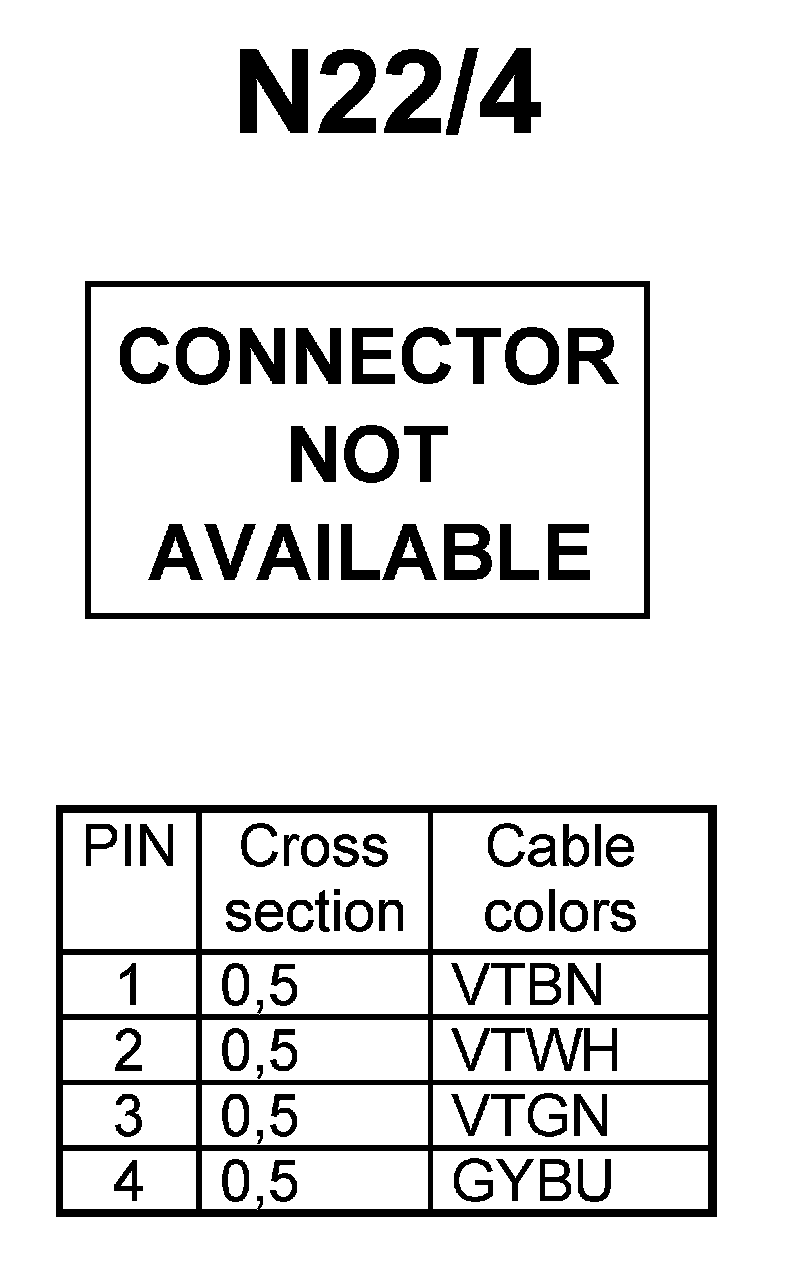

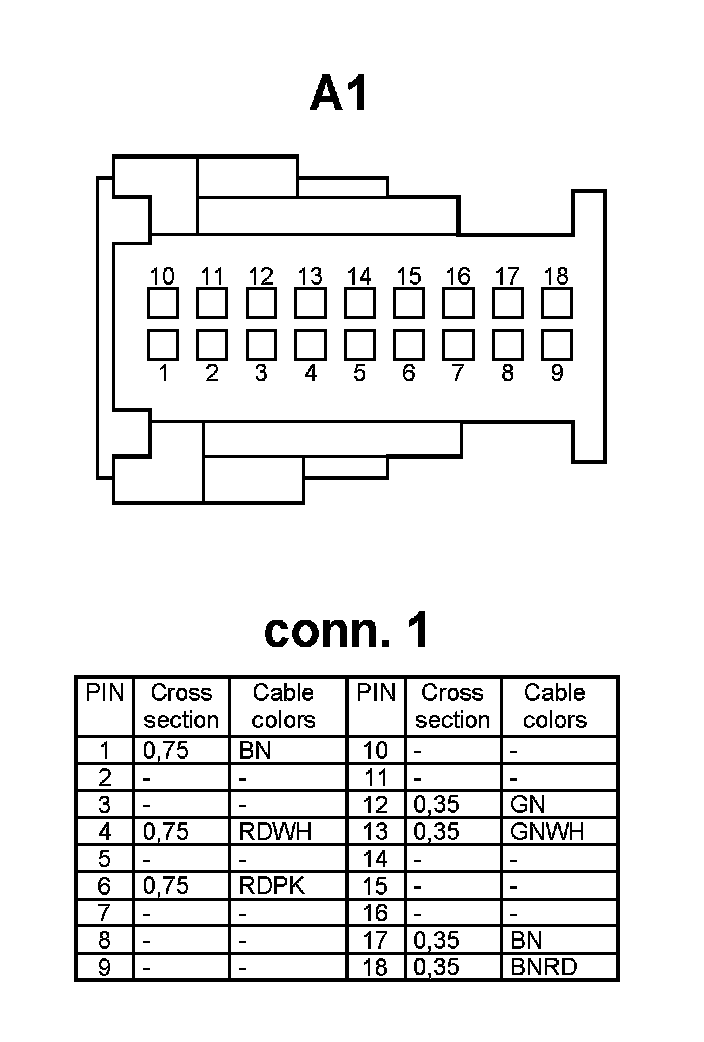

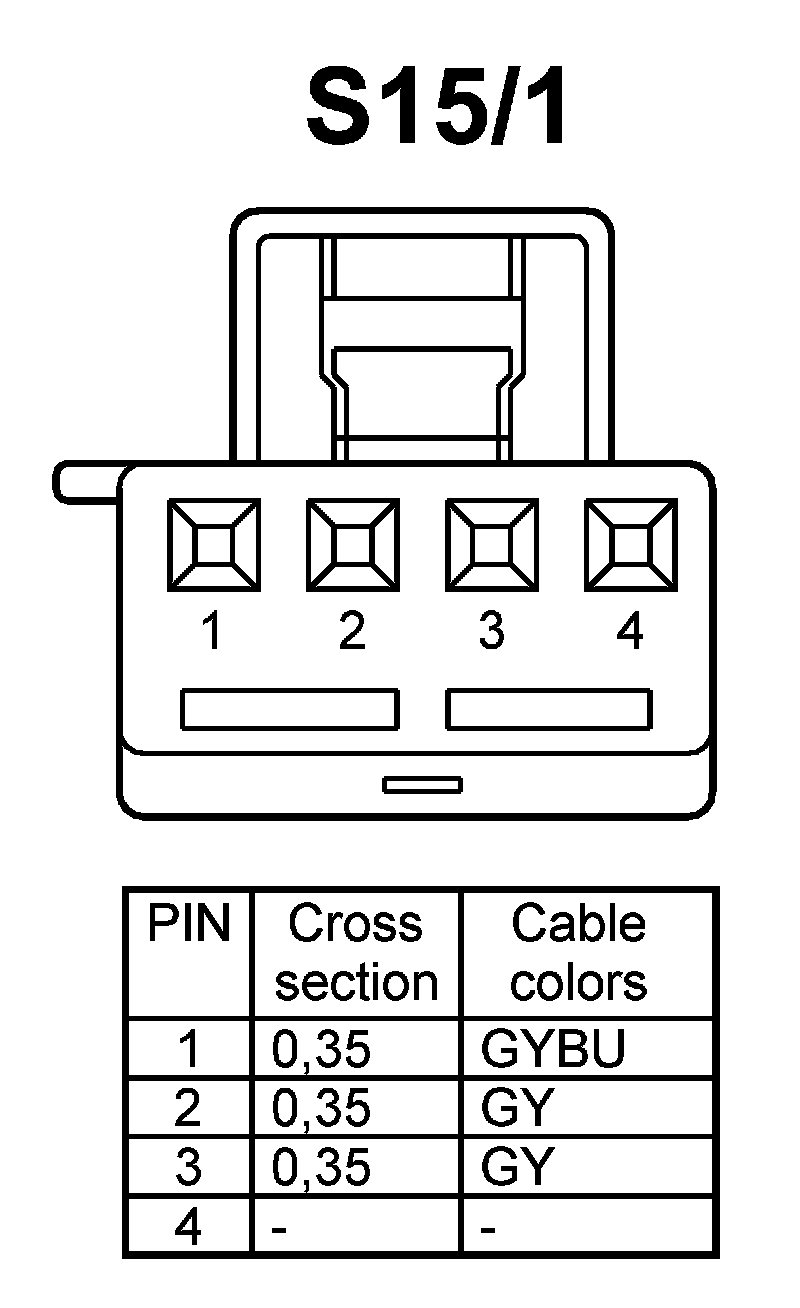

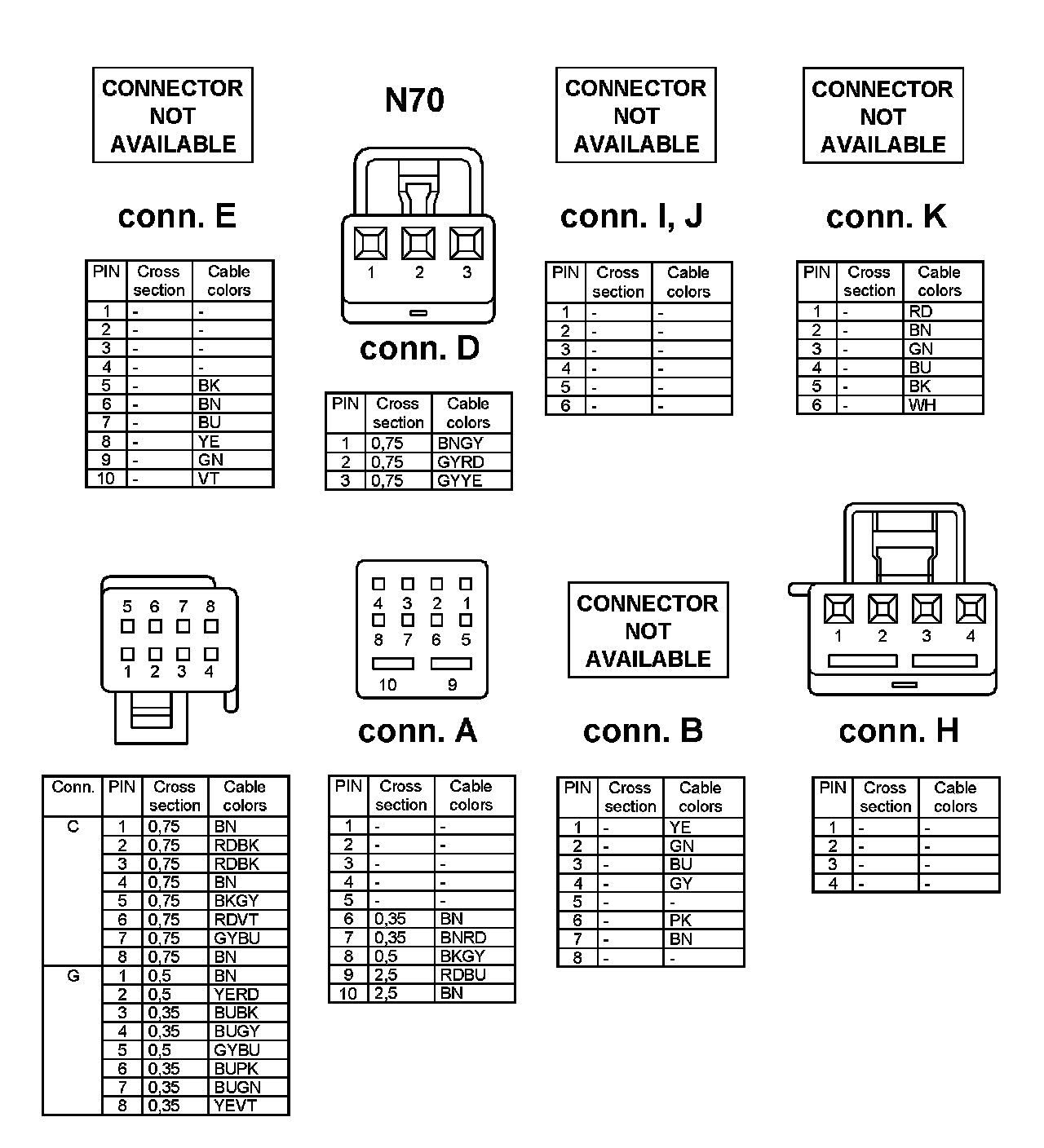

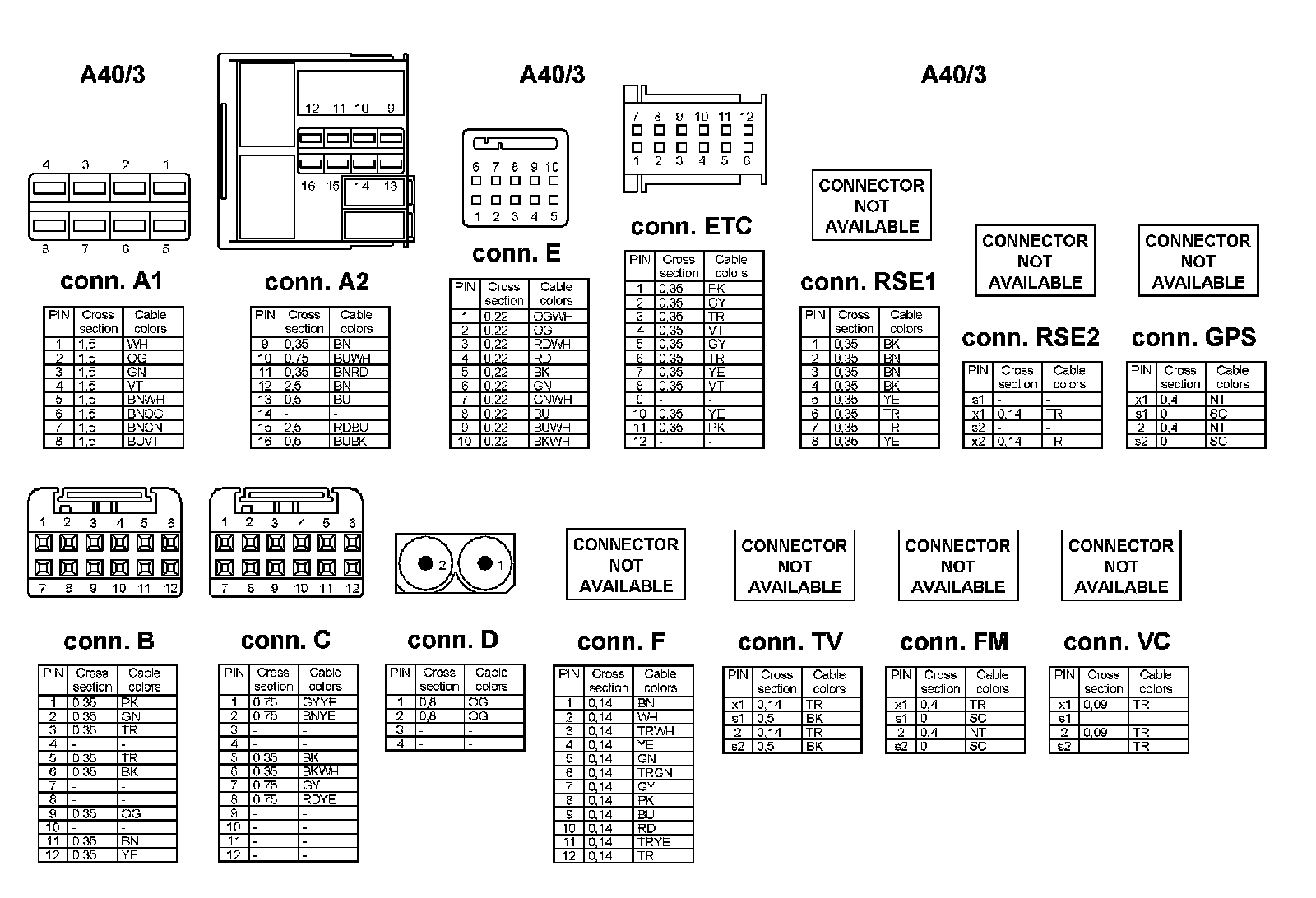

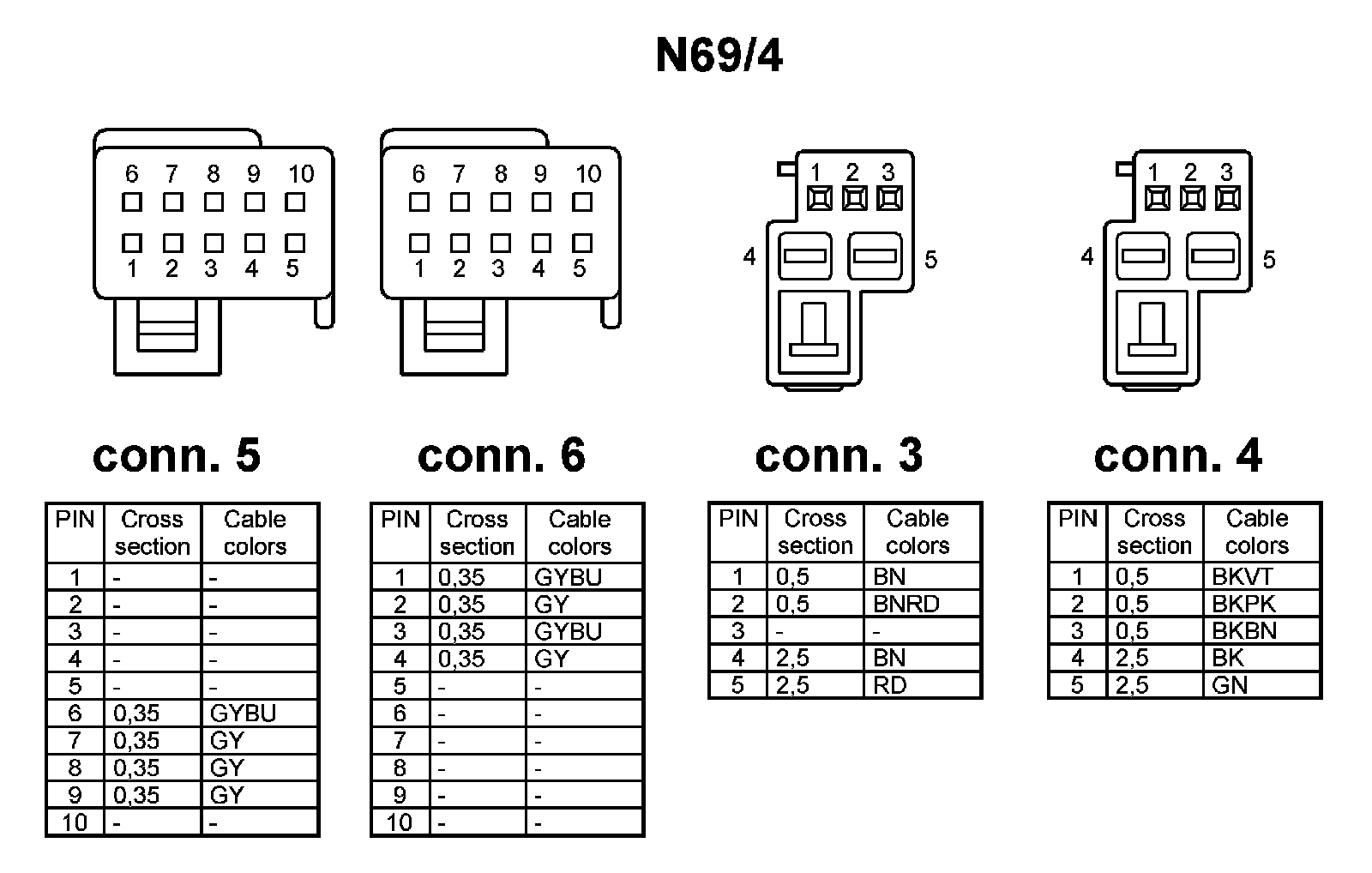

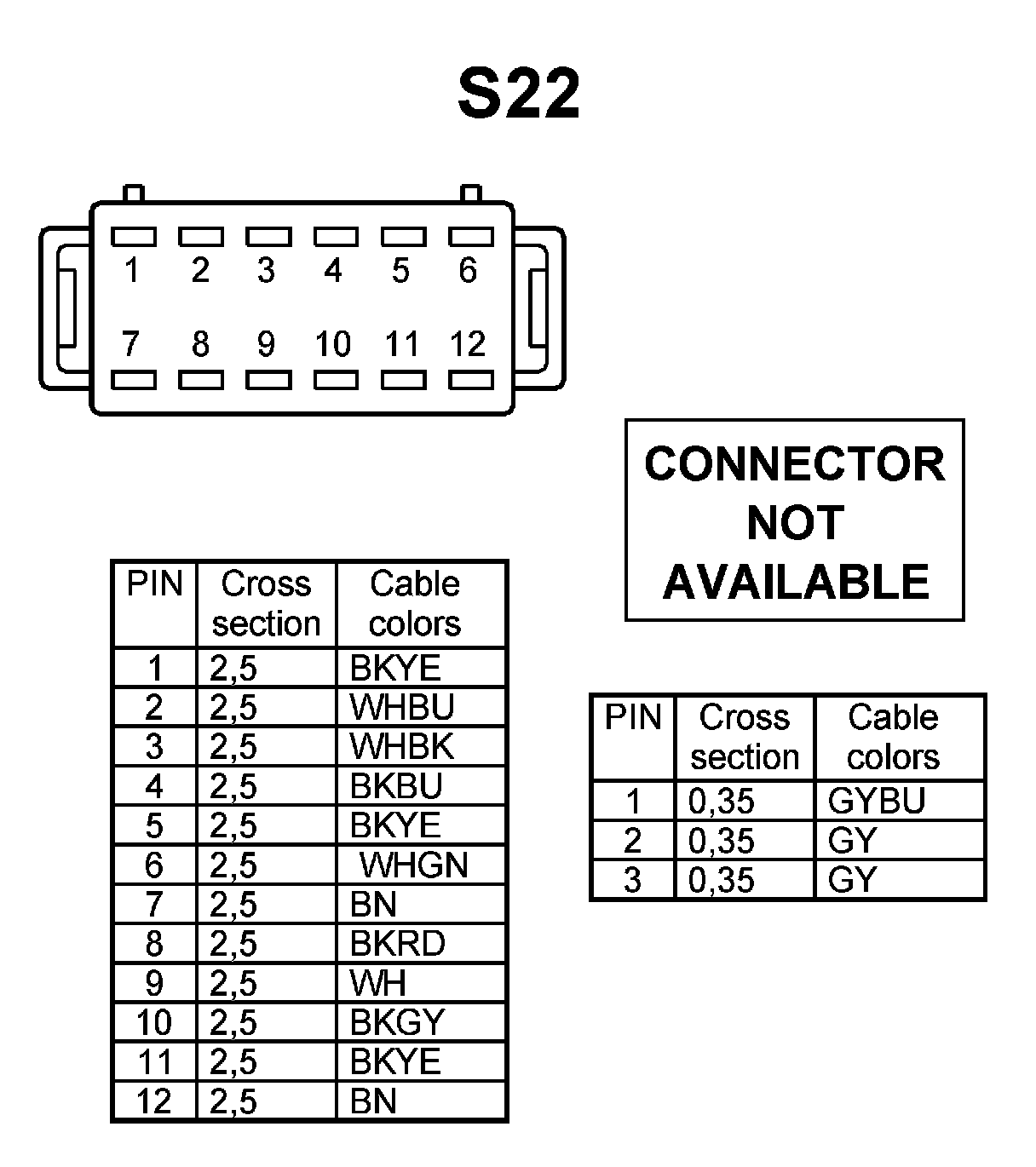

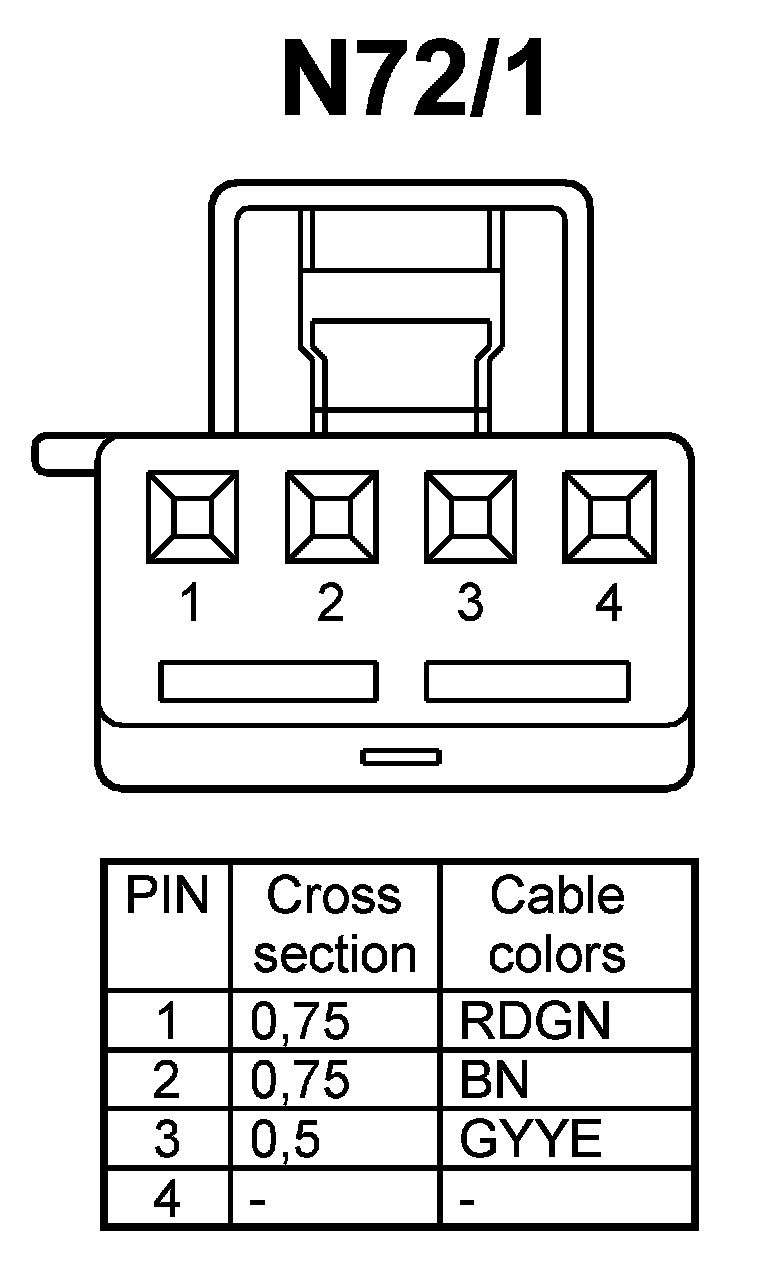

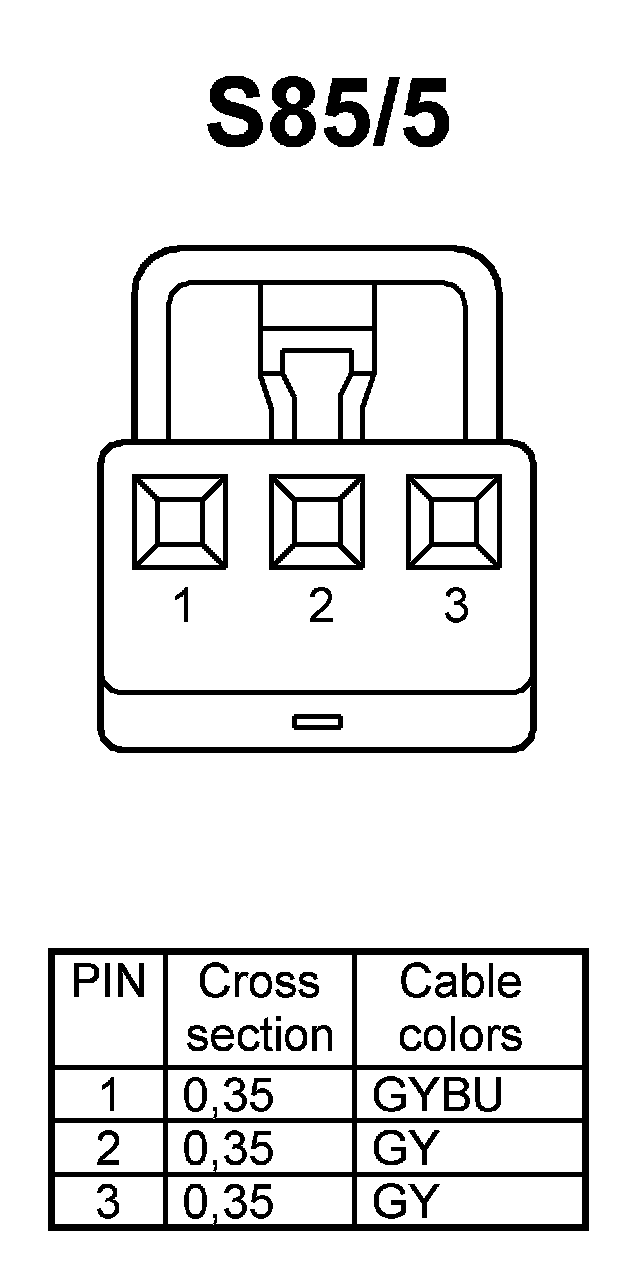

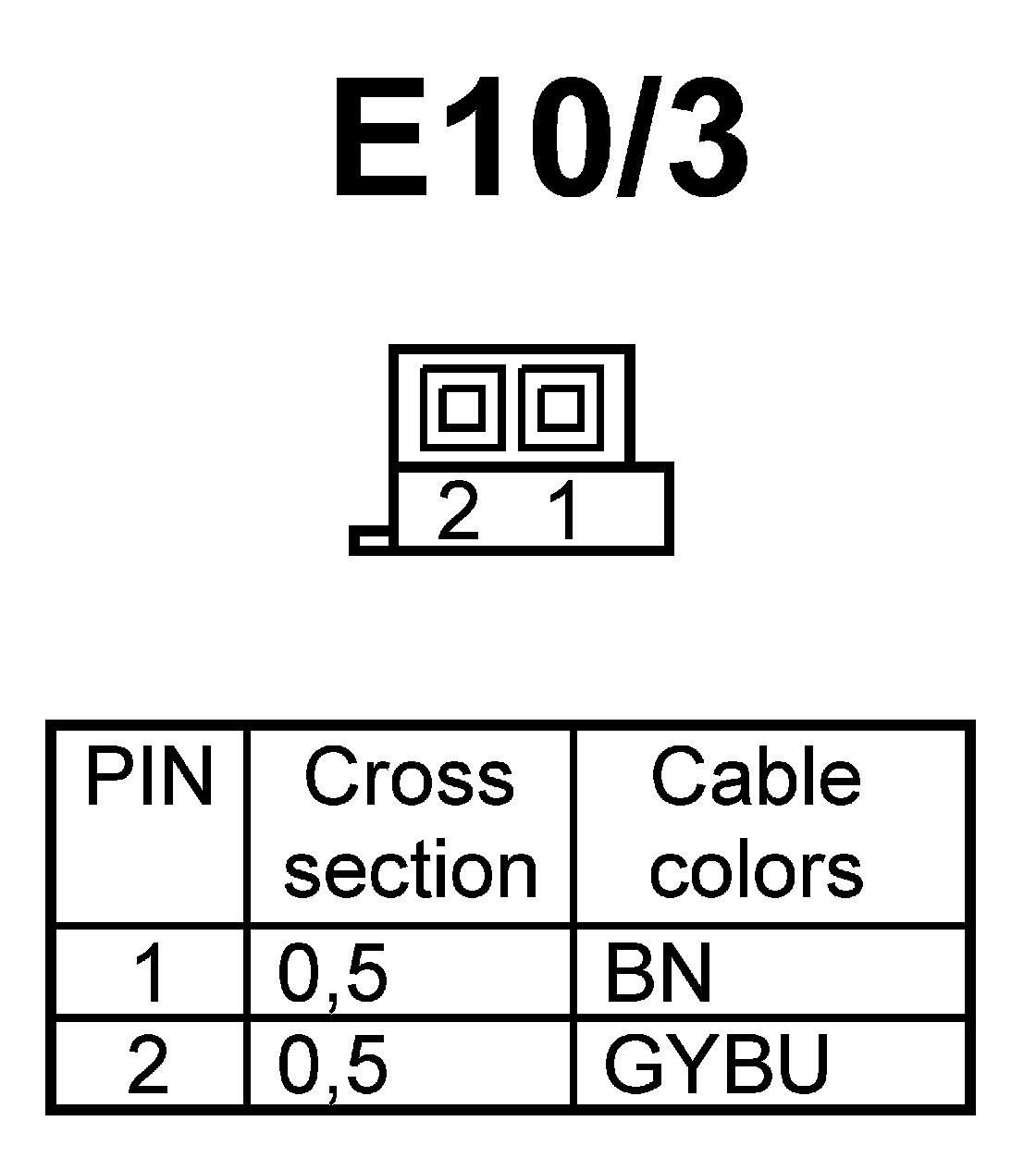

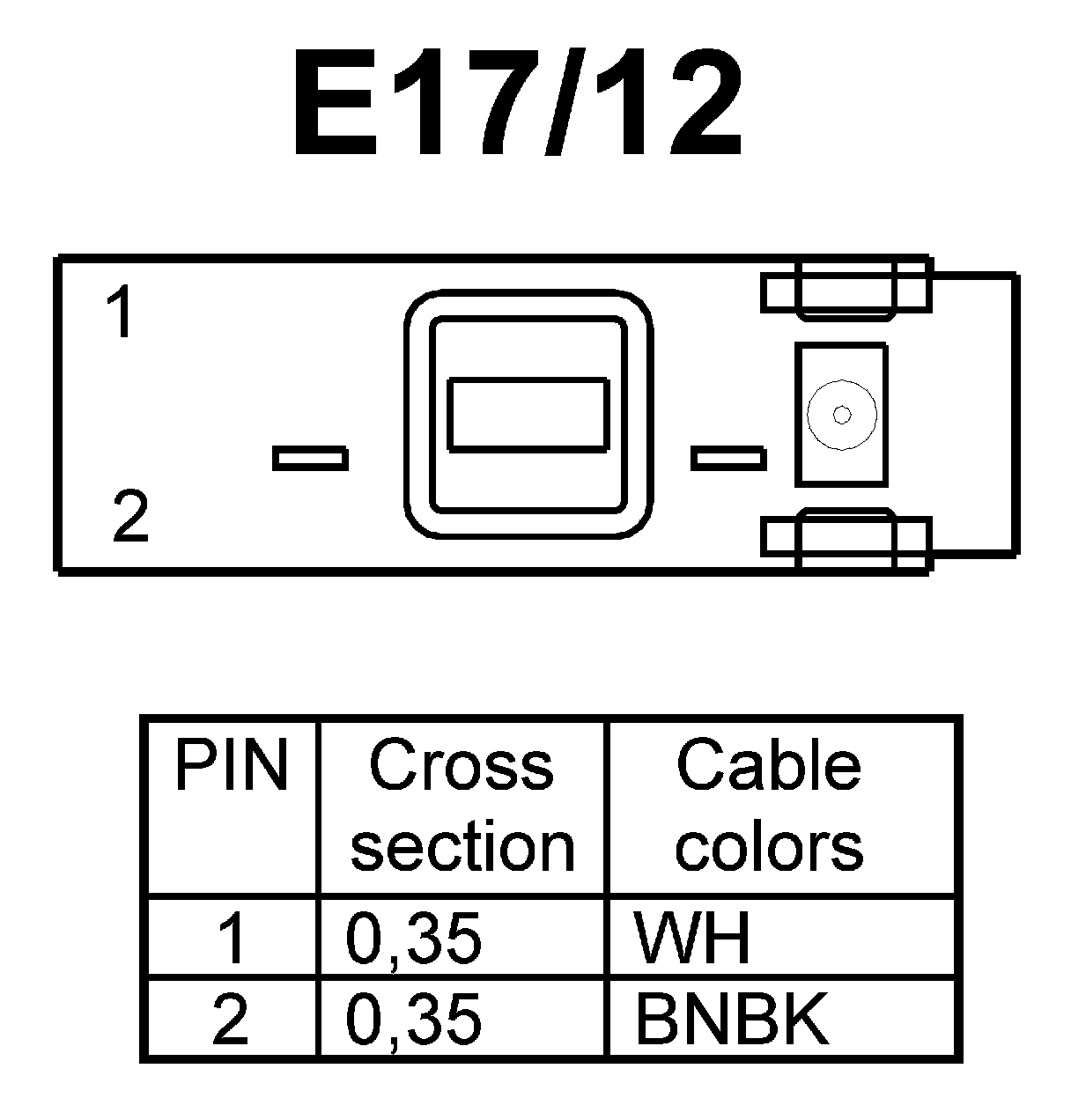

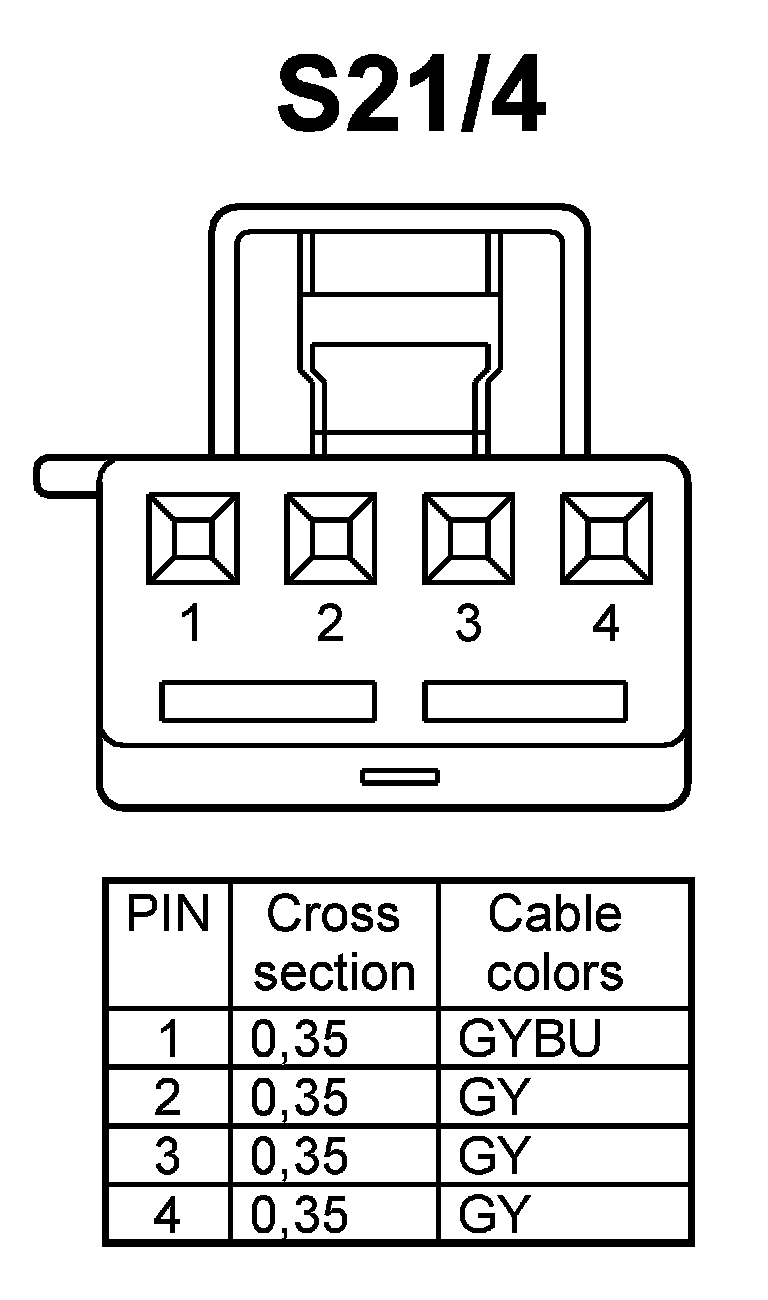

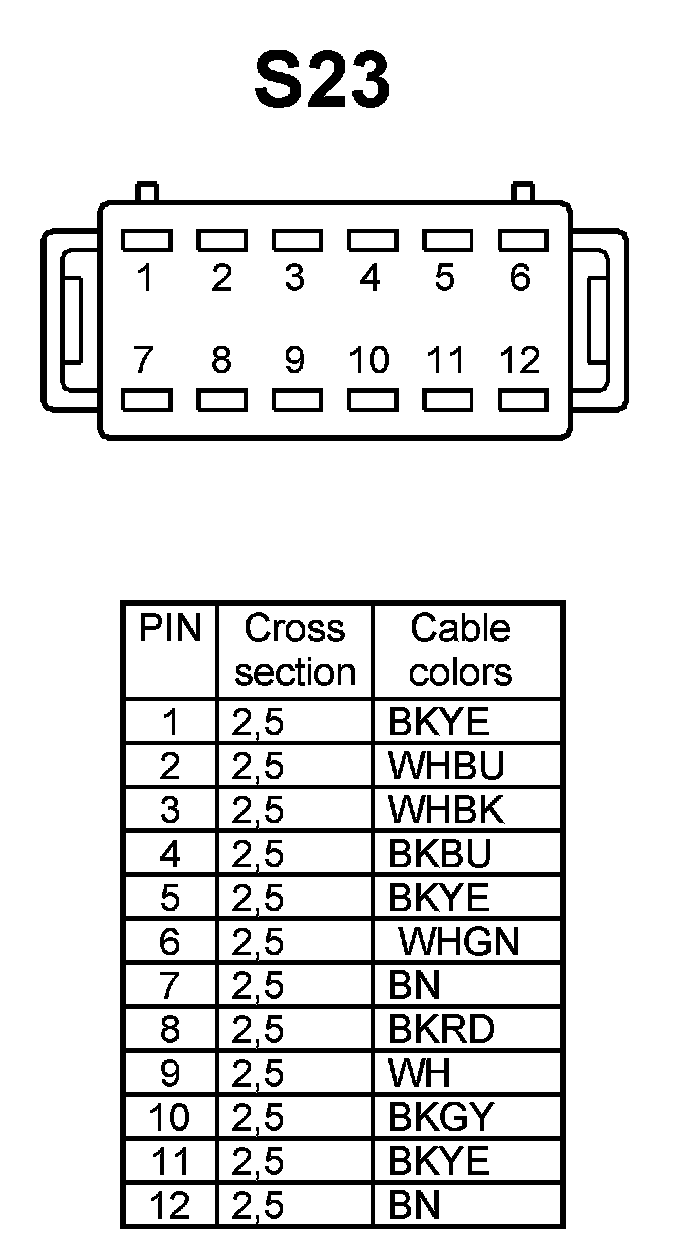

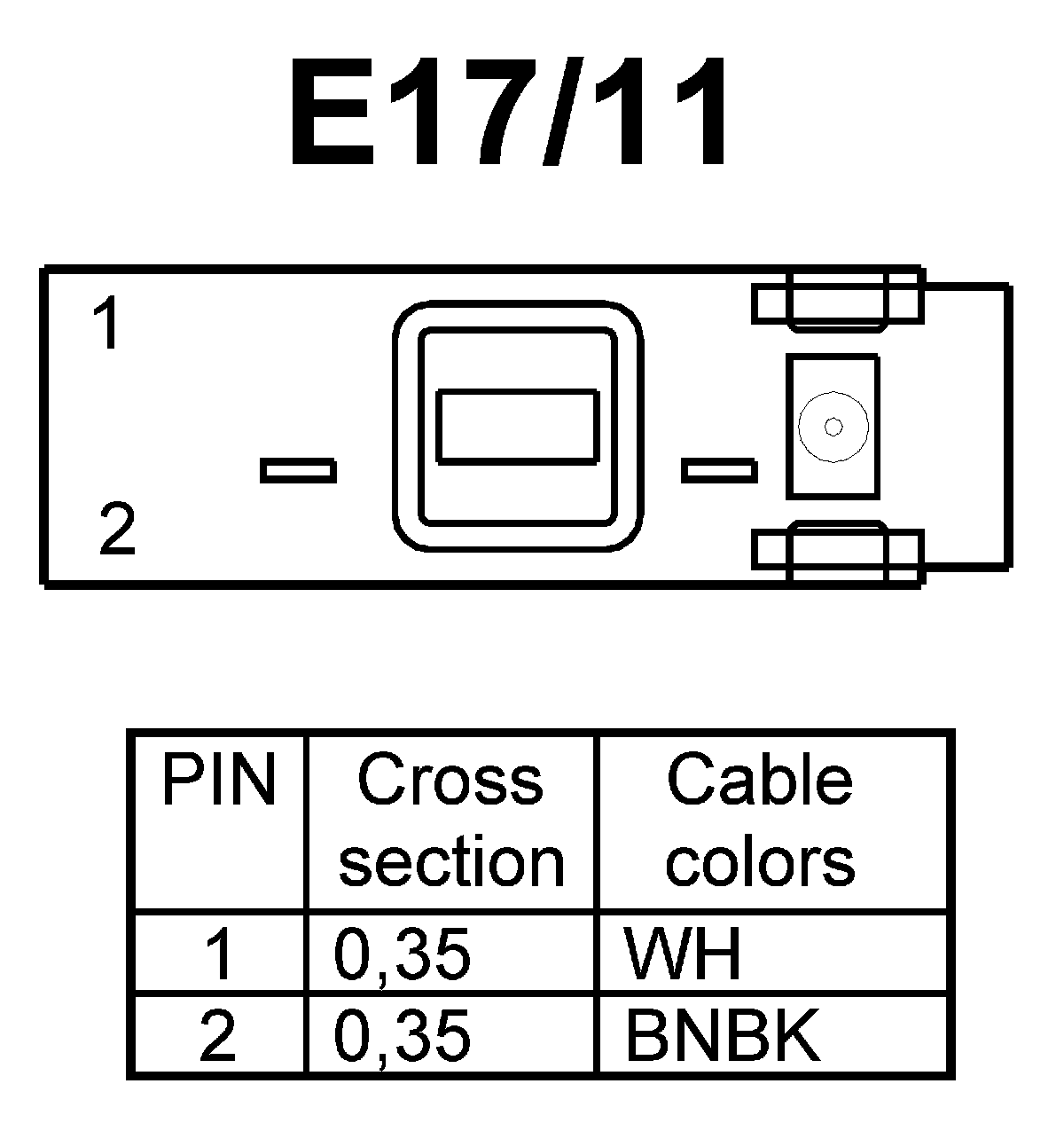

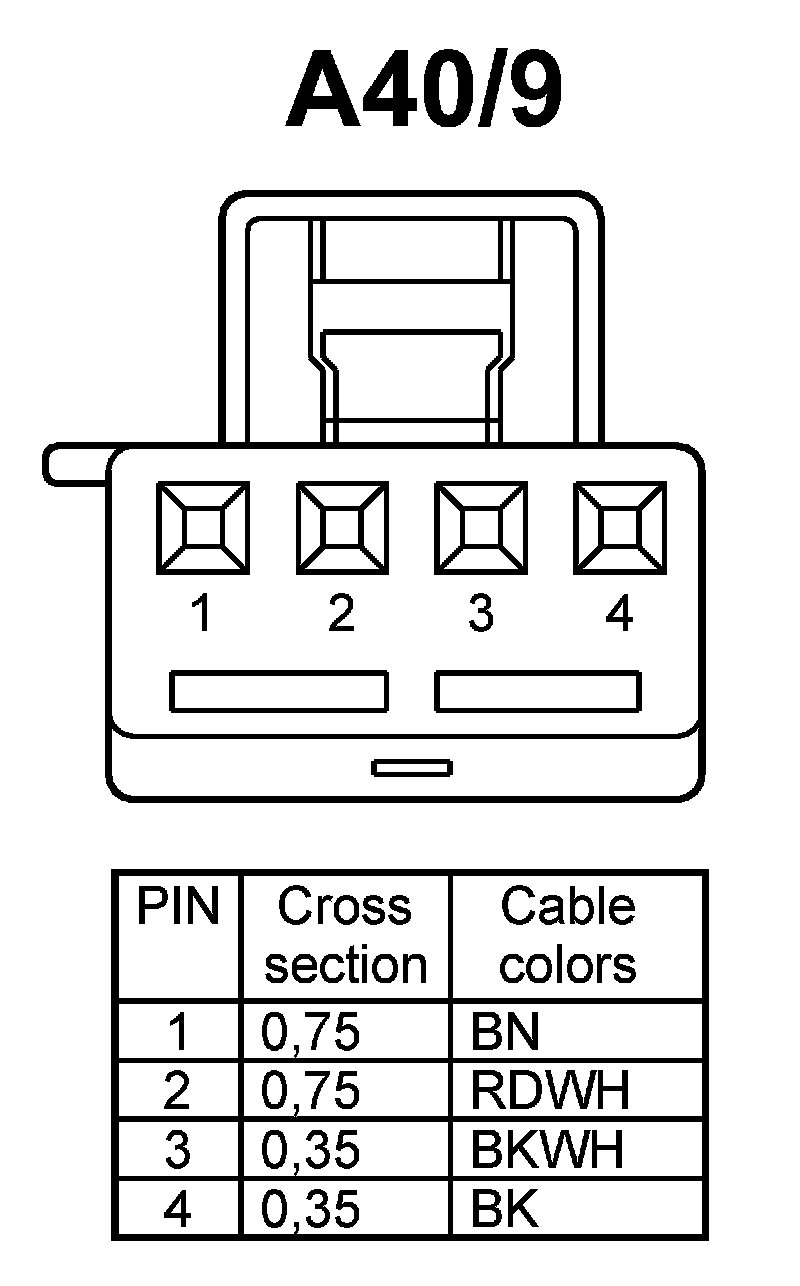

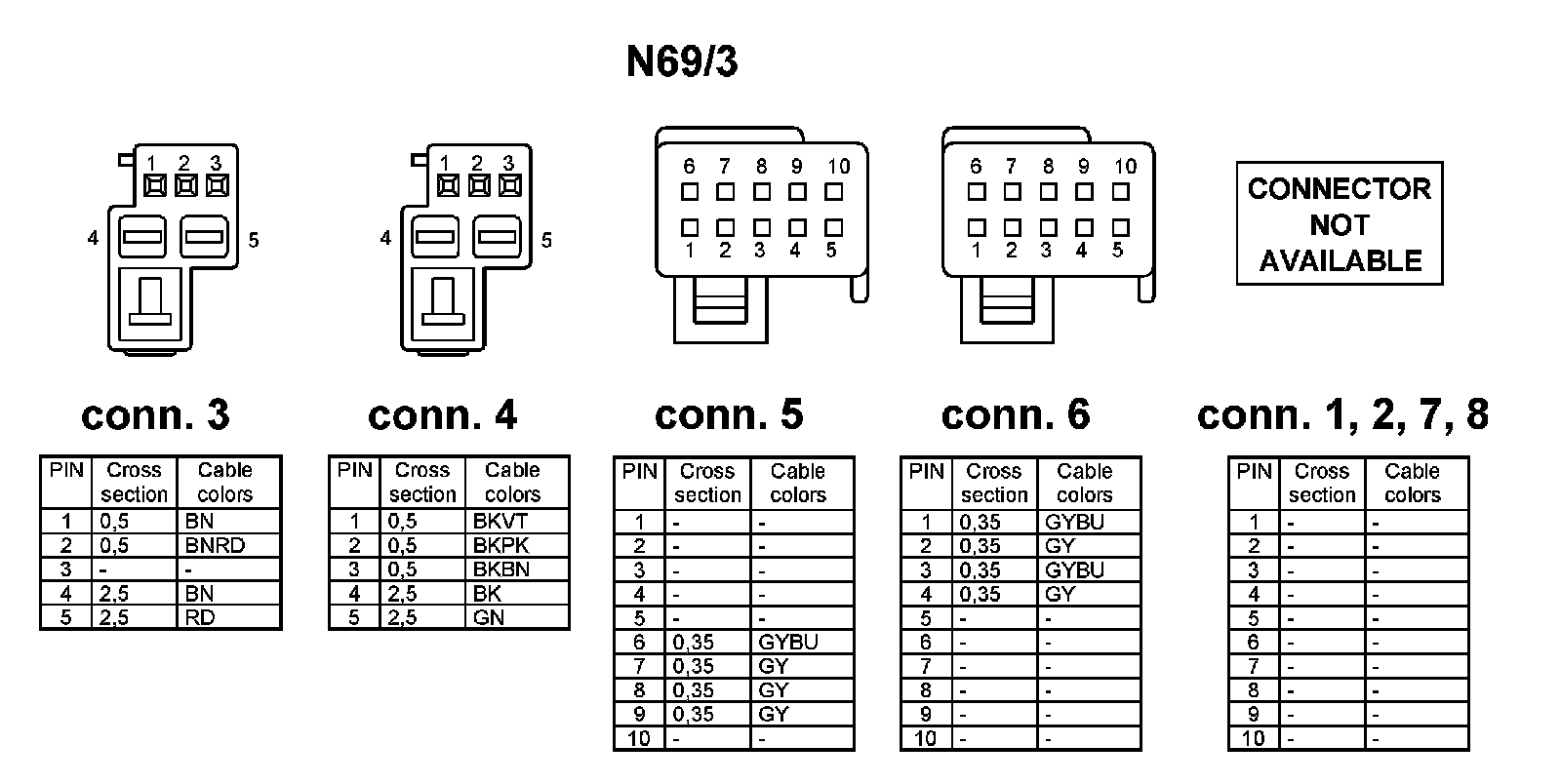

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
