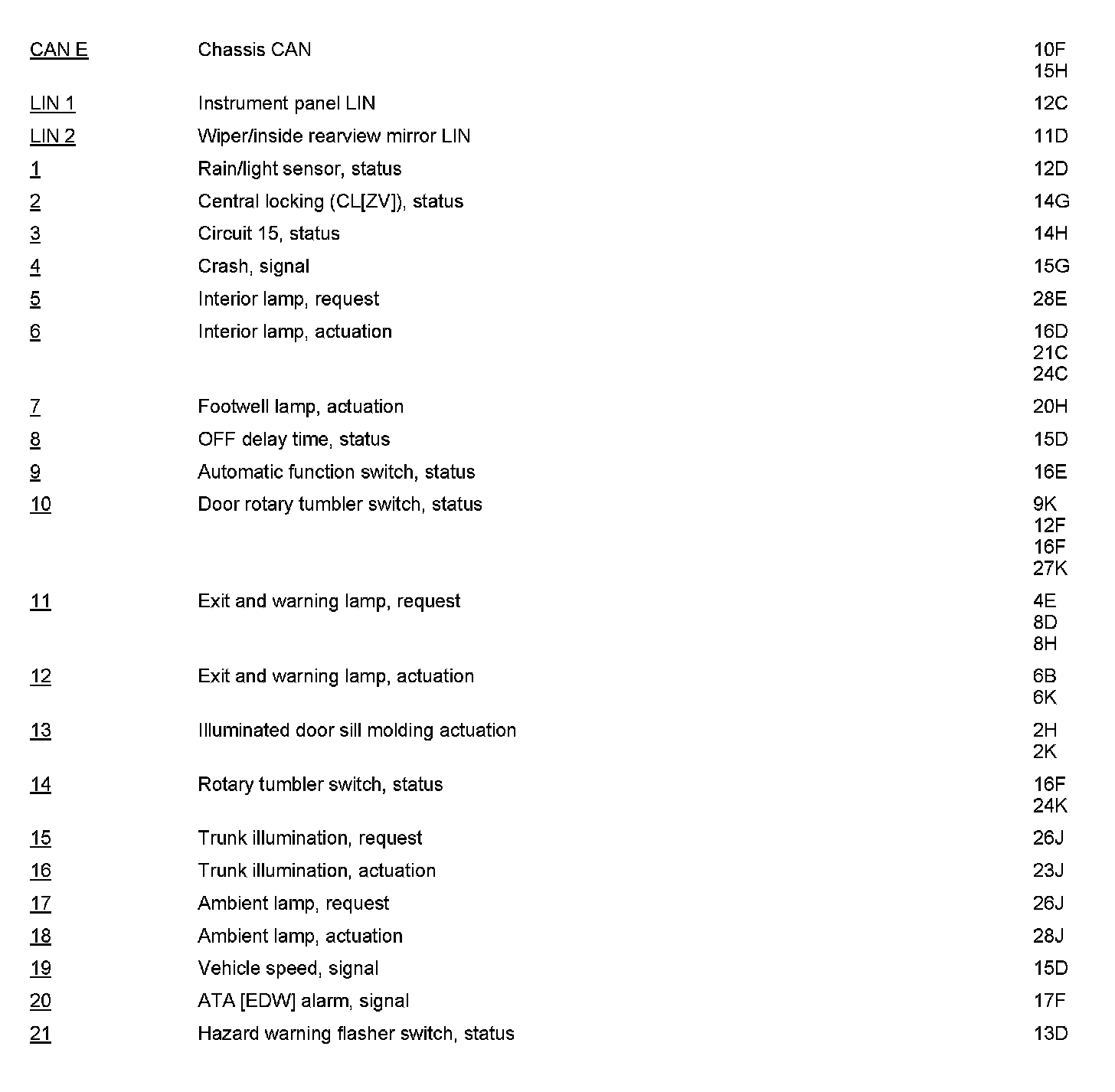

PE82.20-P-2052DAA Automatic Interior Lights Control Electrical Function Schematic

PE82.20-P-2052DAA Automatic Interior Lights Control Electrical Function Schematic
MODEL 212.0/ 2

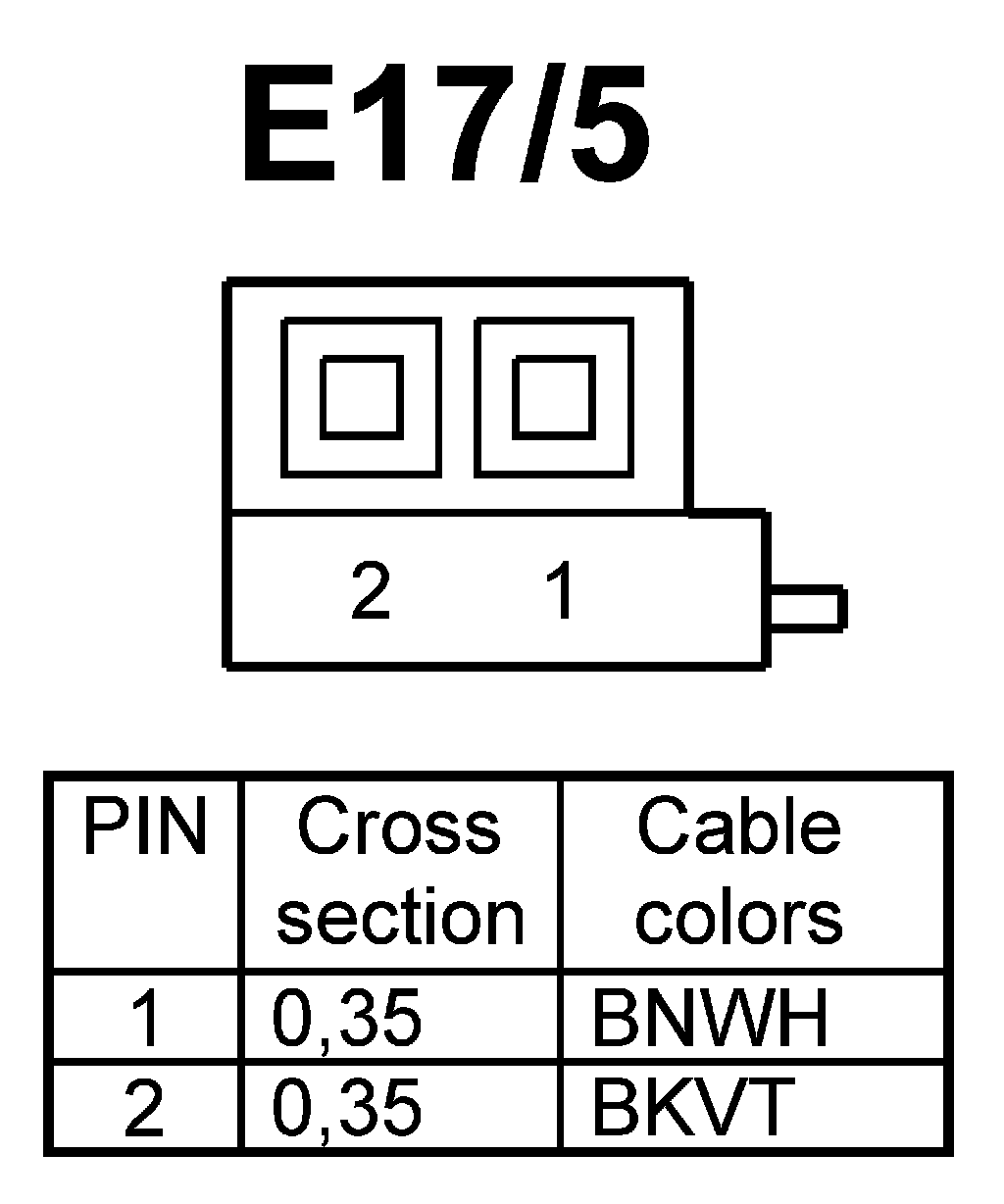

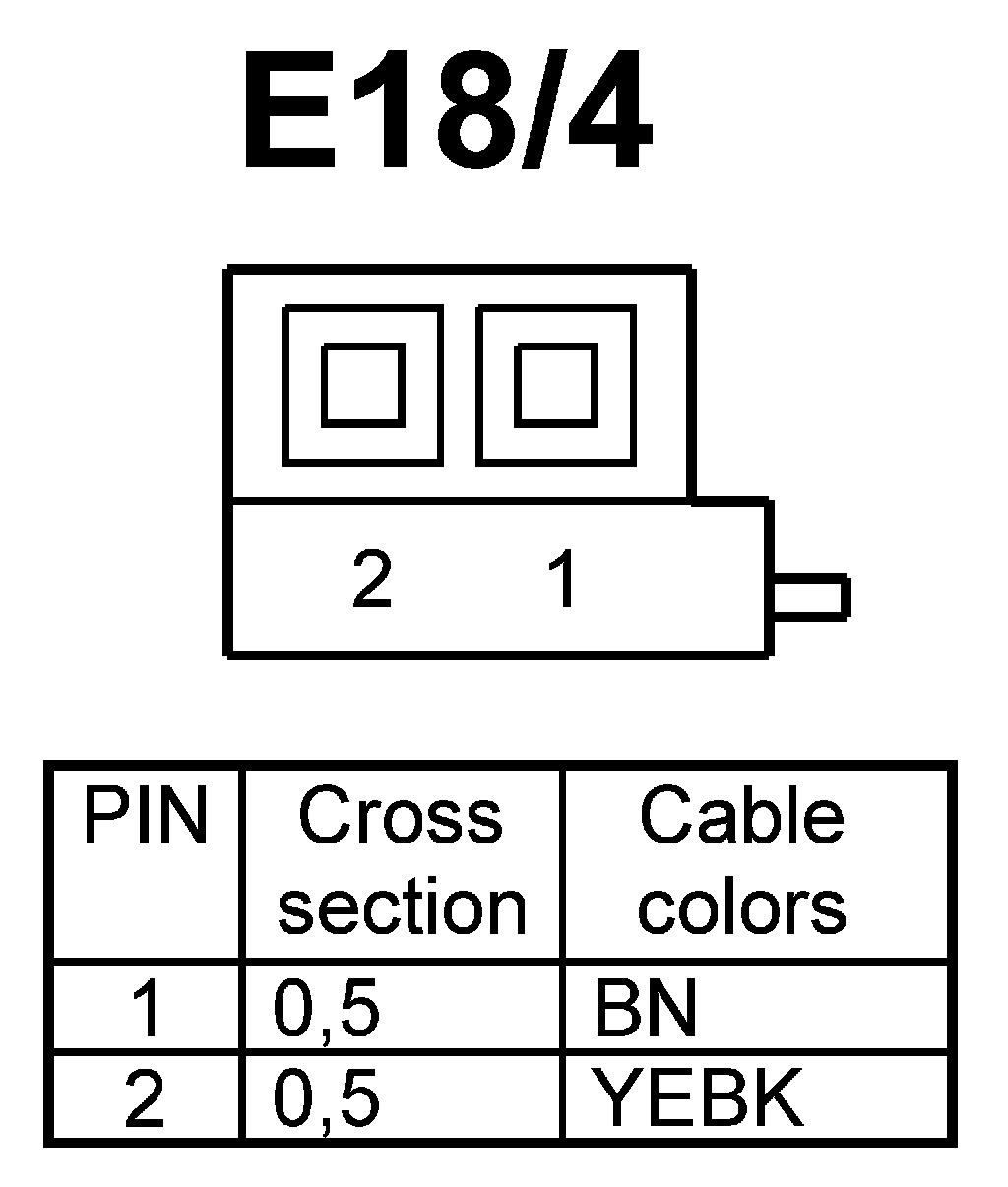

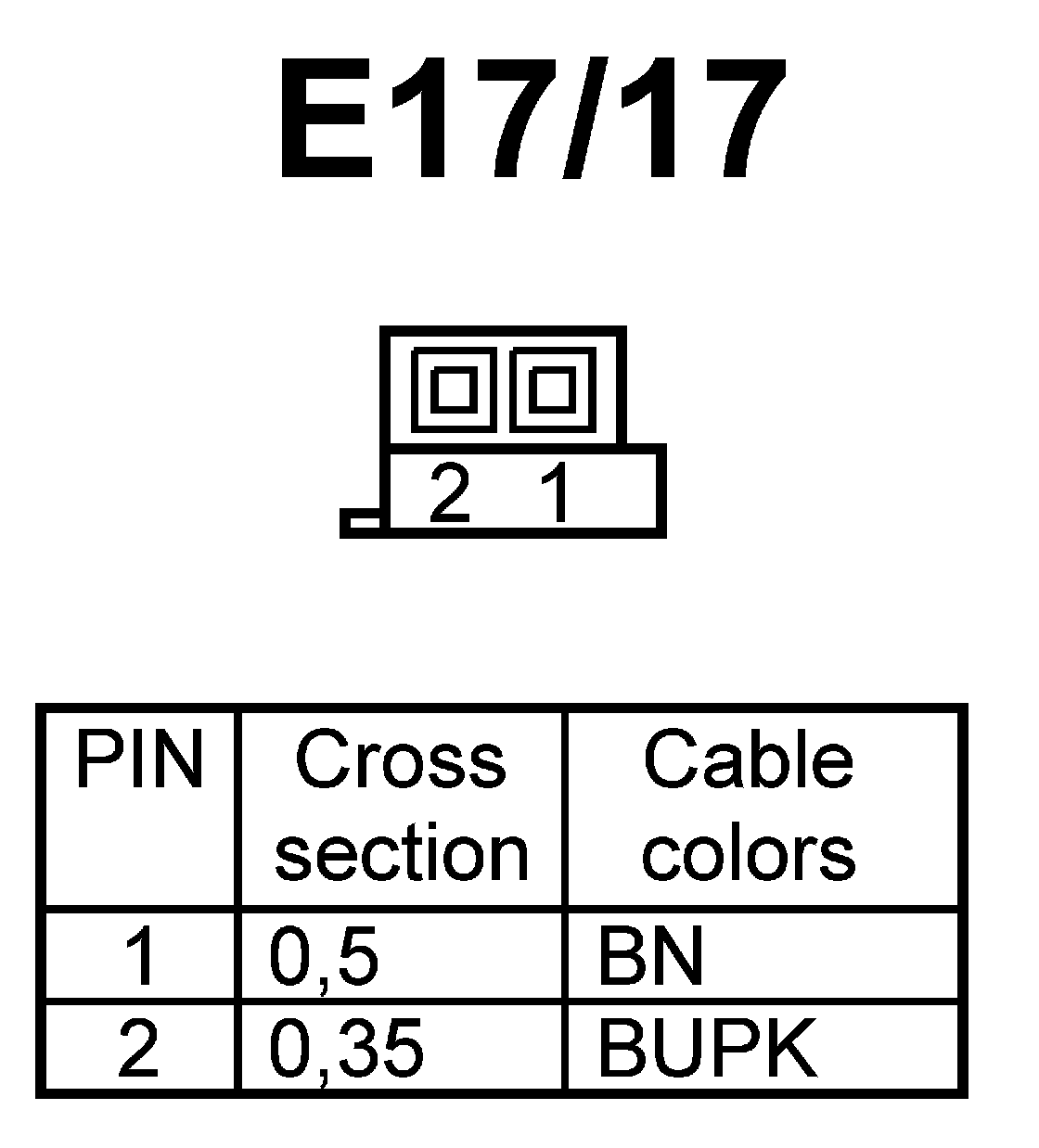

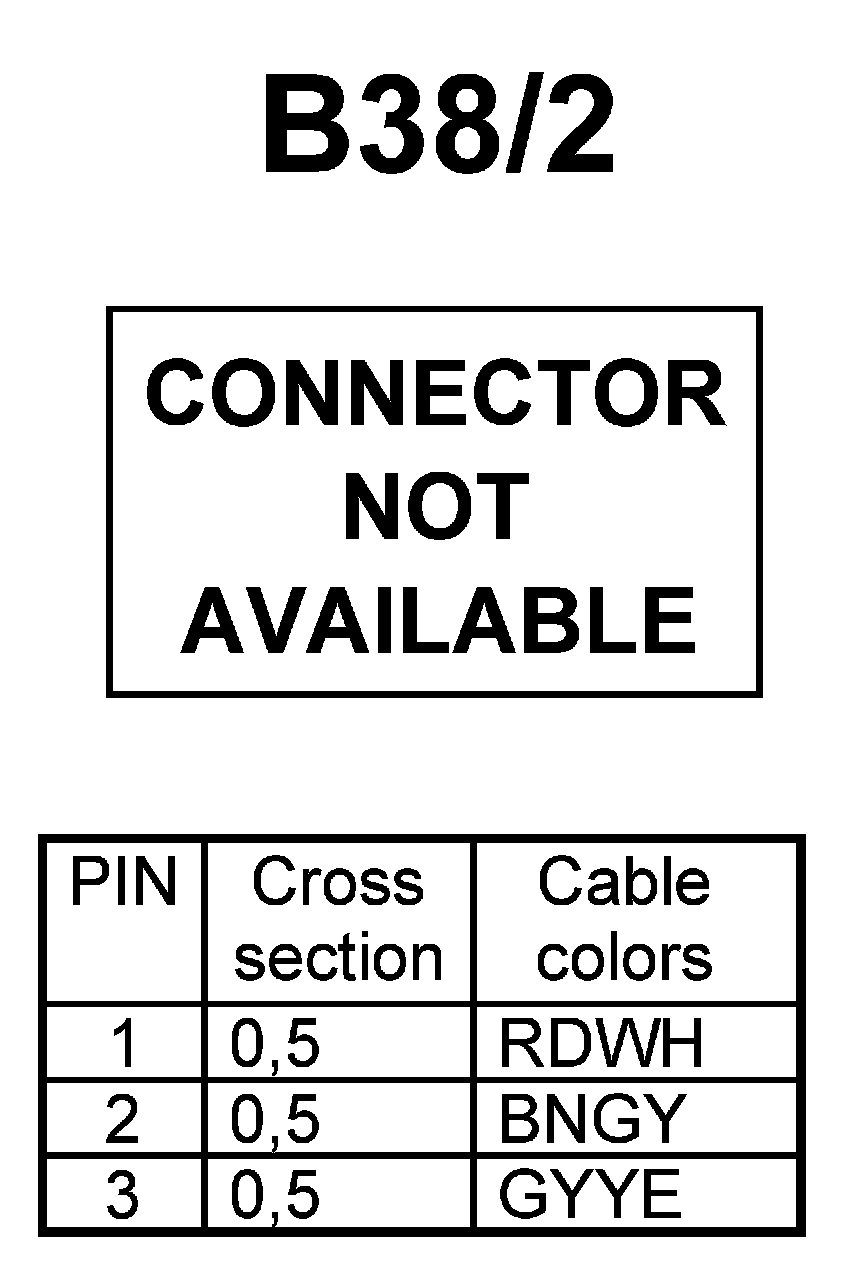

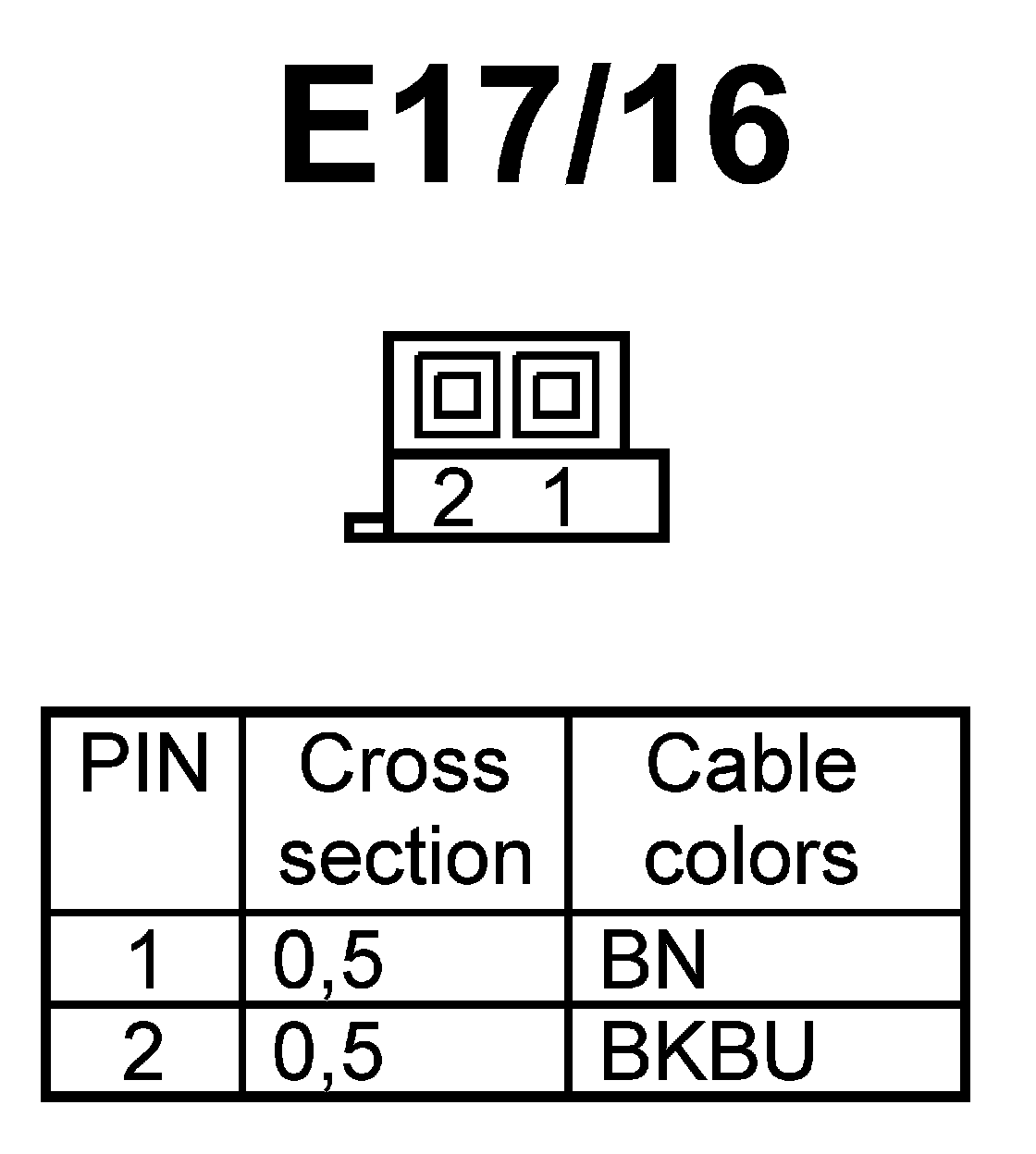

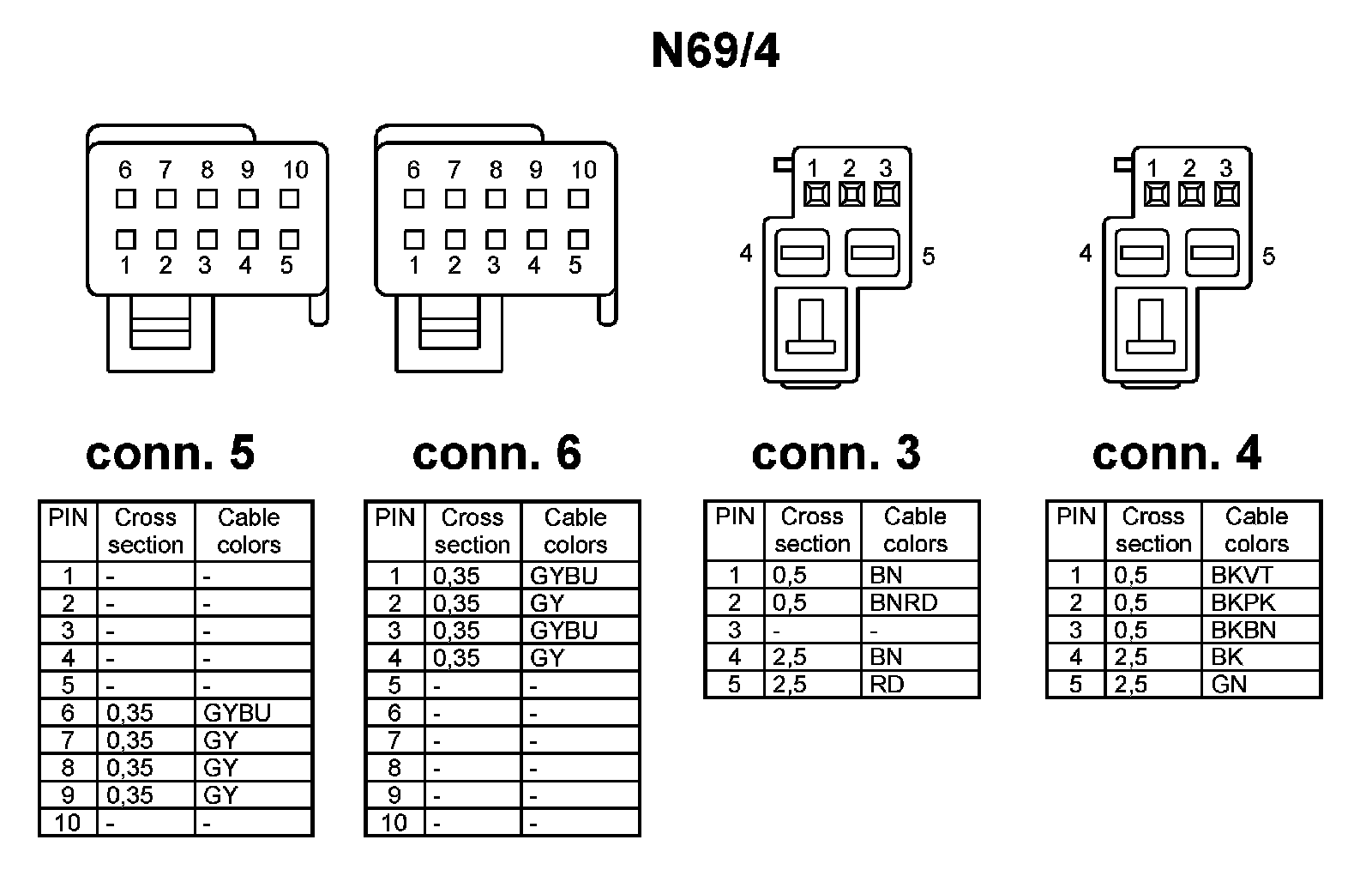

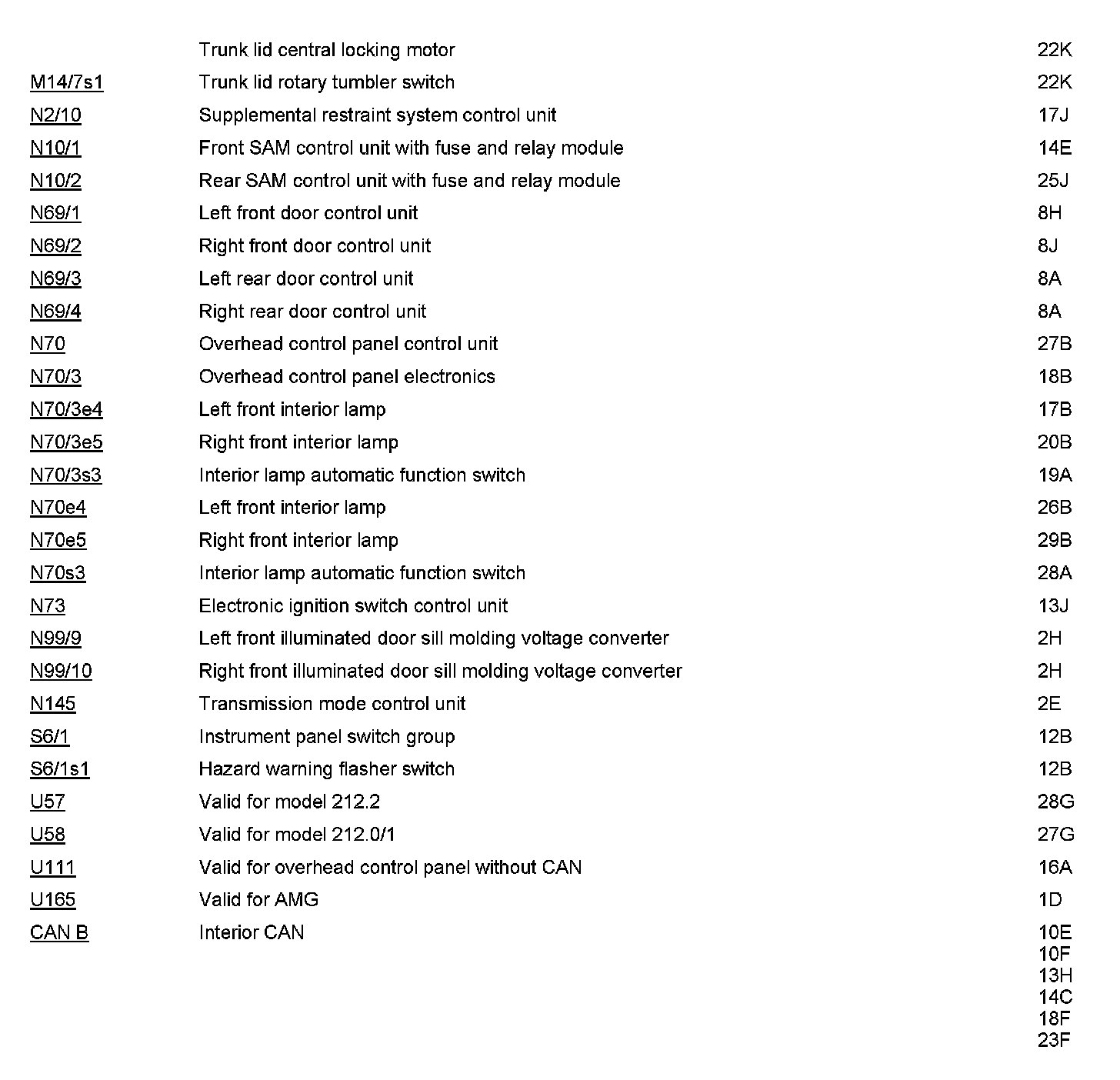

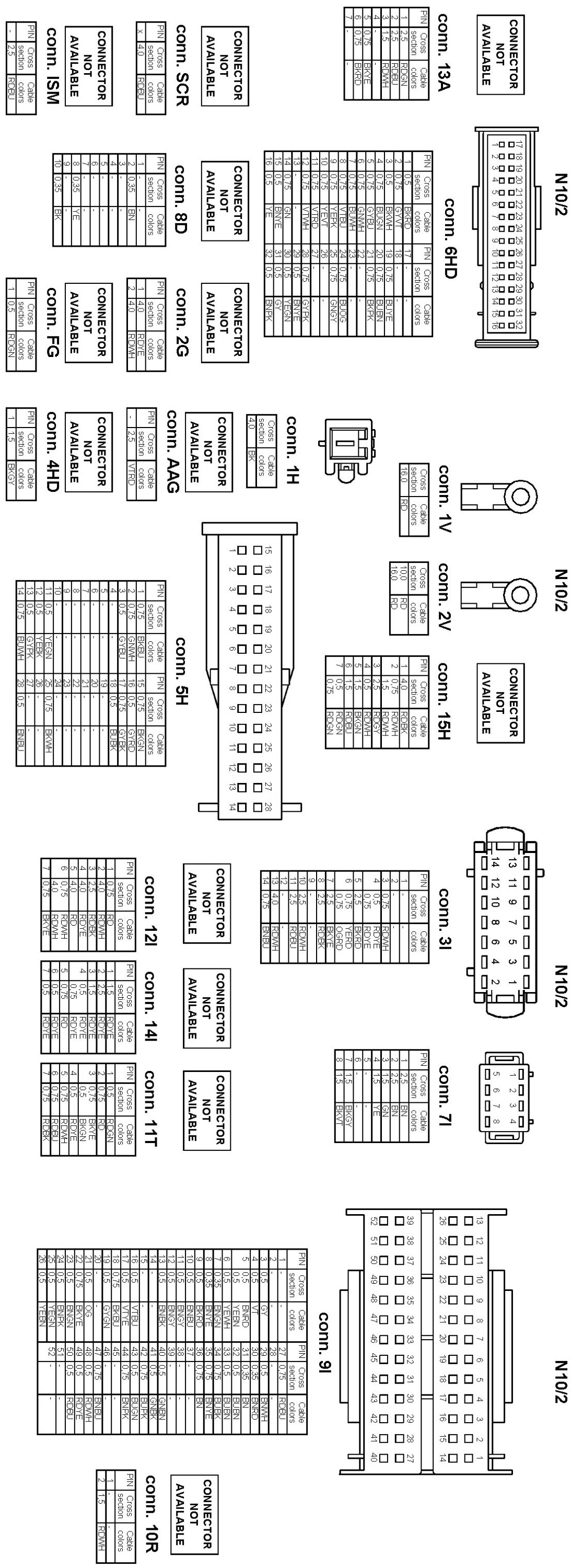

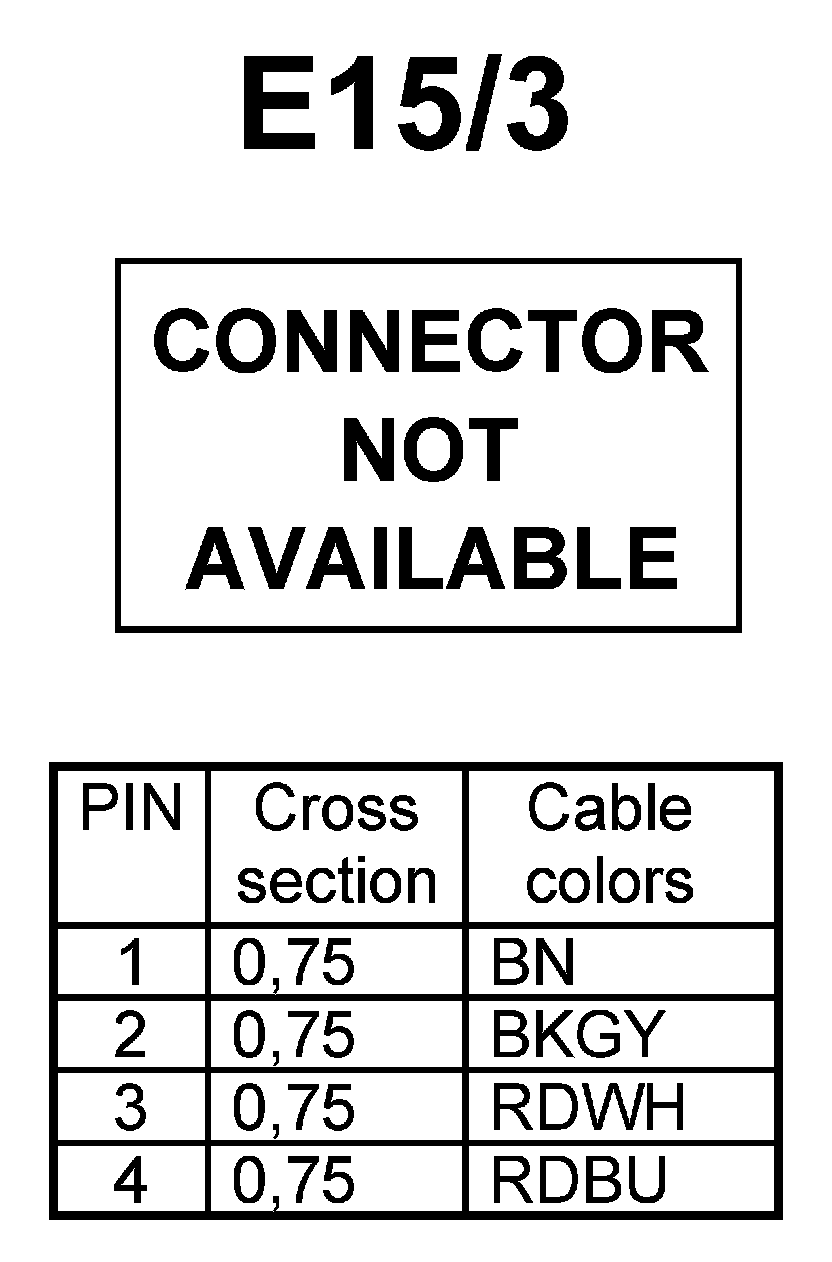

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
