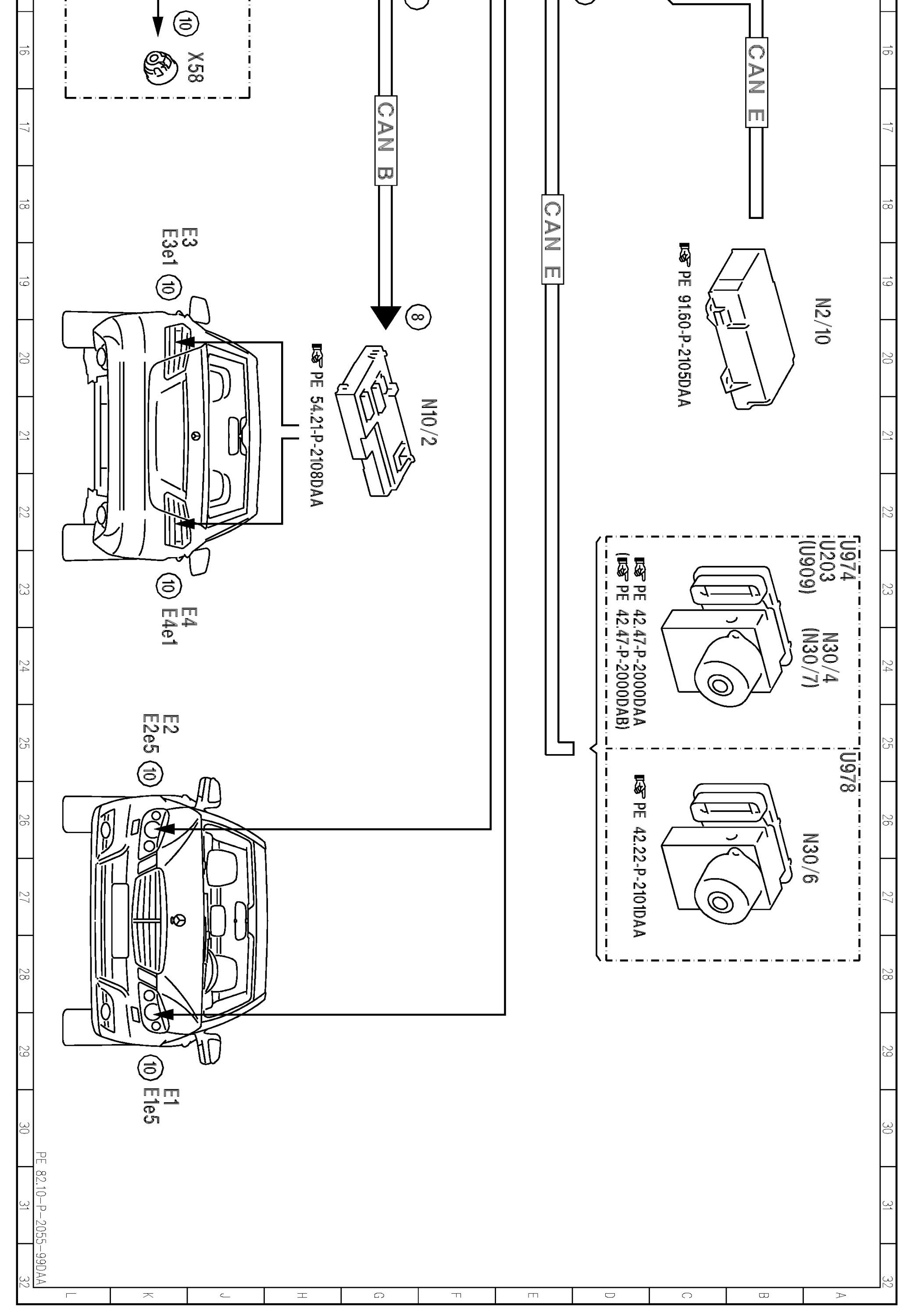

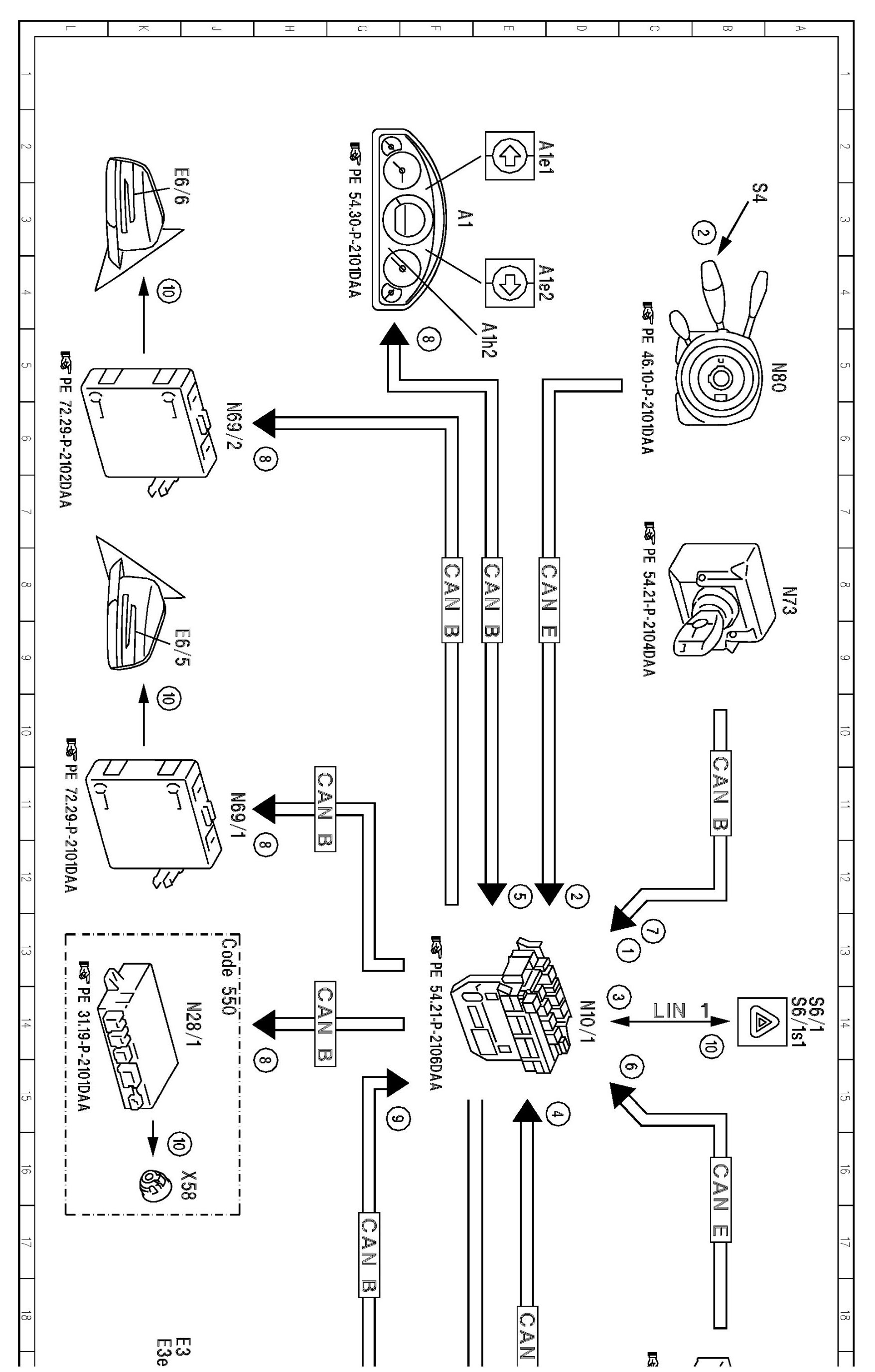

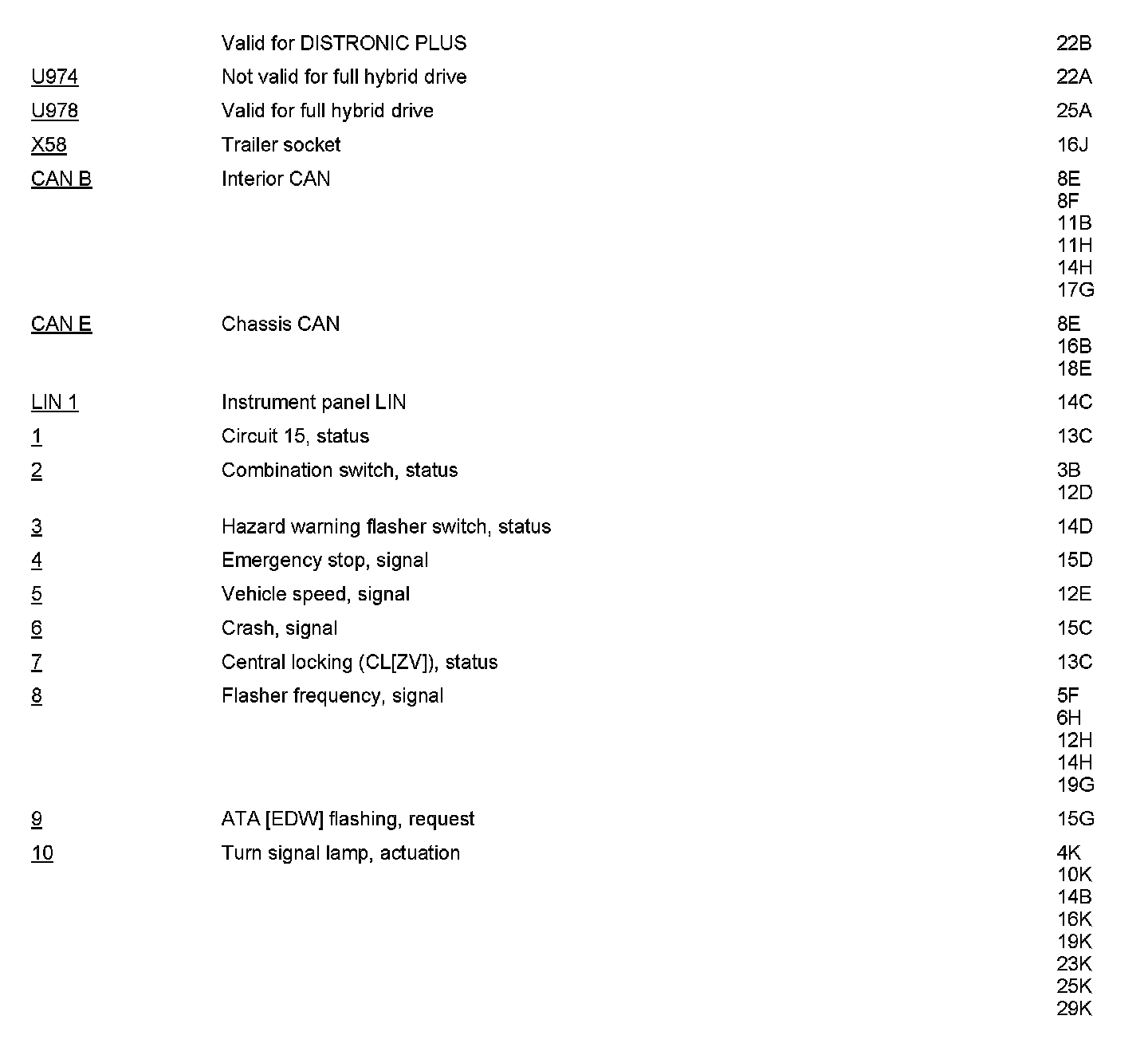

PE82.10-P-2055DAA Electrical Function Schematic, Turn Signal Light Actuation

PE82.10-P-2055DAA Electrical Function Schematic, Turn Signal Light Actuation
MODEL 212.0/ 2














































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
