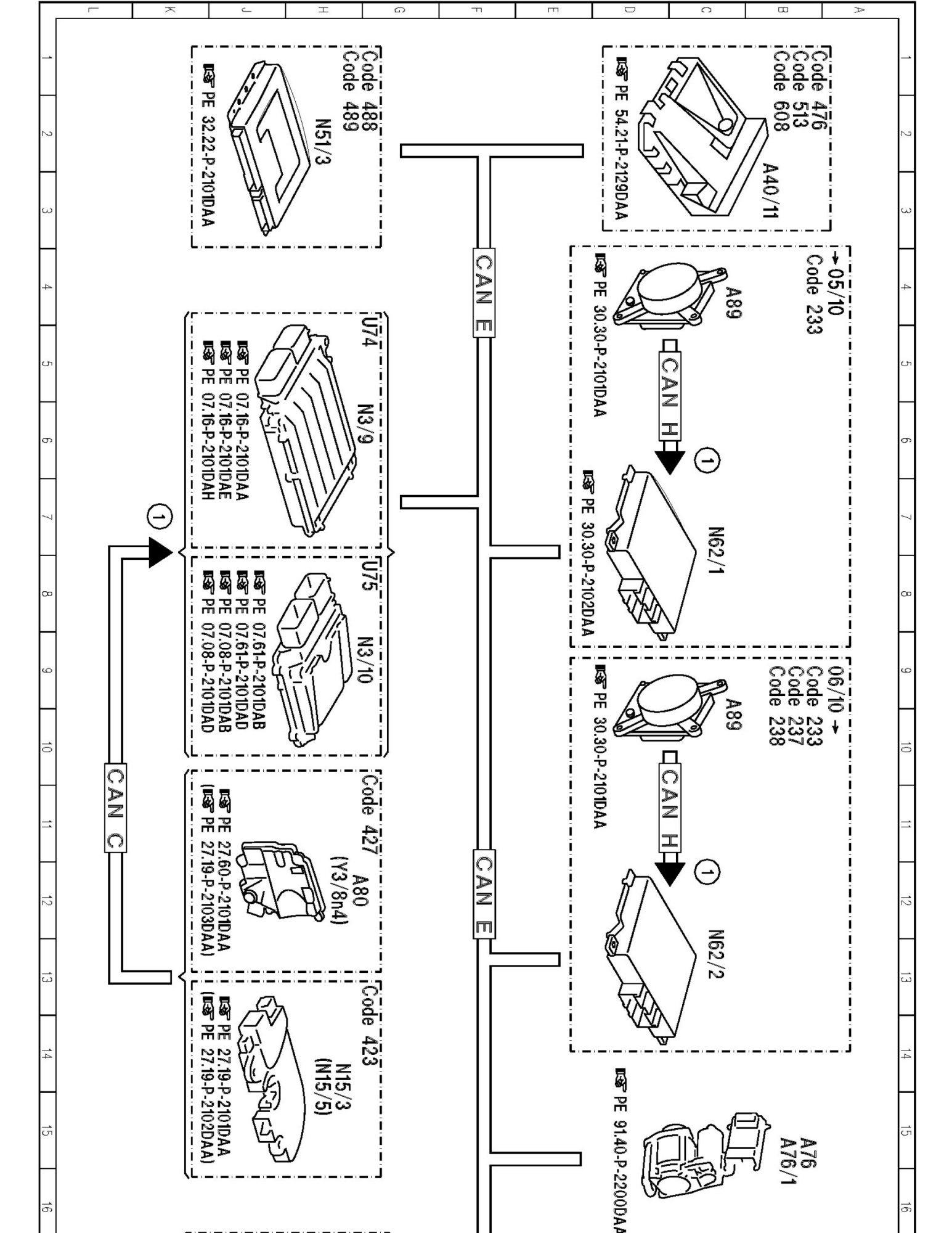

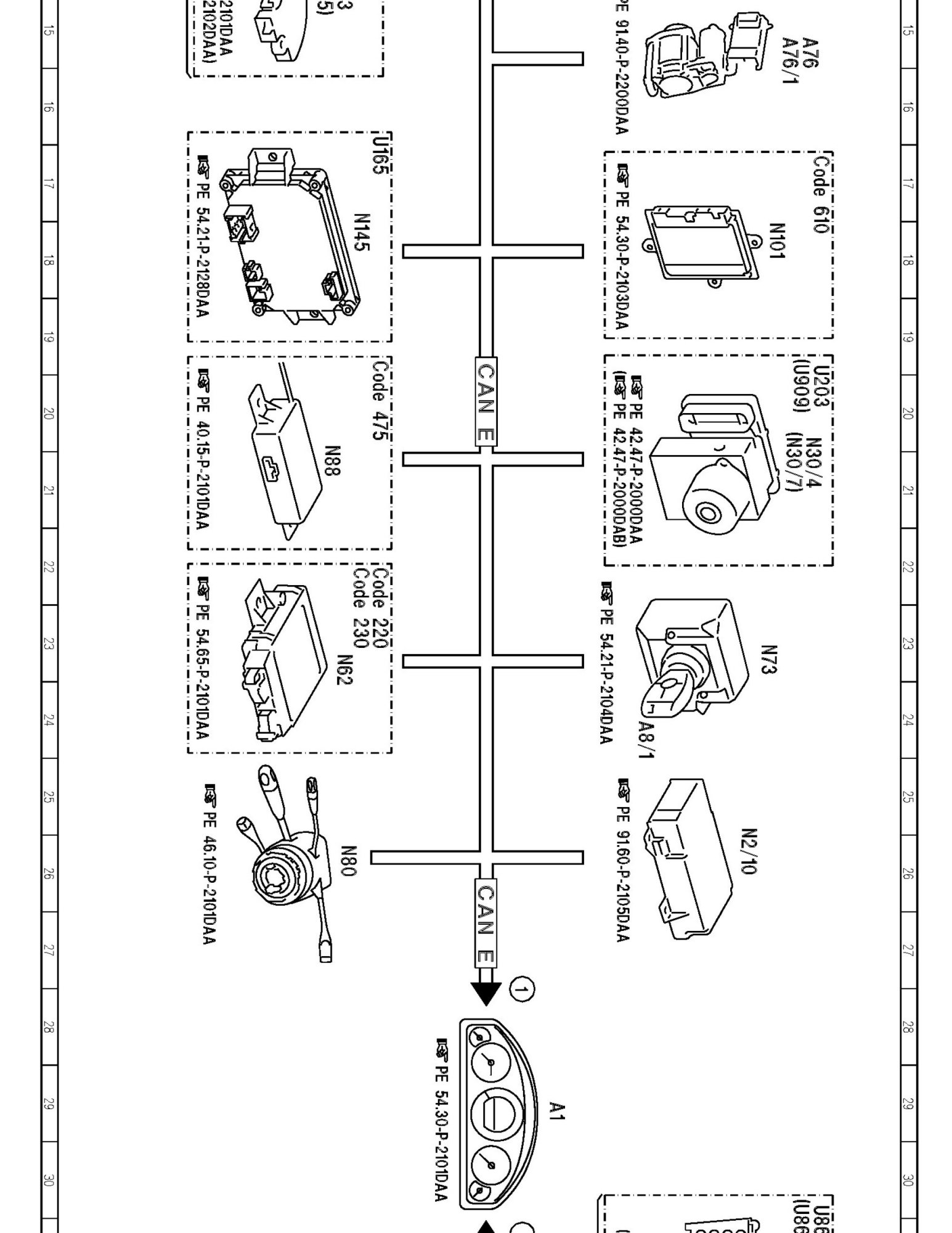

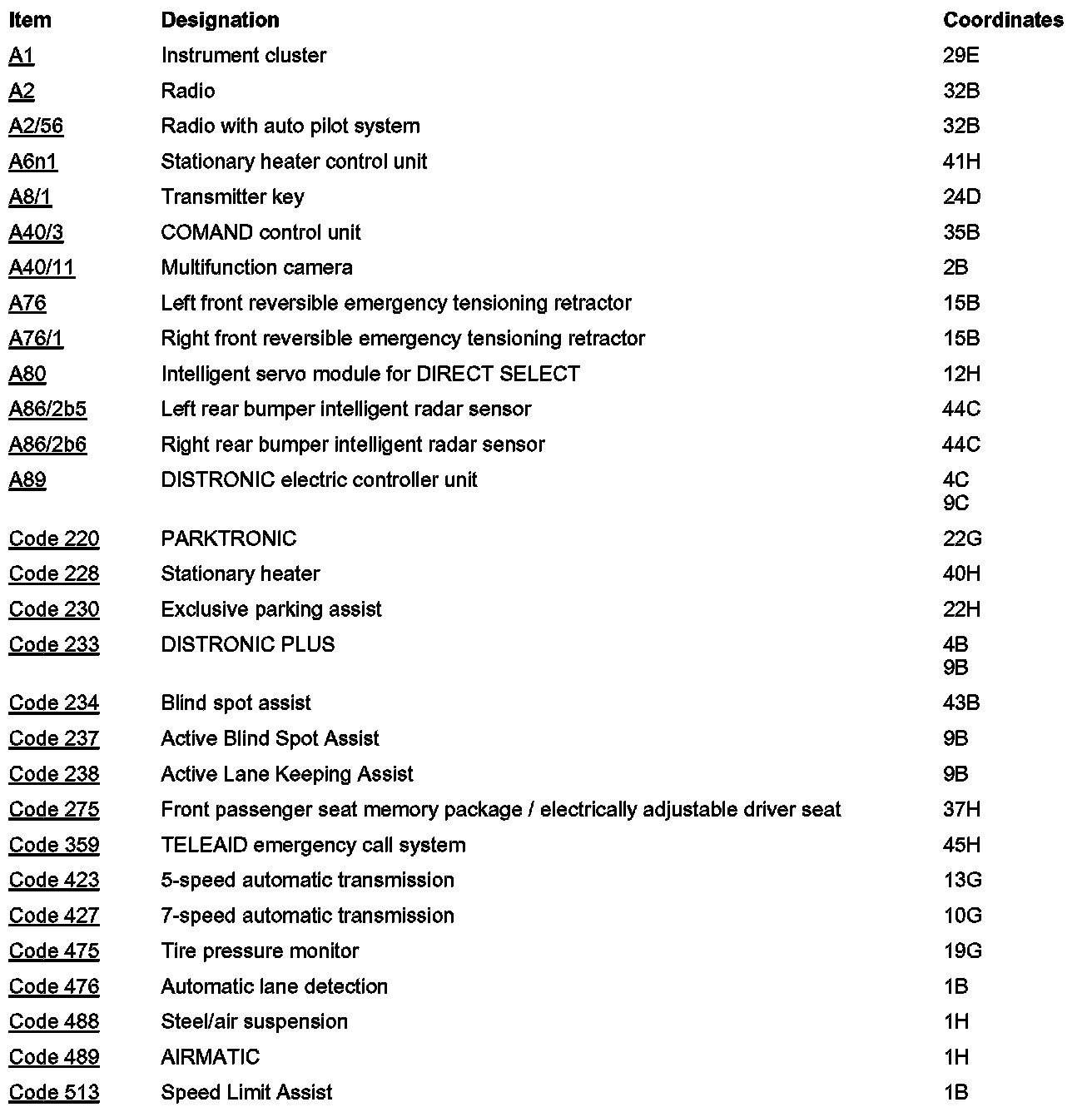

PE54.30-P-2054DAA Electrical Function Schematic of Instrument Cluster, Indicator/Warning Message



PE54.30-P-2054DAA Electrical Function Schematic of Instrument Cluster, Indicator/Warning Message































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
