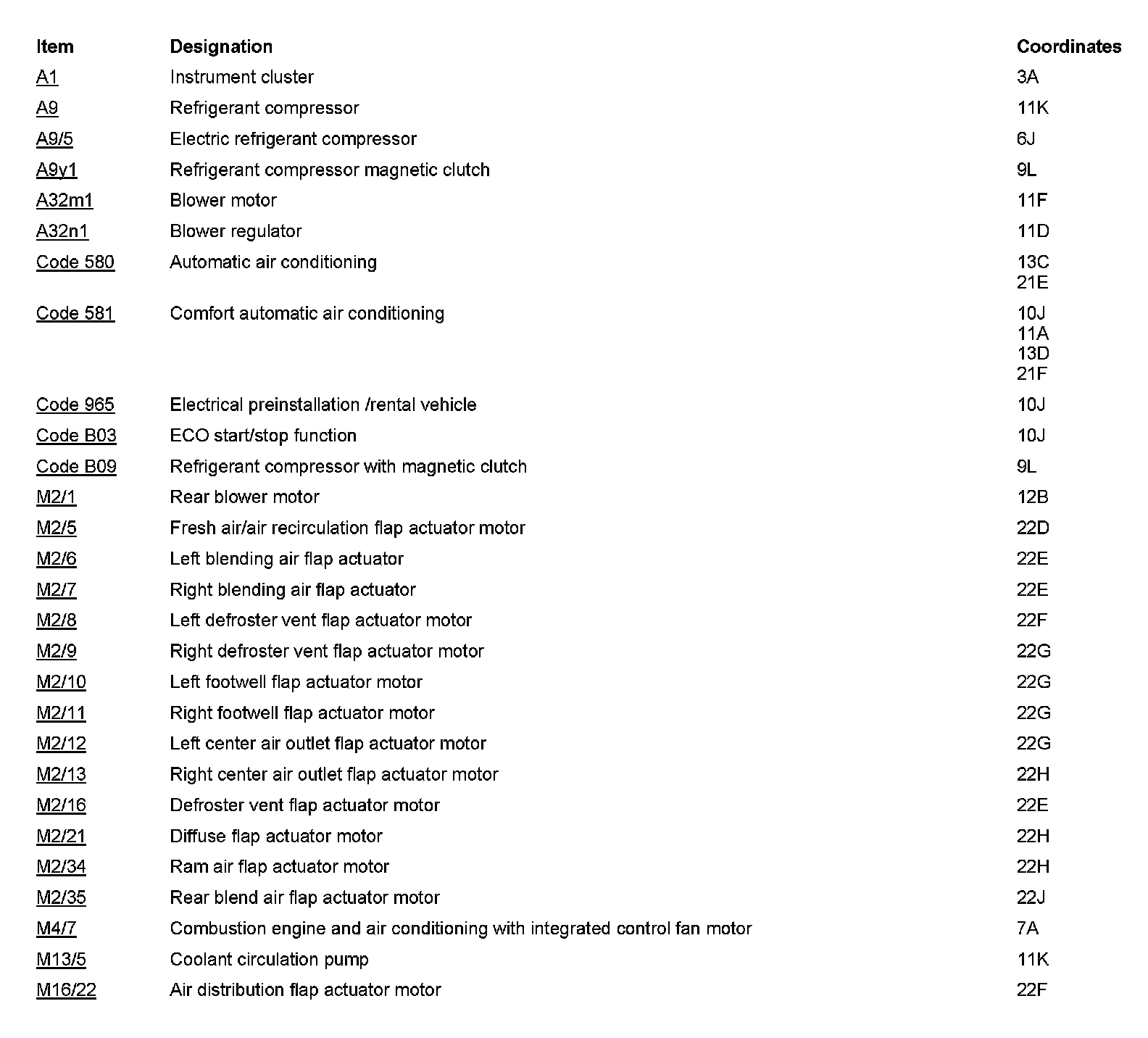

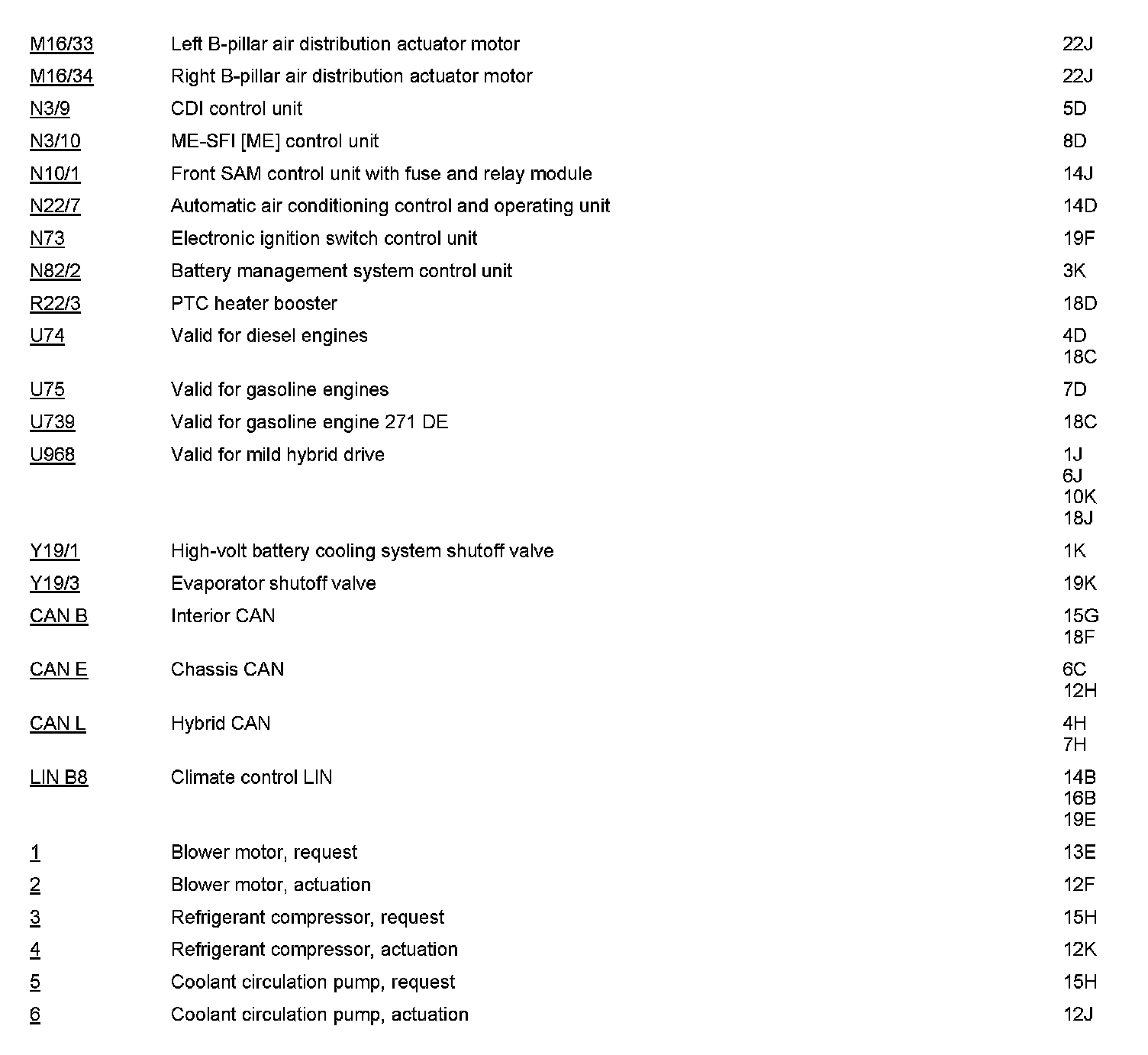

PE83.40-P-2053DAA Electrical Function Schematic For Automatic Air Conditioning, Actuation

PE83.40-P-2053DAA Electrical Function Schematic For Automatic Air Conditioning, Actuation
MODEL 212.0/ 2


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
