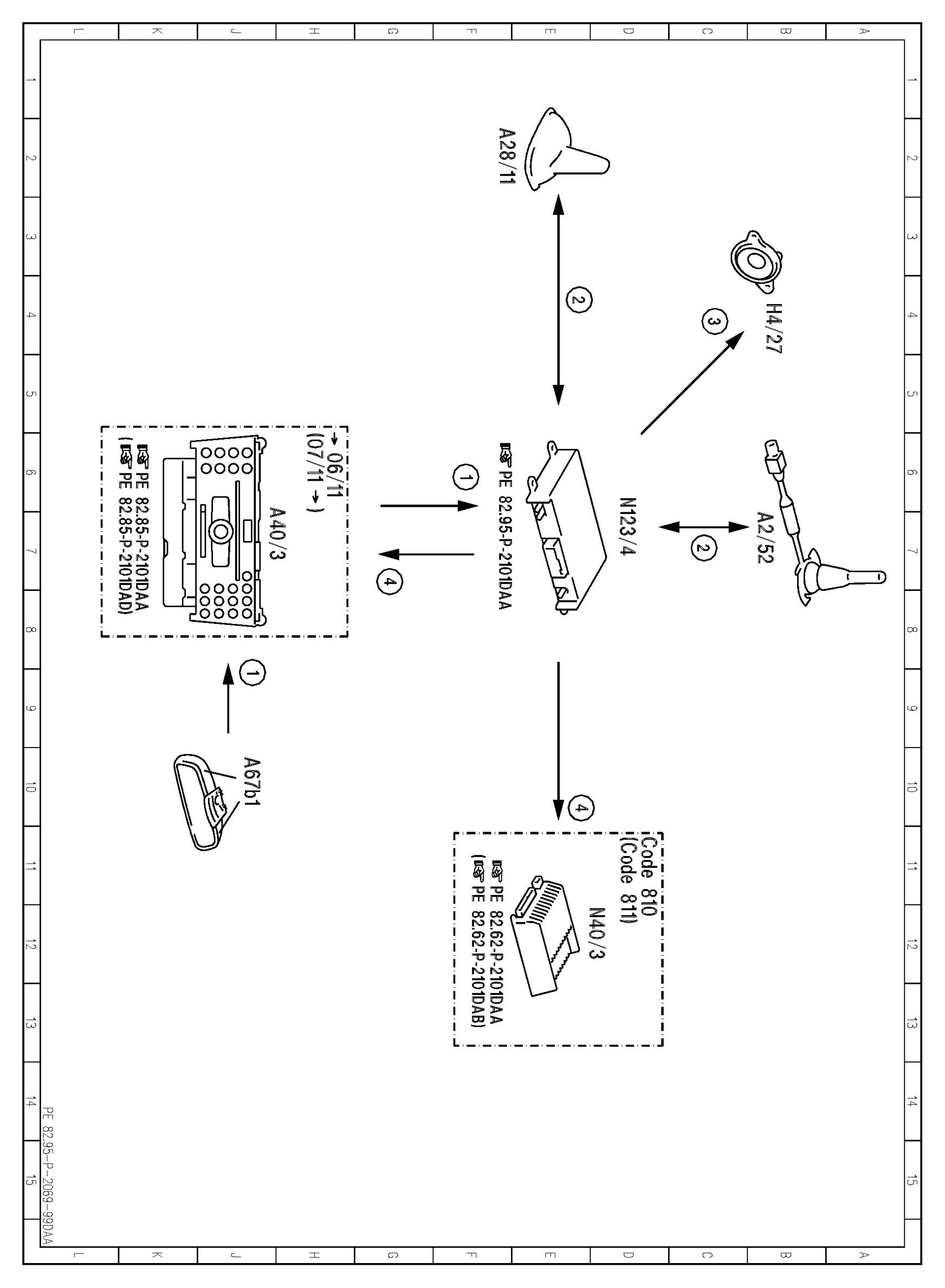

PE82.95-P-2069DAA Electrical Function Diagram For Voice Connection Between Vehicle And Service Center, Function

PE82.95-P-2069DAA Electrical Function Diagram For Voice Connection Between Vehicle And Service Center, Function
MODEL 212
- with CODE (348) Emergency call/Assist system
- with CODE (359) TELE AID emergency call system


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
