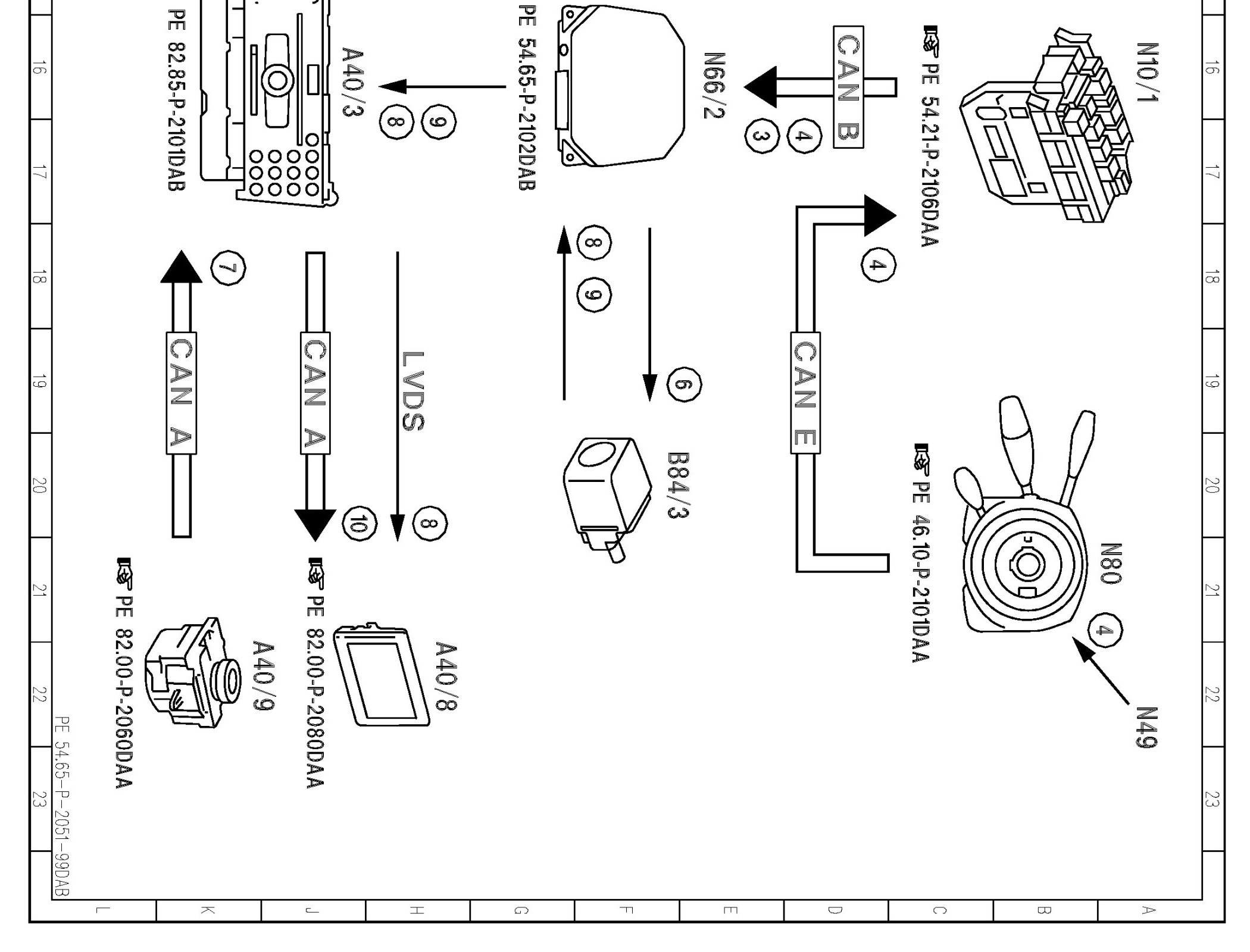

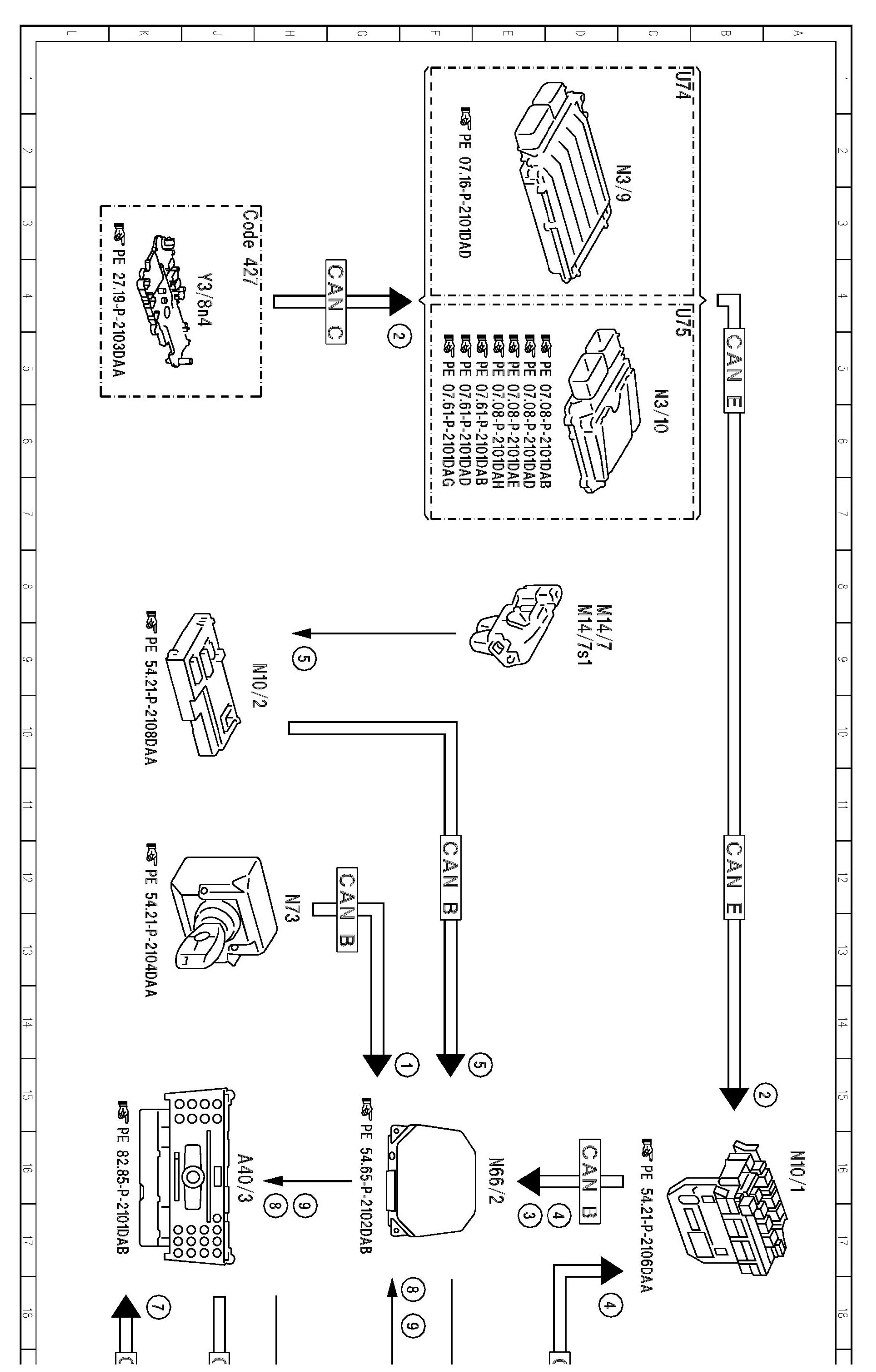

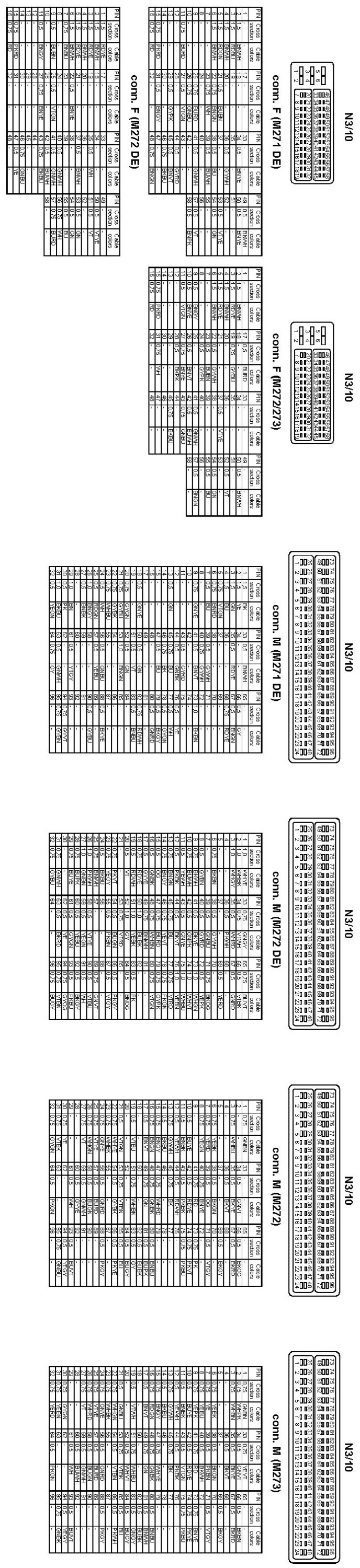

PE54.65-P-2051DAB Electrical Function Schematic, Reversing Camera

PE54.65-P-2051DAB Electrical Function Schematic, Reversing Camera
MODEL 212.0 /2
- with CODE (218) Backup camera
- with CODE (498) Japan version






























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
