PE82.70-P-2058DAA Electrical Function Diagram For Mobile Phone Accepting Call And Rejecting Call

PE82.70-P-2058DAA Electrical Function Diagram For Mobile Phone Accepting Call And Rejecting Call
MODEL 212.0 /2
- except CODE (498) Japan version

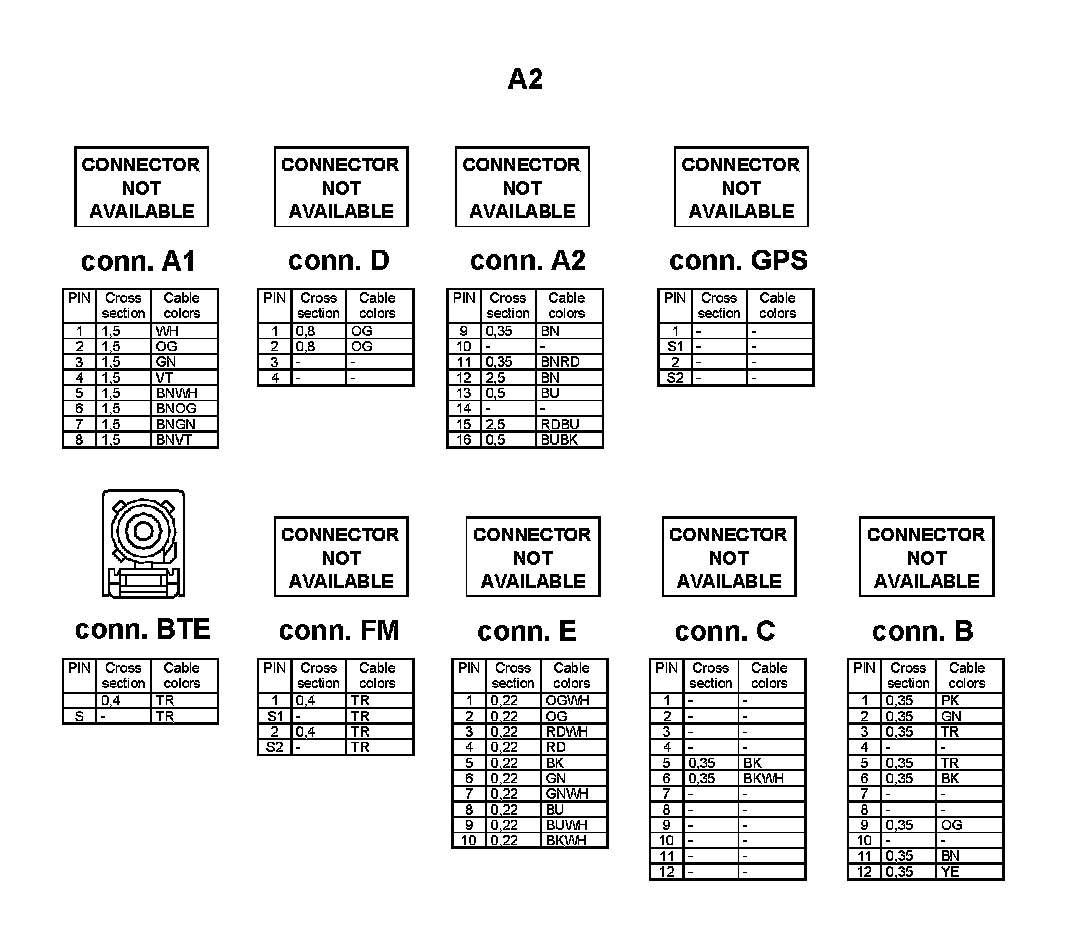

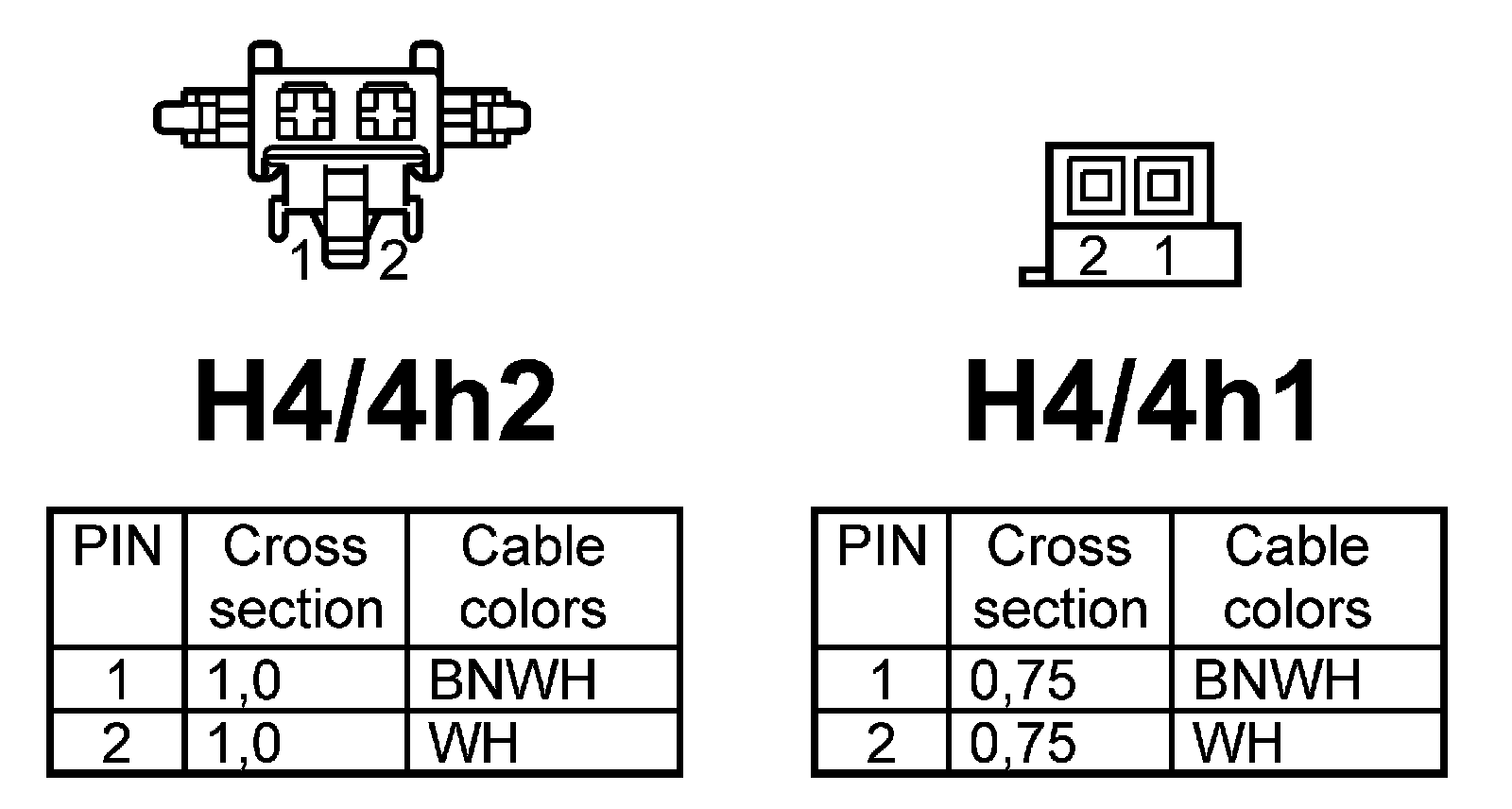

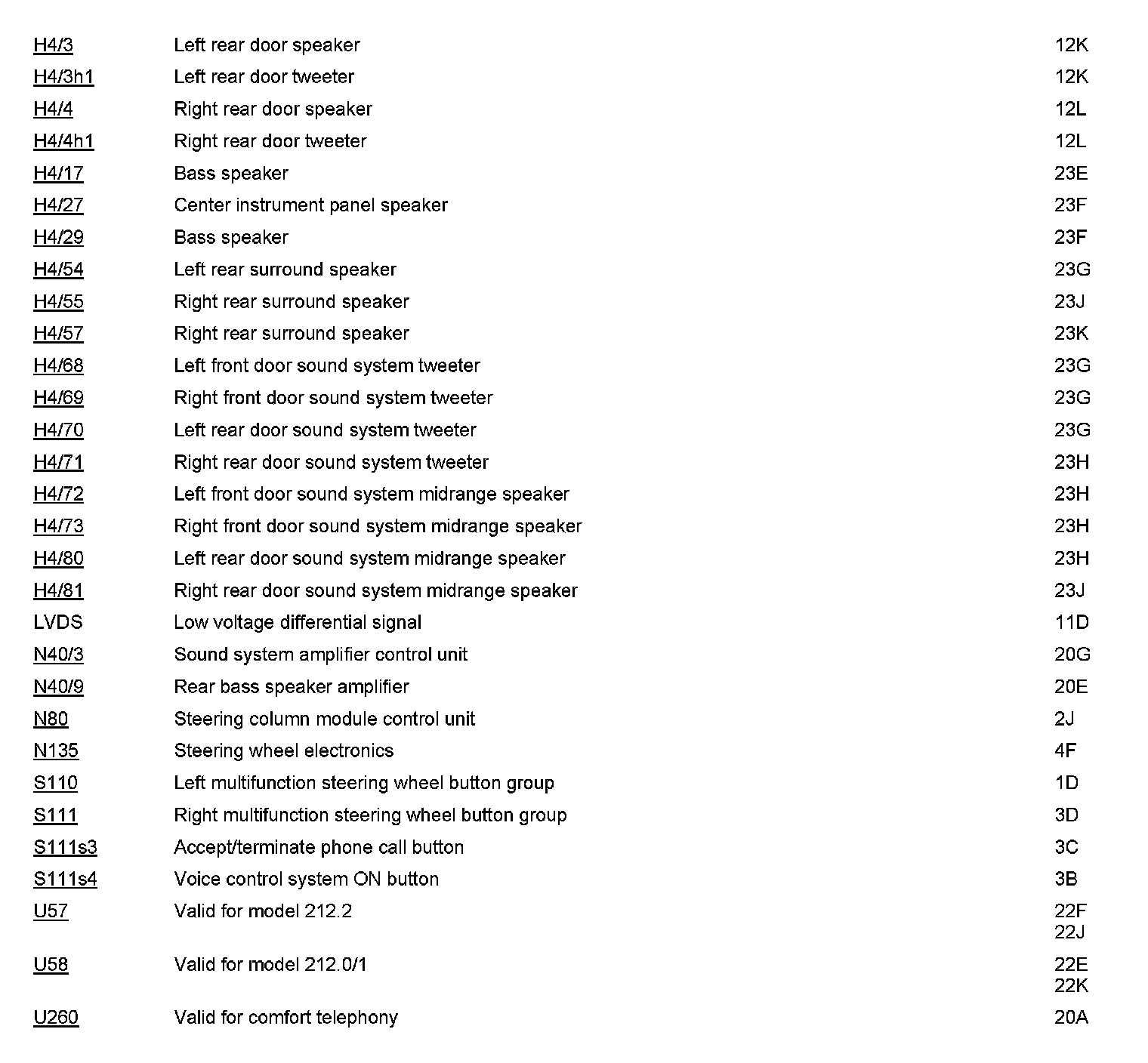

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
