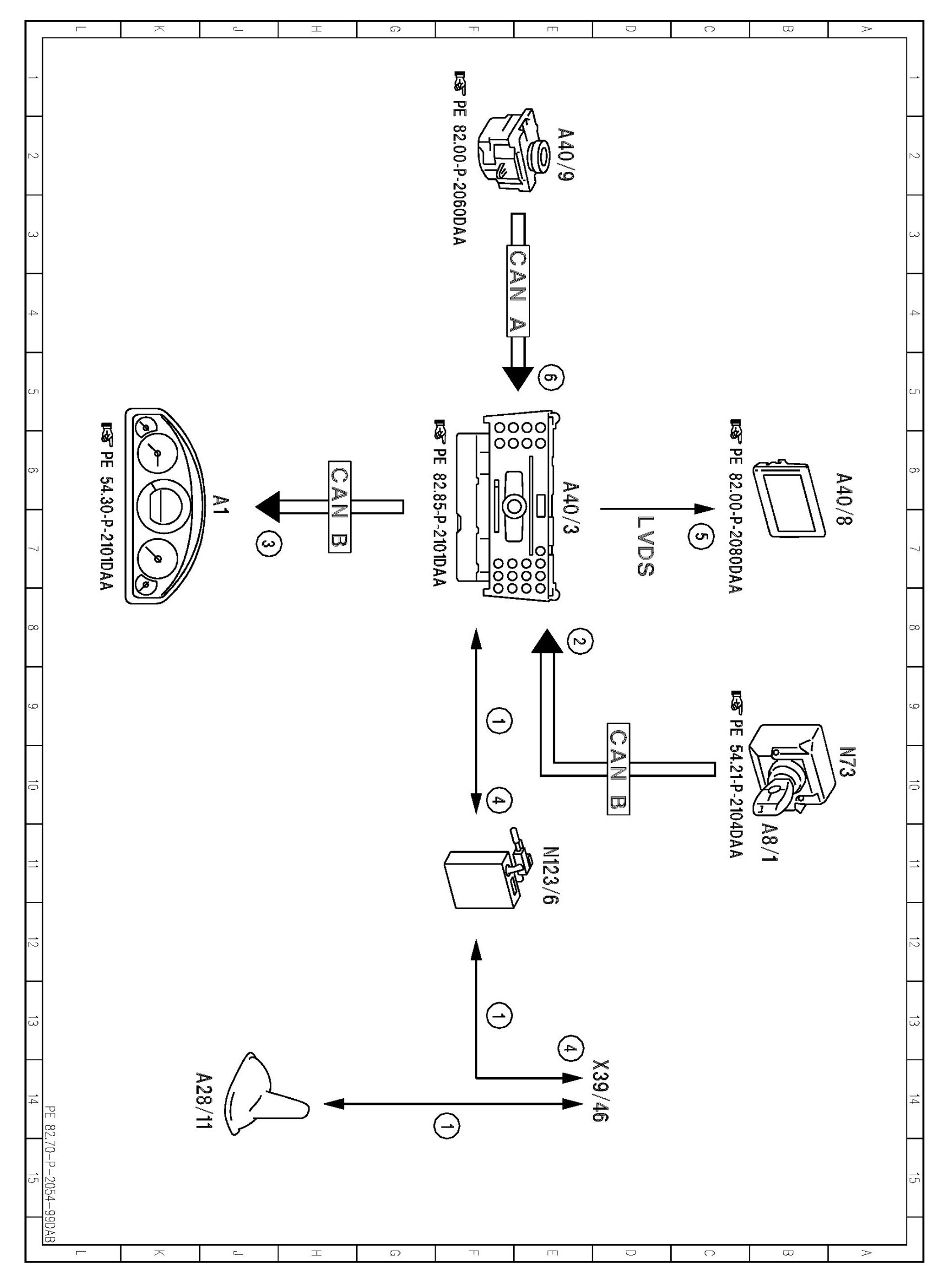

PE82.70-P-2054DAB Electrical Function Schematic For Mobile Phone, Switch On And Switch Off Characteristics

PE82.70-P-2054DAB Electrical Function Schematic For Mobile Phone, Switch On And Switch Off Characteristics
MODEL 212.0 /2
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- up to model year 2011 /YoM 10, basic telephony


































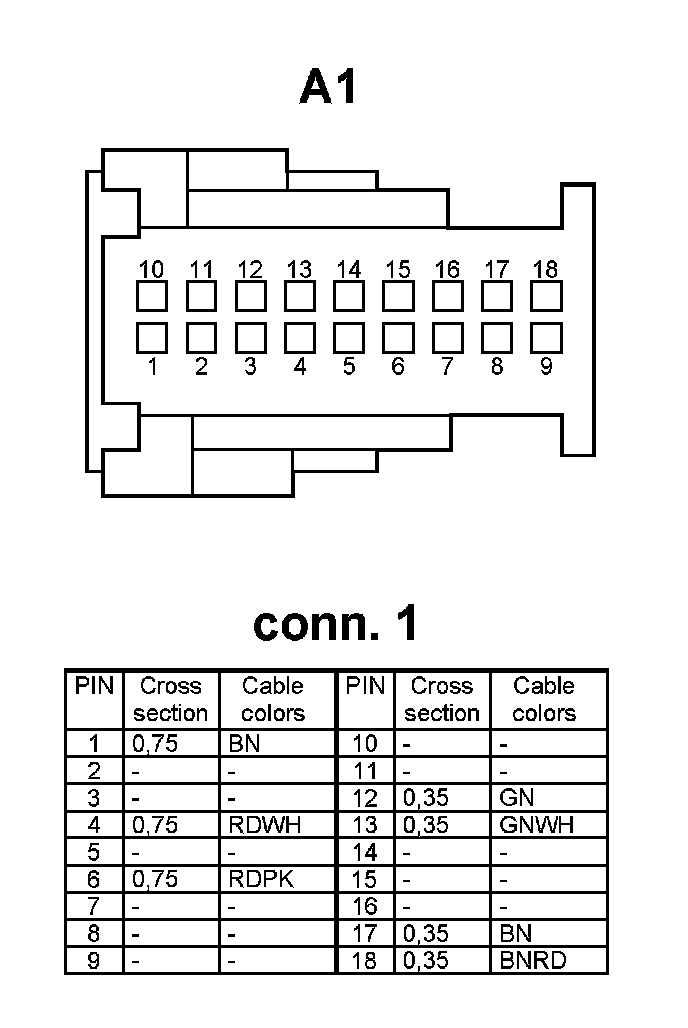

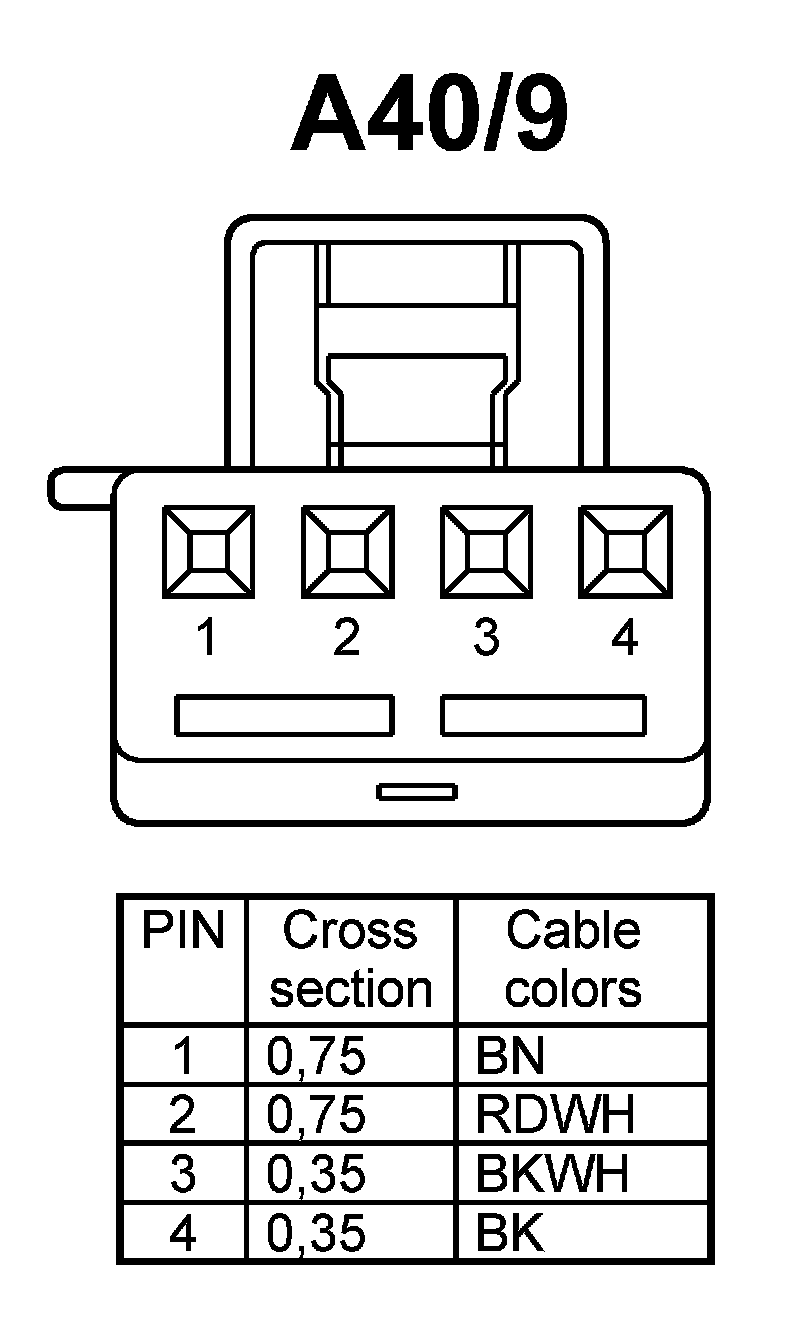

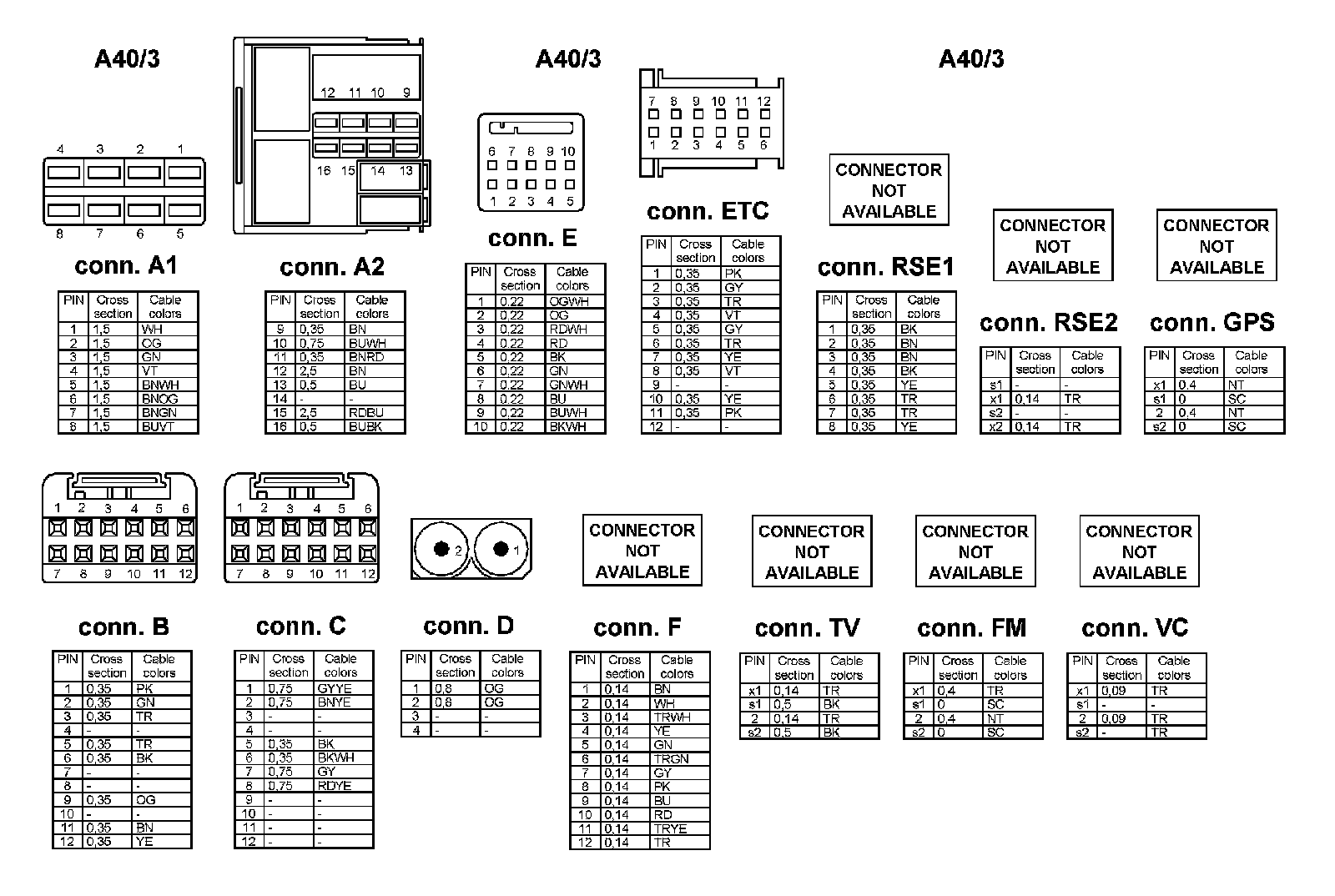

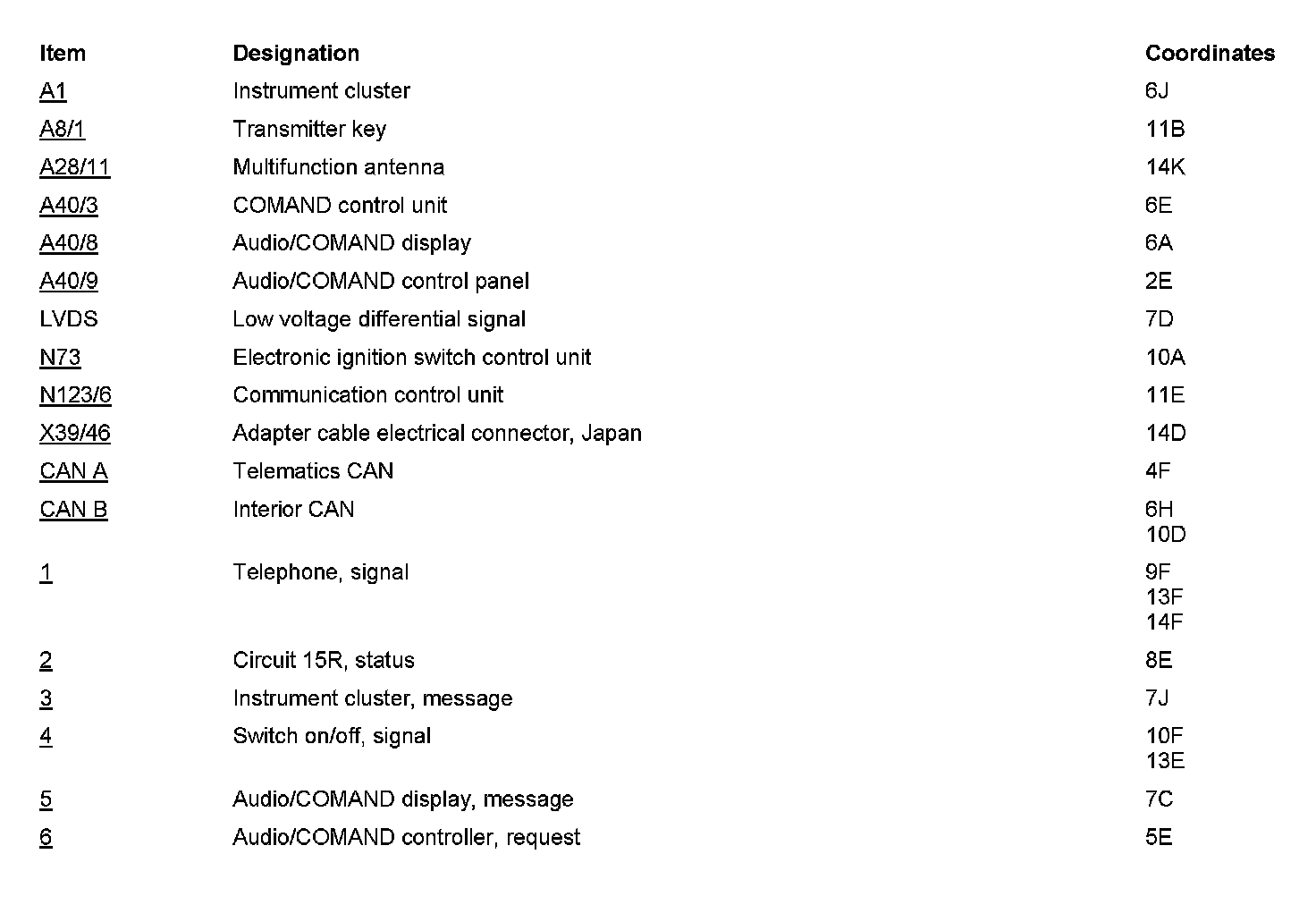

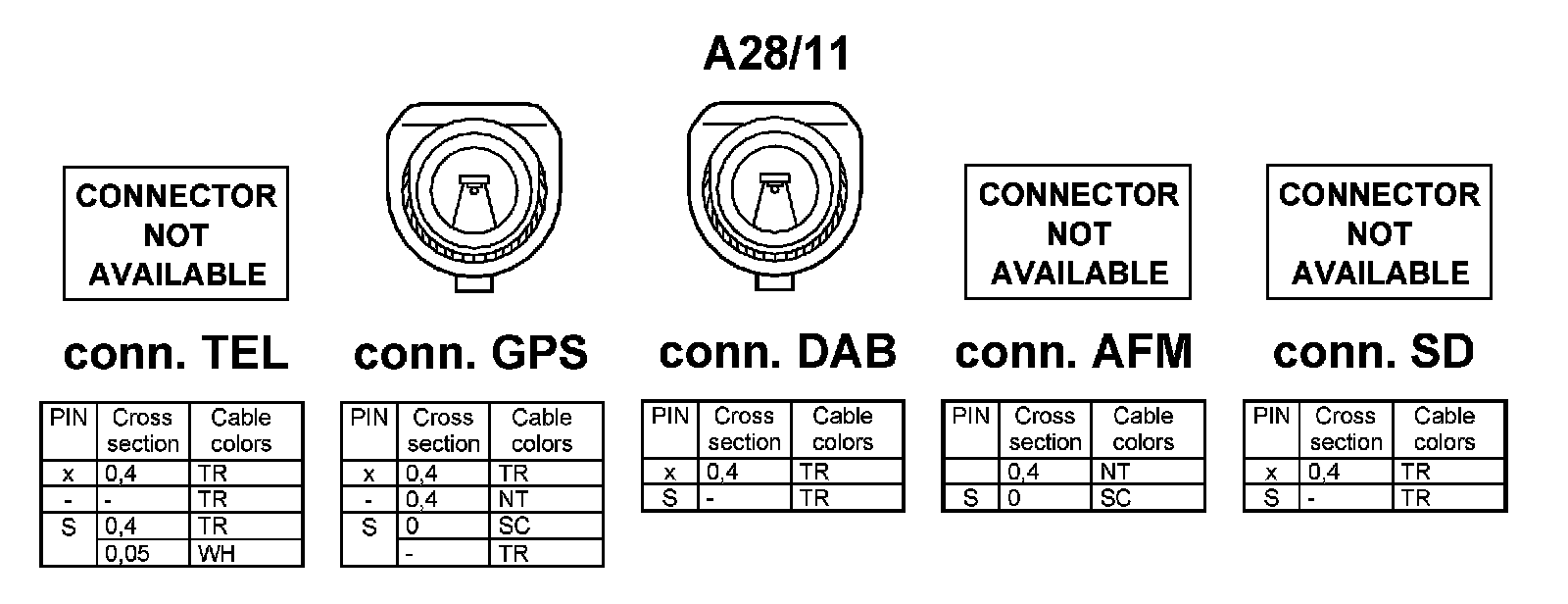

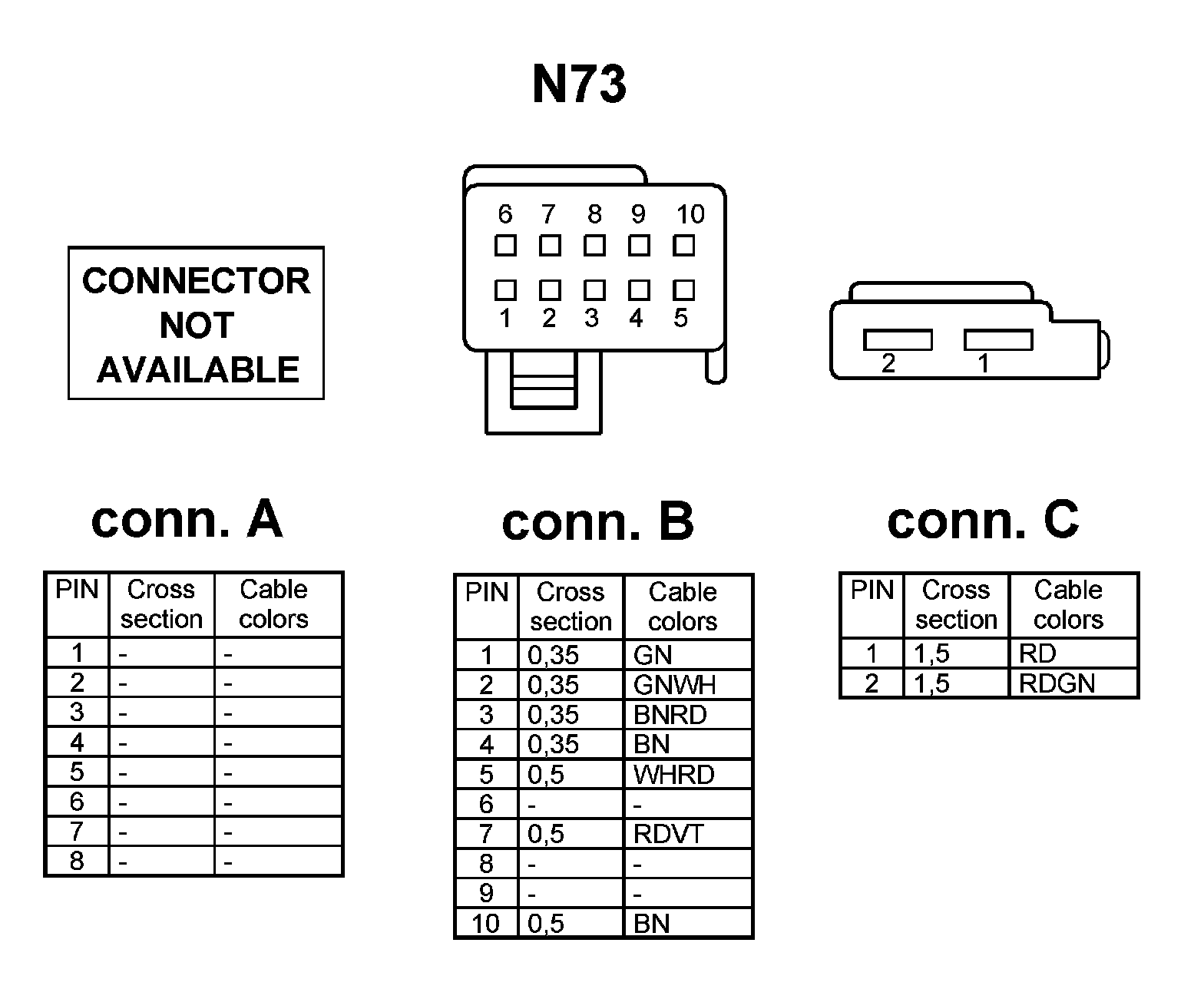

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
