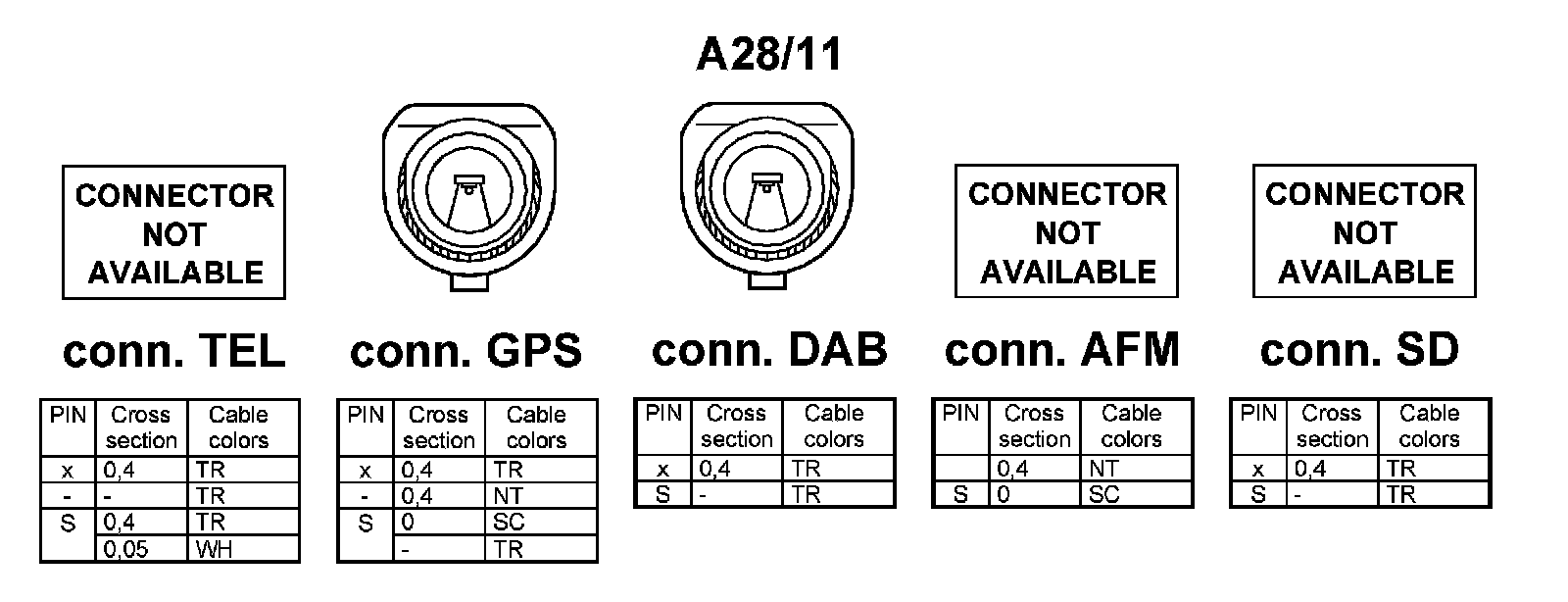

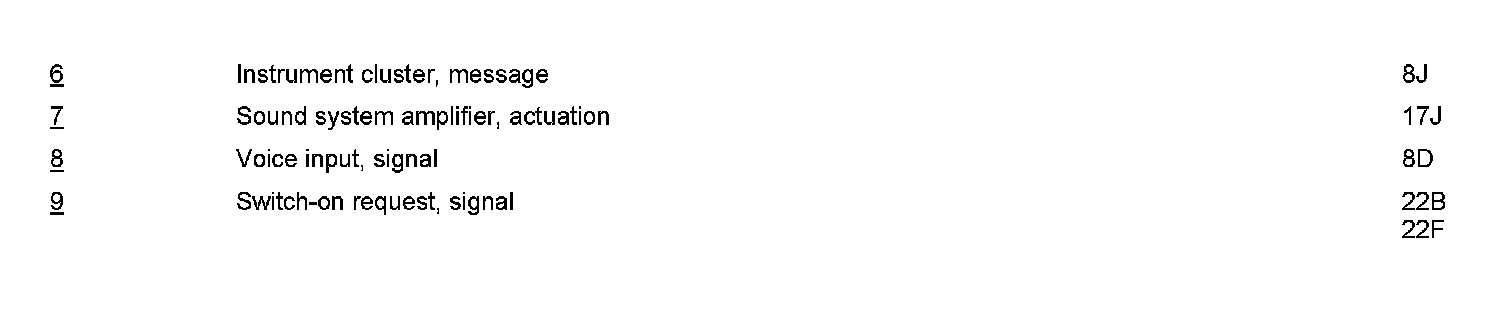

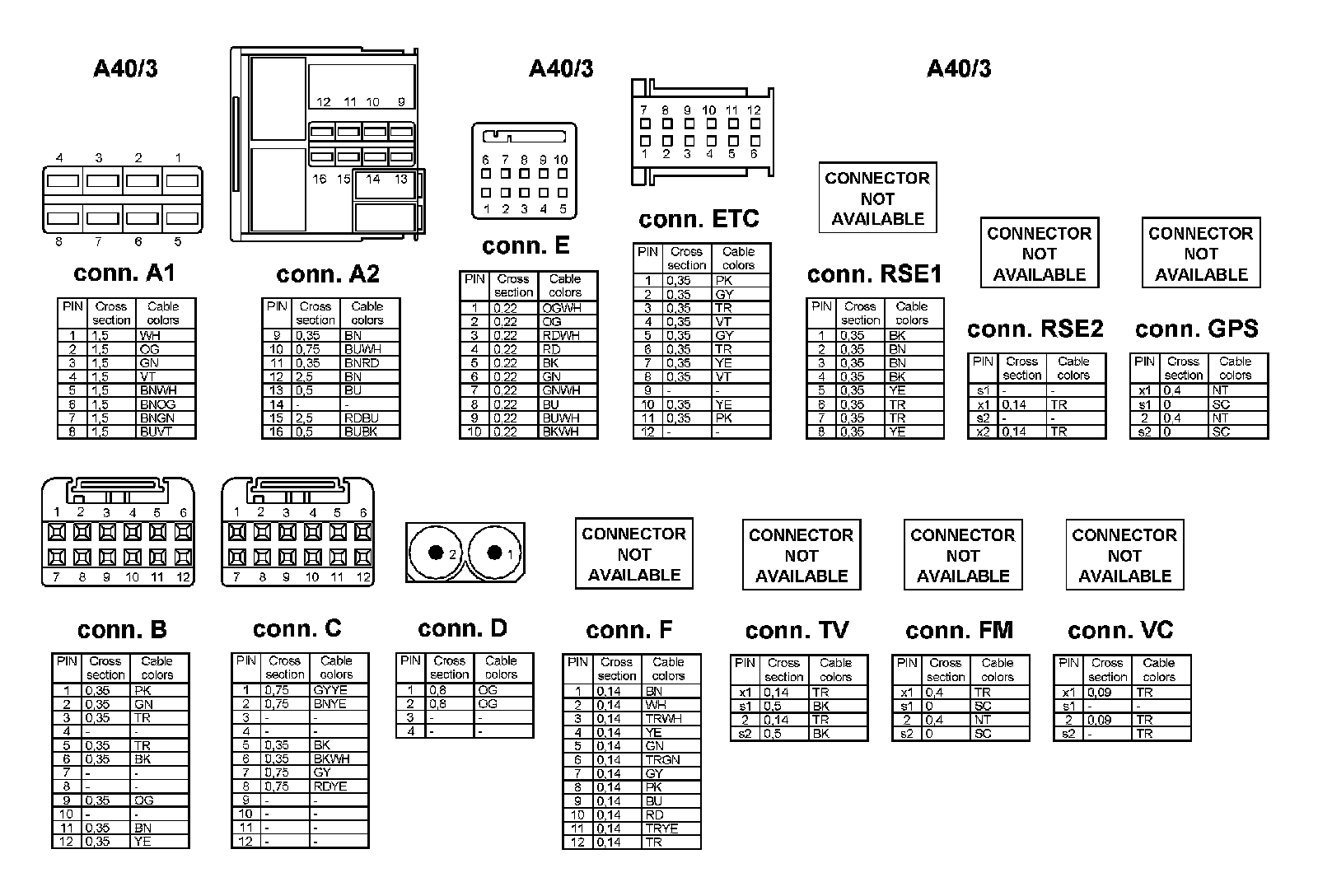

PE82.70-P-2051DAA Electrical Function Schematic For Cellular Phone

PE82.70-P-2051DAA Electrical Function Schematic For Cellular Phone
MODEL 212


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
