PE82.25-P-2063DAA Electrical Function Schematic For Two-Way Radio Integration

PE82.25-P-2063DAA Electrical Function Schematic For Two-Way Radio Integration
MODEL 212.0 /2
- with CODE (941) Preinstallation for radio data transmission
- with CODE (965) Electrical preinstallation, rental vehicles

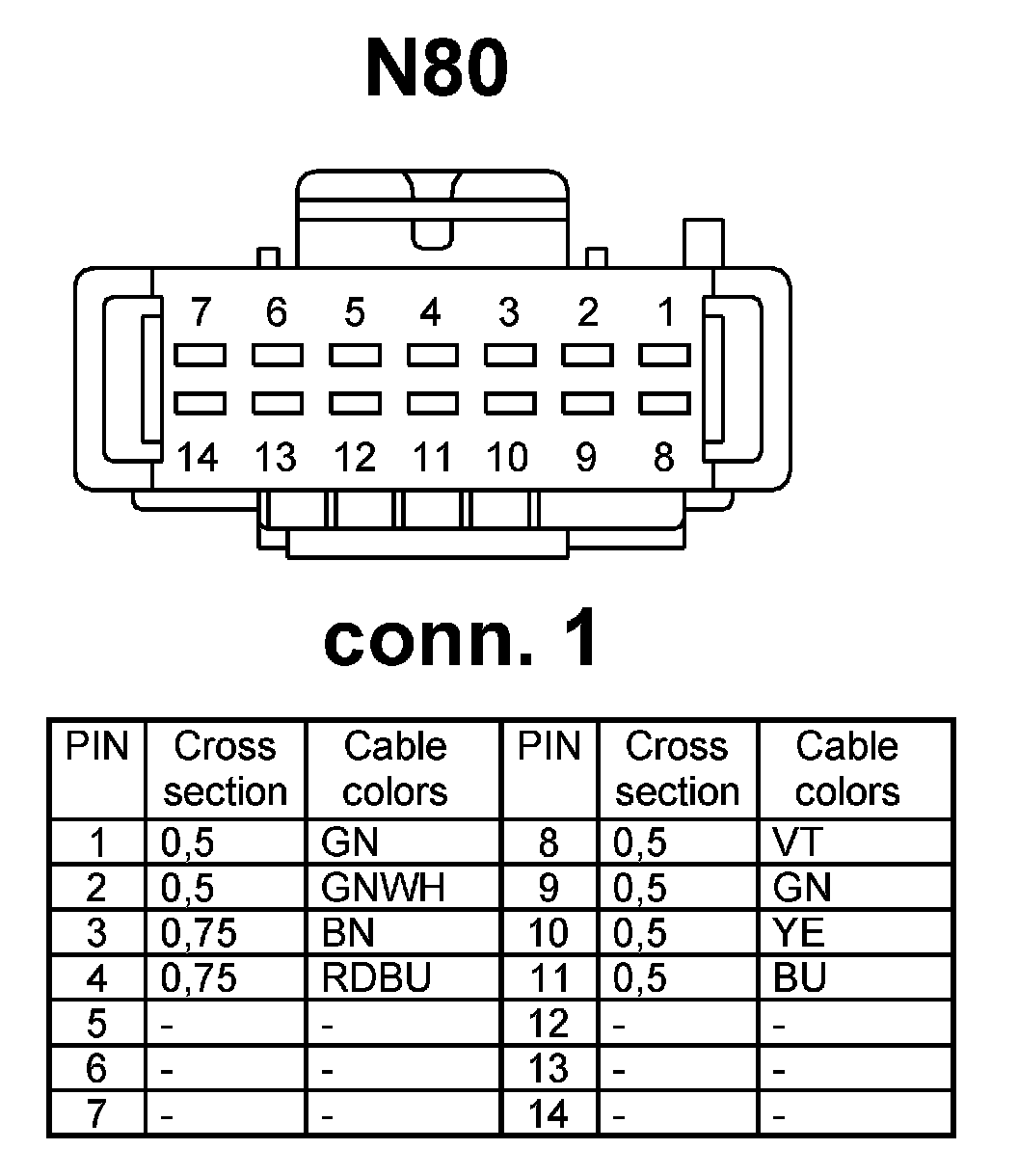

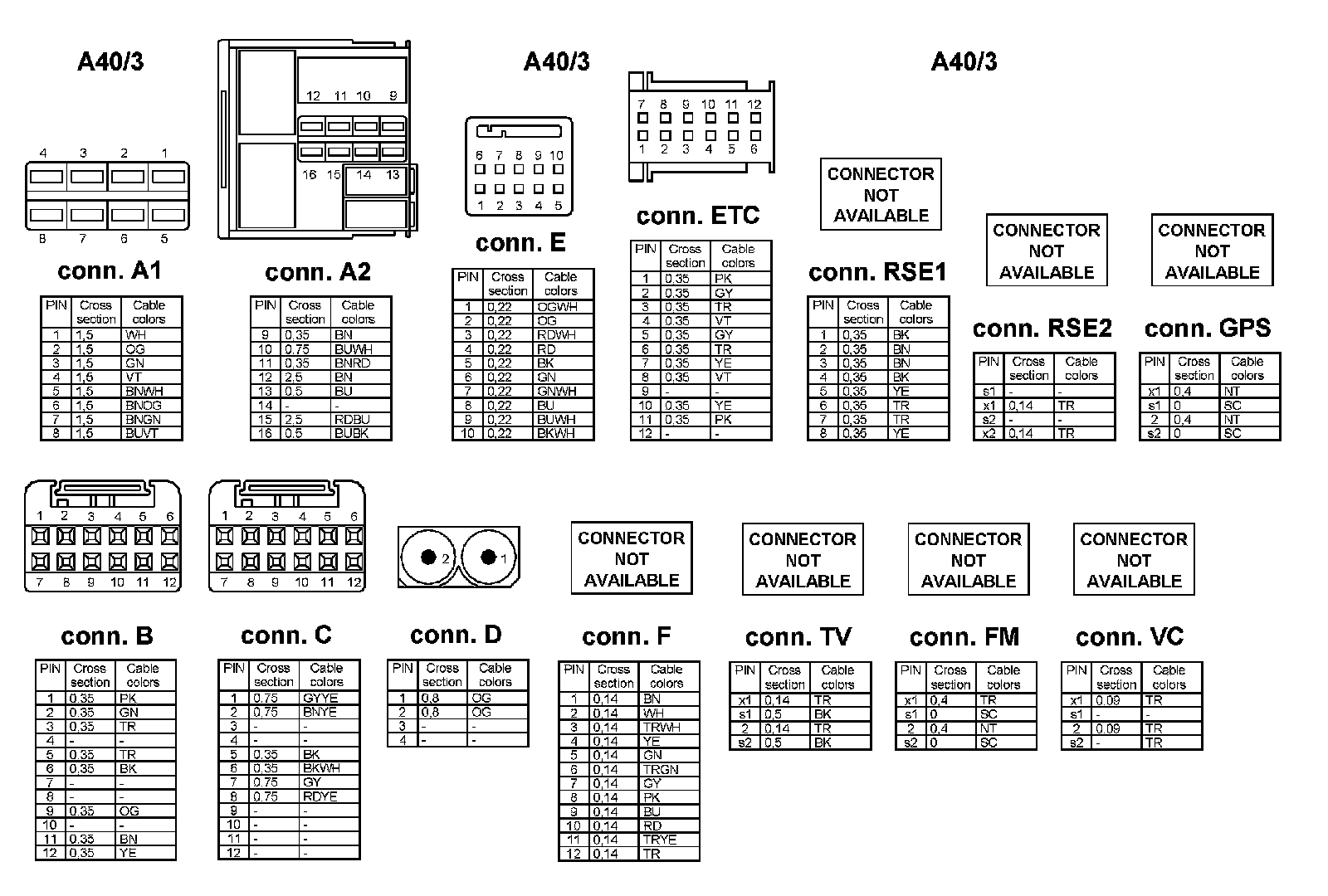

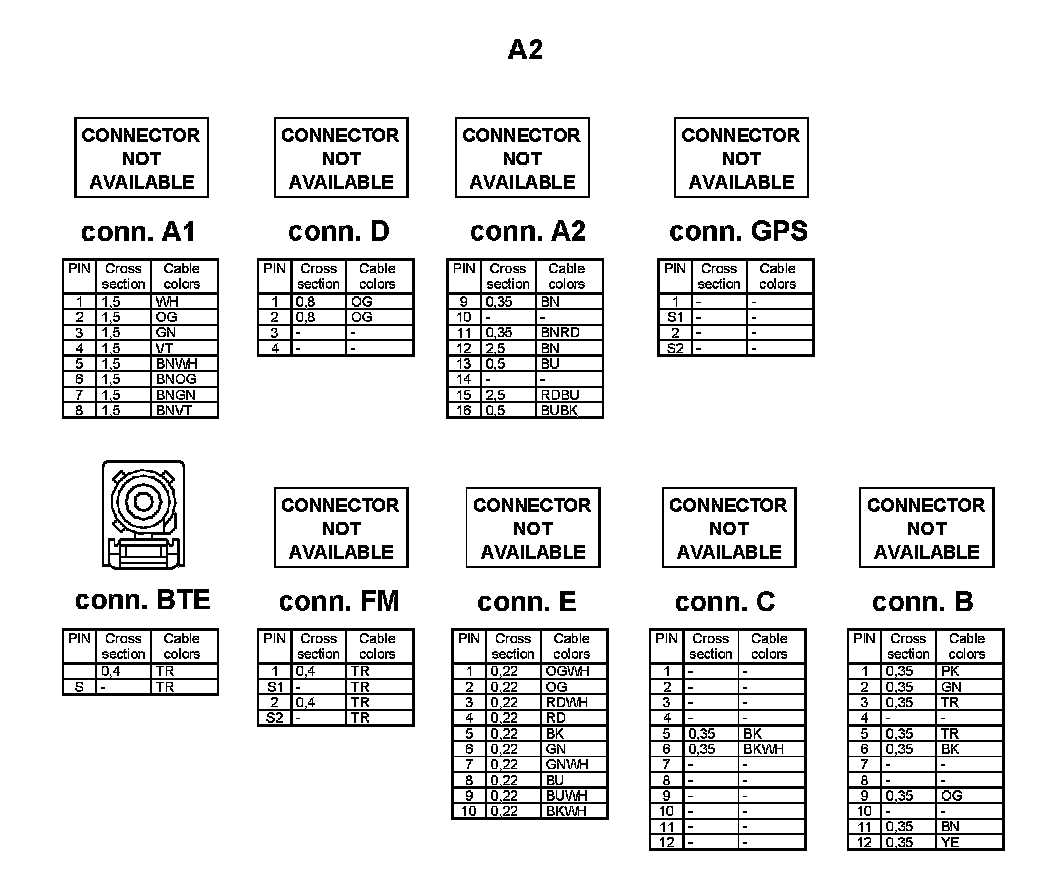

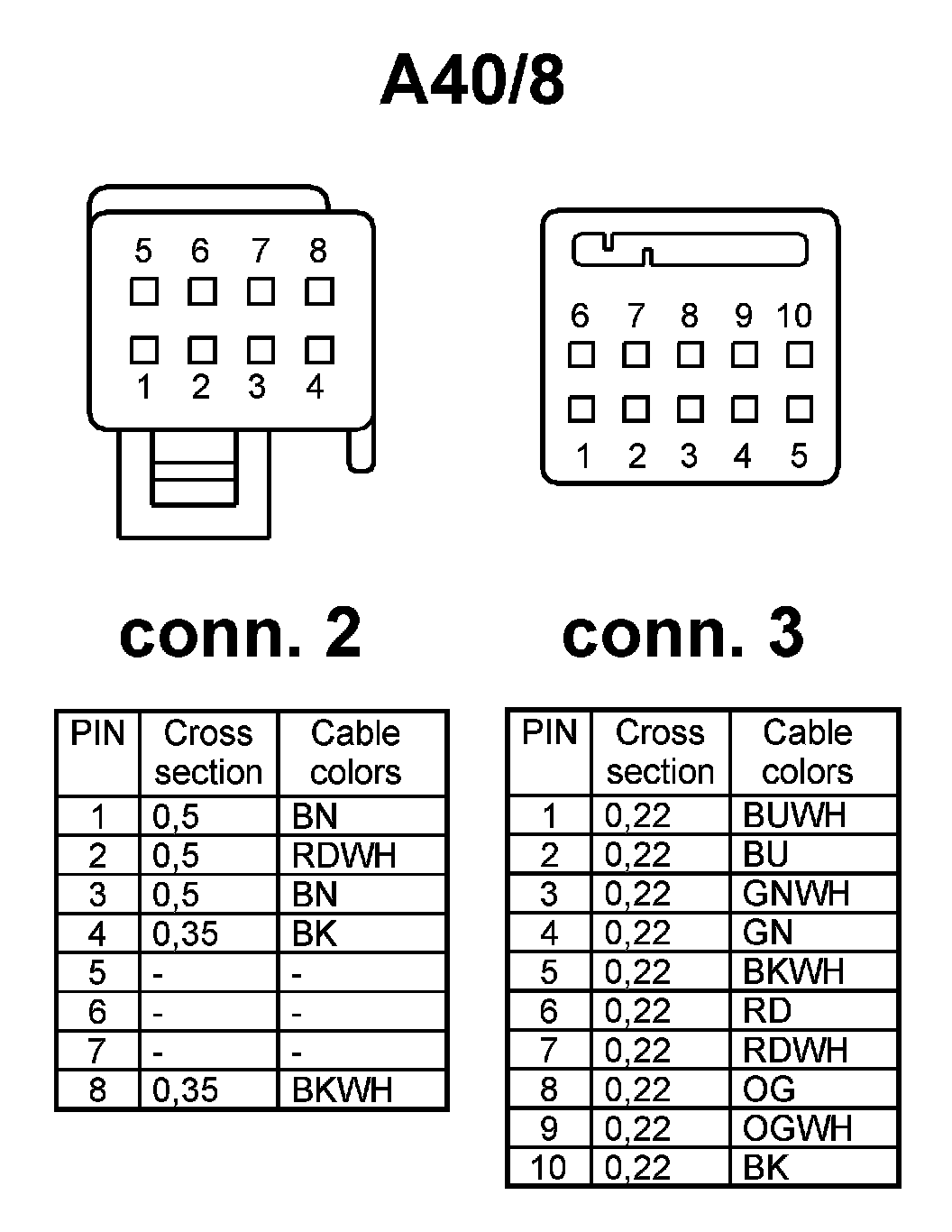

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
