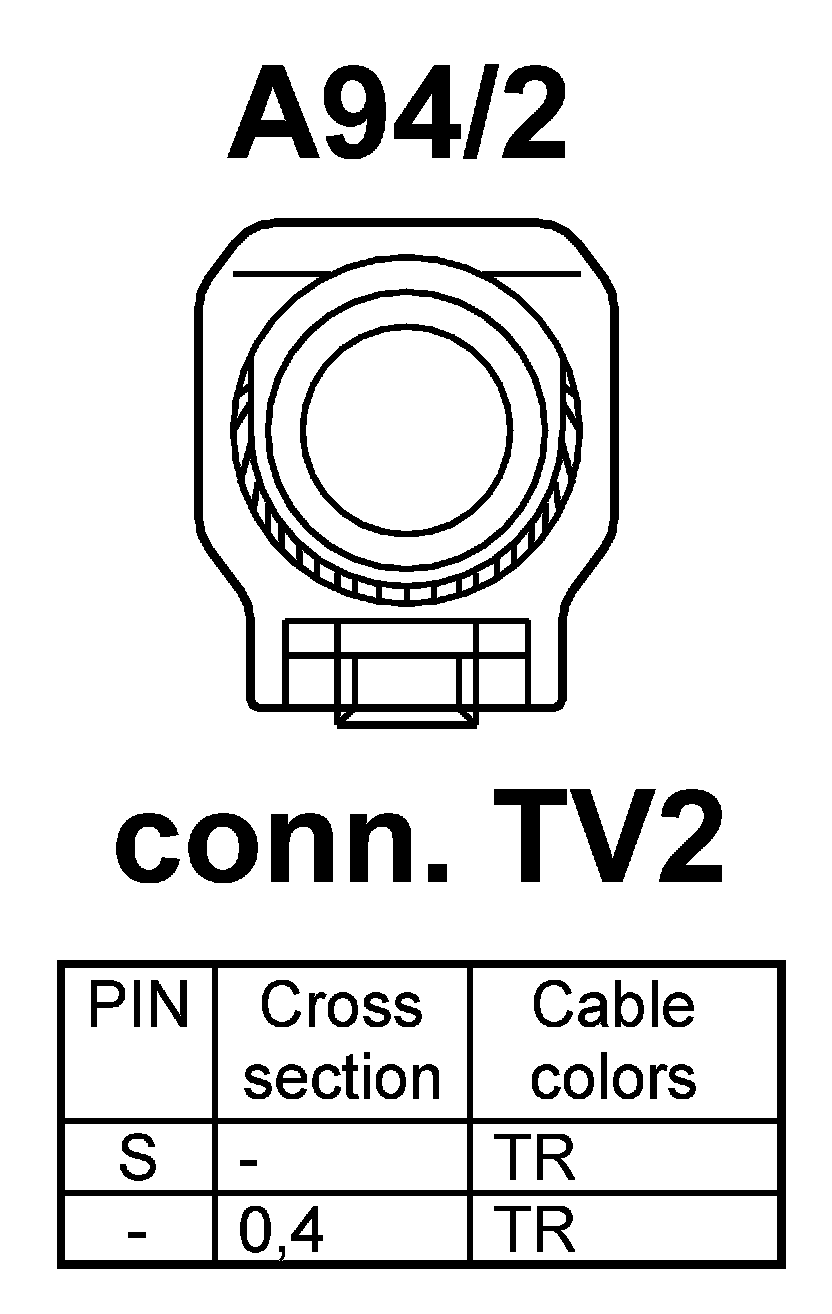

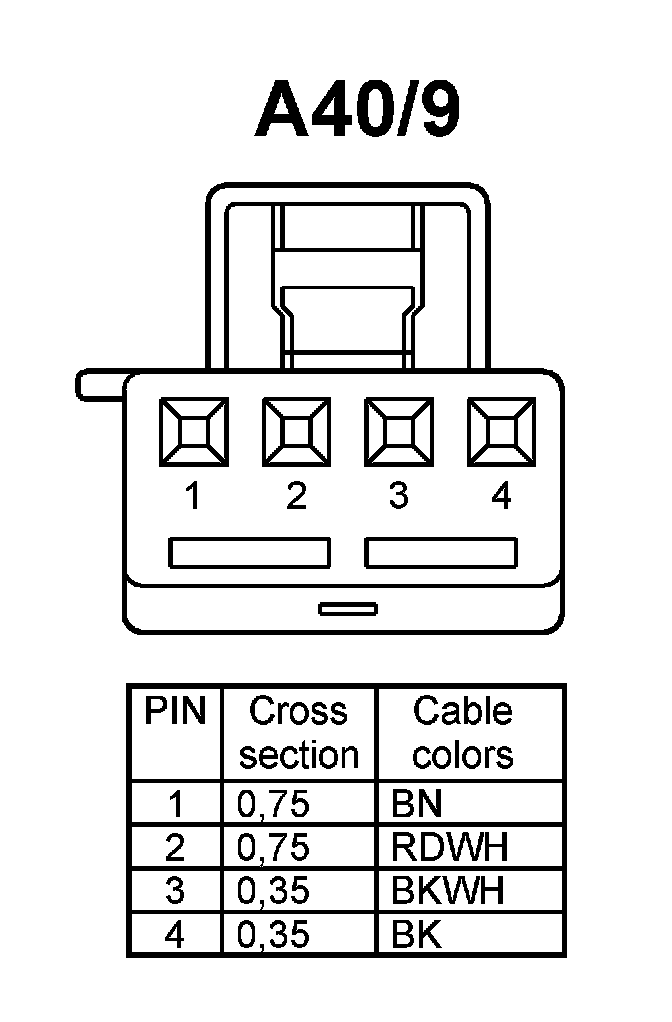

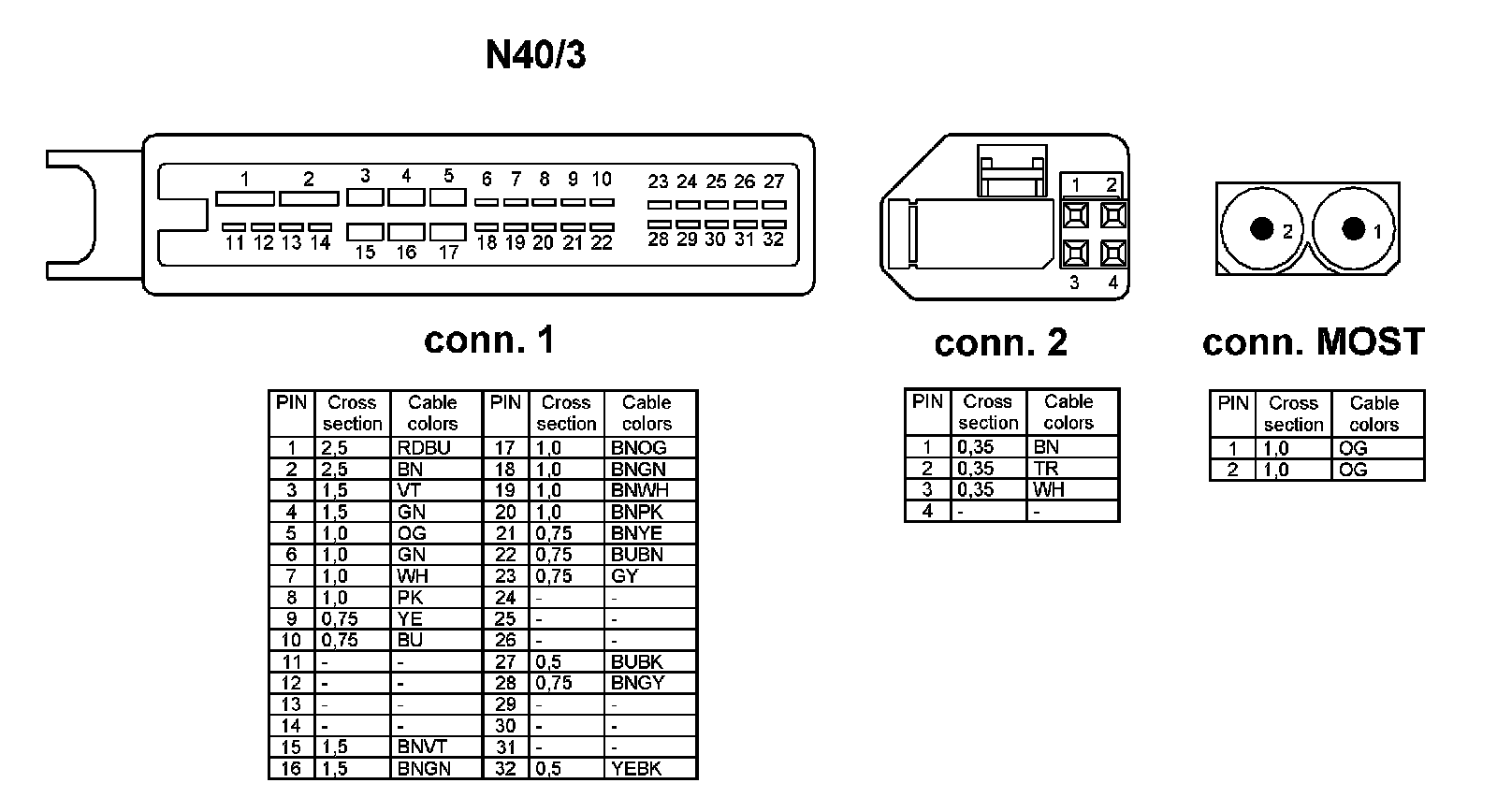

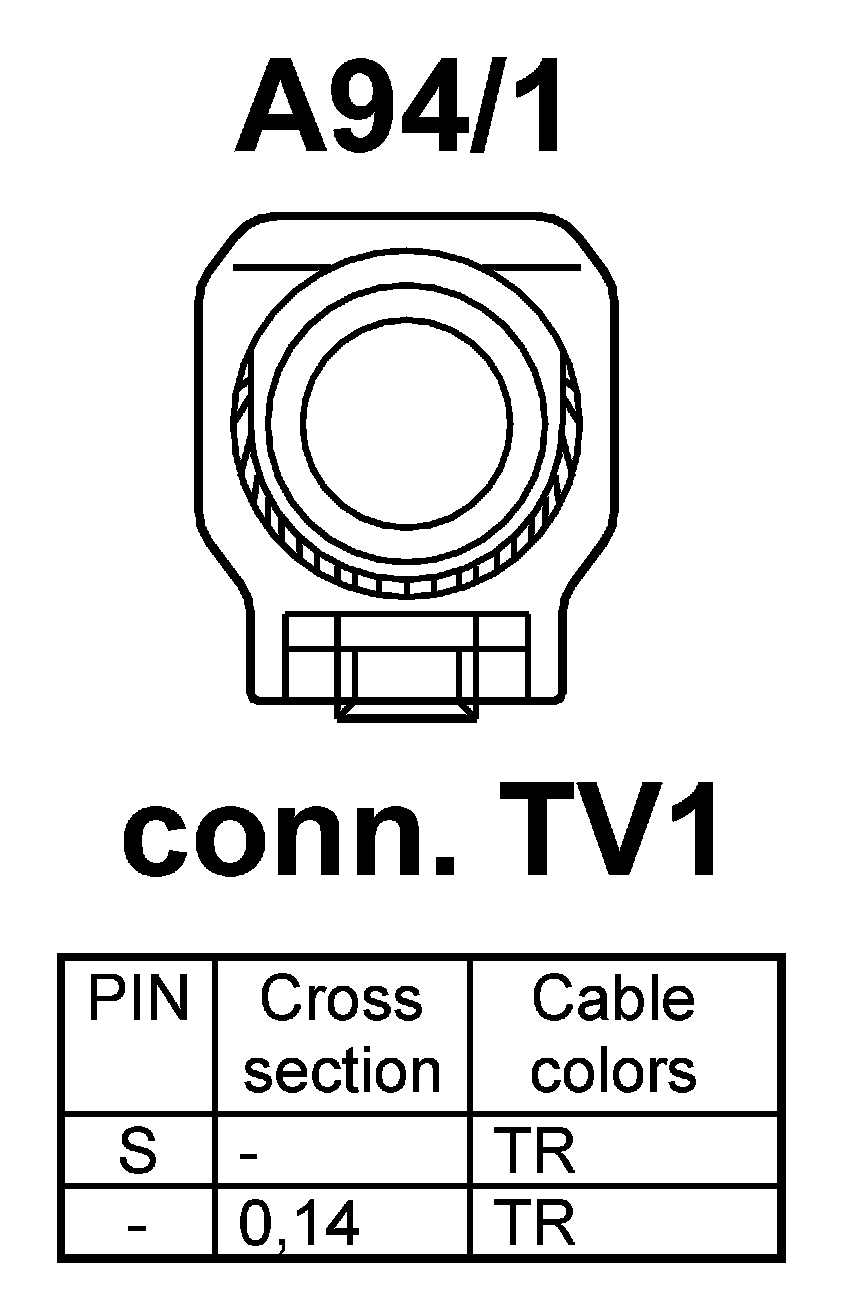

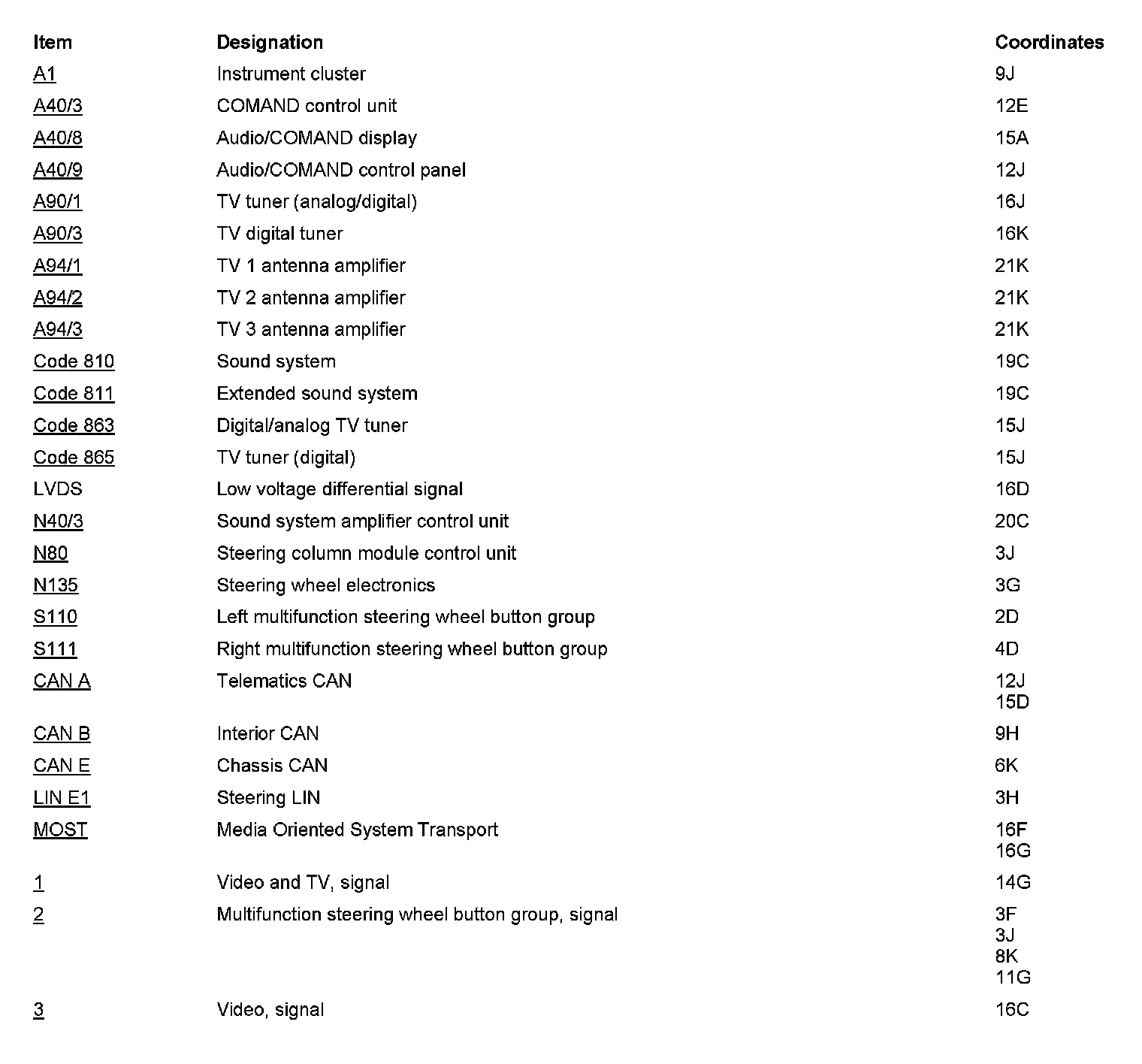

PE82.85-P-2065DAA Electrical Function Diagram For TV Mode, Function



PE82.85-P-2065DAA Electrical Function Diagram For TV Mode, Function
MODEL 212
- with CODE (863) Digital/analog TV tuner
- with CODE (865) TV tuner


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
