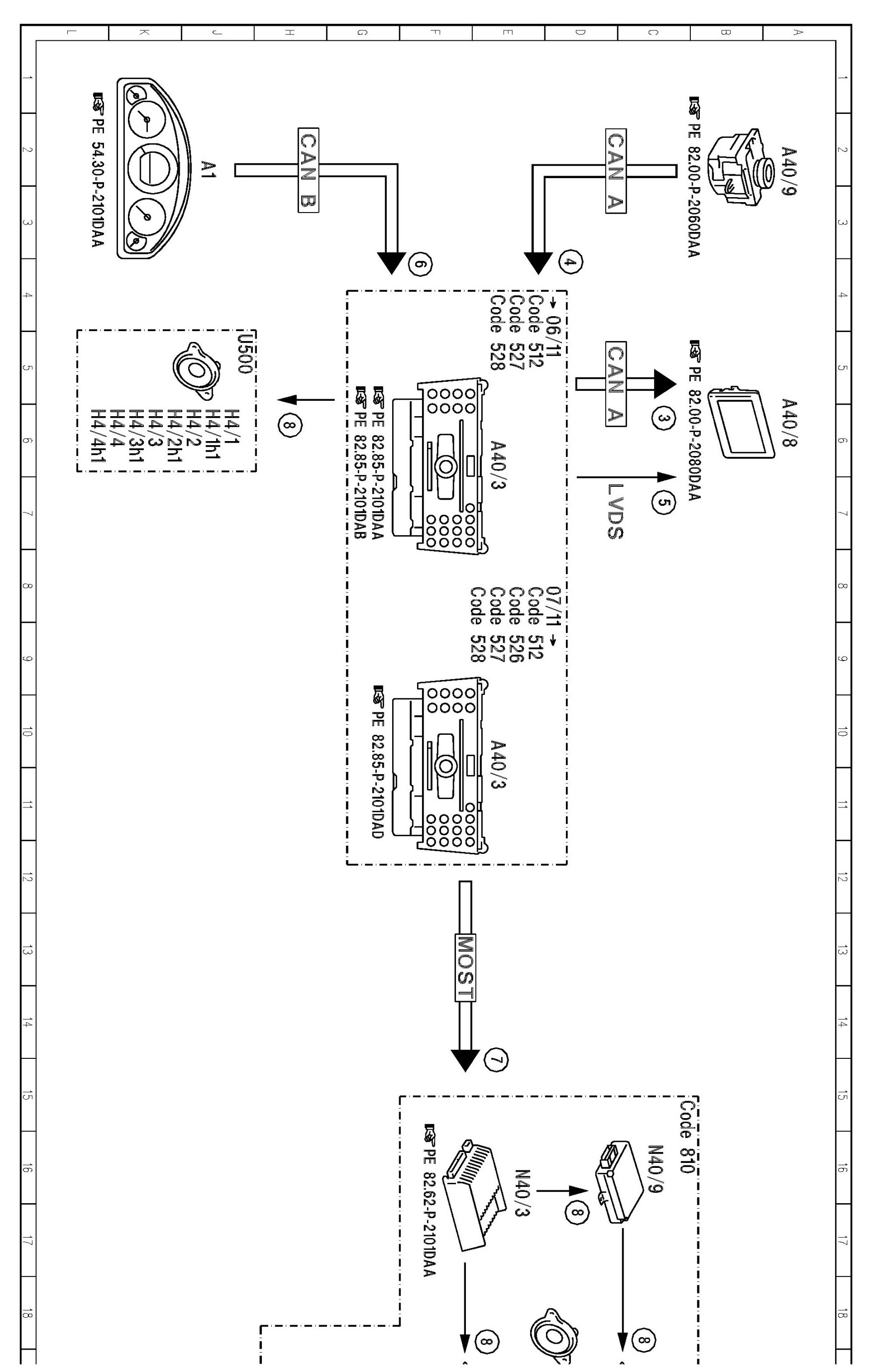

PE82.85-P-2064DAA Electrical Function Diagram For Video Mode, Function

PE82.85-P-2064DAA Electrical Function Diagram For Video Mode, Function
MODEL 212
- with CODE (512) COMAND APS with DVD changer
- with CODE (526) COMAND with single DVD drive (without navigation)
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) HIGH Class USA






































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
