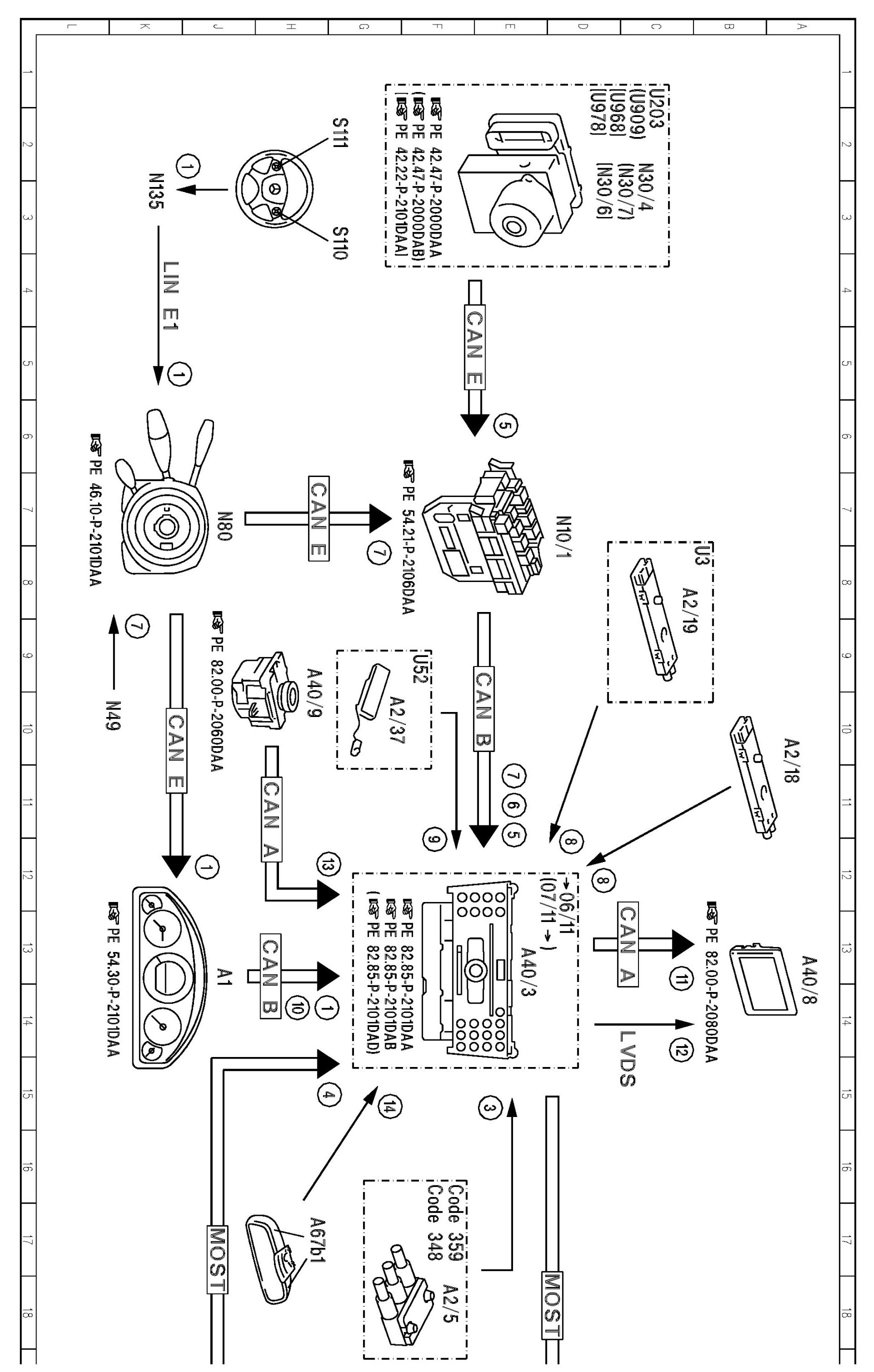

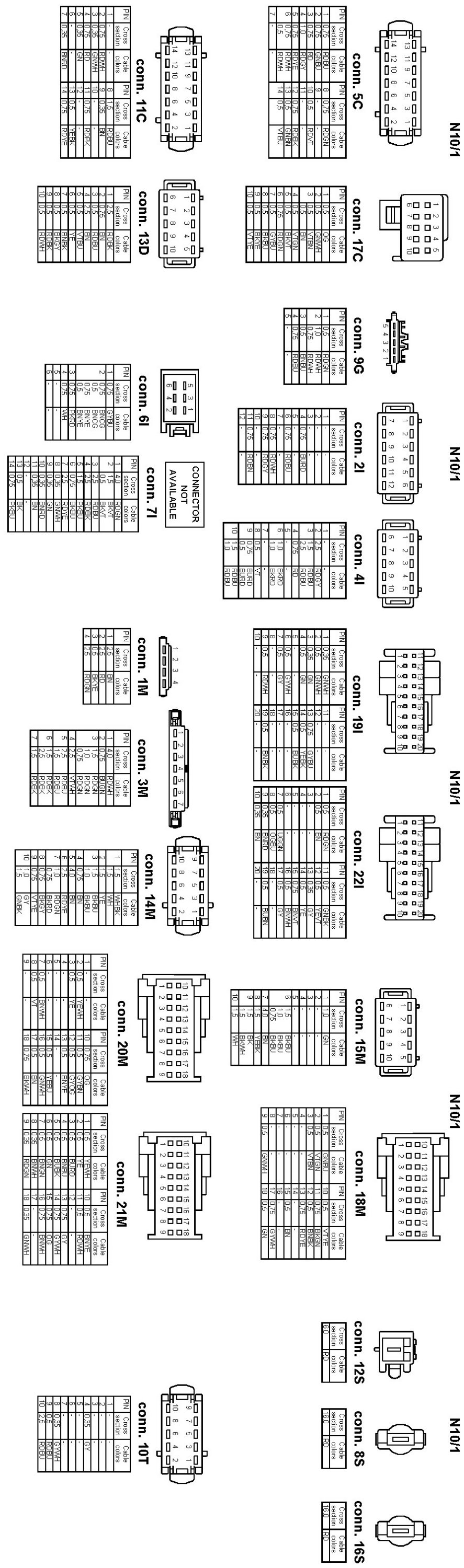

PE82.85-P-2063DAA Electrical Function Diagram For Navigation Mode (COMAND), Function

PE82.85-P-2063DAA Electrical Function Diagram For Navigation Mode (COMAND), Function
MODEL 212.0 /2
- with CODE (527) COMAND APS (with navigation)
MODEL 212.0 /2
- with CODE (512) COMAND APS with DVD changer

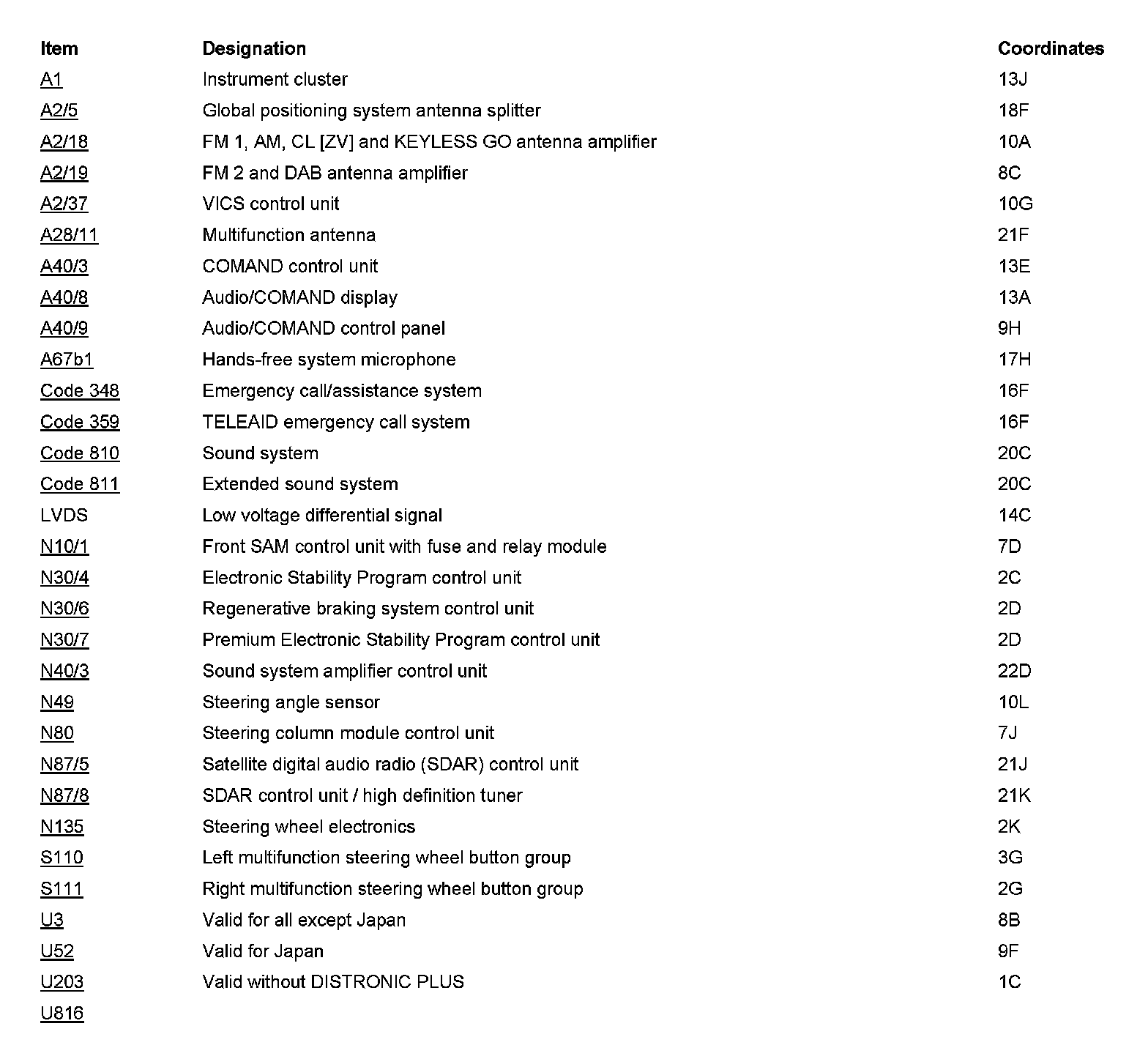

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
